Data General 6629 Installing And Operating Information page 8

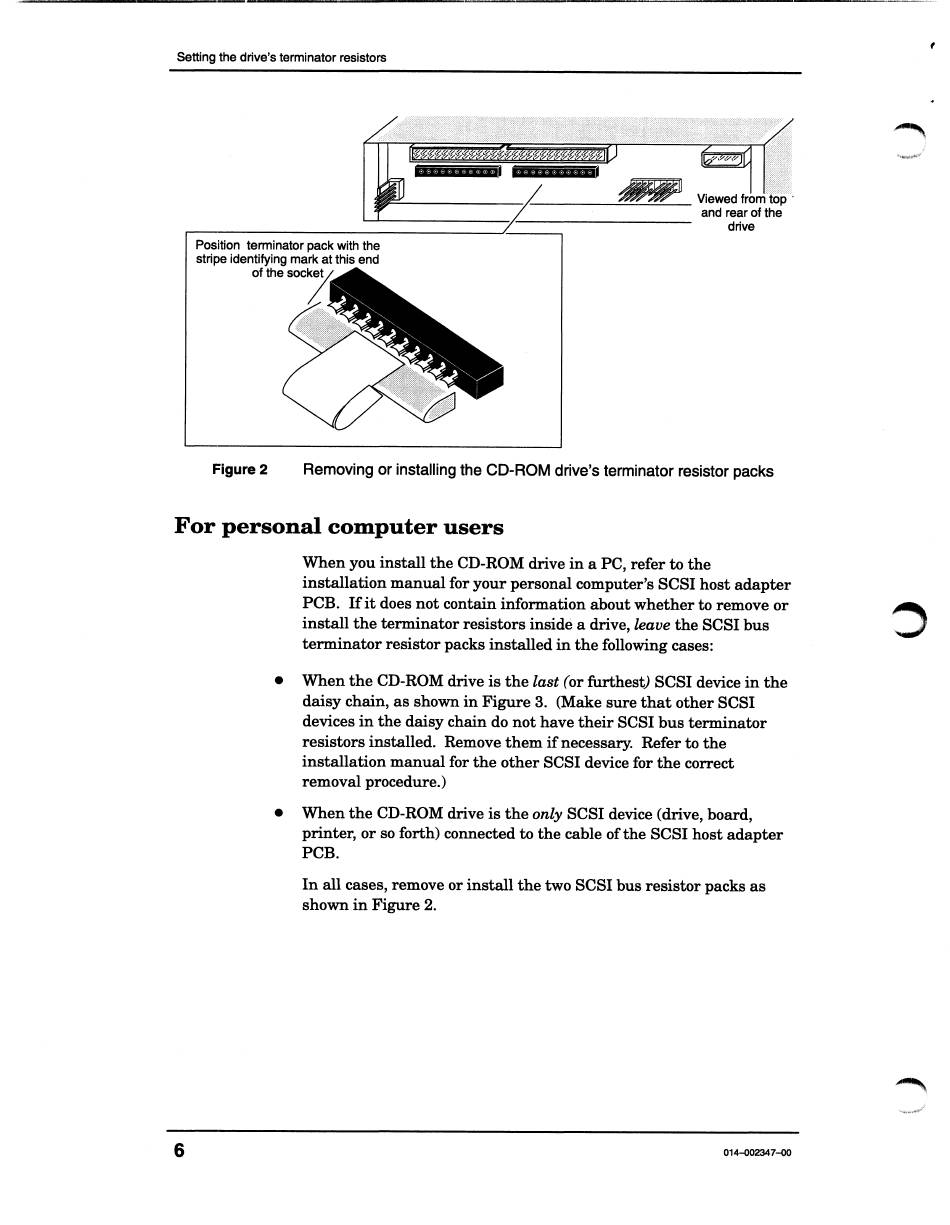

Setting the drive's terminator resistors
tl Wl? _Niewed trom top °
and rear of the
PCB. Ifit does not contain information about whether to remove or
daisy chain, as shown in Figure 3. (Make sure that other SCSI
devices in the daisy chain do not have their SCSI bus terminator
resistors installed. Remove them if necessary. Refer to the
installation manual for the other SCSI device for the correct
removal procedure.)
@ When the CD-ROM drive is the only SCSI device (drive, board,
printer, or so forth) connected to the cable of the SCSI host adapter
In all cases, remove or install the two SCSI bus resistor packs as
shown in Figure 2.
6 014-002347--00
