Connecting headphones to the CD-ROM drive
NOTE: Do not insert the
paper clip more than
caddy manual-eject hole.
(Ss
paper clip

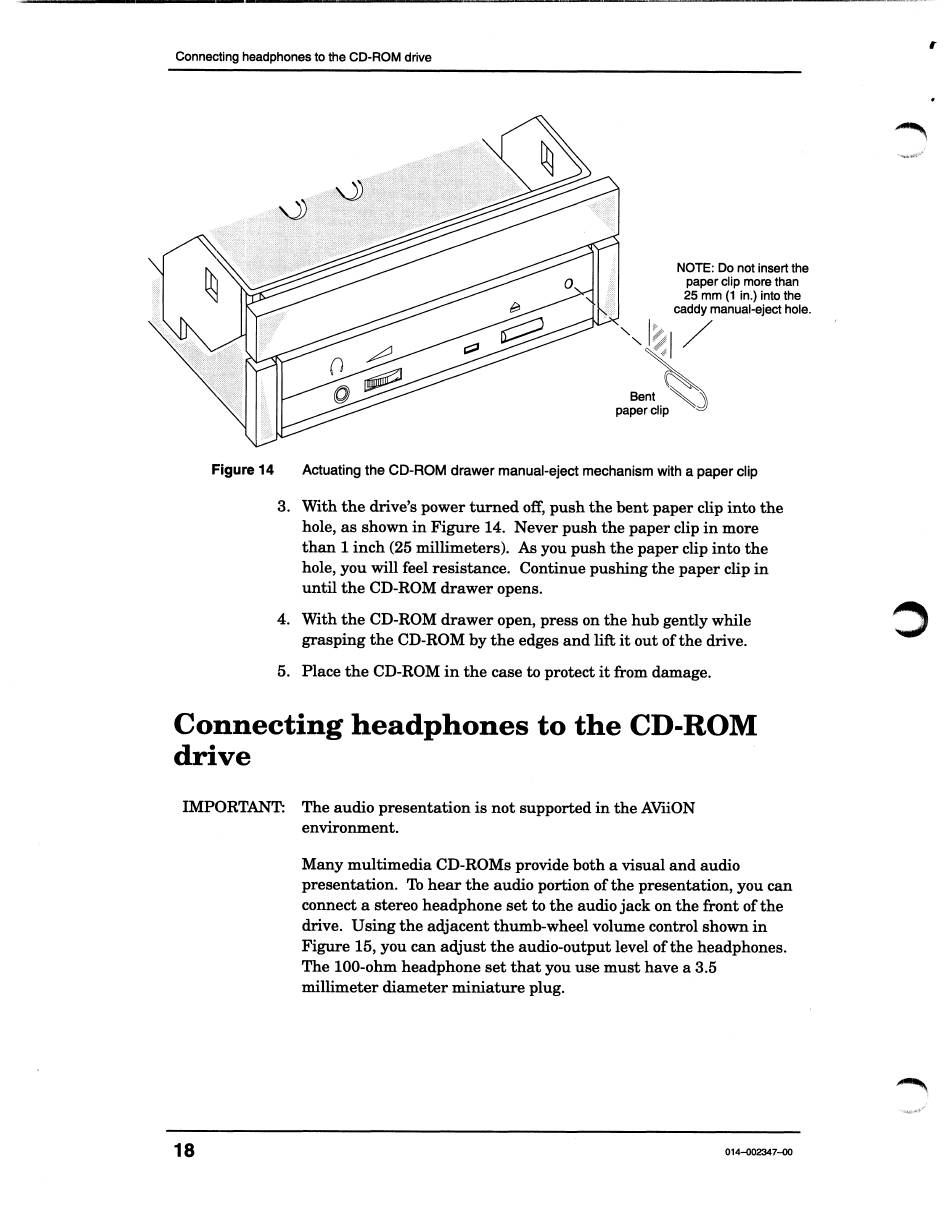

Figure 14 Actuating the CD-ROM drawer manual-eject mechanism with a paper clip
3. With the drive's power turned off, push the bent paper clip into the
hole, as shown in Figure 14. Never push the paper clip in more
than 1 inch (25 millimeters). As you push the paper clip into the
hole, you will feel resistance. Continue pushing the paper clip in
until the CD-ROM drawer opens.
4. With the CD-ROM drawer open, press on the hub gently while
grasping the CD-ROM by the edges and lift it out of the drive.
5. Place the CD-ROM in the case to protect it from damage.
Connecting headphones to the CD-ROM
drive |
IMPORTANT: The audio presentation is not supported in the AViiON
environment.
Many multimedia CD-ROMs provide both a visual and audio
presentation. To hear the audio portion of the presentation, you can
connect a stereo headphone set to the audio jack on the front of the
drive. Using the adjacent thumb-wheel volume control shown in
Figure 15, you can adjust the audio-output level of the headphones.
The 100-ohm headphone set that you use must have a 3.5
millimeter diameter miniature plug.
18 014-002347-00
