Refrigerated Showcases

Models RS-CN-0440, 0530, 0700, 1050, 0440-B, 0530-B, 0700-B, 1050-B

Items 48479, 43459, 41469, 43460, 48480, 48265, 48266, 48269

Instruction Manual

Revised - 12/06/2024

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: service@omcan.com

www.omcan.com

Table of Contents

Need help?

Do you have a question about the RS-CN-0440 and is the answer not in the manual?

Questions and answers

Summary of Contents for Omcan RS-CN-0440

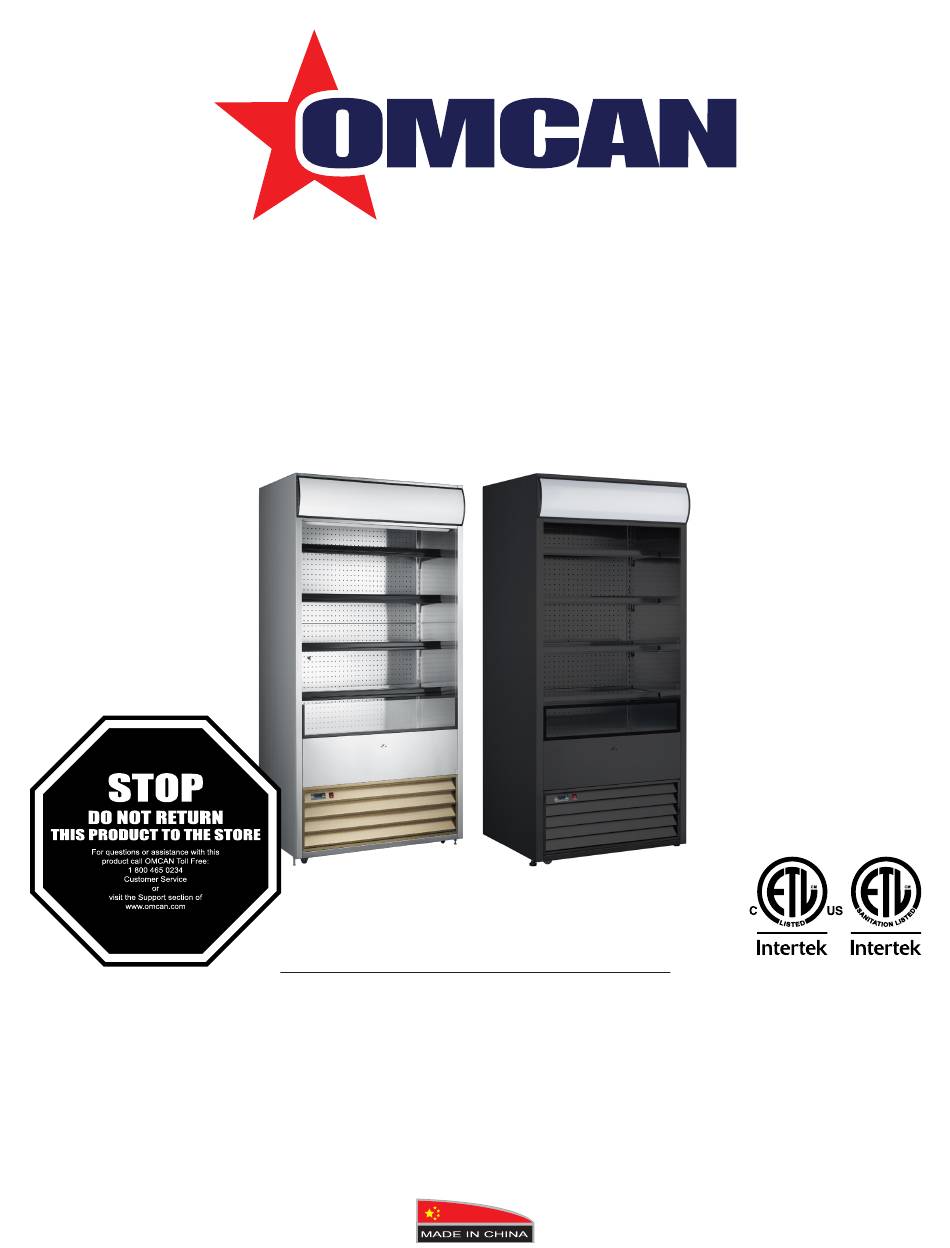

Page 1 Refrigerated Showcases Models RS-CN-0440, 0530, 0700, 1050, 0440-B, 0530-B, 0700-B, 1050-B Items 48479, 43459, 41469, 43460, 48480, 48265, 48266, 48269 Instruction Manual Revised - 12/06/2024 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
Page 2: Table Of Contents
Table of Contents Model RS-CN-0440 / Model RS-CN-0530 / Model RS-CN-0700 Model RS-CN-1050 / Model RS-CN-0440-B / Model RS-CN-0530-B Model RS-CN-0700-B / Model RS-CN-1050-B Section Page Disclaimer ---------------------------------------------------------------------------------------- 3 General Information -------------------------------------------------------------------- 4 - 5 Safety and Warranty ------------------------------------------------------------------- 5 - 7...
Page 3: Disclaimer
D’HUMIDITÉ RELATIVE, ET SI LE DRAIN DE L’APPAREIL N’EST PAS RACCORDÉ DIRECTEMENT À UN DRAIN DE PLANCHER. OMCAN NO SE HACE RESPONSABLE DE LOS DAÑOS CAUSADOS POR FUGAS DE AGUA. LA GARANTÍA POR FUGAS DE AGUA QUEDA ANULADA SI LA TEMPERATURA AMBIENTE SUPERA LOS 75°F Y EL...
Page 4: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.
Page 5: Handling And Installation
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
Page 6: Preparation And Power Supply
SUITABLE FOR HIGH TRAFFIC AREAS WHERE NOISE LEVELS ARE NOT A CONCERN. OMCAN IS NOT RESPONSIBLE FOR DIMINISHED COOLING OR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY FOR WATER LEAKS IS VOID IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO A FLOOR DRAIN.
Page 7 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally.
Page 8: Technical Specifications
Technical Specifications STEEL UNITS Model RS-CN-0440 RS-CN-0530 RS-CN-0700 RS-CN-1050 Item Number 48479 43459 41469 43460 Rated Input Power 1700 W 2550 W 2400 W Capacity 440 L / 15.53 cu.ft. 530 L / 18.71 cu.ft. 700 L / 24.72 cu.ft.
Page 9: Before Use
Technical Specifications BLACK UNITS Model RS-CN-0440-B RS-CN-0530-B RS-CN-0700-B RS-CN-1050-B Item Number 48480 48265 48266 48269 Rated Input Power 1700 W 2550 W 2400 W Capacity 440 L / 15.53 cu.ft. 530 L / 18.71 cu.ft. 700 L / 24.72 cu.ft.
Page 10: Digital Temperature Controller
Operation DIGITAL TEMPERATURE CONTROLLER FEATURES OF FUNCTION • Small, integrated digital controller, which is applicable to the compressor of 1 HP. Located behind the front grill. • Main functions are: temperature display, temperature control, manual-automatic, light control, value storing, self-testing, parameter locking. FRONT PANEL OPERATION 1.
Page 11: Maintenance
Power on. operation. Melting process. Stop melting. Refrigerant leaking. Patch the leak and refill refrigerant. Unit failure. Call Omcan. Weak air from air curtain, and Evaporator blocked by frost. Increase melting frequency. higher cabinet temperature. Inside fan damaged. Replace the fan.
Page 12 Troubleshooting Normal air curtain, but higher Insufficient refrigerant. Refill the refrigerant. cabinet temperature. Too high set point of temperature Adjust the set point for the controllers. temperature controller. The wind curtain disturbed by Removing the disturbing factors. strong air flow. Ambient temperature or humidity Improve the conditions.
Page 13: Parts Breakdown
Parts Breakdown Model RS-CN-0440 48479...
Page 14 Parts Breakdown Model RS-CN-0440 48479 Item No. Description Position Item No. Description Position Item No. Description Position General Assembly for Shelf for AP390 Compressor for 48479 AT371 Air Inlet Panel for 48479 AT387 48479 Parry of Lower Air Intake for...
Page 15 Parts Breakdown Model RS-CN-0440 48479 Item No. Description Position Item No. Description Position Item No. Description Position Left Windshield of Condenser 68301 Strong Magnet for 48479 AD481 Overheating Probe for 48479 AT402 for 48479 Right Windshield of Condenser AT398 60670...
Page 16 Parts Breakdown Model RS-CN-0530 43459...
Page 17 Parts Breakdown Model RS-CN-0530 43459 Item No. Description Position Item No. Description Position Item No. Description Position AP390 Compressor for 43459 60617 Rear Foam Baffle for 43459 AO876 Ventilated Board for 43459 Parry of Right Lining Plate for AP391 Base for 43459 66096 Back Upper Crosspiece for 43459 60629...
Page 18 Parts Breakdown Model RS-CN-0530 43459 Item No. Description Position Item No. Description Position Item No. Description Position AR485 Switch (Higher Amp) for 43459 60672 Feet for 43459 AO889 Water Pipe for 43459 AP402 Switch Cover for 43459 AL357 Castor for 43459 AL376 Circlip for 43459 High Pressure Evaporation Tube...
Page 19 Parts Breakdown Model RS-CN-0700 41469...
Page 20 Parts Breakdown Model RS-CN-0700 41469 Item No. Description Position Item No. Description Position Item No. Description Position AP414 Compressor (R290) for 41469 70120 Rear Foam Baffle for 41469 60655 Water Box for 41469 AP415 Base for 41469 70143 Back Upper Crosspiece for 41469 AO904 Ventilated Board for 41469 Back Support for Board at Air...
Page 21 Parts Breakdown Model RS-CN-0700 41469 Item No. Description Position Item No. Description Position Item No. Description Position Water Connection Box Component High Pressure Evaporation Tube AP423 Condenser for 41469 67651 60652 for 41469 Pressure Plate for 41469 Connecting Tube for Right Baffle Board of Evaporator Motor 68301 Strong Magnet for 41469...
Page 22 Parts Breakdown Model RS-CN-1050 43460...
Page 23 Parts Breakdown Model RS-CN-1050 43460 Item No. Description Position Item No. Description Position Item No. Description Position Crosspiece of Back Foam for Vertical Plate of Back Foam for AP414 Compressor (R290) for 43460 67676 67684 43460 43460 Holding Plate of Back Foam AP434 Base for 43460 66105...
Page 24 Parts Breakdown Model RS-CN-1050 43460 Item No. Description Position Item No. Description Position Item No. Description Position Left Bottom High Pressure Left Front Bracket of Evaporating AP442 76--2 60721 Lower Front Waling for 43460 AP448 Evaporating Tube for 43460 Pan for 43460 Right Top High Pressure Bottom Evaporating Pan AP443...
Page 25 Parts Breakdown Model RS-CN-0440-B 48480...
Page 26 Parts Breakdown Model RS-CN-0440-B 48480 Item No. Description Position Item No. Description Position Item No. Description Position Rear Support of Air Inlet Panel AP390 Compressor for 48480 AT370 Evaporator Windshield for 48480 AT386 for 48480 Air Inlet Panel - Plastic Coated...
Page 27 Parts Breakdown Model RS-CN-0440-B 48480 Item No. Description Position Item No. Description Position Item No. Description Position High Pressure Evaporation Tube 60652 AR485 Switch (Higher Amp) for 48480 AO865 Filter Pressure Plate for 48480 Pressure Plate for 48480 Left Windshield of Condenser...
Page 28 Parts Breakdown Model RS-CN-0530-B 48265...
Page 29 Parts Breakdown Model RS-CN-0530-B 48265 Item No. Description Position Item No. Description Position Item No. Description Position AP390 Compressor for 48265 60617 Rear Foam Baffle for 48265 AO876 Ventilated Board for 48265 Parry of Right Lining Plate for AP391 Base for 48265 66096 Back Upper Crosspiece for 48265 60629...
Page 30 Parts Breakdown Model RS-CN-0530-B 48265 Item No. Description Position Item No. Description Position Item No. Description Position AR485 Switch (Higher Amp) for 48265 AL357 Castor for 48265 AO889 Water Pipe for 48265 High Pressure Evaporation Tube AQ674 Window Shutter for 48265 60653 AL376 Circlip for 48265...
Page 31 Parts Breakdown Model RS-CN-0700-B 48266...
Page 32 Parts Breakdown Model RS-CN-0700-B 48266 Item No. Description Position Item No. Description Position Item No. Description Position AP414 Compressor (R290) for 48266 70120 Rear Foam Baffle for 48266 60655 Water Box for 48266 AP415 Base for 48266 70143 Back Upper Crosspiece for 48266 AQ684 Ventilated Board for 48266 Back Support for Board at Air...
Page 33 Parts Breakdown Model RS-CN-0700-B 48266 Item No. Description Position Item No. Description Position Item No. Description Position Water Connection Box Component High Pressure Evaporation Tube AP423 Condenser for 48266 67651 60652 for 48266 Pressure Plate for 48266 Connecting Tube for Right Baffle Board of Evaporator Motor 68301 Strong Magnet for 48266...
Page 34 Parts Breakdown Model RS-CN-1050-B 48269...
Page 35 Parts Breakdown Model RS-CN-1050-B 48269 Item No. Description Position Item No. Description Position Item No. Description Position Crosspiece of Back Foam for Vertical Plate of Back Foam for AP414 Compressor (R290) for 48269 67676 67684 48269 48269 Holding Plate of Back Foam AP434 Base for 48269 66105...
Page 36 Parts Breakdown Model RS-CN-1050-B 48269 Item No. Description Position Item No. Description Position Item No. Description Position Left Bottom High Pressure Left Front Bracket of Evaporating AP442 76--2 AQ699 Lower Front Crosspiece for 48269 AP448 Evaporating Tube for 48269 Pan for 48269 Right Top High Pressure Bottom Evaporating Pan AP443...
Page 37: Electrical Schematics
Electrical Schematics Model RS-CN-0440 48479 Model RS-CN-0440-B 48480...
Page 38 Electrical Schematics Model RS-CN-0530 43459 Model RS-CN-0530-B 48265...
Page 39 Electrical Schematics Model RS-CN-0700 41469 Model RS-CN-0700-B 48266...
Page 40 Electrical Schematics Model RS-CN-1050 43460 Model RS-CN-1050-B 48269...
Page 41: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
Page 42 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
Page 43: Product Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
Page 44 à plus de 6500 produits provenant du monde entier. Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir a nuestro compromiso de fortalecer y desarrollar nuevas relaciones...
