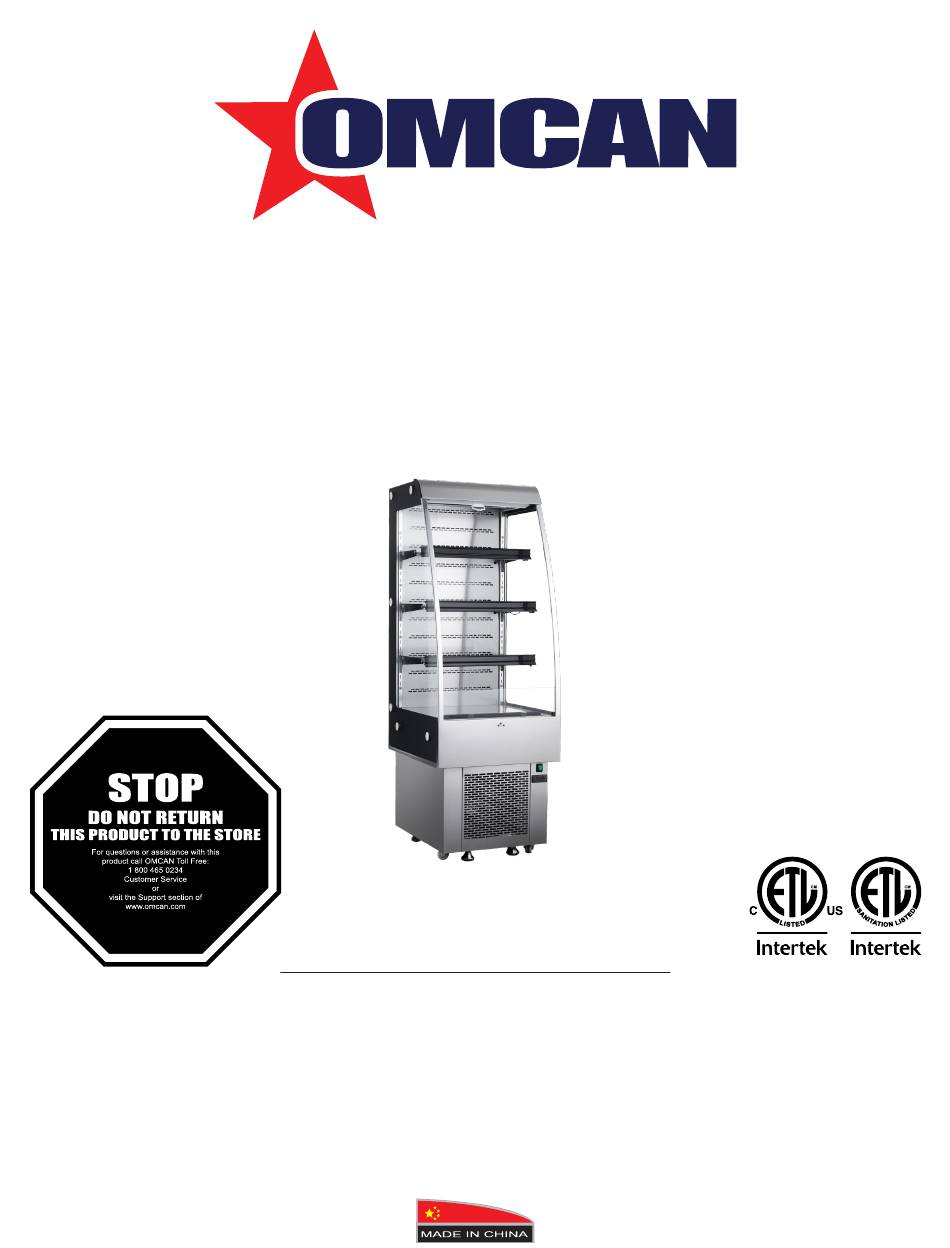

- Page 1 Refrigerated Display Case Model RS-CN-0250 Item 25825 Instruction Manual Revised - 08/02/2024 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model RS-CN-0250 Section Page Disclaimer ----------------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------------- 5 - 6 Technical Specifications ------------------------------------------------------------------------------- 7 Handling and Assembly -------------------------------------------------------------------------------- 8 Operation -------------------------------------------------------------------------------------------------- 8 - 9 Maintenance ------------------------------------------------------------------------------------------------- 9... -
Page 3: Disclaimer
Disclaimer OMCAN IS NOT RESPONSIBLE FOR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY FOR WATER LEAKS IS VOID IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO A FLOOR DRAIN. -
Page 4: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 5: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 6 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally.
-
Page 7: Technical Specifications
Technical Specifications Model RS-CN-0250 Item Number 25825 Capacity 252 L / 8.89 cu.ft. Number of Doors 1 Pull Down Curtain Number of Shelves (2) 15” x 21.7” / 381 x 552mm Shelf Size (1) 12” x 21.7” / 305 x 552mm... -
Page 8: Handling And Assembly
Handling and Assembly Handle with care Dry place Unplug the wall socket first. Never tilt it over 45 Always locate the refrigerator in a dry location. degrees when handling. Sufficient space Well ventilated The distance from both sides and back of refrigerator Always locate the refrigerator in an area with good to wall or other substance must be no less than 10 ventilation. -
Page 9: Parameter Settings
4. Frequently observe the operation of the product. In case of abnormal noise, smell or smog, cut the power supply immediately and call for a trained technician. Do not restart the product before the problem is fixed. 5. Omcan Inc. will not be responsible for any accidents that occur because of failure to follow the regular maintenance. -
Page 10: Troubleshooting
Troubleshooting Troubles Causes Solutions Strange noise under the bottom Fan blade is broken. Power off and fix the blade. shelf. No refrigeration in spite of normal Unit off. Power on. operation. Defrost process. Stop defrost cycle. Refrigerant leaking. Patch the leak and refill refrigerant. Unit failure. -
Page 11: Controller Instructions
Troubleshooting NOTE The murmur of water is heard when the refrigerator is working. The coolant is circulating in the system. During wet seasons, condensation might be found on the outside of the refrigerator. This is caused by high humidity. Use a cloth to wipe it. NOTE The electric circuit diagram and parameters on the product name plate are final ones. -
Page 12: The Main Features
Controller Instructions • Exceptional events. FEATURES OF FUNCTION • This temperature controller very reliable and durable. The relay is exclusively for the use of the compressor load which makes it safer. This way, the control of temperature easy to operate. •... -
Page 13: Front Panel Operation
Controller Instructions FRONT PANEL OPERATION • Set temperature: Press “SET” button, the set temperature is displayed. Press the “UP” or “DOWN” buttons to modify and store the displayed value, press the “SET” button to exit the menu and display the cold-room temperature. -
Page 14: Parameter Details
Controller Instructions Maximum Defrost Duration Approx. 1 – 60 minutes 20° 25° Defrost Interval Time Approx. 00 – 24 hours 06° 4° Defrost Termination Temperature Approx. 0 – 20°C 12°C 20° Approx. 32°F - 68°F 54°F Display During Defrost 00 = normal display 01°... - Page 15 Controller Instructions temperatures. Please pay attention to EMC problem and prevent the temperature controller from any potentially dangerous contact. • The sensor cable leads must be kept away from the main supply in order to avoid a high frequency noise. 0.75 –...
-
Page 16: Parts Breakdown
Parts Breakdown Model RS-CN-0250 25825... - Page 17 Parts Breakdown Model RS-CN-0250 25825...
- Page 18 Parts Breakdown Model RS-CN-0250 25825 Item No. Description Position Item No. Description Position Item No. Description Position 79290 Power Cord for 25825 60577 Dry Filter for 25825 79347 Front Decorative Board for 25825 Left Support Pillar of Shelf for AP913...
- Page 19 Parts Breakdown Model RS-CN-0250 25825 Item No. Description Position Item No. Description Position Item No. Description Position Platen of High Pressure Pagoda Water Mouth-Processing AR217 PPR Elbow for 25825 AR502 AL306 Evaporation Tube for 25825 for 25825 Bracket of Water Receiver for...
-
Page 20: Electrical Schematics
Electrical Schematics Model RS-CN-0250 25825... -
Page 21: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... - Page 22 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
-
Page 23: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 24 à plus de 6500 produits provenant du monde entier. Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir a nuestro compromiso de fortalecer y desarrollar nuevas relaciones...
