Summary of Contents for Omcan RS-CN-0092-B

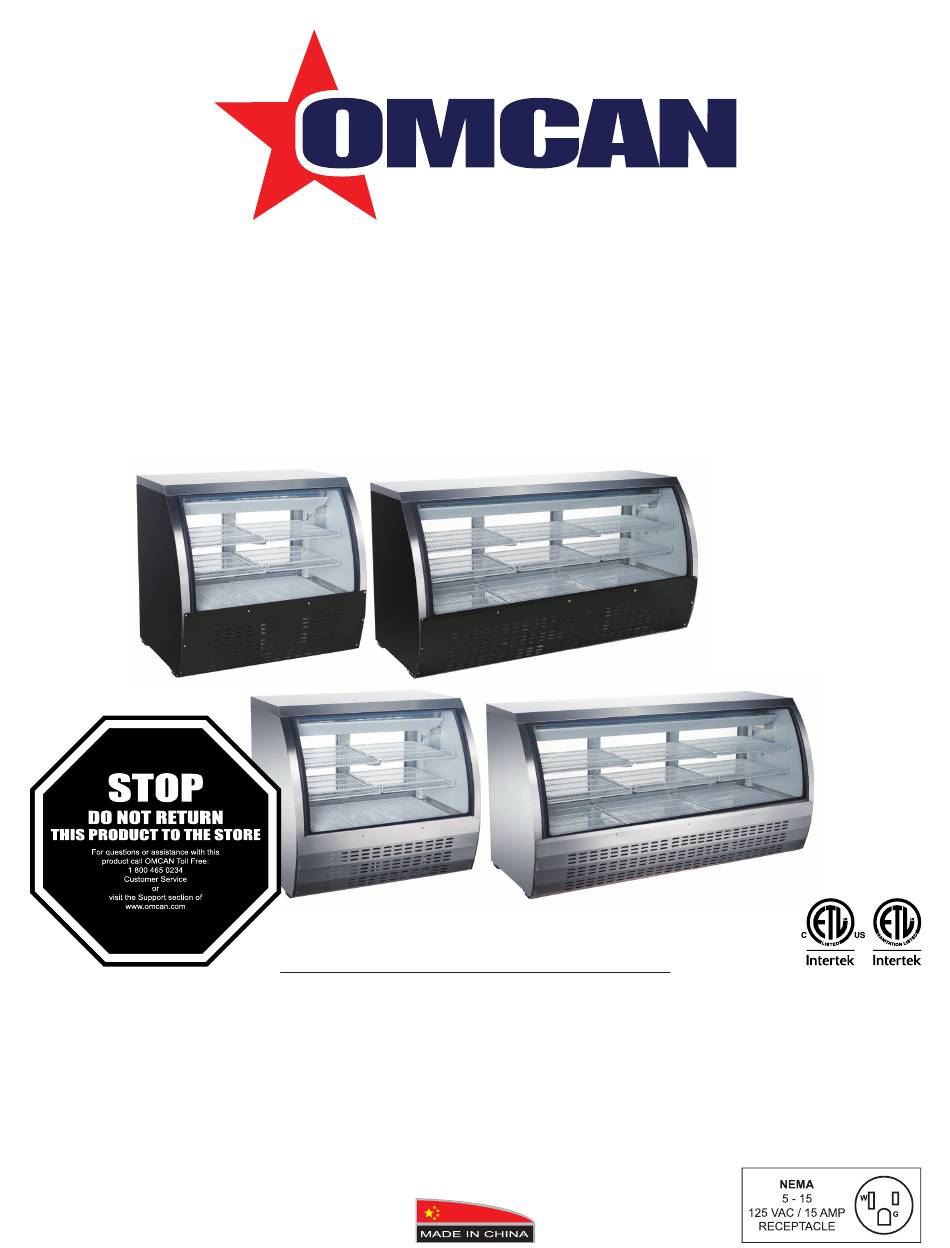

- Page 1 Refrigerated Showcases Models RS-CN-0092-B, 0163-B, 0092-S, 0163-S Items 50082, 50083, 50084, 50085 Instruction Manual Revised - 03/15/2021 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model RS-CN-0092-B / Model RS-CN-0163-B Model RS-CN-0092-S / Model RS-CN-0163-S Section Page Disclaimer -------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------- 5 - 6 Technical Specifications -------------------------------------------------------------------------- 7 Installation and Operation -------------------------------------------------------------------- 7 - 8... -
Page 3: Disclaimer
Disclaimer OMCAN IS NOT RESPONSIBLE FOR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY FOR WATER LEAKS IS VOID IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO A FLOOR... -
Page 4: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 5: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 6 1 YEAR PARTS AND LABOR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
-
Page 7: Technical Specifications
Technical Specifications Model RS-CN-0092-B RS-CN-0092-S RS-CN-0163-B RS-CN-0163-S Type Black Coated Steel Stainless Steel Black Coated Steel Stainless Steel Temperature 0 - 6ºC / 32 - 43ºF Range Max Ambient Temp 32ºC / 90ºF Rating Power 1/3 HP 3/5 HP Electrical... -
Page 8: Maintenance
Installation and Operation • DO NOT USE EXTENSION CORDS. The use of extension cords to connect the cooler will void warranty. The unit must be close enough to the electrical supply so that extension cords are never used. • The cooler should always be plugged into its own dedicated circuit with a voltage rating that matches the rating plate. - Page 9 Maintenance CLEANING THE CONDENSER COIL REQUIRED TOOLS • Phillips screwdriver. • Stiff bristle brush. • Adjustable wrench. WHEN USING ELECTRICAL APPLIANCES BASIC SAFETY PRECAUTIONS SHOULD BE FOLLOWED. • Disconnect power to unit. • Take off front grill assembly by removing all screws. •...
-
Page 10: Troubleshooting
Maintenance stainless steel’s passive layer will not be harmed by soft cloths and plastic scouring pads. • Clean along the polish lines. Polish lines or grain are visible on some stainless steel. Always scrub parallel to visible lines. Use a plastic scouring pad or soft cloth when grain is not visible. •... - Page 11 Troubleshooting Condensing unit runs for long Excessive amount of warn product Allow adequate time for product to periods of time. placed in cabinet. cool down. Prolonged door opening or door Ensure doors are closed when not ajar. in use. Avoid opening doors for long periods of time.
-
Page 12: Parts Breakdown
Parts Breakdown Model RS-CN-0092-B 50082 Model RS-CN-0092-S 50084... - Page 13 Parts Breakdown Model RS-CN-0092-B 50082 Item No. Description Position Item No. Description Position Item No. Description Position Right Track of Installation Board for AB566 AB580 Grill Components for 50082 AB592 Compressor for 50082 50082 Installation Board of Compressor for AB567...
- Page 14 Parts Breakdown Model RS-CN-0092-S 50084 Item No. Description Position Item No. Description Position Item No. Description Position Right Track of Installation Board for AB607 AB617 Grill Components for 50084 AB592 Compressor for 50084 50084 Installation Board of Compressor for AB608 AB581 Evaporator for 50084 AB624...
- Page 15 Parts Breakdown Model RS-CN-0163-B 50083 Model RS-CN-0163-S 50085...
- Page 16 Parts Breakdown Model RS-CN-0163-B 50083 Item No. Description Position Item No. Description Position Item No. Description Position Right Track of Installation Board for AB695 AB709 Evaporator for 50083 AB718 Inner Drain Pan for 50083 50083 Installation Board of Compressor for AB696 AA135 Power Cord for 50083...
- Page 17 Parts Breakdown Model RS-CN-0163-S 50085 Item No. Description Position Item No. Description Position Item No. Description Position Right Track of Installation Board for AB730 AB709 Evaporator for 50085 AB747 Inner Drain Pan for 50085 50085 Installation Board of Compressor for AB731 AA135 Power Cord for 50085...
-
Page 18: Electrical Schematics
Electrical Schematics Model RS-CN-0092-B 50082 Model RS-CN-0163-B 50083 Model RS-CN-0092-S 50084 Model RS-CN-0163-S 50085... -
Page 19: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
