Omcan RS-CN-0530 Instruction Manual

Refrigerated showcases
Hide thumbs Also See for RS-CN-0530:
Table of Contents

Advertisement

Quick Links

Download this manual
Refrigerated Showcases
Models RS-CN-0530, 0700, 1050, 0530-B, 0700-B, 1050-B
Items 43459, 41469, 43460, 48265, 48266, 48269
Instruction Manual
Revised - 05/22/2024
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS-CN-0530 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omcan RS-CN-0530

Summary of Contents for Omcan RS-CN-0530

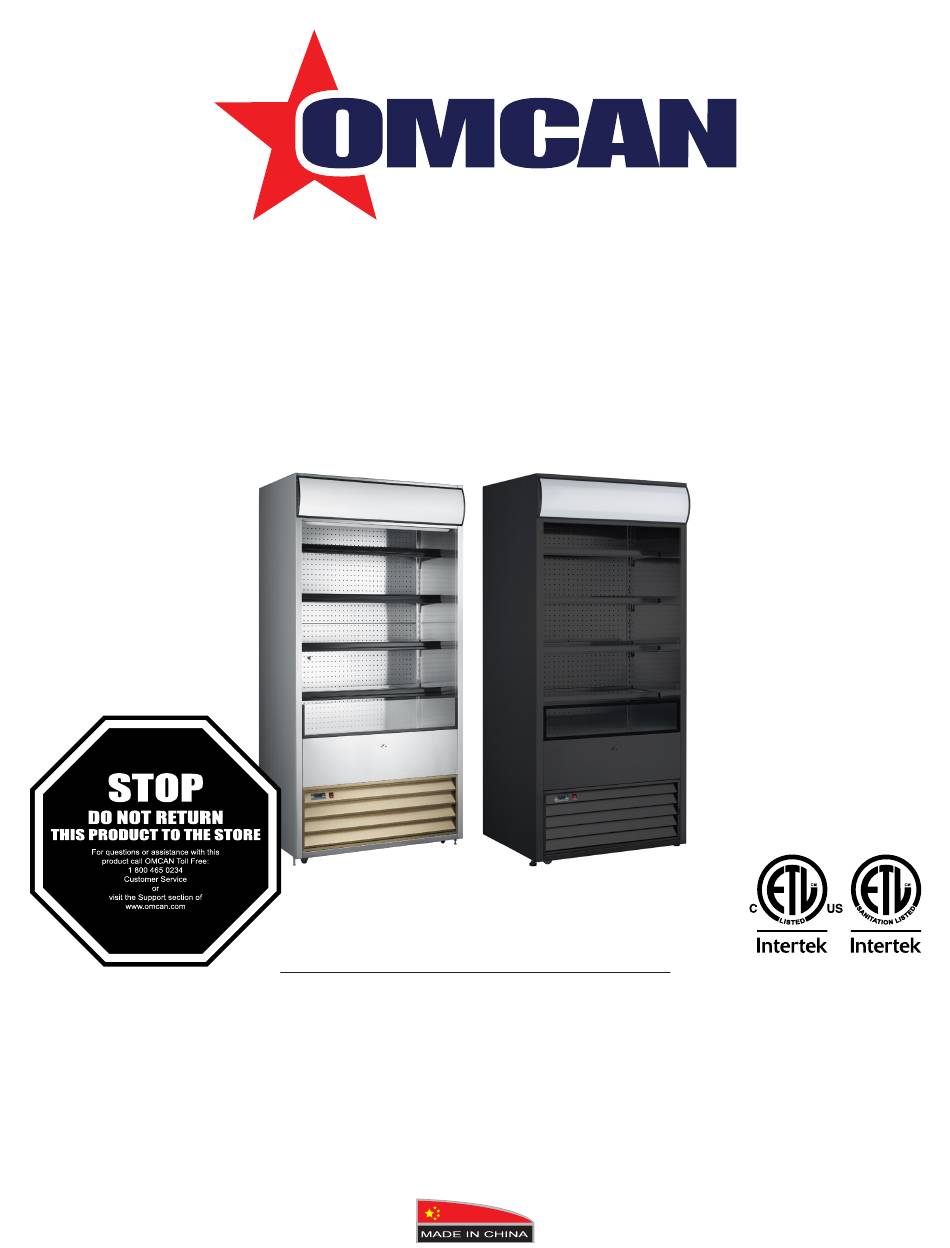

  • Page 1 Refrigerated Showcases Models RS-CN-0530, 0700, 1050, 0530-B, 0700-B, 1050-B Items 43459, 41469, 43460, 48265, 48266, 48269 Instruction Manual Revised - 05/22/2024 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model RS-CN-0530 / Model RS-CN-0700 / Model RS-CN-1050 Model RS-CN-0530-B / Model RS-CN-0700-B / Model RS-CN-1050-B Section Page Disclaimer ---------------------------------------------------------------------------------------- 3 General Information -------------------------------------------------------------------- 4 - 5 Safety and Warranty ------------------------------------------------------------------- 5 - 7 Technical Specifications ----------------------------------------------------------------- 8...

  • Page 3: Disclaimer

    D’HUMIDITÉ RELATIVE, ET SI LE DRAIN DE L’APPAREIL N’EST PAS RACCORDÉ DIRECTEMENT À UN DRAIN DE PLANCHER. OMCAN NO SE HACE RESPONSABLE DE LOS DAÑOS CAUSADOS POR FUGAS DE AGUA. LA GARANTÍA POR FUGAS DE AGUA QUEDA ANULADA SI LA TEMPERATURA AMBIENTE SUPERA LOS 75°F Y EL...

  • Page 4: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 5: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 6 SUITABLE FOR HIGH TRAFFIC AREAS WHERE NOISE LEVELS ARE NOT A CONCERN. OMCAN IS NOT RESPONSIBLE FOR DIMINISHED COOLING OR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY FOR WATER LEAKS IS VOID IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO A FLOOR DRAIN.
  • Page 7 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally.

  • Page 8: Technical Specifications

    Technical Specifications Model RS-CN-0530 RS-CN-0530-B RS-CN-0700 RS-CN-0700-B RS-CN-1050 RS-CN-1050-B Item Number 43459 48265 41469 48266 43460 48269 Type Steel Black Steel Black Steel Black Rated Input Power 1340 W 2650 W 1960 W Capacity 530 L / 18.7 cu.ft. 700 L / 24.7 cu.ft.

  • Page 9: Operation

    Operation DIGITAL TEMPERATURE CONTROLLER FEATURES OF FUNCTION • Small, integrated digital controller, which is applicable to the compressor of 1 HP. Located behind the front grill. • Main functions are: temperature display, temperature control, manual-automatic, light control, value storing, self-testing, parameter locking. FRONT PANEL OPERATION 1.

  • Page 10: Maintenance

    Power on. normal operation. Melting process. Stop melting. Refrigerant leaking. Patch the leak and refill refrigerant. Unit failure. Call Omcan. Weak air from air curtain, Evaporator blocked by frost. Increase melting frequency. and higher cabinet Inside fan damaged. Replace the fan.

  • Page 11: Troubleshooting

    Troubleshooting Normal air curtain, but Insufficient refrigerant. Refill the refrigerant. higher cabinet temperature. Too high set point of temperature Adjust the set point for the controllers. temperature controller. The wind curtain disturbed by strong Removing the disturbing factors. air flow. Ambient temperature or humidity Improve the conditions.

  • Page 12: Parts Breakdown

    Parts Breakdown Model RS-CN-0530 43459...
  • Page 13 Parts Breakdown Model RS-CN-0530 43459 Item No. Description Position Item No. Description Position Item No. Description Position AP390 Compressor for 43459 60617 Rear Foam Baffle for 43459 AO876 Ventilated Board for 43459 Parry of Right Lining Plate for AP391 Base for 43459...
  • Page 14 Parts Breakdown Model RS-CN-0530 43459 Item No. Description Position Item No. Description Position Item No. Description Position 71514 Switch (Green) for 43459 60672 Feet for 43459 AO889 Water Pipe for 43459 AP402 Switch Cover for 43459 AL357 Castor for 43459...
  • Page 15 Parts Breakdown Model RS-CN-0700 41469...
  • Page 16 Parts Breakdown Model RS-CN-0700 41469 Item No. Description Position Item No. Description Position Item No. Description Position AP414 Compressor for 41469 70120 Rear Foam Baffle for 41469 60655 Water Box for 41469 AP415 Base for 41469 70143 Back Upper Crosspiece for 41469 AO904 Ventilated Board for 41469 Back Support for Board at Air...
  • Page 17 Parts Breakdown Model RS-CN-0700 41469 Item No. Description Position Item No. Description Position Item No. Description Position Water Connection Box Compo- High Pressure Evapororation AP423 Condenser for 41469 67651 60652 nent for 41469 Tube Pressure Plate for 41469 Connecting Tube for Right Con- Baffle Board of Evaporator Motor 68301 Strong Magnet for 41469...
  • Page 18 Parts Breakdown Model RS-CN-1050 43460...
  • Page 19 Parts Breakdown Model RS-CN-1050 43460 Item No. Description Position Item No. Description Position Item No. Description Position Crosspiece of Back Foam for Vertical Plate of Back Foam for AP414 Compressor for 43460 67676 67684 43460 43460 Holding Plate of Back Foam AP434 Base for 43460 66105...
  • Page 20 Parts Breakdown Model RS-CN-1050 43460 Item No. Description Position Item No. Description Position Item No. Description Position Left Bottom High Pressure Left Front Bracket of Evaporating AP442 76--2 60721 Lower Front Waling for 43460 AP448 Evaporating Tube for 43460 Pan for 43460 Right Top High Pressure Bottom Evaporating Pan AP443...
  • Page 21 Parts Breakdown Model RS-CN-0530-B 48265...
  • Page 22 Parts Breakdown Model RS-CN-0530-B 48265 Item No. Description Position Item No. Description Position Item No. Description Position AP390 Compressor for 48265 60617 Rear Foam Baffle for 48265 AO876 Ventilated Board for 48265 Parry of Right Lining Plate for AP391 Base for 48265...
  • Page 23 Parts Breakdown Model RS-CN-0530-B 48265 Item No. Description Position Item No. Description Position Item No. Description Position 71514 Switch (Green) for 48265 AL357 Castor for 48265 AO889 Water Pipe for 48265 High Pressure Evaporation Tube AQ674 Window Shutter for 48265...
  • Page 24 Parts Breakdown Model RS-CN-0700-B 48266...
  • Page 25 Parts Breakdown Model RS-CN-0700-B 48266 Item No. Description Position Item No. Description Position Item No. Description Position AP414 Compressor for 48266 70120 Rear Foam Baffle for 48266 60655 Water Box for 48266 AP415 Base for 48266 70143 Back Upper Crosspiece for 48266 AQ684 Ventilated Board for 48266 Back Support for Board at Air...
  • Page 26 Parts Breakdown Model RS-CN-0700-B 48266 Item No. Description Position Item No. Description Position Item No. Description Position Water Connection Box Component High Pressure Evaporation Tube AP423 Condenser for 48266 67651 60652 for 48266 Pressure Plate for 48266 Connecting Tube for Right Baffle Board of Evaporator Motor 68301 Strong Magnet for 48266...
  • Page 27 Parts Breakdown Model RS-CN-1050-B 48269...
  • Page 28 Parts Breakdown Model RS-CN-1050-B 48269 Item No. Description Position Item No. Description Position Item No. Description Position Crosspiece of Back Foam for Vertical Plate of Back Foam for AP414 Compressor for 48269 67676 67684 48269 48269 Holding Plate of Back Foam AP434 Base for 48269 66105...
  • Page 29 Parts Breakdown Model RS-CN-1050-B 48269 Item No. Description Position Item No. Description Position Item No. Description Position Left Bottom High Pressure Left Front Bracket of Evaporating AP442 76--2 AQ699 Lower Front Crosspiece for 48269 AP448 Evaporating Tube for 48269 Pan for 48269 Right Top High Pressure Bottom Evaporating Pan AP443...

  • Page 30: Electrical Schematics

    Electrical Schematics Model RS-CN-0530 43459 Model RS-CN-0530-B 48265...
  • Page 31 Electrical Schematics Model RS-CN-0700 41469 Model RS-CN-0700-B 48266...
  • Page 32 Electrical Schematics Model RS-CN-1050 43460 Model RS-CN-1050-B 48269...

  • Page 33: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
  • Page 34 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 35: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 36 à plus de 6500 produits provenant du monde entier. Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir a nuestro compromiso de fortalecer y desarrollar nuevas relaciones...
