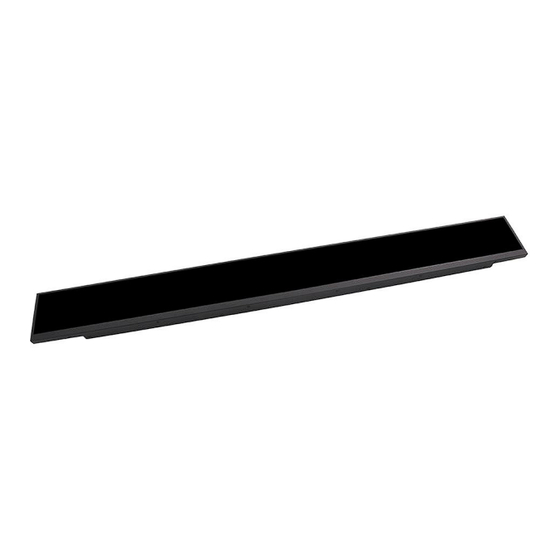

- Page 1 LCD Display User Manual MSE-23016 / MST-23016 Please keep this manual for future reference. www.mimomonitors.com Mimo Tech Support Phone Number - 855-937-6466 Mimo Tech Support email - techsupport@mimomonitors.com...
-
Page 2: Table Of Contents
SETTINGS .............. 18 Adjusting the brightness .............. 19 Changing the Display’s Language ..........20 Changing the Date and Time ............21 INSTALLING APPS ..........22 PRODUCT SPECIFICATIONS ......23 Mimo Monitors info@mimomonitors.com Sales: 1-855-YES-MIMO (937-6466) | « Table Of Contents »... -
Page 3: Safety Instructions
WARNING: If using a Class 1 adapter, connect only to a grounded electrical outlet. Consult an authorized service technician if the display does not operate normally when you have followed the instructions in this manual. Mimo Monitors info@mimomonitors.com Sales: 1-855-YES-MIMO (937-6466) -
Page 4: Declarations And Statements
Note 3: The “− ” indicates that the restricted substance corresponds to the exemption. AU Optronics Corporation (AUO) Address: No. 1, Li-Hsin Rd. 2, Hsinchu Science Park, Hsinchu 30078, Taiwan, R.O.C. Mimo Monitors info@mimomonitors.com Sales: 1-855-YES-MIMO (937-6466) | « SAFETY INSTRUCTIONS »... -
Page 5: What's In The Box
The illustrations in this manual may differ from the actual product and items. Display x 6 Adapter x 6 Power Cord x 6 Micro-HDMI Cable x 6 Type-C USB Cable x 6 Mimo Monitors info@mimomonitors.com Sales: 1-855-YES-MIMO (937-6466) « WHAT’S IN THE BOX » |... -
Page 6: Moving The Display
Open the product box from the top side. Remove the top EPE cushion. Remove two sets of accessories from the side compartments in the top layer. Mimo Monitors info@mimomonitors.com Sales: 1-855-YES-MIMO (937-6466) | « MOVING THE DISPLAY »... - Page 7 Remove the cardboard and EPE foam base of the top layer. Repeat steps 3 to 5 for the second layer. Repeat steps 3 to 4 for the third layer. Remove the electrostatic bags covering each display. Mimo Monitors info@mimomonitors.com Sales: 1-855-YES-MIMO (937-6466) « MOVING THE DISPLAY » |...
-
Page 8: Carrying The Display
CAUTION: Never press or place anything on the back cover. This may damage the internal parts of the display. Mimo Monitors info@mimomonitors.com Sales: 1-855-YES-MIMO (937-6466) | « MOVING THE DISPLAY »... -
Page 9: Mounting The Display
If the display is not mounted in such a way the display may not function properly. NOTE: Before mounting, make sure there is space to connect your devices. See “CONNECTING THE DISPLAY” on page 13. « MOUNTING THE DISPLAY » | Mimo Monitors info@mimomonitors.com Sales: 1-855-YES-MIMO (937-6466) -
Page 10: Wireless Antenna
The back of the display is equipped with two screw-holes with a width of 190.00mm that allow for mounting. Firmly secure a mount onto the display using two M3x4mm length screws (maximum torque: 8 kgf-cm). 190.00mm Mimo Monitors info@mimomonitors.com | « MOUNTING THE DISPLAY » Sales: 1-855-YES-MIMO (937-6466) -
Page 11: Setting Up The Display
M-HDMI OUT Connects with the Micro-HDMI input port of a second bar-type (Micro-HDMI display to duplicate the video shown on this display. Output) Mimo Monitors info@mimomonitors.com Sales: 1-855-YES-MIMO (937-6466) « SETTING UP THE DISPLAY » |... -
Page 12: Connecting The Power Cable
Mimo Monitors info@mimomonitors.com Sales: 1-855-YES-MIMO (937-6466) -
Page 13: Connecting The Display
NOTE: The display only supports the following video/image file formats (with their listed resolution) via the Micro-USB port: MP4 (H.264/AVC) - 1920x165 JPG - 1920x165 BMP - 1920x165 Mimo Monitors info@mimomonitors.com Sales: 1-855-YES-MIMO (937-6466) « CONNECTING THE DISPLAY » |... -
Page 14: Connecting A Second Display
Mimo Monitors info@mimomonitors.com Sales: 1-855-YES-MIMO (937-6466) -
Page 15: Connecting To Wireless Internet
Return to the All Apps menu. Select the Browser app in the All Apps menu and open a webpage to ensure that you have properly connected to wireless Internet. Mimo Monitors info@mimomonitors.com Sales: 1-855-YES-MIMO (937-6466) « CONNECTING THE DISPLAY » |... -
Page 16: Connecting To The Internet Via A Wired Connection
Return to the All Apps menu. Select the Browser app in the All Apps menu and open a webpage to ensure that you have properly connected to wireless Internet. | « CONNECTING THE DISPLAY » Mimo Monitors info@mimomonitors.com Sales: 1-855-YES-MIMO (937-6466) -
Page 17: Home Screen
HOME SCREEN The home screen for the display features multiple buttons that allow you to navigate to apps and settings menus. Mimo Monitors info@mimomonitors.com Sales: 1-855-YES-MIMO (937-6466) « HOME SCREEN » |... -
Page 18: Settings
Select Settings in the All Apps screen. From the settings you can: Adjust the brightness of the display Change the display’s language Change the date and time for the display Mimo Monitors info@mimomonitors.com Sales: 1-855-YES-MIMO (937-6466) | « SETTINGS »... -
Page 19: Adjusting The Brightness
Return to the All Apps menu. Select 2nd Display Configuration in the All Apps menu. Toggle the bar at the top of the 2nd Display Configuration menu to adjust the brightness to the level you want. Mimo Monitors info@mimomonitors.com Sales: 1-855-YES-MIMO (937-6466) « SETTINGS » |... -
Page 20: Changing The Display's Language
(so that it is listed as number 1). Mimo Monitors info@mimomonitors.com Sales: 1-855-YES-MIMO (937-6466) -
Page 21: Changing The Date And Time
Disable Automatic date & time in the Date & time menu. Select Set date in the Date & time menu, and then manually set the date. Select Set time in the Date & time menu, and then manually set the time. Mimo Monitors info@mimomonitors.com Sales: 1-855-YES-MIMO (937-6466) -
Page 22: Installing Apps
Select INSTALL in the confirmation message that appears. The app will begin installing. Once the app has finished installing an App Installed message will appear. You can choose to open the app by selecting OPEN. Mimo Monitors info@mimomonitors.com | « INSTALLING APPS »... -
Page 23: Product Specifications
0°C - 50°C Storage Temperature -20°C - 60°C Operating Humidity 5% - 80% RH Storage Humidity 5% - 80% RH Mimo Monitors 743 Alexander Rd. Suite 15 Princeton, NJ 08540 info@mimomonitors.com 2021-0104 Sales: 1-855-YES-MIMO (937-6466) Rev 1 - 80545 « PRODUCT SPECIFICATIONS » |...
