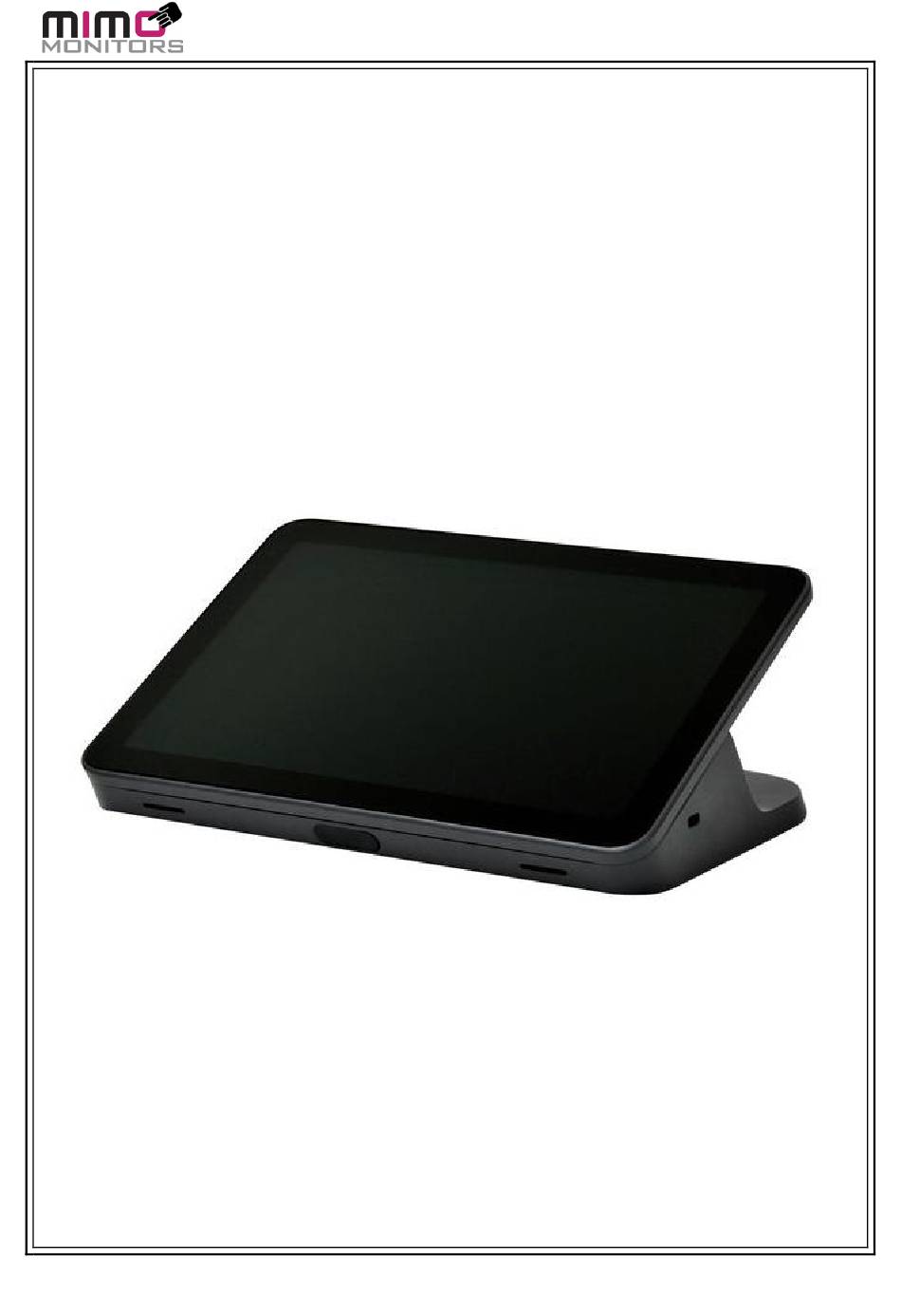

- Page 1 Mimo Myst AV-over-IP Display with Capacitive Touchscreen User Manual MY-1090CV www.mimomonitors.com Ver 0.1 (6/21) PAGE 1 OF 30 © Mimo Monitors...
-
Page 2: Table Of Contents
▣ Tablet PC Settings for the use of Capacitive Touchscreen ........... 20 ▣ Troubleshooting ..........................22 ▣ Appendix 1: Myst Link FAQs ....................... 24 ▣ Appendix 2: Installing DisplayLink Monitor Driver ..............27 [ Windows 10 operating systems ] ....................27 Ver 0.1 (6/21) PAGE 2 OF 30 © Mimo Monitors... -
Page 3: Safety Instructions
- Do not tap or scratch LCD (Touch Panel) Screen with a sharp object. - Do not press with excessive force with any object * Otherwise, LCD (Touch Panel) may be damaged. Ver 0.1 (6/21) PAGE 3 OF 30 © Mimo Monitors... - Page 4 - If the product needs to be repaired, contact a Service Center. If water enters the product, disconnect the Ethernet cable and contact a Service Center. This may result in a product malfunction, electric shock, or fire. Ver 0.1 (6/21) PAGE 4 OF 30 © Mimo Monitors...
-
Page 5: Product Features
▶ Can transmit 4k video from display side to PC side ▶ USB input to optionally USB accessories such as a speaker/mic ▶ POE Injector built into Link box provides stable power to the monitor. Ver 0.1 (6/21) PAGE 5 OF 30 © Mimo Monitors... -
Page 6: Product Specifications & Features
200 Hz-20 kHz, 1W max FEATURES Headset Stereo with mic and jack detect Wall mountable with Mounting custom bracket For strain relief with Cable channels locking plate Security Slot Kensington lock port Ver 0.1 (6/21) PAGE 6 OF 30 © Mimo Monitors... -
Page 7: System Requirements
• RAM: 512MB RAM or above. • USB: at least one USB3.0 port. • HDD: 50MB HDD space above. • O/S: Windows 10 (32/64 bit) or later, Chrome, Linux, or Max (limited Support) Ver 0.1 (6/21) PAGE 7 OF 30 © Mimo Monitors... -
Page 8: Package Contents
Package Contents Please make sure the following items are included with your monitor. Contact a local dealer to buy optional items. ▶ MY-1090CV-M ▶ MY-1090CV-L Ver 0.1 (6/21) PAGE 8 OF 30 © Mimo Monitors... - Page 9 Cat5e Ethernet Cable (color varies) HDMI Cable AC/DC Adapter USB3.0 Cable ※ Please contact your local dealer if any items are missing in the package contents. Ver 0.1 (6/21) PAGE 9 OF 30 © Mimo Monitors...
-
Page 10: Connections And Installation
The green wire represents the Cat5e cable between the Myst and Link The Myst sits on the conference table, along with, optionally, a USB speaker/mic connected through the Myst Ver 0.1 (6/21) PAGE 10 OF 30 © Mimo Monitors... - Page 11 6. Connect the power cable to AC power using the proper blade adapter for your country. The Link will turn on. 7. If the Green light on the RJ45 input is on, that means the Myst and Link are connected Ver 0.1 (6/21) PAGE 11 OF 30 © Mimo Monitors...
- Page 12 Windows Control Panel Tablet PC settings to configure the touch to be seen on the Myst display. See section “Tablet PC Settings for the use of Capacitive Touchscreen” later in this document Ver 0.1 (6/21) PAGE 12 OF 30 © Mimo Monitors...
-
Page 13: Second Concept - Using Existing Cat5E To Create A Point To Point Connection In Conference Space
Find where the Myst Display and Link terminate in local IT closet using network tone and probe tool, or other method. Remove connection from patch panel to network in both locations. Install new cable between the 2 termination points. Proceed with setup identical to “Basic Concept” Ver 0.1 (6/21) PAGE 13 OF 30 © Mimo Monitors... -
Page 14: Third Concept - Using Existing Cat5E To Create A Point To Point Connection In Conference Space
IT closet. The data is re-created with a dedicated PoE capable network switch, but that switch is not on the corporate AV or IT networks Myst Display and Link Wrapped put on Non-networked PoE Ethernet Switch Figure 3: © Mimo Monitors Ver 0.1 (6/21) PAGE 14 OF 30... - Page 15 The Myst does not require connecting a power adapter as power is supplied over PoE from the switch. Be sure that the switch used is capable of powering 802.3af from each port connected to the Myst display. Ver 0.1 (6/21) PAGE 15 OF 30 © Mimo Monitors...
-
Page 16: Fourth Concept - Using Existing Cat5E To Create A Networked Connection In Conference Space
The Myst does not require connecting a power adapter as power is supplied over PoE from the switch. Be sure that the switch used is capable of powering 802.3af from each port connected to the Myst display. Ver 0.1 (6/21) PAGE 16 OF 30 © Mimo Monitors... -
Page 17: Fifth Concept - Using Existing Cat5E To Create A Shared Networked Connection In Conference Space With Vlans
A local intelligent Ethernet switch is utilized in the conference room, generally where the PC resides to keep network traffic isolated. As shown in figure 1 but includes an intelligent switch behind the big screen connected as such. Ver 0.1 (6/21) PAGE 17 OF 30 © Mimo Monitors... - Page 18 The Myst does not require connecting a power adapter as power is supplied over PoE from the switch. Be sure that the switch used is capable of powering 802.3af from each port connected to the Myst display. Ver 0.1 (6/21) PAGE 18 OF 30 © Mimo Monitors...
-
Page 19: Display Setting
▣ Display Setting [ Windows 10 – Controlling the MY-1090CV Display ] 1. MIMO Myst Network Display Properties Setting You can configure the Mimo Myst Display device through the use of Windows Display Properties (WDP), which provides a simple method to attach, rotate, duplicate or extend screens as well as modify screen resolution. -
Page 20: Tablet Pc Settings For The Use Of Capacitive Touchscreen
② Press ‘Enter’ to proceed to the next step to complete the configuration after you a touchscreen is identified as your touchscreen. ③ Press ‘Esc’ whenever you want to close this identifying tool. Ver 0.1 (6/21) PAGE 20 OF 30 © Mimo Monitors... - Page 21 Interference (VCCI). If this equipment is used in a domestic environment, radio interference may occur, in which case the user may be required to take corrective actions. BSMI Class A Notice ( Taiwan ) 警告使用者： 這是甲類的資訊產品，在居住的環境中使用時，可能會造成射頻干擾， 在這種情況下， 使用者會被要求采取某些適當的對策。 Ver 0.1 (6/21) PAGE 21 OF 30 © Mimo Monitors...
-
Page 22: Troubleshooting
3. Click 'Advance(V)’ -> ‘Troubleshoot' tab (or ‘Advanced settings’ -> ‘Troubleshoot’ tab). 4. Please check 'Hardware Acceleration' value as 'Max’. Q: I cannot boot my system after connecting Mimo Myst Display Ver 0.1 (6/21) PAGE 22 OF 30 © Mimo Monitors... - Page 23 BIOS menu and reboot the system. - BIOS setup method may differ from PC to PC, please refer to the User manual of the PC. Please refer to Microsoft homepage for more detail. Ver 0.1 (6/21) PAGE 23 OF 30 © Mimo Monitors...
-
Page 24: Appendix 1: Myst Link Faqs
The Link encoder box was designed to supply the 802.3af PoE standard, 15.4 watts of power, to the Myst display. Can the Myst display be used as an ordinary 10.1” touch display? Ver 0.1 (6/21) PAGE 24 OF 30 © Mimo Monitors... - Page 25 Yes, video traffic in both directions is compressed, but is visually lossless. Will the Myst Link work with Microsoft Teams Room PC’s? Yes. What are the Myst Link Bandwidth requirements? Ver 0.1 (6/21) PAGE 25 OF 30 © Mimo Monitors...
- Page 26 Which compliance certifications does the Myst Link have? Mimo is pursuing the necessary certifications in the countries listed below for launch: US, Europe, Canada, Australia/New Zealand. Other countries will follow as demand dictates. Ver 0.1 (6/21) PAGE 26 OF 30 © Mimo Monitors...
-
Page 27: Appendix 2: Installing Displaylink Monitor Driver
Click “Microsoft Windows” on the “Supported Operating Systems” and Select the download file, then, the DisplayLink software end user license agreement window opens. When you see the following message window, click "Accept” to install the DisplayLink Core software. Ver 0.1 (6/21) PAGE 27 OF 30 © Mimo Monitors... - Page 28 2. Starting to install the DisplayLink USB Monitor Driver. 2. The System Compatibility Check then runs Ver 0.1 (6/21) PAGE 28 OF 30 © Mimo Monitors...
- Page 29 3. Click Install (if the System Compatibility Check passes) 4. Connect your DisplayLink enabled device 5. Upon detection of a DisplayLink enabled device the driver installs Ver 0.1 (6/21) PAGE 29 OF 30 © Mimo Monitors...
- Page 30 6. You are then informed when the installation of the software has completed. 7. Reboot your PC to complete the installation Ver 0.1 (6/21) PAGE 30 OF 30 © Mimo Monitors...
