Matrix TM507 Technical Instruction

Technicians: If treadmills are found without a bracket, please provide the customer with the customer letter,
linked here. Do not attempt to repair unless otherwise instructed by the Reworks team.
Purpose:
1. To inspect the power cord and power socket for thermal occurrences such as melting and/or
discoloration caused by heat.
2. To install a power cord bracket to secure the power cord to the power inlet on the treadmill. We want to
check to ensure a bracket is installed on the products below, and if not, install one.
Models Included
Product Code
TM507
TM522
TM523
TM509
TM514
TM526
TM722
TM725
Inspection:
1. Power off the treadmill by switching
the power switch off.
2. Disconnect the power cord from the
wall/floor outlet and from the
treadmill.
3. Inspect the power cord ends for
thermal occurrences.
4. With the power cord disconnected
from the treadmill, inspect the power
cord socket on the treadmill for
thermal occurrences.
5. Please follow the next steps based on your inspection.
a. If no signs of thermal occurrences are found go to the section labeled:
Occurrences
b. If thermal occurrences are found go to the section labeled:
Technician Instructions
Description
T1x Frame
T-1X-04-F
T-3X-04-F
T3X/T3XE FRAME_0
T1XLS/T1XELS FRAME MTM0136-01US Frame Only
T-3XH-F
T3XH-02
T3XM
Material # Notes
MTM0088-01US Frame Only
MTM0310-01US Frame + Console
MTM0312-01US Frame + Console
MTM0094-01US Frame Only
MTM0423-01US Frame + Console
MTM0645-01US Frame + Console
MTM0915-01US Frame + Console

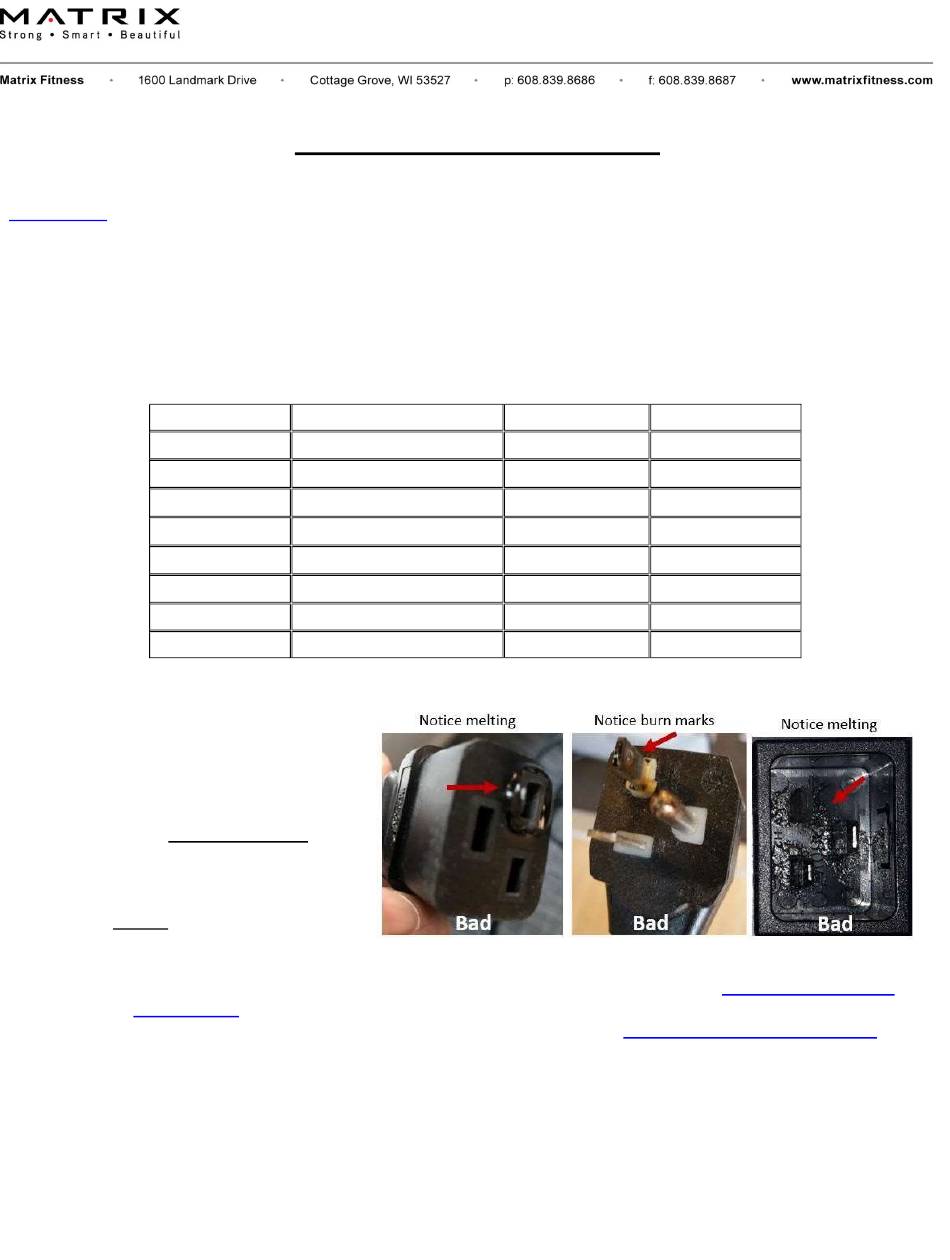

Signs of Thermal Occurrences
No Signs of Thermal
Page 1 of 3
