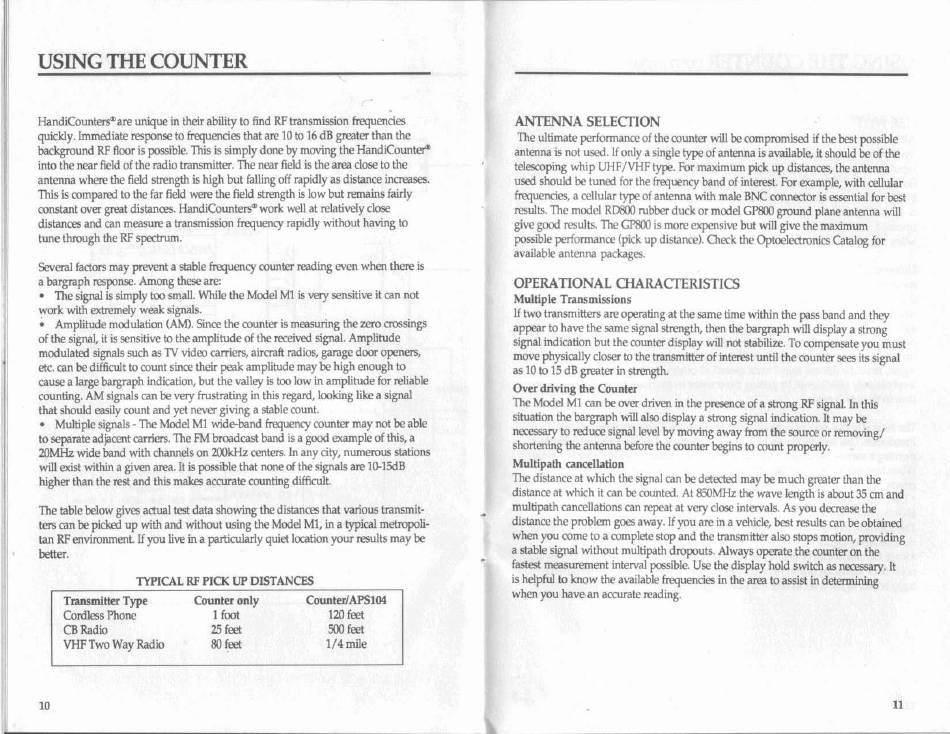

USING THE COUNTER
HandiCounters~
are
unique
in
theirabilityto find RFtransmission frequencies
quickly.Immediateresponseto frequencies
that
are 10
to
16dB
greater
than the
background
RF
floor is possible. This
is
simplydone
by
moving
the
HandiCounter"
into
the
nearfieldofthe radiotransmitter
.
The nearfieldis
the
area closeto the
antenna
where the fieldstrengthis
high
but fallingoffrapidlyas distanceincreases
.
Thisis comparedto the far fieldwerethe fieldstrengthis
lowbut remainsfairly
constantover
great
distances.HandiCounters<ll work wellat relativelyclose
distancesand can measurea
transmission
frequency
rapidlywithout
having to
tune
through
the
RF
spectrum
.
Several factors may
prevent
a
stable
frequencycounterreadingeven
whenthere
is
a bargraph response. Amongtheseare:
The
signalissimply
too
small.While
the Mode
l
Ml
is
vel)'
sensitive
it
can
not
work
with
extremely weaksignals.
~
Amplitudemodulation(AM). Sincethe counteris
measuring
the zerocrossings
of the signal,
it
issensitive
to
the amplitude
of
the
received
signal.Amplitude
modulatedsignalssuch as1V videocarriers,aircraftradios,garagedoor
openers,
etc.
can
be
difficult to countsincetheir peak amplitudemay
be
highenoughto
causea largebargraphindication, but the valleyis
too
lowin
amplitude
for reliable
counting.AMsignalscan
be
veryfrustratingin thisregard,looking
like
a signal
that should
easilycount
and yet nevergivinga stab
le
count.
Multiple signals
~
TheMOOel Ml wide-bandfrequency countermay not
be
able
to separateadjacentcarriers.
The
fM broadcast band is a goodexampleof this,a
20MHzwide
bandwith channelson 200kHzcenters
.
In
anycity,numerousstations
will
exist
withina
givenarea.It
is possiblethat none
of
the signalsare ID- I 5dB
higherthan
the restand thismakesaccuratecountingdifficult.
The
table
belowgivesactualtestdata showingthedistancesthat
various transmit-
ters can
be
pickedup
withand
without
usingthe ModelMI,
in
a typicalmetropoli
-
tan
RFenvironmen
t. If
you live
in
a
particularlyquietlocationyour results
may
be
better.
T\'PICALRFPICKUPDISTANCES
Transmitter Type
Counter only
CounteriAPSI04
Cordles
s Phone
1
foot
120feet
CBRadio
25feet
500feet
VHFTwoWay Radio
&J
feet
1/4 mile
10
ANfENNA
SELECTION
Theultimateperformance of thecounterwillbe compromised if the
best
possible
antennais not
used.
If
onlya single
type
of antennais availa ble,it
should
beof the
telescoping whip
UHF/VHF
type.
For maximumpick
up distances.theantenna
used shouldbe tuned for the frequency
bandof
interest.
For
example,with
cellular
frequencies, a
cellulartypeof
antennawith male BNC connectoris essen
tial for
best
results
.
Themodel
RD800
rubberduck
or
model
GP800
ground planeantenna
will
givegood results.TheGP800 is moreexpensivebut
will
givethe maximum
possibleperformance(pick
up distance
).
Checkthe
Optoelectronics Catalog for
availableantenna packag
es.
OPERATIONALCHARACTERISTICS
Multiple
Transmissions
If two
transmittersare operatingat the
sametimewithin
the pass bandand they
appear to have the samesigna
l strength,
then the
bargraph
willdisplaya strong
signalindicationbut the
counterdisplay
will
not stabilize. Tocompensateyou must
movephysicallycloser
to
the
transmitterof
interestuntil the
counter seesits signal
as 10 to 15dB greaterin strength.
Overdriving
the Counter
The
ModelMl
can beoverdriven
in
the presence
of
a
strong
RFsigna
l.
Inthis
situationthe bargraph
will
alsodisplay
a strongsignalindication. It may be
necessary to reducesigna1 levelby movingaway
fromthe
sourceor removing/
shortening the
antenna
beforethecounterbeginsto
count properly.
Multipath
cancellation
Thedistanceat whichthe signalcan be detectedmaybe much greaterthan the
distanceat whichit can
be
counted.At 850MHz the wavelengthis
about35emand
multipathcancellations can repeatat verydose
intervals.
As you decreasethe
distancethe problemgoes
away.
If you are in a vehicle,best
resultscanbeobtained
whenyou cometo a completestopand the transmitteralso stopsmotion, providing
a stable signalwithout
rnultipathdropouts. Alwaysoperatethecount
e r on
the
fastestmeasurementintervalpossible. Use the display hold switchas necessa ry.
It
is
helpful to know the available frequencies in the area to
assist in
determinin g
whenyou have an accuratereading.
11
