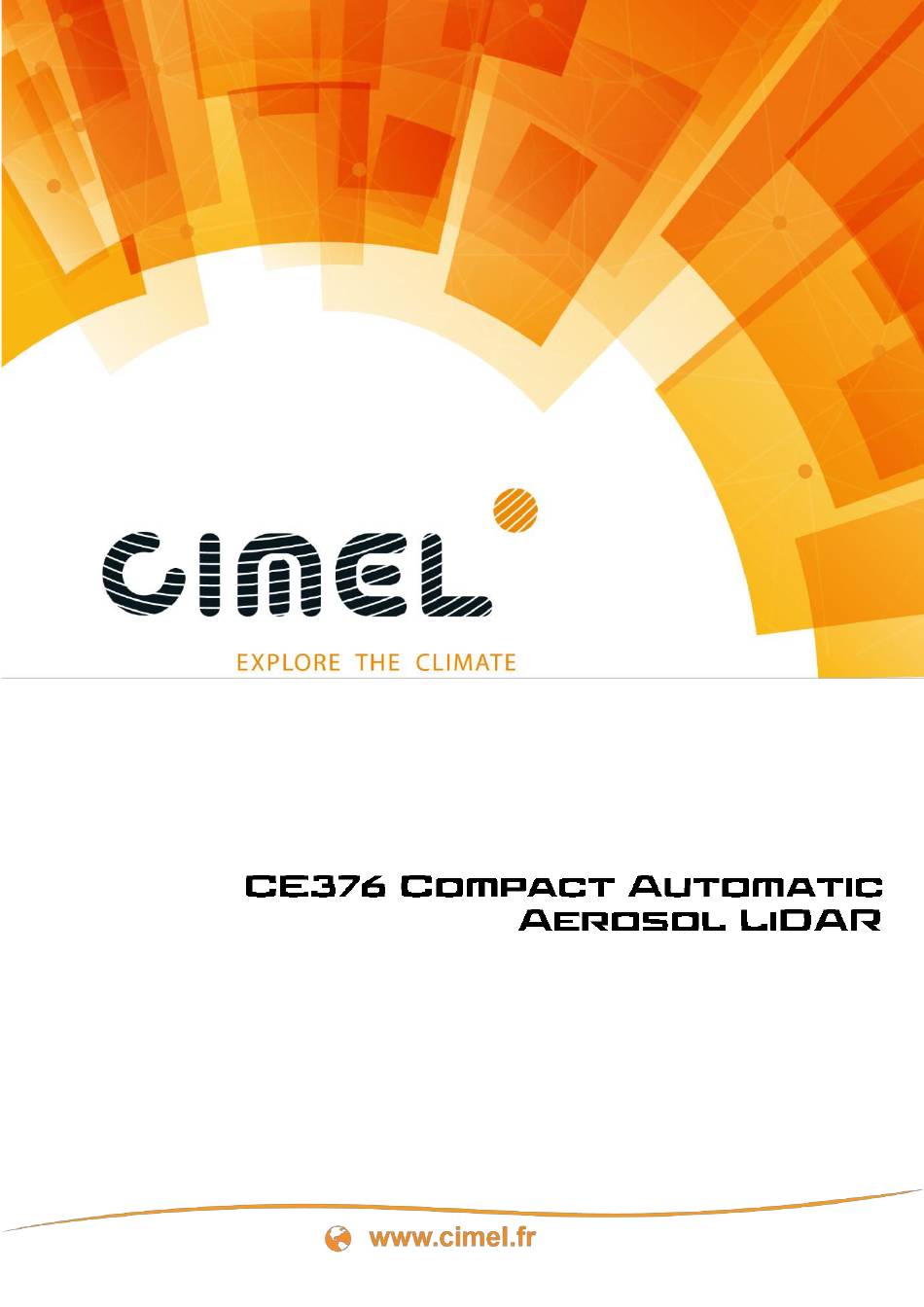

- Page 1 User Manual (rev. July 2024)
- Page 2 CE376 User Manual PACKAGE CONTENTS ......................1 SPECIFICATIONS ........................ 2 SAFETY INFORMATION ...................... 3 GETTING TO KNOW YOUR CE376 LIDAR ................4 GETTING STARTED: PREREQUISITES ................... 4 LIDAR INSTALLATION ......................6 THERMAL ENCLOSURE OPTIONS ..................8 HEALTH & CARE ........................ 9 WARRANTY INFORMATION .....................
- Page 3 CE376 User Manual 100 -250 VAC 50/60 Hz Power Supply Slow blow T6.3A Fuse Characteristics 40 W Typical Power Consumption 200 W Maximum Power Consumption Operating Conditions Temperature: +18°C – +28°C / 65°F – 82°F Humidity: 5% to 50% +10°C to +35°C...
- Page 4 Do not use in excessively humid areas (RH > 50%). • Do not use your CE376 in a closed room without a roof window or a hatch above it. • It requires at least 2 persons to lift a CE376 LiDAR. Take care to use your leg muscles instead of your back.
- Page 5 CE376 User Manual Not used Not used 4/12...
- Page 6 CE376 User Manual In order to use your CE376 LiDAR you need either a thermal enclosure I376-ENC-X or a regulated and temperate environment with a non-tempered glass window on the roof or a hatch (to be used only in non-raining conditions). In either case, determine the exact location of the complete system considering factors such as equipment and human accessibility and access control.
- Page 7 Connect the USB cable to your computer and Power ON your CE376 LiDAR. On the Interface of your CE376 LiDAR, all external LEDs should blink green for 1.8s then go OFF except for the POWER LED that should stay green [A].
- Page 8 Monitor operations and measurement data with lidar2 software. Refer to the Lidar2 user manual. ➔ Note that if the model of your CE376 LiDAR doesn’t include one specific wavelength (GP, G or N), the corresponding laser source LED will be disabled.
- Page 9 Weight 93 kg / 205 lb With this option, connect your CE376 LiDAR to the cables inside the Thermal Enclosure and connect externally the Power Supply cable and the communication Cable delivered with your CE376 LiDAR to the Thermal Enclosure on the outside.
- Page 10 If you plan to use your CE376 LiDAR on a field campaign or at another site, it is essential to handle the instrument with care. Always use the designated carrying case with protective foam to ensure the safety and integrity of the device during transportation.
- Page 11 CE376 User Manual Verify that your LiDAR uses a TEU (Telematics Electronics Unit) or PMU (Power Management Unit) card. Only versions after C of the CE376 LiDARs are equipped with these cards and can be directly updated by the user.
- Page 12 NIR Diode 50 000 operating hours Green laser 10 years The replacement of these parts must be carried out by a CIMEL-qualified operator. This operation can be carried out on-site (in a clean, air-conditioned room) or in CIMEL factory. 11/12...
- Page 13 The validity of this warranty is contingent upon the correct use of the instrument. CIMEL reserves the right to void the warranty after diagnosis at the CIMEL factory if it is determined that the conditions of proper use have not been met. This may include, but is not limited to, evidence of misuse, unauthorized modifications, or improper maintenance.
