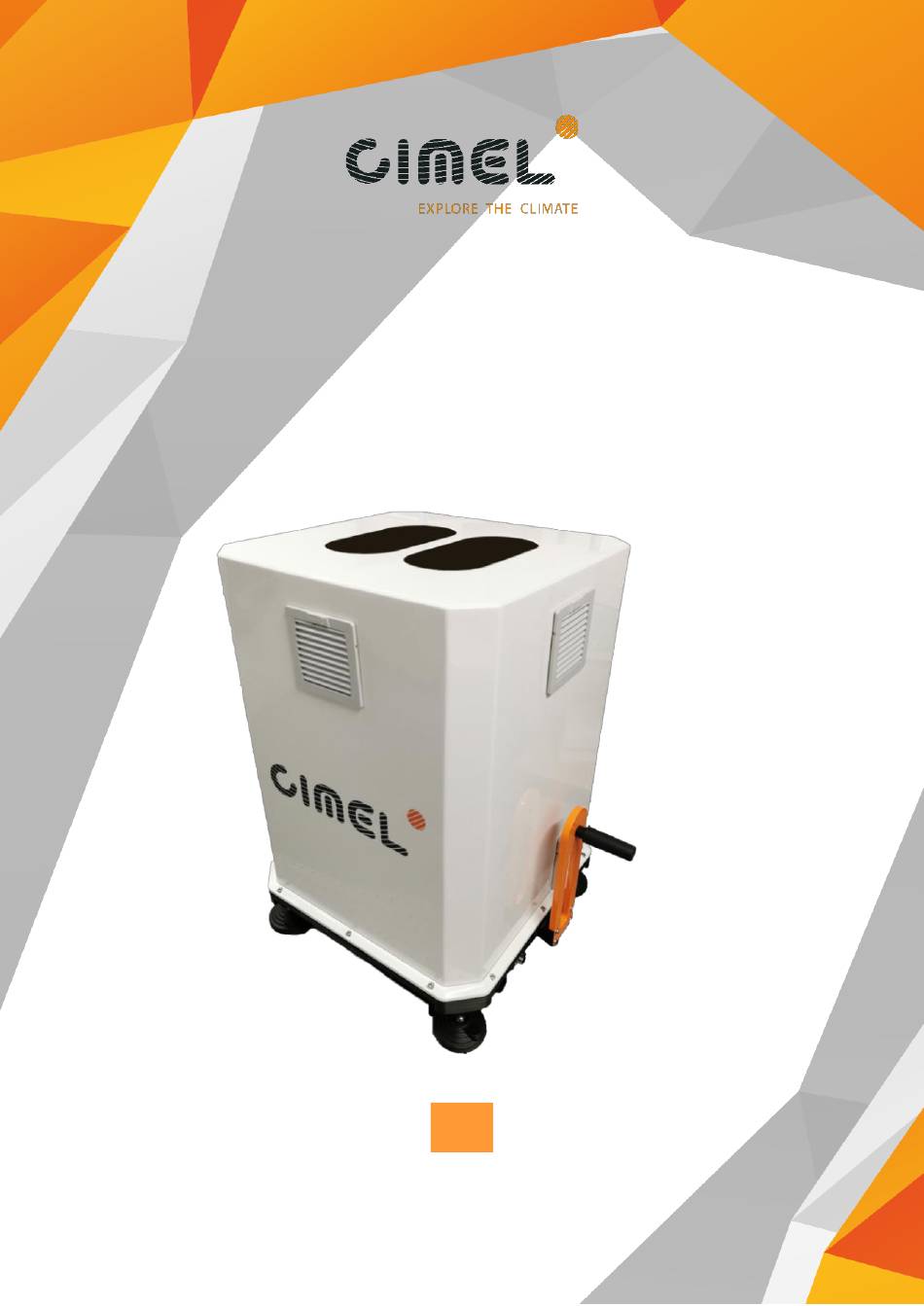

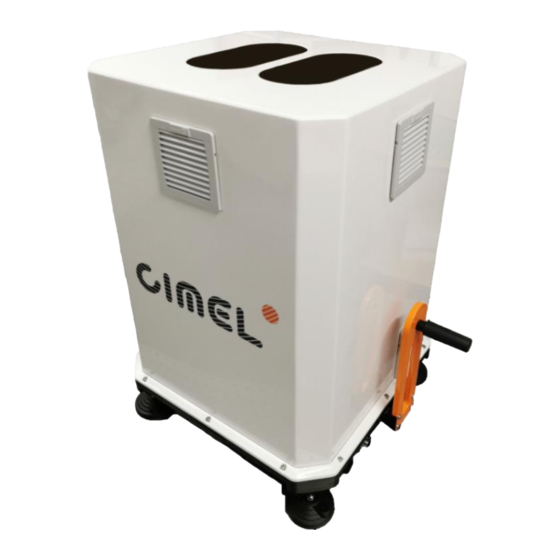

- Page 1 USER MANUAL CE376 EYE-SAFE LIDAR Models: I376-KIT-LGPN/LGP/LGN/LG/LN C Questions or Concerns? support@cimel.fr...
-
Page 2: Table Of Contents
EN – ENGLISH Table of Contents Package Contents Specifications Safety Information Getting to Know Your CE376 LiDAR Getting Started Options Care & Maintenance Troubleshooting Warranty Information Customer Support Package Contents 1 x CE376 LiDAR 1 x Flight-case 1 x Power supply cable (10 m) 1 x Ethernet Communication cable (20 m) 1 x Ethernet-USB converter 1 x USB-B to USB-A cable... -
Page 3: Specifications
Specifications Power Supply 100 -250 VAC 50/60Hz Fuse Characteristics slow blow T6.3A Typical Power Consumption 40 W Maximum Power Consumption 200 W Operating Conditions Temperature: +18°C – +28°C / 65°F – 82°F Humidity: 5% to 75% Dimensions 713 x 463 x 691 mm / 28 x 18.2 x 26.8 in Weight 35 kg / 77 lbs... -
Page 4: Safety Information
(0.25 s) but can damage retina for CE376 LiDAR on its sides. Any of longer exposure. these actions might demand the technical intervention of a CIMEL • Do not look inside your CE376 qualified operator. LiDAR through a magnifying glass or any optical instruments when it is •... -
Page 5: Getting To Know Your Ce376 Lidar
GETTING TO KNOW YOUR CE376 LIDAR... -
Page 6: Getting Started
GETTING STARTED In order to use your CE376 LiDAR you need either a thermal enclosure I376- ENC-X or a regulated and temperate environment with a non-tempered glass window on the roof or a hatch (to be used only in non-raining conditions). Place your CE376 LiDAR in as follows: It is preferable to place the CE376 LiDAR in a shady place. - Page 7 Connect the other side of the communication cable to the Link port of the Ethernet-USB converter box, and the USB cable connector USB B to the other port. Install the software Lidar2.exe and drivers on your computer following the Software Manual instructions (provided on the USB key). Connect the USB cable to your computer and Power ON your CE376 LiDAR.
-
Page 8: Options
OPTIONS Thermal Enclosure Model I376-ENC-1 I376-ENC-2 Power Supply 115 VAC (50Hz/60Hz) Typical Power 1300 W Consumption Cooling Capacity 3940/4104 BTU/Hr. 5585/6180 BTU/Hr. Operating Temperature: -30°C – +55°C / -22°F – 130°F Conditions Humidity: 0% – 100% An additional internal dehumidifier is needed if temperature and humidity are highs (Due point temperature >... -
Page 9: Care & Maintenance
LiDAR If you plan to use your CE376 LiDAR on Temperature inside your a field campaign or on another site, the CE376 LiDAR intervention of a CIMEL qualified Lidar2.exe software, check operator could be necessary. Contact monitoring data the temperature inside Support for further details. -
Page 10: Troubleshooting
In case the fuse is damaged, replace it by a new one with the same characteristics (slow blow T6.3A). If the CE376 LiDAR is used with the optional CIMEL Thermal Enclosure, check if the circuit breaker inside is properly operating. -
Page 11: Warranty Information
WARRANTY INFORMATION Terms & Policy CIMEL warrants all products to be the highest quality in material, craftmanship and services for one year, effective from the date of delivery to the end of the warranty period. Warranty lengths may vary between product categories.
