- Page 1 HYD 3000/4000/5000/6000-ES User Manual 2018-8-16 Version V1.00...
-

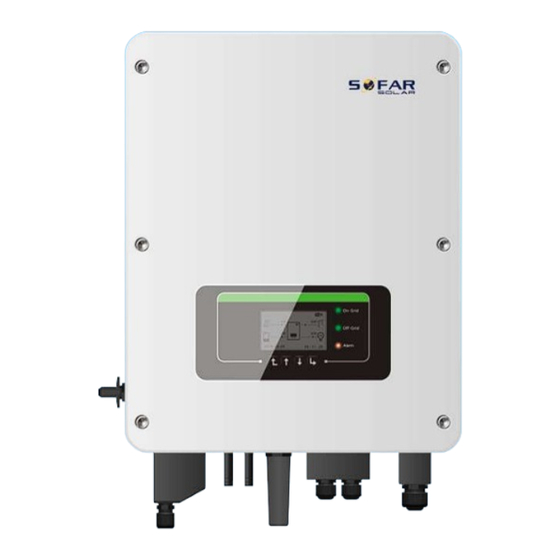

Page 2: Hyd-Es Inverter Introduction
The HYD-ES inverter can work in auto or time-of-use (TOU) mode, charge / discharge the battery when needed. In auto mode, the HYD-ES inverter will charge surplus PV energy into the battery & discharge battery to supply power to local load when PV energy is not enough. -
Page 3: Technical Data
Technical Data Model HYD 3000-ES HYD 4000-ES HYD 5000-ES HYD 6000-ES Battery Parameters Battery Type Lead-acid, Lithium-ion Nominal battery voltage Battery voltage range 42 - 58V Recommended battery capacity 200Ah (100 – 500 Ah optional) 9.6 kWh Recommended storage capacity Max charge current Charge current range 0 –... -
Page 4: System Parameters
Power factor 1 (+ / - 0.8 adjustable) Inrush current 0.8A / 1us Max output fault current 100A / 1us System parameters Max efficiency Charge: 94.1% / discharge 94.3% Standby losses < 8W (PV SPS) Topology High frequency transformer isolated Ingress protection ratings IP 65 Safety protection... - Page 5 AMASSTORE BATTERY GTX 2500 ● Batería de almacenamiento de ● Un botón de asignación energía de larga vida (6000 ciclos) automática del módulo de batería ID para un cómodo y sencillo ● Admite la ampliación de hasta 8 manejo sistemas de baterías en paralelo ●...
- Page 6 Ficha técnica GTX2500 Datos generales Tipo de batería LiFePO4, Fosfato de hierro de litio Capacidad nominal 2.5kwh 50Ah Tensión nominal 51.2Vdc Energía total 2500Wh Energía útil (90% PD) 2250Wh Tensión de carga 55.68...56.16Vdc Tensión de descarga 45.6...56.16Vdc Intensidad de carga nominal Máx.
- Page 7 MKBL121000 12V 100Ah The KAISE LONG LIFE Series 10 years has been designed for different applications, such as UPS, electric and telecommunications applications that require a long useful life. Dimensions and Terminal (Unit: mm (inches)) Performance Characteristics Nominal Voltage Dimensions Length (mm / inch) 330 / 12.99 Width (mm / inch)
- Page 8 MKBL121000 12V 100Ah Charging Characteristics (float use) Cycle Life in Relation to Depth of Discharge Temperature Effects in Relation to Battery Capacity Effect of Temperature on Long Term Float Life Self Discharge Characteristics No supplementary charge required (carrry out supplementary charge before use if 100% capacity is required) Supplementary charge required before use .
- Page 9 HIPower Series 430-450 Watt 144-CELL HALF CUT MONOCRYSTALLINE STPXXXS - B72H/Vnh SOLAR MODULE Features Suntech current sorting High power output Years process Compared to 158.75mm PREMIUM System output maximized by WARRANTY module, the power output reducing mismatch losses up Power Output can increase 25W-30W to 2% with modules sorted &...
- Page 10 Electrical Characteristics � Autodesk � � � � � � � STPXXXS-B72H/Vnh Maximum Power at STC (Pmax) 450 W 445 W 440 W 435 W 430 W Optimum Operating Voltage (Vmp) 41.4 V 41.2 V 41.0 V 40.8 V 40.6 V Optimum Operating Current (Imp) 10.87 A 10.81 A...
