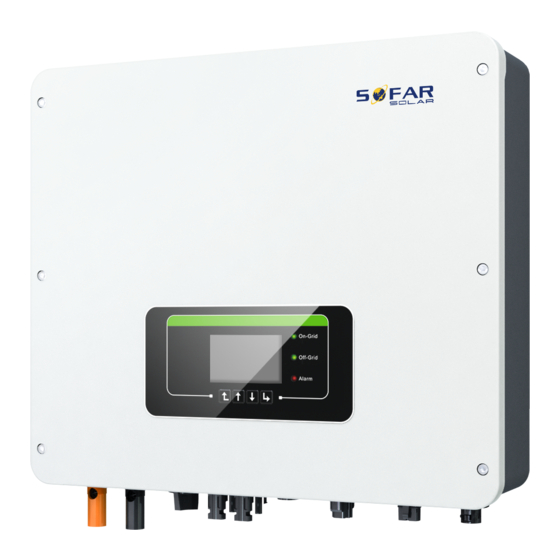

Sofar solar HYD 3000-EP User Manual

Table of Contents

Quick Links

Preface .................................................................................................................... II

1. Basic safety information .................................................................................- 1 -

1.1. Safety instructions ............................................................................. - 1 -

1.2. Symbols and signs ............................................................................. - 4 -

2. Product characteristics ....................................................................................- 6 -

2.1. Product informations ......................................................................... - 6 -

2.2. Size description ..................................................................................- 6 -

2.3. Function characteristics ..................................................................... - 7 -

2.4. Electrical block diagram .................................................................... - 7 -

3. Installation ......................................................................................................- 9 -

3.1. Checking Before Installation ............................................................. - 9 -

3.2. Product Overview ............................................................................ - 11 -

3.3. Tools .................................................................................................- 12 -

3.4. Installation Environment ................................................................. - 13 -

3.5. Determining the Installation Position .............................................. - 13 -

3.6. Moving the HYD 3K~6K-EP .......................................................... - 15 -

3.7. Installing HYD 3K~6K-EP ..............................................................- 15 -

4. Electrical Connections ..................................................................................- 17 -

4.1. Wire instructions ..............................................................................- 18 -

4.2. Connecting PGND Cables ............................................................... - 18 -

4.3. PV Connection .................................................................................- 20 -

4.4. Battery Connection .......................................................................... - 21 -

4.5. Load connection ...............................................................................- 22 -

4.6. Grid connection ............................................................................... - 23 -

4.7. External communication interface ................................................... - 25 -

5. Buttons and indicator lights ..........................................................................- 36 -

5.1. Buttons .............................................................................................- 36 -

5.2. Indicator lights and status ................................................................ - 36 -

6. Operation ...................................................................................................... - 37 -

6.1. Double Check .................................................................................. - 37 -

6.2. Starting up and shutting down the inverter ......................................- 37 -

6.3. Menu ................................................................................................ - 42 -

7. Troubleshooting ............................................................................................- 55 -

8. Technical Data .............................................................................................. - 62 -

9. Quality Assurance ........................................................................................ - 69 -

HYD 3K~6K-EP

Content

User manual

Table of Contents

Need help?

Do you have a question about the HYD 3000-EP and is the answer not in the manual?

Questions and answers

Summary of Contents for Sofar solar HYD 3000-EP

Page 1: Table Of Contents
User manual HYD 3K~6K-EP Content Preface ........................II 1. Basic safety information .................- 1 - 1.1. Safety instructions ................- 1 - 1.2. Symbols and signs ................- 4 - 2. Product characteristics ..................- 6 - 2.1. Product informations ................. - 6 - 2.2.
Page 2 SOFARSOLAR reserves the right of final interpretation. This manual is subject to change according to user’s or customer’s feedback. Please check our website at http://www.sofarsolar.com for latest version. The current Version updated at 20220420. The current Version is V1.01. Copyright © Shenzhen SOFAR SOLAR Co., Ltd.
Page 3: Preface
You must understand these emphasized information to avoid the personal injury and property loss. Please read the following symbols used in this manual carefully. Copyright © Shenzhen SOFAR SOLAR Co., Ltd.
Page 4 Caution Attention indicates potential risks which, if not avoided, may lead to equipment fault or property damage. Attention Note provides tips that are valuable for the optimal operation of the product. Note Copyright © Shenzhen SOFAR SOLAR Co., Ltd.
Page 5: Basic Safety Information
User manual HYD 3K~6K-EP 1. Basic safety information 1.1. Safety instructions Read and understand the instructions of this manual, and be familiar with relevant safety symbols in this chapter, then start to install and troubleshoot the equipment. According to the national and state requirements, before connecting to the electrical grid, you must get permission from the local electrical grid operation can only be performed by qualified electrical engineer.
Page 6 User manual HYD 3K~6K-EP installing electrical devices. And assure there is enough fire exit space, convenient for maintenance. Maintain proper ventilation to ensure enough air cycle to cool the inverter. Transport requirements If you find packing problems that may cause the damage of the inverter, or find any visible damage, please immediately notice the responsible transportation company.
Page 7 User manual HYD 3K~6K-EP All installation accomplished only by professional electrical engineer! Must be trained; Completely read the manual operation and understand relevant Warning matter. Get permission from the local electrical gird operator, complete all electrical connections by professional electrical engineer, then connect inverter to electrical grid.
Page 8: Symbols And Signs
User manual HYD 3K~6K-EP electromagnetic emission upon environment. Electromagnetic radiation from inverter may be harmful to health! Please do not continue to stay around the inverter in less than 20 cm Danger when inverter is working. 1.2. Symbols and signs Caution of burn injuries due to hot enclosure! You can only touch the screen and pressing key of the inverter while it’s working.
Page 9 User manual HYD 3K~6K-EP This indicates the degree of protection of the equipment according to IEC standard 70-1 (EN 60529 June 1997). Positive pole and negative pole of the input voltage (DC). This side up, HYD 3K~6K-EP inverter must always be transported, handled and stored in such a way that the arrows always point upwards.
Page 10: Product Characteristics
User manual HYD 3K~6K-EP 2. Product characteristics 2.1. Product informations HYD 3K~6K-EP inverter is a single-phase photovoltaic energy storage inverter integrating grid-connected photovoltaic inverter and battery energy storage. The HYD 3K~6K-EP inverter has a variety of built-in operating modes to suit the diverse user needs.
Page 11: Function Characteristics
User manual HYD 3K~6K-EP Fig. 2-2 Size chart Front view left view Bracket ① ② ③ 2.3. Function characteristics The HYD 3K~6K-EP energy storage inverters allow up to 10% overloading to maximize power output, and the Uninterruptible Power Supply (UPS) mode can support inductive loads such as air conditioners or refrigerators with an automatic switchover time of less than 10 milliseconds.
Page 13: Installation
User manual HYD 3K~6K-EP 3. Installation Installation notes Do NOT install the HYD 3K~6K-EP on flammable material. Do NOT install the HYD 3K~6K-EP in an area used to store Flammable or explosive material. Danger The enclosure and heat sink are very hot while the inverter is working, therefore do NOT install the HYD 3K~6K-EP in places where you might touch them inadvertently.
Page 14 User manual HYD 3K~6K-EP Rear panel 1pcs PV+ input terminal 2pcs PV- input terminal 2pcs Metal terminals secured to 2pcs PV+ input power cables Metal terminals secured to 2pcs PV- input power cables BAT- input terminal 1pcs BAT+ input terminal 1pcs M6 Hexagon screws 3pcs...
Page 15: Product Overview
User manual HYD 3K~6K-EP Split Core Current 1pcs Transformer COM 16pin connector 1pcs Communication cable 1pcs DDSU666 Single-phase electronic type guide 1pcs(optional) rail mounting electric energy meter Manual 1pcs The warranty card 1pcs Quality Certificate 1pcs 3.2. Product Overview HYD 3K~6K-EP inverter is 100% strictly inspected before package and delivery. It is forbidden to put the HYD 3K~6K-EP inverter upside down during delivery.
Page 16: Tools
User manual HYD 3K~6K-EP Fig.3-2 HYD 3K~6K-EP inverter overview Table 3-2 HYD 3K~6K-EP inverter overview Battery input terminals Link Port 1 DC switch PV input terminals Grid connection port USB/WiFi Load connection port Link Port 0 3.3. Tools Prepare tools required for installation and electrical connections. Table 3-3 Tools required for installation and electrical connections.
Page 17: Installation Environment
User manual HYD 3K~6K-EP Crimping tool Used to crimp power cables Multi-meter Used to check grounding With an open end of larger than or greater Used to tighten expansion bolts than 32 mm Marker Used to mark signs Measuring tape Used to measure distances Used to ensure that the rear panel is Level...
Page 18 User manual HYD 3K~6K-EP Fig. 3-3 Installation Position of HYD 3K~6K-EP inverter ① ② ③ ⑤ ⑥ ④ ⑦ - 14 - Copyright © Shenzhen SOFARSOLAR Co., Ltd...
Page 19: Moving The Hyd 3K~6K-Ep
User manual HYD 3K~6K-EP 3.6. Moving the HYD 3K~6K-EP Step 1 Open the packaging, insert hands into the slots on both sides of the inverter and hold the handles, as shown in Fig.3-4. Fig. 3-4 Moving the inverter ① ② Step 2 Lift the inverter from the packing case and move it to the installation position.
Page 20 User manual HYD 3K~6K-EP Fig. 3-5 Installing HYD 3K~6K-EP ① ② ③ ④ ⑤ - 16 - Copyright © Shenzhen SOFARSOLAR Co., Ltd...
Page 21: Electrical Connections
The connected PV modules must have an IEC 61730 Class A ratin Table 4-1 Relevant current parameters of each model IscPV(absolute Maximum output over current Model maximum) protection HYD 3000-EP HYD 3680-EP HYD 4000-EP 18A/18A HYD 4600-EP 20.9A HYD 5000-EP 21.7A...
Page 22: Wire Instructions
User manual HYD 3K~6K-EP intended. Table 4-2 The decisive voltage class(DVC) Interface PV input port DVCC Grid connection port DVCC Battery input port DVCC Load connection port DVCC USB/WiFi interface DVCA COM interface DVCA Link Port 0 & Link Port 1 DVCA 4.1.
Page 23 User manual HYD 3K~6K-EP The inverter is transformer-less, requires the positive pole and negative pole of the PV array are NOT grounded. Otherwise it will cause inverter failure. In the PV power system, all non current carrying metal parts (such as: PV module frame, PV rack, combiner box enclosure, inverter Attention enclosure) should be connected to earth.
Page 24: Pv Connection
User manual HYD 3K~6K-EP 4.3. PV Connection Procedure: Step 1 Select the appropriate cable type and specifications according to the table4-3.Remove cable glands from the positive and negative connectors.( It is recommended that the positive and negative be distinguished by different colors). Step 2 Remove the insulation layer with an appropriate length from the positive and negative power cables by using a wire stripper as show in Fig.
Page 25: Battery Connection
User manual HYD 3K~6K-EP ④ ⑤ ⑥ Disconnect PV connectors ⑦ 4.4. Battery Connection Fig. 4-3 Install battery connection ② ③ ① ⑥ ⑤ ④ - 21 - Copyright © Shenzhen SOFARSOLAR Co., Ltd...
Page 26: Load Connection
User manual HYD 3K~6K-EP 4.5. Load connection Procedure: Step 1 Select appropriate cables according to Table4-3, Remove the insulation layer of the load output cable using a wire stripper according to the figure shown below: A:15~25mm B:6~8mm . Step 2 Disassemble the load connector according to the figure shown below: insert the load output cable (with its insulation layer stripped according to step 1) through the waterproof locking cable gland .
Page 27: Grid Connection
User manual HYD 3K~6K-EP ④ ③ ⑥ ⑤ Hold the button to unlock ⑦ 4.6. Grid connection SOFARSOLAR has already integrated RCMU (residual current monitoring unit) inside inverter, If an external RCD is required, a type-A RCD with rated residual current of 100mA or higher is suggested.
Page 28 User manual HYD 3K~6K-EP Fig. ⑥ Step 5 Connect the connected load terminal to the inverter load port, and push the terminal forward until the sound of "click" is heard, and the terminal connection is completed，as shown in Fig ⑦⑧ If you need to remove the terminals from the machine, use the tool to press on the direction indicated by the big arrow and pull the terminals out.
Page 29: External Communication Interface
User manual HYD 3K~6K-EP ⑪ ⑩ 4.7. External communication interface 4.7.1 USB/WIFI communication interface Fig.4-6 USB/WIFI communication interface ① ② ③ Table 4-4 Interface description Definition Function Note GND.S USB power - The USB power supply is USB data + 5V/1A;...
Page 30 User manual HYD 3K~6K-EP Fig 4-8 The operation information (generated energy, alert, operation status) of the inverter can be transferred to PC or uploaded to the server via WiFi/GPRS Users can choose to use web or APP for monitoring and viewing according to their needs. They need to register an account and bind the device with the WiFi/GPRS SN number.
Page 31 User manual HYD 3K~6K-EP The current sensor outputs a positive electrode RS485-B RS485 differential signal + Meter communication RS485-A RS485 differential signal – Fig.4-9 COM interface ① ② ③ ④ ⑤ BMS（ Communication with lithium battery BMS ） Connect the CAN/RS485 input for communication between the inverter and battery - 27 - Copyright ©...
Page 32 User manual HYD 3K~6K-EP 2. RS485（ Wired monitoring or inverter cascade monitoring ） Refer to the figure shown below, connect the RS485+ and RS485- of the inverter to the TX+ and TX- of the RS485→ USB adapter, and connect the USB port of the adapter to the computer.
Page 33 User manual HYD 3K~6K-EP Pin NO. Function DRM1/5 DRM2/6 DRM3/7 DRM4/8 DRM0 GND-S （b）Logic interface for VDE-AR-N 4105:2018-11, is in order to control and/or limit the inverter’s output power. The inverter can be connected to a RRCR (Radio Ripple Control Receiver) in order to dynamically limit the output power of all the inverters in the installation.
Page 34 User manual HYD 3K~6K-EP Fig.4-13 Inverter – RRCR Connection Table 4-9 Function description of the terminal Pin NO. Pin name Description Connected to (RRCR) Relay contact 1 input K1 - Relay 1 output K1 - Relay 1 output Table 4-10 The inverter is preconfigured to the following RRCR power levels, close is 1, open is 0 Active Power Power drop rate Cos(φ)
Page 35 User manual HYD 3K~6K-EP ③ ④ If you need to use the CT alone, attach the CT to PIN13 and PIN14. Generation and Export Limit Control functions for the inverter are available but require the use of an external measurement device to obtain grid information. There are 2 ways to obtain grid information: Plan A: CT (default) Plan B: Meter + CT (optional)
Page 36 User manual HYD 3K~6K-EP Reflux Power = Export Power Hard Anti-Reflux control = Hard Export limit control Anti-Reflux Control = Soft Export limit control When Anti-Reflux function is enabled, the reflux power of point of common coupling (PCC) will be limited to the set Reflux Power limit. Both Hard Anti-Reflux Control and Anti-Reflux Control can be used together.
Page 37 User manual HYD 3K~6K-EP Fig. 4-15 Electrical connections (Plan A: CT) default - 33 - Copyright © Shenzhen SOFARSOLAR Co., Ltd...
Page 38 User manual HYD 3K~6K-EP Fig. 4-16 Electrical connections (Plan B:Meter +CT ) optional - 34 - Copyright © Shenzhen SOFARSOLAR Co., Ltd...
Page 39 User manual HYD 3K~6K-EP 4.7.3 Link Port 0&1-Cascade communication interface Fig.4-17 Link Port ① ② ③ When using the parallel system, the inverter settings and notes please refer to this manual<6.3.2 Advanced setting→6.Parallel setting>. Note (AC LOAD is also parallel for parallel machines): 1.
Page 40: Buttons And Indicator Lights
User manual HYD 3K~6K-EP 5. Buttons and indicator lights Fig.5-1 Buttons and indicator lights 5.1. Buttons press “Back” to the previous screen or enter the main interface.  press “Up” to the upper menu option or value plus 1.  press “Down”...
Page 41: Operation
User manual HYD 3K~6K-EP 6. Operation 6.1. Double Check Please double check the following before operation. Inverter is firmly fastened to the mounting bracket on the wall. PV+/PV- wires are firmly connected, polarity and voltage are correct. BAT+/BAT- wires are firmly connected, polarity and voltage are correct. DC isolator is correctly connected between battery &...
Page 42 User manual HYD 3K~6K-EP Table 6- 1 Set the parameters Parameter Note 1.OSD Language Option The default English. If you are connected to the host computer such 2. System time setting and as collector or mobile phone APP, the time confirmation should have been calibrated to the local time.
Page 43 User manual HYD 3K~6K-EP Australia (Australia A) Brazil 254 Australia-B 000* Slovakia VSD Australia-C 001* Slovakia SSE Spain RD1699 002* Slovakia ZSD 000* Turkey 000* Ukraine Denmark Norway Denmark TR322 Norway-LV 000* Greece Continent Mexico LV 001* Greece island Wide-Range-60Hz 000* Netherland 000*...
Page 44 User manual HYD 3K~6K-EP Overvoltage 1(V>) 265V Overvoltage 2(V>>) 275V 0.2s Region Australia A Australia B Australia C New Zealand Under- Protective frequency 1 function limit 47Hz 47Hz 45Hz 45Hz (F<) value Trip delay time Maximum disconnection time Over- Protective frequency 1 function limit 52Hz...
Page 45 User manual HYD 3K~6K-EP Voltage 215V 230V 240V 255V Australia C Inverter reactive power level (Q) % of S supplying supplying rated It’s very important to make sure that you have selected the correct country code according to requirements of local authority. Please consult qualified electrical engineer or personnel from electrical safety authorities about this.
Page 46: Menu
User manual HYD 3K~6K-EP Power quality settings can be set/view/changed by logging onto  solarmanpv.com. Access to solarmanpv.com is restricted to authorised personnel only (refer to  Section 4.7.1 for instructions on accessing solarmanpv.com). An account must be created to use solarmanpv.com. ...
Page 47 User manual HYD 3K~6K-EP PV1 Power....**.**KW PV2 Voltage....****.*V PV2 Current....**.**A PV2 Power....**.**KW Inverter Temp......*℃ In the main interface, press “back” button to enter main menu. The main menu has the following six options. Main interface Back 1.System Settings 2.Advanced Settings 3.Energy Statistic 4.System Information 5.Event List...
Page 48 User manual HYD 3K~6K-EP USB flash disk card in advance. Note: To enable this feature, please contact the SOFARSOLAR technical support . 4. Energy Storage Mode 4.Energy Storage Mode 1.Self-use Mode 2.Time-of-use Mode 3.Timing Mode 4.Passive Mode Self-use Mode In Self-use mode, inverter will automatically charge & discharge the battery. If PV generation = LOAD If PV generation >...
Page 49 User manual HYD 3K~6K-EP Time-of-use Mode If electricity is more expensive in high demand time (peak rate) & electricity is much cheaper in low demand time (off-peak rate). You can select an off-peak period to charge your battery. Outside the off-peak charge period, inverter is working in Auto Mode.
Page 50 User manual HYD 3K~6K-EP DisCharge Start 14 h 00m DisCharge End 16 h 00m DisCharge Power 02500 W Passive Mode For more detailed information, please ask representative of SOFAR to get a copy of passive mode communication protocol. 5. Auto Test (ONLY for Italian Market) 5.Auto Test 1.Autotest Fast 2.Autotest STD...
Page 51 User manual HYD 3K~6K-EP ↓ Press “Down” 59.S1 threshold 253V 900ms ↓ Press “Down” 59.S1: 228V 902ms ↓ Press “Down” 59.S2 threshold 264.5V 200ms ↓ Press “Down” 59.S2: 229V 204ms ↓ Press “Down” 27.S1 threshold 195.5V 1500ms ↓ Press “Down” 27.S1: 228V 1508ms ↓...
Page 52 User manual HYD 3K~6K-EP If PV generation > LOAD consumption generation LOAD (ΔP > 100W), inverter will charge battery. consumption, inverter wont’ charge or discharge battery. If PV generation < LOAD consumption If PV generation is normal,but LOAD (ΔP ＞ 100W), inverter will discharge consumption=0, the surplus power will be battery.
Page 53 User manual HYD 3K~6K-EP Battery Parameter2 A. Inner BMS 1.Battery Parameter 1.Battery Type 5.Max Charge (A) 2.Battery Capacity 6.Max Discharge (A) 3.Nominol Bat Voltage 7.*Discharg Depth 4.Battery Cell Type 8.Save B. PYLON/SOFAR 1.Battery Parameter 1.Battery Type 4.Max Discharge (A) 2.Battery Address 5.Discharg Depth 3.Max Charge (A) 6.Save...
Page 54 User manual HYD 3K~6K-EP 3.Force Scan Logic interface Control Enable or disable logical interfaces. Please refer to this manual 4.7.2, inverter logic interface connection for details. 4.Logic interface Control Enable Disable Factory Reset 1.Clear Energy Data 5.Factory Reset 2.Clear Events Clean the inverter of the total power generation.
Page 55 User manual HYD 3K~6K-EP Calibrating Sucess/Fault 8.CT Calibration Check if the battery is charging or discharging when calibration fails。 6.3.3 Energy Statistic 3.Energy Statistic Today PV ......***KWH Load ......***KWH Export ......***KWH Import.......***KWH Charge.......***KWH Discharge....***KWH Down↓ Month PV ......***KWH Load ......***KWH Export ......***KWH Import.......***KWH Charge.......***KWH...
Page 56 User manual HYD 3K~6K-EP Product SN Software Version DSP1 Software Version DSP2 Software Version Down↓ Inverter Info (2) Hardware Version Power Level Country Down↓ Inverter Info (3) PV Input Mode Energy Storage Mode RS485 Address EPS Mode Down↓ Inverter Info (4) IV Curve Scan Logic Interface Control PF Time Setting...
Page 57 User manual HYD 3K~6K-EP OFP 1 OFP 2 UFP 1 UFP 2 Down↓ Safety Param. (3) OVP 10mins 6.3.5 Event List Event List is used to display the real-time event records, including the total number of events and each specific ID No. and happening time. User can enter Event List interface through main interface to check details of real-time event records, Event will be listed by the happening time, and recent events will be listed in the front.
Page 58 User manual HYD 3K~6K-EP Updating DSP2 Updating ARM Step 7 If the following errors occur, please upgrade again. If this continues many times, contact technical support for help. USB Fault MDSP File Error SDSP File Error ARM File Error Update DSP1 Fail Update DSP2 Fail Update ARM Fail Step 8 After the update is completed, turn off the DC breaker, wait for the LCD...
Page 59: Troubleshooting
User manual HYD 3K~6K-EP 7. Troubleshooting This section contains information and procedures for solving possible problems with the inverter. This section help users to identify the inverter fault. Please read the  following procedures carefully: Check the warning, fault messages or fault codes shown on the inverter ...
Page 60 User manual HYD 3K~6K-EP The inverter must be installed in a high traffic area where the fault would be seen. Event List information  Table 7-1 Event list Code Name Description Solution The grid voltage is too If the alarm occurs occasionally, the ID001 GridOVP high...
Page 61 User manual HYD 3K~6K-EP GFCIDeviceFault Leakage current ID021 (DC) sampling error (DC) GFCIDeviceFault Leakage current ID022 (AC) sampling error (AC) Error in dc component ID023 HwADFaultDCV sampling load voltage input current ID024 HwADFaultIdc sampling error ConsistentFault_ Leakage current ID029 GFCI consistency error ConsistentFault_ Grid...
Page 62 User manual HYD 3K~6K-EP Module 2 temperature ID060 TempFault_Inv2 protection Module 3 temperature ID061 TempFault_Inv3 protection VbusRmsUnbala Unbalanced bus voltage Internal faults of inverter, switch OFF ID065 inverter, wait for 5 minutes, then switch ON inverter. Check whether the problem is The transient value of VbusInstantUnba solved.
Page 63 User manual HYD 3K~6K-EP overflows ID102 HwPVOCP PV hardware overflows output hardware ID103 HwACOCP overflows ID110 Overload1 Overload protection 1 Please check whether the inverter is operating under overload. ID111 Overload2 Overload protection 2 ID112 Overload3 Overload protection 3 Internal temperature is Make sure the inverter is installed where too high.
Page 64 User manual HYD 3K~6K-EP unrecoverVbusU Bus voltage unbalanced ID141 nbalance permanent failure ID145 USBFault USB fault Check the USB port of the inverter ID146 WifiFault Wifi fault Check the Wifi port of the inverter Bluetooth fault Check the bluetooth connection of the ID147 BluetoothFault inverter...
Page 65 User manual HYD 3K~6K-EP not be blocked by dust, dirt or any other items. Before the cleaning, make sure that the DC SWITCH is turned OFF and the circuit breaker between inverter and electrical grid is turned OFF. Wait at least for 5 minutes before the Cleaning. Inverter cleaning ...
Page 66: Technical Data
User manual HYD 3K~6K-EP 8. Technical Data Battery Parameters Datasheet 3000-EP 3680-EP 4000-EP 4600-EP 5000-EP 5500-EP 6000-EP Battery type Lithium-ion, Lead-acid Nominal battery voltage Battery voltage 42-58V range Battery capacity 50-2000Ah Maximum charging / 3750W 4000W 4250W 5000W 5000W 5000W 5000W discharging power...
Page 67 User manual HYD 3K~6K-EP PV String Input Data Datasheet 3000-EP 3680-EP 4000-EP 4600-EP 5000-EP 5500-EP 6000-EP Recommended Max. PV input 4500Wp 5400Wp 6000Wp 6900Wp 7500Wp 7500Wp 9000Wp power(Wp) Max. DC power 3500W 3500W 3500W 3500W 3750W 3750W 4500W for single MPPT Max.
Page 68 User manual HYD 3K~6K-EP AC Output Data (ON-Grid ) Datasheet 3000-EP 3680-EP 4000-EP 4600-EP 5000-EP 5500-EP 6000-EP Nominal AC 3000 3680 4000 4600 5000 5000 6000 power（W） Max. AC power output to utility 3300 3680 4400 4600 5000 5500 6000 grid（VA）...
Page 69 User manual HYD 3K~6K-EP AC Output Data (Off-Grid ) Datasheet 3000-EP 3680-EP 4000-EP 4600-EP 5000-EP 5500-EP 6000-EP Max. apparent 3000 3680 4000 4600 5000 5000 5000 power（VA） Peak output 3600VA, 4400VA, 4800VA, 5520VA, 6000VA, 6000VA, 6000VA, power, Duration Max. output 13.6A 18.2A 20.9A...
Page 70 User manual HYD 3K~6K-EP Efficiency And Protection Datasheet 3000-EP 3680-EP 4000-EP 4600-EP 5000-EP 5500-EP 6000-EP MPPT 99.9% efficiency European efficiency of 97.2% 97.2% 97.2% 97.3% 97.3% 97.3% 97.5% solar inverter Max efficiency of solar 97.6% 97.6% 97.6% 97.8% 97.8% 97.8% 98.0% inverter Max.
Page 71 User manual HYD 3K~6K-EP General Data Datasheet 3000-EP 3680-EP 4000-EP 4600-EP 5000-EP 5500-EP 6000-EP Dimension 482mm×503mm×183mm Weight 21.5kg Inverter High frequency insolation (for bat) topology DC side: overvoltage II Protective class (I, II or III) AC side: overvoltage III Active anti-islanding Reactive Power Disturbance method...
Page 72 User manual HYD 3K~6K-EP Feature And Standard Datasheet 3000-EP 3680-EP 4000-EP 4600-EP 5000-EP 5500-EP 6000-EP Display Communication Bluetooth / RS485 / WIFI / GPRS (optional) Parallel operation Warranty 10 years VDE-AR-N 4105, VDE V 0126-1-1, AS/NZS 4777, CEI 0-21, G98/G99, TR321, Grid standards TR322, EN 50438/EN50549, UTE C15-712-1, NRS 097-2-1, UNE 206 007-1 Safety...
Page 73: Quality Assurance
User manual HYD 3K~6K-EP 9. Quality Assurance SOFARSOLAR *Factory’s Warranty Terms and Conditions for Australia Applicable products These *Factory’s Warranty Terms and Conditions (“Terms and Conditions”) only applies to the following products, which are distributed and installed in Australia. Table Product Standard warranty period (months) Inverter...
Page 74 User manual HYD 3K~6K-EP consequential, special, indirect, punitive or exemplary loss or damages, whether or not a party was advised of the possibility of such loss or damage; “End User” means a person or entity whose order for the purchase of the Product is accepted by SOFARSOLAR;...
Page 75 User manual HYD 3K~6K-EP any breach of a condition or warranty implied by virtue of any applicable legislation (including the ACL) to the following remedies in the event SOFARSOLAR decides a Product to be faulty or otherwise defective during the Warranty Period (or otherwise): The repair of the Product by SOFARSOLAR whether on-site or off-site;...
Page 76 User manual HYD 3K~6K-EP the purported faulty or otherwise defective Product is deemed free of faults and defects that would qualify a replacement under these Terms and Conditions, then SOFARSOLAR is entitled to charge a retail price of the Product(s), shipping and packaging and any associated labour cost in replacing the purported faulty or otherwise defective Product;...
Page 77 User manual HYD 3K~6K-EP authorised by SOFARSOLAR in writing, or serial number or seals have been removed. Product modifications, design changes or part replacements without prior written approval of SOFARSOLAR; The End user or installer has failed, refused or otherwise neglected to comply with the applicable safety regulations (IE, VDE standards or equivalent) governing the proper use of the Product in force from time to time;...
Page 78 User manual HYD 3K~6K-EP statutory, contractual, in tort or otherwise, consisting of, without quandary, and where permitted by using relevant law, any implied conditions, warranties or different phrases as regards exemplary quality or fitness for purpose. However, this limited warranty shall neither exclude nor limit any of your legal (statutory) rights provided under the relevant national laws and regulations.
Page 79 User manual HYD 3K~6K-EP further information on SOFARSOLAR Energy Storage products. Procedure for Claiming a Warranty In the case of a faulty or otherwise defective Product please report that Product within the agreed warranty period, with a detailed error description to SOFARSOLAR’s service hotline for registering and send the claim to SOFARSOLAR service department by fax/email or through SOFARSOLAR Warranty Claim Website at https://service.sofarsolar.com/warranty/search to...
Page 80 User manual HYD 3K~6K-EP which does not meet the date requirement. An extended Warranty Period can be purchased to 10, 15, or 20 years. Please refer to the Warranty Extension Order Form for more information. Once the purchase of the Warranty Period extension has been processed, SOFARSOLAR will send a Warranty Period extension certificate to the End User confirming the extended Warranty Period.
