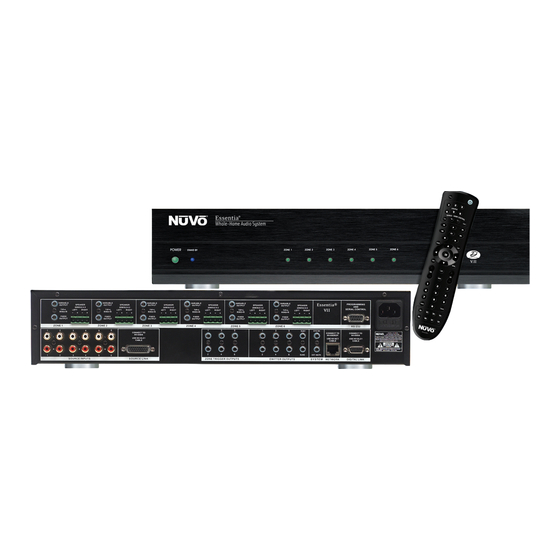

Nuvo Essentia NV-A4DS-BT Specifications

Zone/Room 1 Zone/Room 2 Zone/Room 3 Zone/Room 4
VOLUME VOLUME VOLUME VOLUME
MUTE MUTE MUTE MUTE
CD1 SAT CD1 SAT CD1 SAT CD1 SAT
CD2 TNR1 TNR2 DVD CD2 TNR1 TNR2 DVD CD2 TNR1 TNR2 DVD CD2 TNR1 TNR2 DVD
Essentia D
Zones 1-6 Power Amplifier Outputs
Continuous Average Output Power 40W (20W x 2)
*Bticino is a registered trademark of the Bticino Company
Two channels driven 30-20kHz @1% THD
Rated Distortion (1/2 power) 0.40%
Rated Impedance 6 Ohms
Damping Factor 50+
Frequency Response (20-20kHz) ±2dB
Zones 1-6 Preamplifier Outputs
Variable output 0-600mV
Fixed output 600mV
Impedance 600 Ohms
Source Inputs 1-6
Input Impedance 10K
Input Sensitivity for rated power 300mV RMS
Input Overload 3V RMS
Emitter Outputs
Source Outputs 6
Sum Outputs 2
Output Drive Current 100mA
Output Drive Voltage 12V
Compatible with single and dual emitters
Essentia system package ships complete with the following:
• Essentia six-source, six-zone system
• 6 keypads (black, silver, or white)
• 36 pre-printed source buttons
• 1 LRC1 remote with batteries
• EZ-Port Cat-5 connection hub
• Network cable
• 6 infrared emitters
Zone/Room 5 Zone/Room 6
VOLUME MUTE VOLUME
MUTE
CD1 SAT CD1 SAT
CD2 TNR1 TNR2 DVD CD2 TNR1 TNR2 DVD
V.II
Essentia D BTicino ®
®
Bticino
*
Wiring Diagram
System
System On 12V @ 50mA
External Mute 3-12V DC
Zone Trigger Outputs
Output Power 12V @ 50mA
Outputs 6 (zones 1-6)
Power Requirements
Power Supply 120VAC/240VAC 50/60Hz
Power Consumption all channels 340VA (290W)
driven to full-rated power
Power Consumption average 50VA (40W)
operating conditions
Power Consumption no signal 30VA (12.5W)
USA Safety Listing (UL 6500) Pending
Canada Safety Listing (CAN/CSA E60065.00) Pending
CE Listing/SEMKO (EN60065, EN55013, Pending
EN55020, EN6100-3-2, EN6100-3-3/A1)
Physical Specifications
Unit Size Millimeters 88H x 430W x 325D
Unit Size Inches 3 1/2H x 17Wx 12 3/4D
Keypad Size Millimeters 71H x 41.5W x 32.5D
Shipping Size Millimeters 290H x 540W x 440D
Shipping Size Inches 11 3/8H x 21 1/4W x 17 3/8D
Unit Weight Pounds 17.0 (7.8kg)
Shipping Weight Pounds 28 (12.7kg)
NuVo reserves the right to change specifications without notice.
www.nuvotechnologies.com
2395 Arbor Tech Drive, Hebron, KY 41048
Phone: 859-817-7200 Toll Free: 866-796-4904
NuVo uses D Amplifier™
by Philips Semiconductors
Essentia
®
Six-Source, Six-Zone Audio Distribution System
