  • Page 1 NV-D460 External Power Amplifier Installation Guide...
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS ENGLISH 1. Read all safety and operating instructions before using this product. 2. All safety and operating instructions should be kept for future reference. 3. Read and understand all warnings listed on the operating instructions. 4 . Follow all operating instructions to operate this product.. 5.
  • Page 4 FRENCH IMPORTANTES INSTRUCTIONS DE SECURITE 1. Lire avec attention toutes les recommandations et précautions d'emploi avant d'utiliser ce produit. Danger 2. Toutes les recommandations et précautions d'emploi doivent être conservées L‘ e xposition a des niveaux eleves de bruit peut provoquer une perte afin de pouvoir s'y reporter si nécessaire.
  • Page 5 FCC Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, it may cause harmful interference to radio communications.
  • Page 6: Table Of Contents

    Stable at four or eight ohms, and with multiple trigger options, the NV-D460 offers the ultimate flexibility with the quality of construction you have come to expect from NuVo Technologies.
  • Page 7: Front Panel

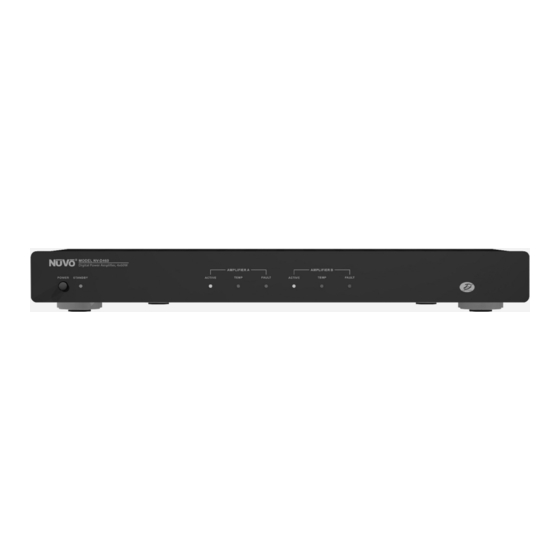

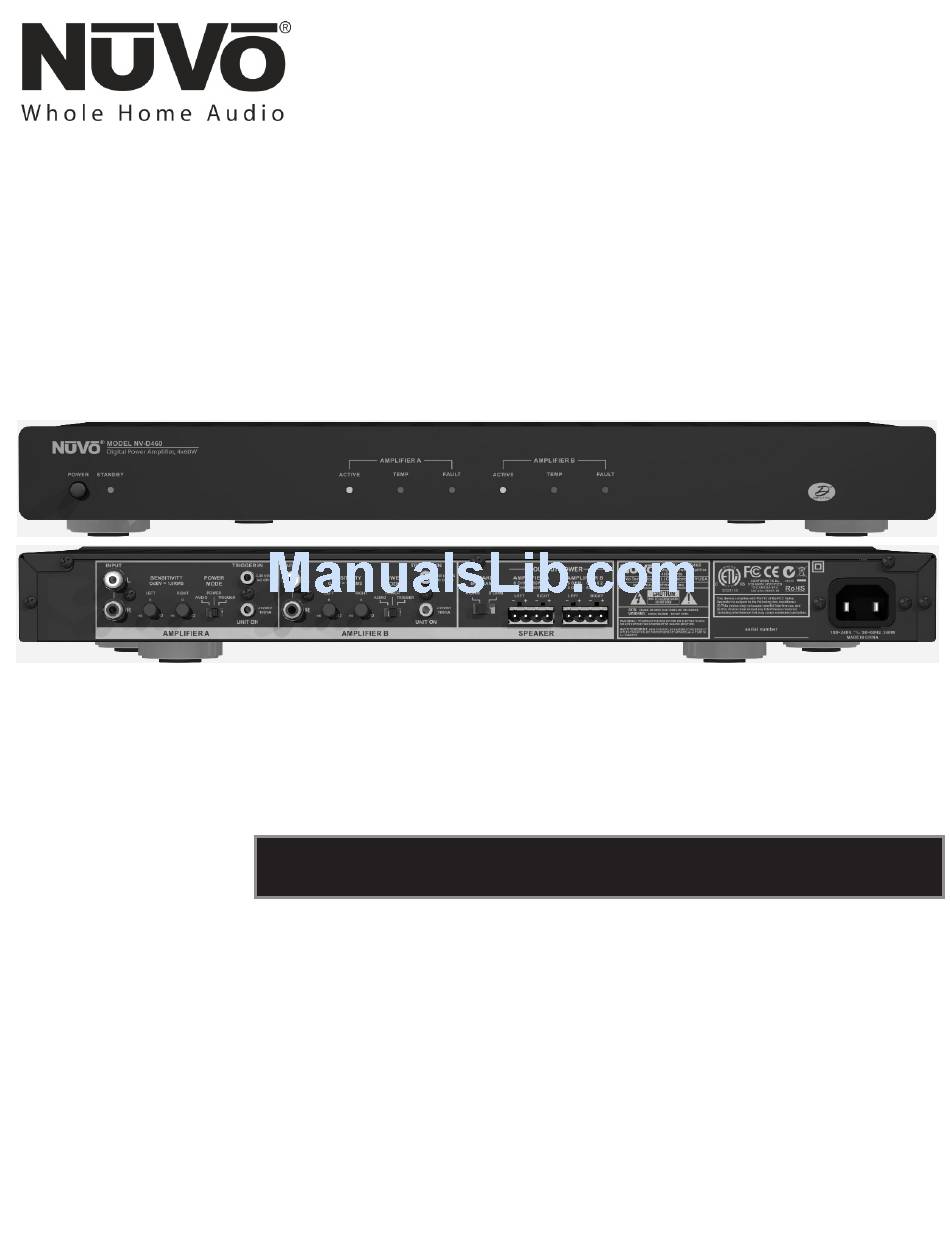

    Front Panel Features 1. Power Button: Pushing this button will manually supply power to the amplifier. The amplifier is designed to remain in standby mode when not in use. 2. Standby: This LED (light emitting diode) will light blue when the D460 is plugged into an A/C power supply. 3.
  • Page 8: Back Panel

    1. Audio Source Input A: The D460 will accept any line level stereo audio signal. This can be from the preamp lineout of a multi-source, multi-zone whole house system such as the NuVo Simplese, Essentia E6G and Grand Concerto systems, or the audio output of any non-amplified source, such as an AM/FM tuner, CD player, or Satellite receiver.
  • Page 9: Wiring Diagram

    NV-D460 Wiring Diagram NV-D460 with Grand Concerto System VARIABLE VARIABLE VARIABLE VARIABLE VARIABLE VARIABLE VARIABLE OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT POWER OUTPUT POWER OUTPUT POWER OUTPUT POWER OUTPUT POWER OUTPUT POWER RS-232 TIP=L TIP=L TIP=L 20W/6OHM X2...
  • Page 10: Audio Source Inputs

    Grand Concerto have fixed and variable 3.5mm stereo audio outputs. To add the D460 to one of these systems, use a 3.5mm to Stereo RCA adapter cable to pass the audio signal from the NuVo Grand Concerto or Essentia E6G to the D460. Connect the 3.5mm end into the variable 3.5mm output for the chosen zone (Fig.
  • Page 11: Audio Sensitivity Control

    +6 or a counter-clockwise turn is used to reduce the gain. This would be the preferred setting for a distributed audio system with variable preamp line outputs, such as any of the NuVo systems. Reducing the gain can also be useful for limiting the maximum power going to the speakers.
  • Page 12 Setting the power mode switch to the left in the Audio mode (Fig. 5) sets the amplifier to respond to the presence of an audio signal. If you are triggering the amplifier in this way, you should expect a slight delay before it turns on. When the audio signal is removed, the amplifier will remain on for approximately three minutes after the incoming audio signal has ended before the unit turns off.
  • Page 13: Trigger In

    IV. Trigger In This input (Fig. 8) is designed for a mono 3.5mm plug to accept a trigger voltage coming in from an external source. Any voltage ranging from 3-30 volts, AC or DC, will cause the amplifier to turn on when the Power switch is in the Trigger mode. Fig.
  • Page 14: Speaker Outputs

    Stranded 4 conductor 16 gauge speaker wire is recommended. Fig. 11 The NV-D460 amplifier is designed to run at a maximum load of 4 ohms. Prolonged operation at less than 4 ohms could cause the amplifier to overheat and damage its internal components. Overheating...
  • Page 15: Specifications

    Unit Weight Kilograms Unit Weight Pounds Power-On Modes Shipping Weight Kilograms 10.5 Audio Shipping Weight Pounds Power NuVo reserves the right to change specifications without notice. Trigger System 3-30 V AC or DC Trigger Input +12VDC @100mA Unit On Output Source Inputs...
  • Page 16 NuVo Technologies Hebron, KY USA www.nuvotechnologies.com D460 1031...
