Ocean BCB 2731 TNF E A+ Service Manual

Display and control panel
Hide thumbs Also See for BCB 2731 TNF E A+:

Advertisement

Table of Contents

Fridge partition temperature setting button
This button allows setting temperature of the fridge. In order to set values for fridge partition,
press this button. Use this button also to activate Super Cooling mode.
Alarm light
In case of a problem within the fridge, the alarm led will release red light.
Super Cooling Mode
When would it be used?
• To cooling huge quantities of food.
• To cooling fast food.
• To cooling food quickly.
• To store seasonal food for a long time.
How to use?
• Press temperature set button until super cooling light comes on.
• Super cooling led will light during this mode.
• For optimal appliance performance in maximum cooling capacity, set the appliance to
active Super Cooling mode 5 hours before you put the fresh food into the fridge.
During this mode:
If you press temperature set button, the mode will be cancelled and the setting will be
restored from MAX.
Note: "Super cooling" mode will be automatically cancelled after 5 hours.
Temperature Settings
• It ensures that the temperature settings in the cooling and freezing compartments of your
refrigerator are performed automatically. It may be set to any value ranging from MIN to
MAX and super cooling mode. As you press temperature set button from MIN to MAX, the
temperature decreases. To save energy in winter months, operate your refrigerator in a
lower position.
• Initial temperature setting for refrigerator is at the middle point.
• Every time you press temperature set button, setting temperature will decrease until super
cooling symbol and if you keep on pressing the set temperature will be min set temperature
again
BCB 2731 TNF E A+

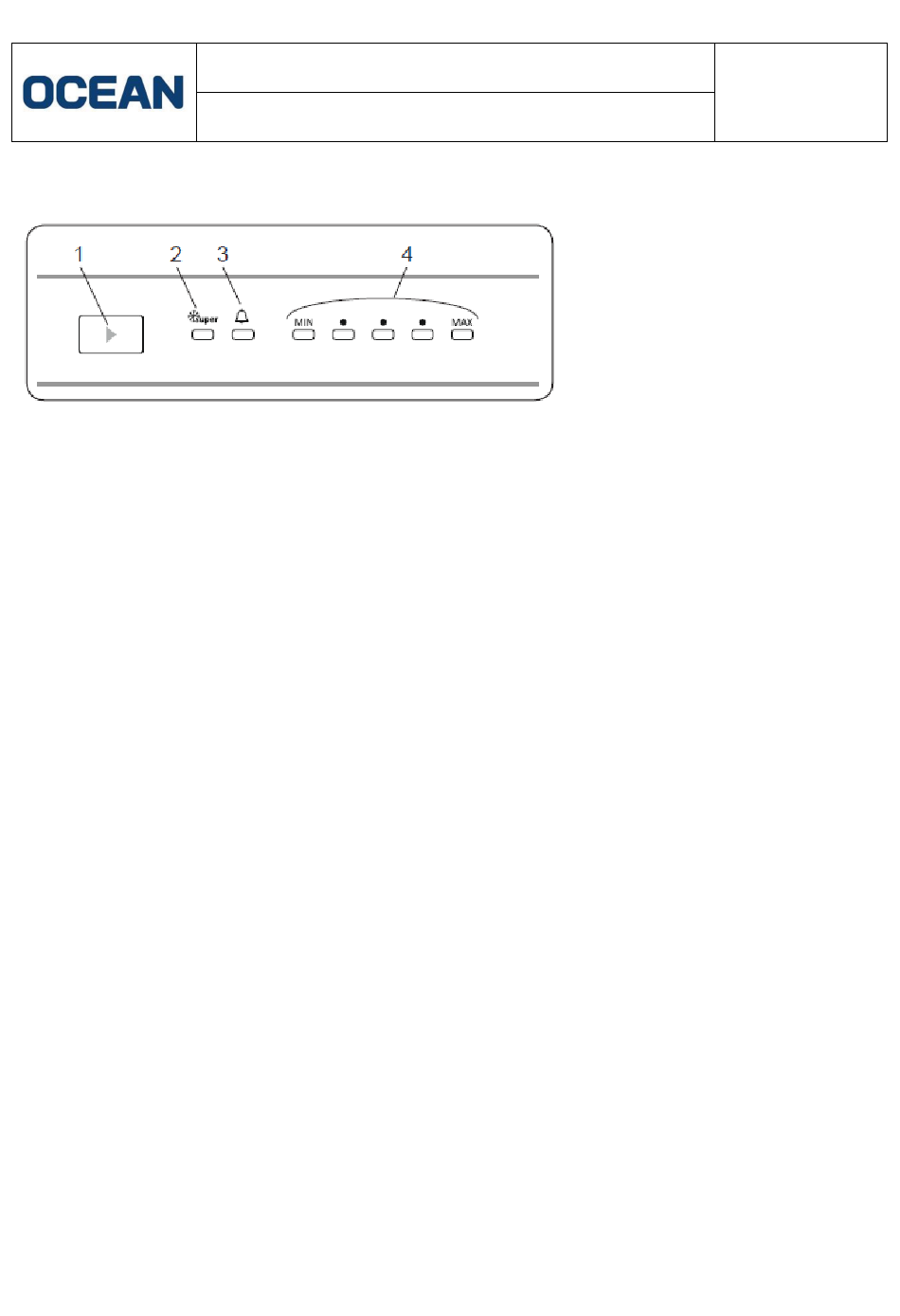

Display and Control Panel
1
CUSTOMER
SUPPORT
1. Temperature set button
2. Super cooling symbol
(Super cooling LED)
3. Alarm symbol (Alarm LED)
4. Adjusted temperature
indicator

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BCB 2731 TNF E A+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ocean BCB 2731 TNF E A+

Summary of Contents for Ocean BCB 2731 TNF E A+

  • Page 1 BCB 2731 TNF E A+ CUSTOMER SUPPORT Display and Control Panel Fridge partition temperature setting button 1. Temperature set button 2. Super cooling symbol (Super cooling LED) 3. Alarm symbol (Alarm LED) 4. Adjusted temperature indicator This button allows setting temperature of the fridge. In order to set values for fridge partition, press this button.

  • Page 2: Warnings For Temperature Settings

    BCB 2731 TNF E A+ CUSTOMER SUPPORT Display and Control Panel Warnings for Temperature Settings • It is not recommended that you operate your fridge in environments colder than 10°C in terms of its efficiency. • Do not start another adjustment while you are already making an adjustment. •...
  • Page 3 BCB 2731 TNF E A+ CUSTOMER SUPPORT Fault Codes Error on display USER MODE SERVICE MODE ERROR TEMPERATURE REACTION REACTION >+50°C or <-50°C Display ALARM Symbol Refrigerator Min Symbol blinks (sensor is short or open) blinks R sensor temp >10°C (R sensor temp.
  • Page 4 BCB 2731 TNF E A+ CUSTOMER SUPPORT Service Mode Entering service mode: Push SET button continuously for 10 seconds when max symbol active. Appliance will enter service mode 10 sec. later. Canceling service mode: Push SET button continuously for 10 seconds when max symbol active. Appliance will enter service mode 10 sec.
  • Page 5 BCB 2731 TNF E A+ CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE Changing The Door Swing Direction to Right Hand 1- Unscrew the two screws fixing the top hinges (Fig-1) and bottom hinges. (Fig-2) Remove the doors. (Fig-1) Figure 1 Figure 2 2- Remove the top hinge screw caps (big) on the left side (Fig-3) and insert them to the right side.
  • Page 6 BCB 2731 TNF E A+ CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE 4- Unscrew the two screws fixing the top hinge and bottom hinges. Remove the hinges. (Fig-6) Figure 6 4- Top door: Assemble the top hinge of top door to the bottom of top door . Assemble the bottom hinge of top door to the top of top door .
  • Page 7 BCB 2731 TNF E A+ CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE Replacement Turbo Fan Motor 1-Remove the fan motor cover. (Pic-1) Unscrew the two screws and remove the fan motor body. (Pic-2) Take out the sockets and replace the fan motor (Pic-3) Picture-1 Picture-2 Picture-3...
  • Page 8 BCB 2731 TNF E A+ CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE Replacement Head Panel and Main Board 1. First remove cover by pulling leftward as 2. Remove other cover by pulling backward shown below. from top side of the cover as shown below 3.
  • Page 9 BCB 2731 TNF E A+ CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE 4. Disassemble snapfits at the area marked with red circle at the picture below . It can be used any suitable tool to disassemble. 5. Unplug socket on the board assembled head panel.
  • Page 10 BCB 2731 TNF E A+ CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE 6. To reassemble head panel ; first plug socket mentioned before and then place detail on the head panel to related detail on the cover and then push head panel to place snapfits marked with red circle below.

  • Page 11: Assemble & Disassemble

    BCB 2731 TNF E A+ CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE 7. Then screw head panel with screwdriver and assemble covers and complete head panel assembly. 8. Pull cover backward and remove from housing...
  • Page 12 BCB 2731 TNF E A+ CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE 9. Then unplug all sockets. 10. To reassemble cover first plug all sockets related place on the board.
  • Page 13 BCB 2731 TNF E A+ CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE 11. To reassemble cover pay attention to assemble with right direction. Details on the cover and housing should be matched eachother Cover Housing...
  • Page 14 BCB 2731 TNF E A+ CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE Replacement of Freezer Multiflow Cover 1. Displace the glass shelfs and baskets if there is. 2. Unscrew the screw fixing the multiflow group. (Pic-1) 3. Removing the freezer bottom cover by flexing bottom and sides of it. (Pic-2) Picture-1 Picture-2 Replacement of Freezer Evap.
  • Page 15 BCB 2731 TNF E A+ CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE Replacement of Thermal Fuse 1. Remove the thermal fuse connector. 2. Thermal fuse has two details. These details (Pic-1) (black-white connector) hold on to the pipe. It could be removed easily.(Pic-2) Termal Fuse Connector Picture-1...
  • Page 16 BCB 2731 TNF E A+ CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE 4. Displace the details on the fan FAN MOTOR motor box. (Pic-4) COVER PROPELLER MOTOR MOTOR MOTOR RUBBER SCREWS Picture-4 Fan Motor Components...
  • Page 17 BCB 2731 TNF E A+ CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE Replacement of Door Switch 1. Stick a tape to protect the body plastic. 2. Also flex the top-side of the switch and Flex it with the help of a tool like a slotted then displace by pulling.
  • Page 18 BCB 2731 TNF E A+ CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE Replacement of LED Remove the led cover by pulling forward and disconnect the connector.

  • Page 19: Replacement Of Door Gasket

    BCB 2731 TNF E A+ CUSTOMER SUPPORT ASSEMBLE & DISASSEMBLE Replacement of Door Gasket Pull the gasket towards starting from top right corner Slowly pull the rest of the gasket. Completely remove the gasket from door. Check the replacement gasket form Starting with upper right corner, press on the gasket until it fits to its place..
