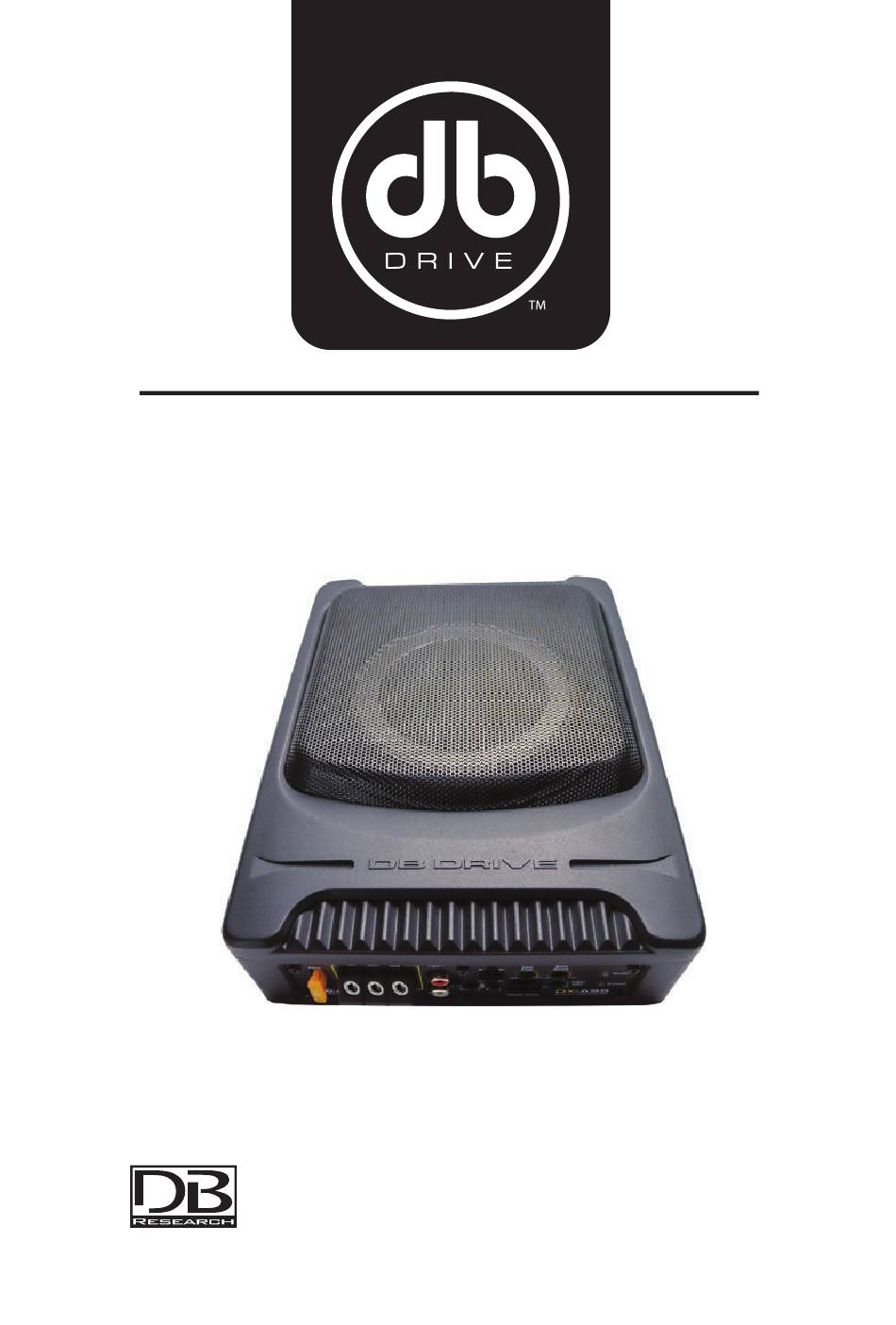

- Page 1 8” Amplified Compact Enclosure USER’S MANUAL DB Research L.L.P. - 302 Hanmore Industrial Parkway - Harlingen, TX 78550 Ph: (877) 787-0101 - Fax: (956) 421-4513 - www.dbdrive.net Due to continuous improvement of the product, specifications are subject to change without notice.
- Page 2 Introduction Congratulations on your purchase of a DB Drive state-of-the-art amplified compact enclosure. Your selection of a DB Drive car audio product indicates a true appreciation of fine musical reproduction. Whether adding to an existing system or including your DB Drive amplified compact enclosure in a new system, you are certain to notice immediate performance benefits.
-
Page 3: Power Input Terminal
Panel Controls and Features A. POWER STATUS LED F. INPUT GAIN CONTROL This bi-color LED glows green when power is After you have installed your system, turn this on and no problems are present. If one of the control to minimum. protection circuits comes on, it will change to red. -
Page 4: Low Level Input Wiring
I. Low Level Input Wiring Low-level (RCA) input wiring is preferred for best audio performance. Most trunk or hatchback installations will require a 15-20 foot RCA cable, while pickup trucks and under-seat installations will require a 6-12 foot RCA cable. Always use a high quality cable. NOTE: Do not connect BOTH the high level and low level inputs from your receiver to your amplifier at the same time! Fig.1... -
Page 5: Power Connections
Power Connections Connect the ground terminal to the closest point on the chassis of the vehicle. Keep this ground wire to less than 39” (100cm) in length. Use 8 gauge (or heavier) wire. Connect the remote terminal to the remote output of the head unit using 16 gauge (or heavier) wire. Connect any empty fuse holder within 18”... -
Page 6: Remote Level Control Connection
Remote Level Control Connection Remote Level Control Install the remote control securely under the dash or in a similar location where using it will not distract the driver. Specifications MODEL: DX-AS8 150W RMS Power <0.5% >90dB Signal-to-Noise Ratio 20Hz - 150Hz Frequency Response 1V - 18V Input Sensitivity, High Level... -
Page 7: Troubleshooting
Troubleshooting If you experience operation or perfomance problems with this product, compare your installation with the electrical wiring diagram on the previous pages. If the problem persist, read the following troubleshooting tips which may help eliminate the problems. POSSIBLE REMEDY ▪... -
Page 8: Limited Warranty
LIMITED WARRANTY DB Drive warrants any products purchased in the U.S.A. from an authorized DB Drive dealer. All products are warranted to be free from defects in material and workmanship under normal use and service for a period of one (1) year when purchased over the counter.
