Quick Links

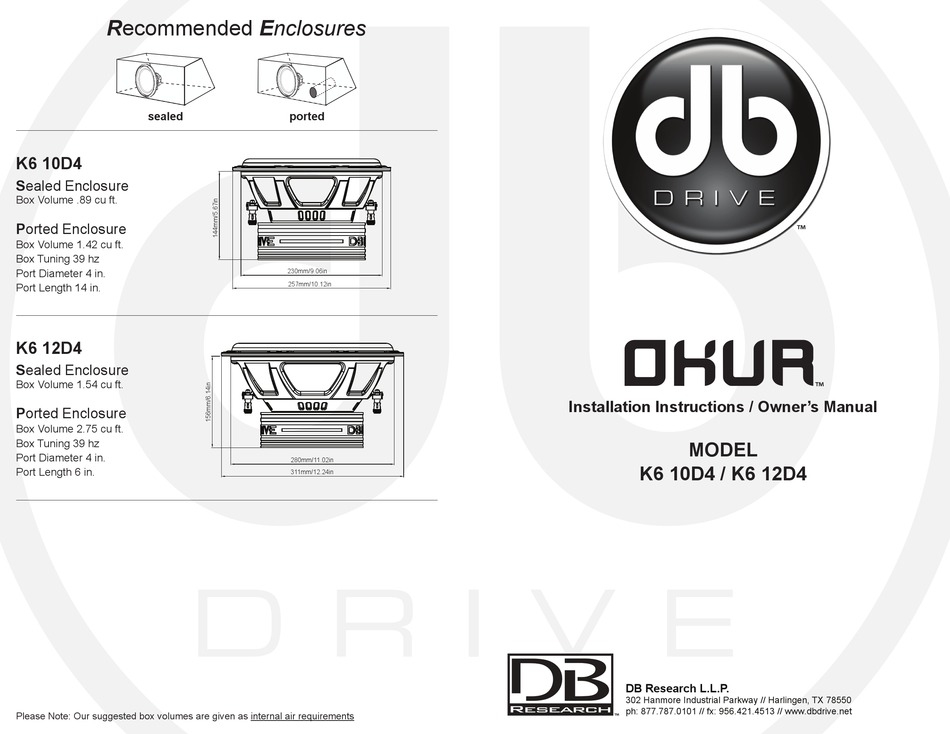

Recommended Enclosures
sealed
K6 10D4
Sealed Enclosure
Box Volume .89 cu ft.
Ported Enclosure
Box Volume 1.42 cu ft.
Box Tuning 39 hz
Port Diameter 4 in.
Port Length 14 in.
K6 12D4
Sealed Enclosure
Box Volume 1.54 cu ft.
Ported Enclosure
Box Volume 2.75 cu ft.
Box Tuning 39 hz
Port Diameter 4 in.
Port Length 6 in.
Please Note: Our suggested box volumes are given as internal air requirements
ported
230mm/9.06in
257mm/10.12in
280mm/11.02in
311mm/12.24in
okur
Installation Instructions / Owner's Manual
MODEL
K6 10D4 / K6 12D4
DB Research L.L.P.
302 Hanmore Industrial Parkway // Harlingen, TX 78550
ph: 877.787.0101 // fx: 956.421.4513 // www.dbdrive.net
Advertisement
Related Manuals for DB Research DB DRIVE OKUR K6 10D4
Summary of Contents for DB Research DB DRIVE OKUR K6 10D4
- Page 1 K6 10D4 / K6 12D4 Port Length 6 in. 311mm/12.24in DB Research L.L.P. 302 Hanmore Industrial Parkway // Harlingen, TX 78550 ph: 877.787.0101 // fx: 956.421.4513 // www.dbdrive.net Please Note: Our suggested box volumes are given as internal air requirements...
- Page 2 NTRODUCTION RODUCT SPECIFICATIONS Congratulations on your purchase of a DB Drive state-of-the-art subwoofer compo- K6 10D4 K6 12D4 nent. Your selection of a DB Drive car audio product indicates a true appreciation of 29.835Hz (FS) 36.46Hz fine musical reproduction. Whether adding to an existing system or including a DB 0.396 Drive subwoofer in a new system, you are certain to notice immediate performance (Qts.)
