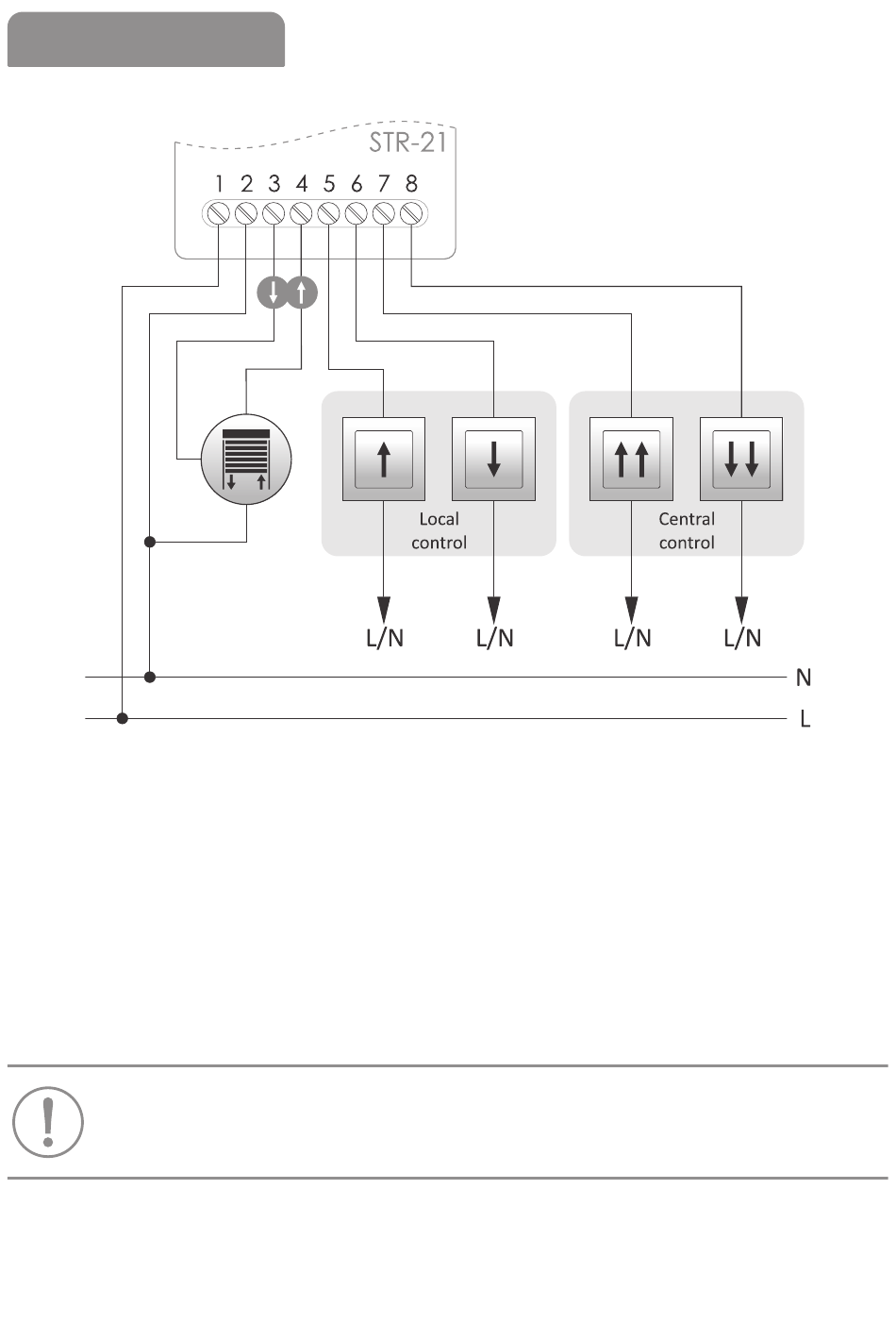

Wiring diagram

1-2 230 V AC power supply (L-N)
motor power supply – down ↓ direction output
3
motor power supply – up ↑ direction output
4
5 local control – up ↑ direction
6 local control – down ↓ direction
central control – up ↑↑ direction
7
central control – down ↓↓ direction
8
The control inputs can be supplied from the phase (L) or
neutral (N) wire. Select one control option for all inputs.
- 3 -
