Wiring Diagram - F&F STR-421 24 V Manual

Roller blind controller 2-button

Advertisement

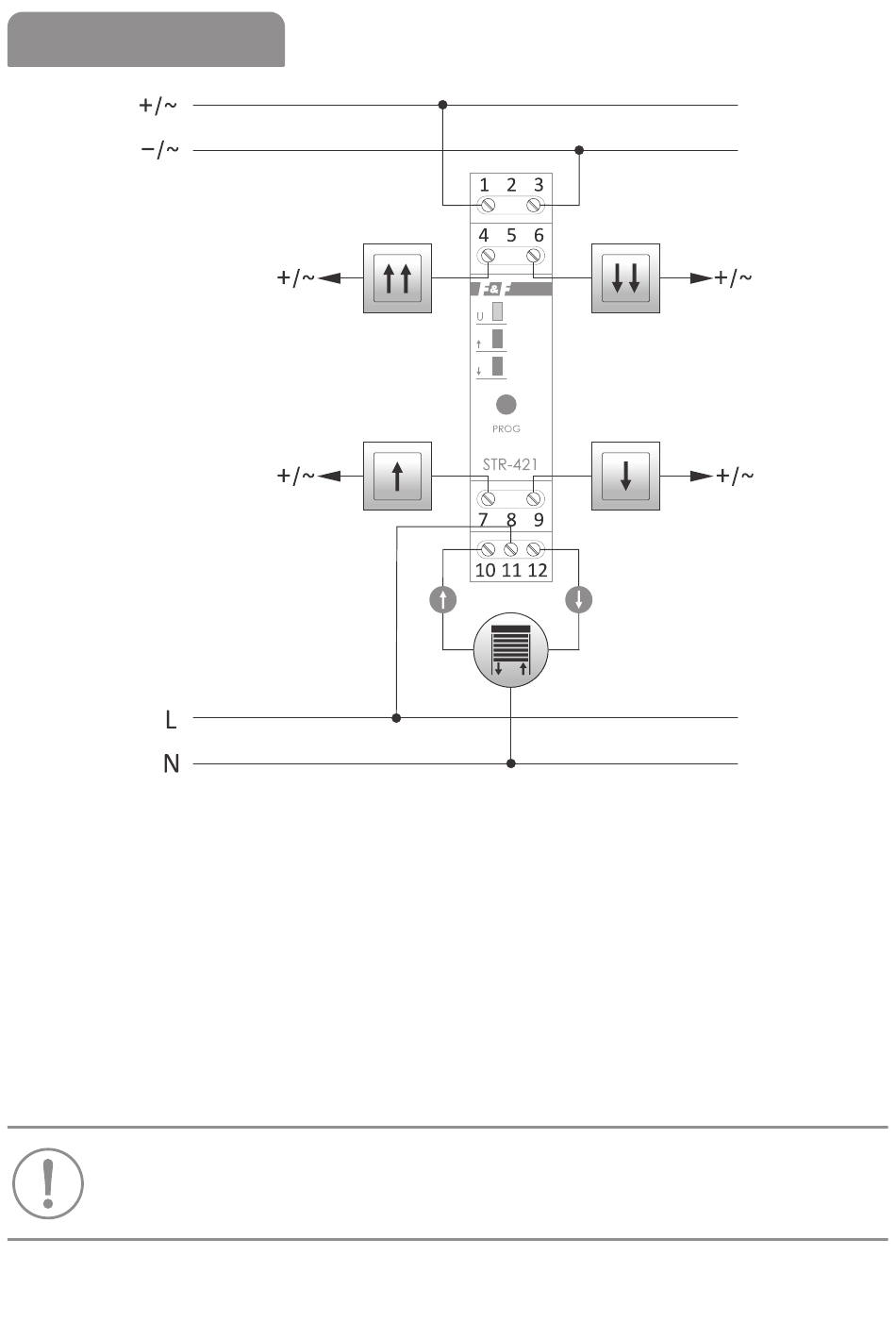

Wiring diagram

1-3
24 V AC/DC power supply
central control – up ↑↑ direction
4
central control – down ↓↓ direction
6
local control – up ↑ direction
7
9
local control – down ↓ direction
10
motor power supply – up ↑ direction output
11
230 V (L) motor power supply
motor power supply – down ↓ direction output
12
The control inputs can be supplied from the „+" (DC) or
„~" (AC) wire. Select one control option for all inputs.
- 3 -
