Bunk lift
Hide thumbs Also See for SCHWINTEK:

Advertisement

Quick Links

12/15/2022
SCHWINTEK BUNK LIFT
1
Spur Gear
Standard
Coupler
Bearing Block
Snap Ring
V-Roller
Torque Shaft
Aluminum
2
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SCHWINTEK and is the answer not in the manual?

Questions and answers

Summary of Contents for Lippert SCHWINTEK

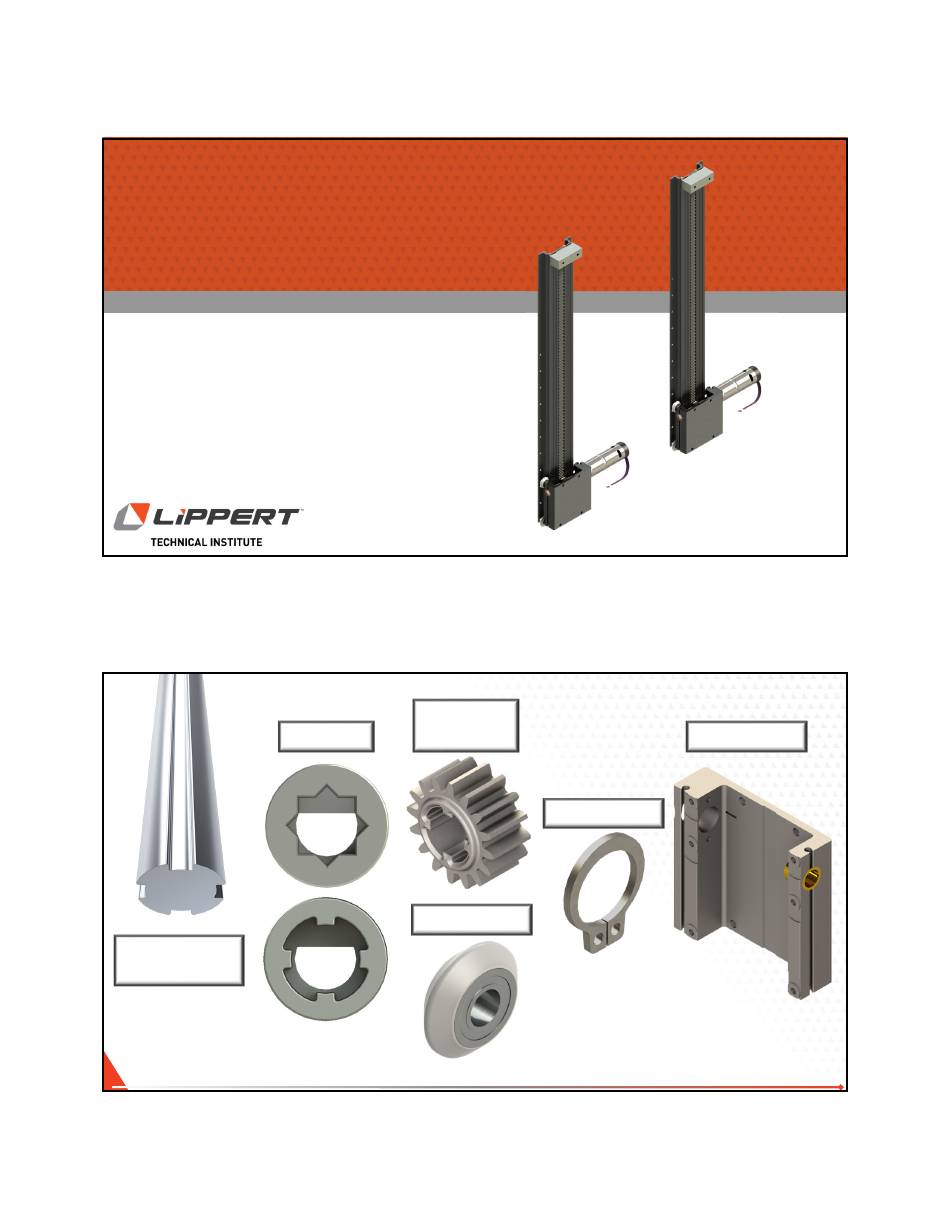

  • Page 1 12/15/2022 SCHWINTEK BUNK LIFT Spur Gear Standard Coupler Bearing Block Snap Ring V-Roller Torque Shaft Aluminum...
  • Page 2 12/15/2022 300:1 Gear Ration Motor Gear Rack Original Current Label Label Stop Block Black Cap CONTROLLER Power Junction Motor 1 Junction Motor 2 Switch Junction Junction...
  • Page 3: Operation

    12/15/2022 OPERATION 1. Press and hold the "RETRACT" button until the Bunk Lift lowers into the rested position. Continue to press the switch for 2-3 seconds after the Bunk Lift has stopped moving. 2. Press and hold the "EXTEND" button until the Bunk Lift raises up to the ceiling. Continue to press the switch for 2-3 seconds after the Bunk Lift has stopped moving.
  • Page 4: Error Codes

    12/15/2022 ELECTRONIC MANUAL OVERRIDE 1. Press the mode button on the controller six times and hold on the seventh for five seconds to enter electronic manual override mode. 2. Use the extend/retract switch to move both motors in or out. NOTE: Over-current and short circuit detection are still enabled.
  • Page 5: Technical Support

    Question and Answer If you have questions, please feel free to ask us now. Otherwise, we are available and happy to discuss anything presented with you. TECHNICAL SUPPORT www.Lippert.com 432–LIPPERT customerservice@lci1.com...
