POWER GEAR M2 SYNC ROOM SLIDE-OUT
1
SYSTEM DESCRIPTION
• Inner rail assemblies are designed to support the room weight.
• The 12 Volt DC gear motor will operate the room using power from the battery.
• Slide-out systems are equipped with a manual override that allows you to extend and retract the room
in the event of a loss of power.

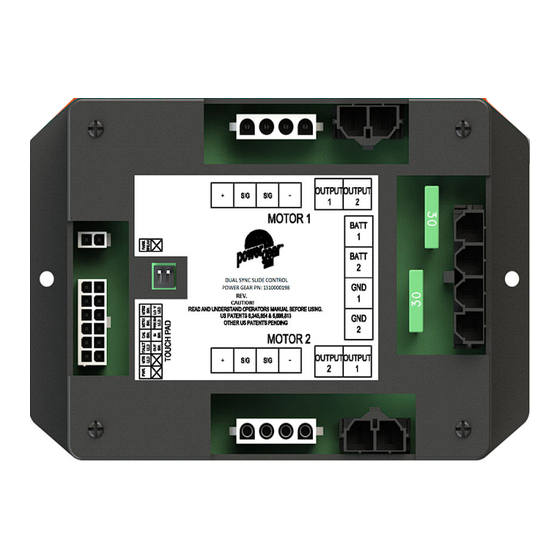

• A specially designed control that gives the user full control of room movement, in or out. The controller
has programmable stops that stop the motor when the room is fully extended or retracted and the
ability to detect faults for ease in troubleshooting.
2
12/15/2022
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lippert POWER GEAR M2 SYNC ROOM SLIDE-OUT
Summary of Contents for Lippert POWER GEAR M2 SYNC ROOM SLIDE-OUT
- Page 1 12/15/2022 POWER GEAR M2 SYNC ROOM SLIDE-OUT SYSTEM DESCRIPTION • Inner rail assemblies are designed to support the room weight. • The 12 Volt DC gear motor will operate the room using power from the battery. • Slide-out systems are equipped with a manual override that allows you to extend and retract the room in the event of a loss of power.
-
Page 2: Wall Switch
12/15/2022 Motor Controller Controller Wall Switch Harness OPERATION • The system will not work until stops are properly set or faults are cleared. • The GREEN LED indicates system operation. o A solid GREEN LED indicates room movement • The RED LED indicates a fault or a problem with the system. •... - Page 3 12/15/2022 Left Hand PROGRAMMING Rail Assembly Mounted Motor • Motor direction switches are set during initial programming at the factory. • Control rotation of motor. • If replacing a controller in the field, make sure to set these on the new control to the same position they were on the old controller.
-
Page 4: Led Error Codes
12/15/2022 LED ERROR CODES Fault Fault Description Possible Cause Possible Solutions Code Type Major Stops not No stop locations have been set Stops need to be reprogrammed by authorized programmed for the controller dealer Minor Slide-out motor Excessive system/room drag, Remove obstruction, re-adjust room, reset stops, or drawing excessive obstruction, improper stop... -
Page 5: Maintenance
12/15/2022 MANUAL OVERRIDE Sensor Connector Motor Connector Manual Override • Locate each motor and ¾” hex coupler. ¾” Hex Coupler • Unplug each motor connector. Leave sensor connector attached. • With your thumb, depress the spring lock lever on the right hand side of the boot cover. -
Page 6: Question And Answer
12/15/2022 Question and Answer If you have questions, please feel free to ask us now. Otherwise, we are available and happy to discuss anything presented with you. TECHNICAL SUPPORT www.Lippert.com 432–LIPPERT customerservice@lci1.com...
