Sonance SYMPHONY Series Installation Instructions Manual

INTRODUCTION
Thank you for purchasing Sonance Symphony™ speakers.
When properly installed, this product will provide you with
years of entertainment pleasure. To obtain the full potential of
your new speakers, please read all instructions before starting
the installation. If you do not have the necessary skills to install
the speakers yourself, contact your Authorized Sonance Dealer
for installation options.
PARTS LIST
Each Sonance Symphony speaker includes the following items:
• (2) Sonance Symphony speakers
• (2) Paintable grilles
• (2) Paint plugs (protects speakers during painting)
• (1) Mounting FD BRKT template (in packaging)
• (1) Mounting FlexBar template (in packaging)
CUSTOM INSTALLATION
Your Sonance Symphony™ speaker system will provide maximum
performance and entertainment value when custom installed by
skilled professionals with specialized tools and experience
to design and install audio/video and related systems. These
professionals can assist you in the selection of complementary
components engineered to meet your needs and optimize
performance while satisfying the physical and aesthetic demands
of the space you have chosen for your home theater.
Custom installed systems can be configured to accommodate
music reproduction throughout your home systems. Professional
installers coordinate their efforts with architects, interior
designers and electricians to ensure that these systems blend
into your home both functionally and aesthetically.
The increasingly sophisticated audio and video components
now available demand expert system design and installation to
deliver full value. More than ever, consumers rely on custom
installers to help them explore the myriad of home entertainment
options now available,to explain the features and functions of each
and to assure compatibility of related components.
Custom installation caters to the homeowner who eschews the
complexity and unsightliness of traditional audio and video
systems, yet wants to enjoy music throughout the home. In the
capable hands of a custom installer, special devices like those
supplied by Sonance ® can make the most sophisticated audio/video
systems easy to use and practically invisible.
The growing popularity of home theaters speaks to a change in the
way you look at audio and video components. You probably see
them as an integral part of an investment in your home and
lifestyle.The professional installer can assure that this investment
meets your expectations.
INSTALLATION INSTRUCTIONS
S O N A N C E
6 . 5 "
PN.33-1761 10.99
SPEAKER PLACEMENT
Note: All Sonance Symphony in-wall/in-ceiling speakers fit into a
standard 2" x 4" wall. The location of the speakers should be determined
by considering your primary listening location and aesthetic values.
For best results, contact your Authorized Sonance Dealer for advice.
Home Theater Placement
Left and right speaker placement
For maximum performance, locate the left and right speakers
at seated ear level (this is typically 38 to 40 inches from the
floor). The speakers should be separated anywhere from 6 to 10
feet apart center to center. If possible, locate the speakers at least
18 inches away from the side walls of the listening environment,
as shown in Diagram 1. The main listening position should be 8
to 12 feet away from the left and right speakers.

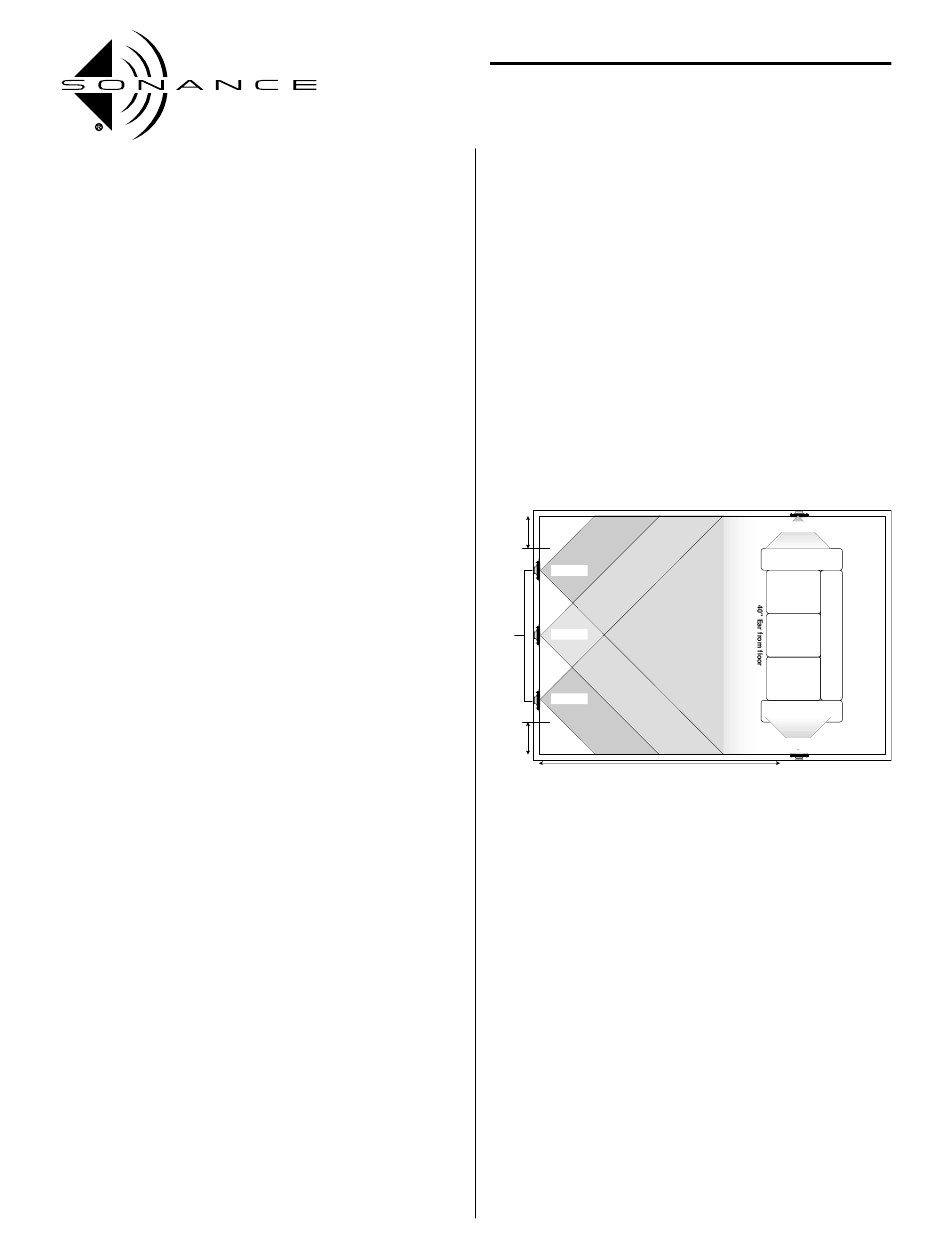

Diagram 1
18" min.
from side
wall.
Right
6' to 10'
Center
Range
Left
18" min.
from side
wall.
Center speaker placement
If possible, locate the center channel in your home theater system
at the same level in the wall as the left and right speakers (38 to 40
inches from the floor ). If you must place the speaker above or
below a television, we recommend placing the center speaker
no more than 2 feet above or below the center of the left and
right speakers. By keeping the speakers in this 4 foot window
you will maintain the same tonality between the three front
speakers.
Surround
Your Sonance Symphony speakers can also be used as surround
speakers in your home theater. Surround speakers can be located
in the side walls, ceiling or rear wall of your home theater. The
proper placement of surround speakers is very room dependent.
If you are unsure about where to locate your surround speakers
for best performance contact your Sonance Dealer for advice.
If you are mounting your surround speakers in the ceiling,
locate the speakers 2 to 6 feet behind your listening position.
The speakers should be separated anywhere from 6 to 10 feet
apart center to center.
1
S Y M P H O N Y
I N - W A L L S P E A K E R
Room Layout, top view.
10 feet from LCR speakers
S E R I E S
Surround
Surround
