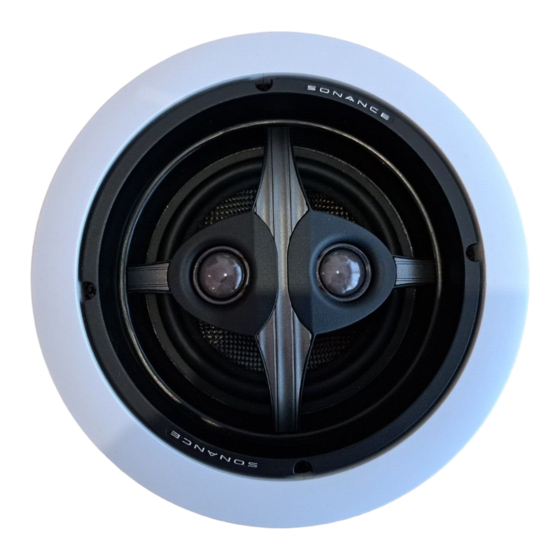

- Page 1 ® ONANCE YMPHONY SSTR/SST/SRS1 -SERIES EILING PEAKERS INSTRUCTION MANUAL...
-
Page 3: Safety Warning
® • The detachable mounting flange expands installation options, allowing the speaker assembly to be easily mounted in custom cabinetry. BOX CONTENTS Your Sonance Symphony SST/SSTR/SRS1 speaker box should contain the following items:... -
Page 4: Optional Accessories
Because a single Symphony SST/SSTR speaker reproduces both stereo channels from a single location, it will deliver outstanding performance from an extremely wide variety of mounting locations. Your local authorized Sonance dealer is an expert in audio/video system planning and installation. - Page 5 SONANCE SYMPHONY SST, SSTR and SRS1 ® SRS1: 5.1-Channel Home Theater System Locate the left and right SRS1 surround speakers on the ceiling between 2 feet and 6 feet behind the listening position. The speakers should be between 6 feet and 10 feet apart. Since the sur-...
-
Page 6: Preparing The Installation Location
10% of the speaker’s impedance. This means that for an 8-ohm speaker, the total resistance of the wire should be less than 0.8 ohms. Refer to Figure 5 when selecting the proper wire gauge for your system. -
Page 7: Installing The Speakers
2. Run speaker wire from each speaker to the amplifier location. 3. Strip ¼” – ½” of insulation from each speaker lead. Twist the strands or tin the exposed wire with solder to ensure that there are no stray strands. - Page 8 Important: Always use low-torque settings; NEVER over-tighten. 7. Attach the grille after the speaker has been installed. Insert about half of the grille into the groove at the edge of the speaker. Gently fit the remaining half of the grille by working around the speaker, fitting the grille into the groove as you go.
-
Page 9: Speaker Adjustments
You can paint the speakers and grilles before installing them, which will eliminate the “paint scar” that can be left on the ceiling if the speaker ever needs to be removed for service. You can also paint the speakers after installation, but before the grilles are attached. All Sonance Symphony speakers come from the factory fitted with a plastic ‘paint plug’... -
Page 10: Specifications
None Dimensions (Dia. x Depth): 9¾" (248mm) x 5 " (132mm) Cutout Diameter: " (207mm) Shipping Weight: 4.5 lbs. (2.0kg) Pair SONANCE SYMPHONY SST, SSTR and SRS1 ® S623SST Tweeter: Two 1" (25mm) Silk domes, Ferrofluid-cooled Woofer: 6½" (165mm) Carbon fiber cone, dual voice coil, rubber... -
Page 11: Technical Assistance And Service
IMPORTANT: YOU MUST HAVE PRIOR AUTHORIZATION TO RETURN YOUR SPEAKER TO SONANCE! 3. If you’re directed to return the unit to Sonance for repair, pack the unit in its original shipping carton. If needed, you can obtain replacement packag- ing from us for a small charge. Note: it is best if you place the box into an additional outer “overcarton” before shipment to minimize a chance of theft in shipment. -
Page 12: Exclusions And Limitations
Sonance or the Authorized Sonance Dealer will, at its option, repair or replace this product at no additional charge, except as set forth below. If this model is no longer available and can not be repaired effectively, Sonance, at is sole option, may replace the unit with a current model of equal or grater value. - Page 13 SONANCE SYMPHONY SST, SSTR and SRS1 ®...
- Page 14 SONANCE SYMPHONY SST, SSTR and SRS1 ®...
- Page 16 ©2006 Sonance. All rights reserved. Sonance, Sonance Symphony, Single Stereo Technology, RotoLock, Sonafill and FastMount are registered trademarks of Dana Innovations. Due to continuous product improvement, all features and specifications are subject to change without notice. For the latest Sonance product specification information visit our website: www.sonance.com...
