AFRISO ARC 345 ProClick Instruction Manual

Weather compensation controller
Hide thumbs Also See for ARC 345 ProClick:
Table of Contents

Advertisement

Quick Links

Download this manual

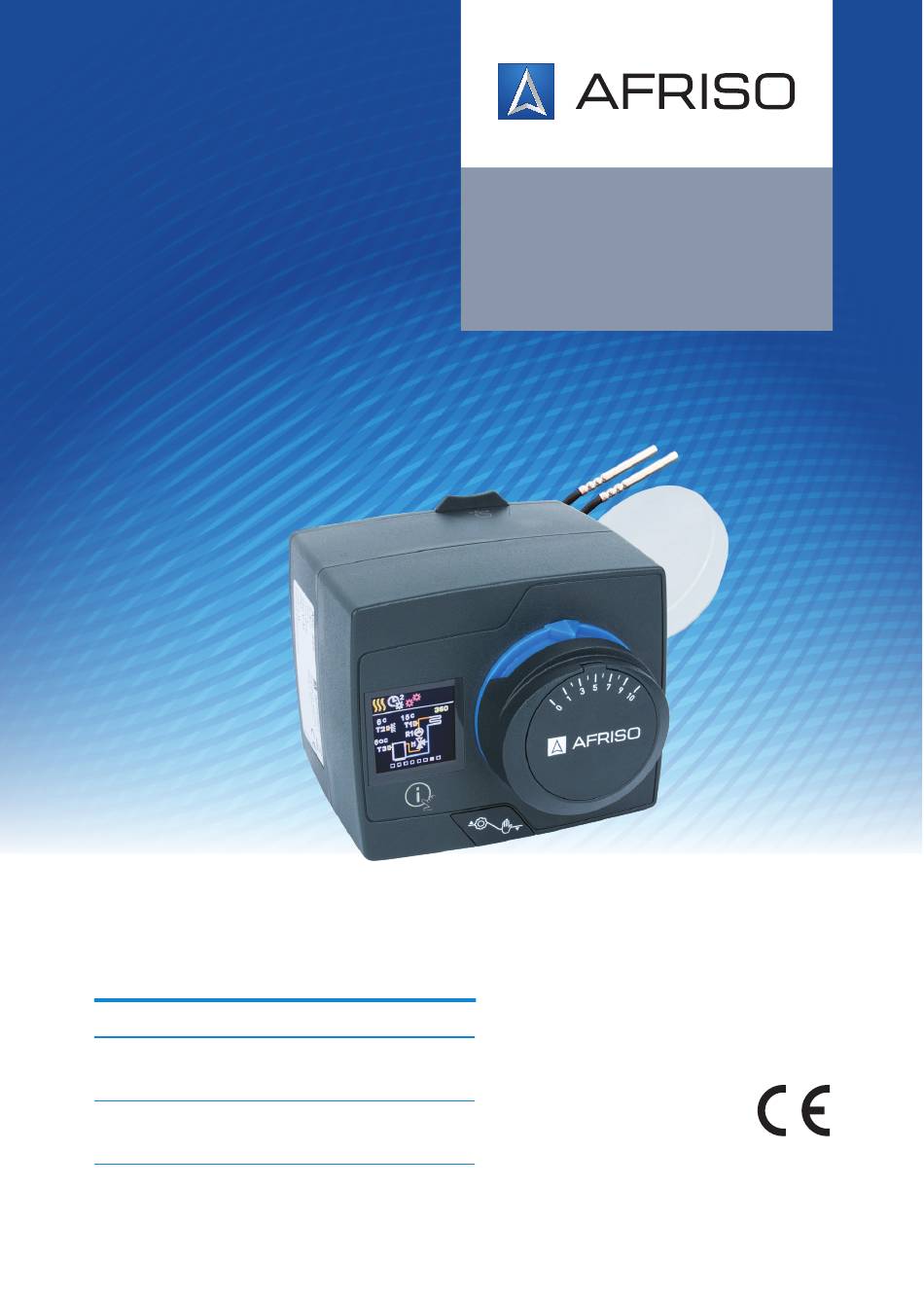

Weather compensation controller ARC 345 ProClick
applies for the following models:
name
Weather compensation controller
ARC 345 ProClick
Weather conpensation controller
ARC 345 PBox
900.101.1054 - Version: 07.2024.0
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARC 345 ProClick and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AFRISO ARC 345 ProClick

Summary of Contents for AFRISO ARC 345 ProClick

  • Page 1 Instruction manual Weather compensation controller ARC 345 ProClick applies for the following models: name Weather compensation controller ARC 345 ProClick Weather conpensation controller ARC 345 PBox 900.101.1054 - Version: 07.2024.0...

  • Page 2: Table Of Contents

    Weather compensation controller ARC 345 ProClick Contents Appearance of the controller ........................3 Dimensions ..............................4 Controller installation ..........................5 Initial controller setup ..........................6 Basic screens ..............................8 Help ................................12 Entering and navigating through the menu ..................12 Menu structure and description ......................13 Requested temperatures .........................14...

  • Page 3: Appearance Of The Controller

    Weather compensation controller ARC 345 ProClick Appearance of the controller 1. Button . Return. 2. Button . Move to the left, decreasing. 3. Button . Move to the right, increasing. 4. Button . Menu entry, confirmation of selection. 5. USB port for software updates and connection to a personal computer.

  • Page 4: Dimensions

    Weather compensation controller ARC 345 ProClick Dimensions Dimensions in mm Function The product is a controller for controlling a mixing valve with integrated weather-compensated heating control. The product is completely preconfigured. The product is used to control a mixing valve for heating and cooling applications.

  • Page 5: Controller Installation

    Weather compensation controller ARC 345 ProClick Controller installation In a warm interior, the controller can be mounted directly on the mixing valve with the help of the accessories provided. Avoid close proximity to any strong electromagnetic fields. Optional connection Mandatory connection...

  • Page 6: Initial Controller Setup

    Weather compensation controller ARC 345 ProClick Initial controller setup The controller is equipped with an innovative "Easy start" function, which allows the initial setting of the controller in just four steps. Upon the first connection of the controller to the power supply network, the first step of the controller setup is displayed after the program version and logo.
  • Page 7 Weather compensation controller ARC 345 ProClick Step 2 - hydraulic scheme setup You can select the hydraulic scheme for the controller operation. Use the buttons to navigate between schemes. Con- firm the selected scheme with the button. If you have mistakenly selected the wrong scheme, you can return to the diagram selection with the button.

  • Page 8: Basic Screens

    Weather compensation controller ARC 345 ProClick Basic screens All important data on the operation of the controller can be seen in the six basic screens. Use the buttons to navigate between the basic screens. Status bar Operation mode, notifications and alerts appear in the top third of the screen.
  • Page 9 Weather compensation controller ARC 345 ProClick Symbol Description Turn the valve to the left. Turn the valve to the right. Manual intervention - the clutch is activated. PARTY operation mode. ECO operation mode. Holiday operation mode. Automatic heating switch off.
  • Page 10 Weather compensation controller ARC 345 ProClick Temperatures The number of temperatures displayed on the screen depends on the selected hydraulic scheme and controller settings. 34.5 ° Measured temperature Requested or 35.0 °C calculated temperature Symbol Description Calculated or requested temperature.
  • Page 11 Weather compensation controller ARC 345 ProClick Hydraulic scheme The screen shows the selected hydraulic scheme with the display of measured temperatures. 5° 34° Hydraulic scheme 30° 68° with screen showing the measured temperatures Time and date The screen shows the day of the week, the current time and date.

  • Page 12: Help

    Weather compensation controller ARC 345 ProClick Help By pressing the button we can start the display animation, which leads us to the additional settings menu. Entering and navigating through the menu Requested temperatures 22.5 ° 22.0 °C Press the button to enter the menu.

  • Page 13: Menu Structure And Description

    Weather compensation controller ARC 345 ProClick Menu structure and description The menu consists of twelve main groups: Requested User functions Operation mode temperatures Time programs Information Display Statistics P parameters S parameters F parameters Devices Factory settings...

  • Page 14: Requested Temperatures

    Weather compensation controller ARC 345 ProClick Requested temperatures In the menu, you can change the setting of the requested temperatures. Requested temperature temperatures Night temperature Navigate through the menu with the buttons and use the button to confirm your selection. A new screen with temperatures will open.
  • Page 15 Weather compensation controller ARC 345 ProClick Requested night temperature Requested night temp. Current value of settings Default value Setting range Current value of the requested temperature Use the buttons to select the requested temperature and confirm it with the button.

  • Page 16: User Functions

    Weather compensation controller ARC 345 ProClick User functions User functions enable additional comfort and benefits of using the controller. User functions Party Holiday Navigate through the menu with the buttons and use the button to confirm your selection. The screen for turning on and setting the user function opens.
  • Page 17 Weather compensation controller ARC 345 ProClick Eco user function The ECO function activates the operation according to the requested saving temperature until the set end time. Eco function Turning the user func- symbol tion ON and OFF Requested Eco temperature...

  • Page 18: Operation Mode

    Weather compensation controller ARC 345 ProClick Operation mode In the menu, you can select the requested operation mode and other operation options. Dnevna Operation mode Operation temperatura Heating / cooling Manual Navigate through the menu with the buttons and use the button to confirm your selection.
  • Page 19 Weather compensation controller ARC 345 ProClick Symbol Description Operation according to the selected time program with day and night tempera- ture which is set on the controller. Requested day temperature operation mode. Requested night temperature operation mode. Switch-off. Frost protection remains active, if operation mode heating is se- lected.
  • Page 20 Weather compensation controller ARC 345 ProClick Manual operation mode This operation mode is used when testing the heating system or in the event of a malfunction. The control output can be manually switched on, switched off or automatic operation can be selected.

  • Page 21: Time Programs

    Weather compensation controller ARC 345 ProClick Time programs Weekly time programs enable automatic switchover between day and night temperature. There are two time programs available. A check mark next to the time program tells which time program is selected for operation.
  • Page 22 Weather compensation controller ARC 345 ProClick Time program editing 00:00 Current cursor time 00:00 - 05:00 Current interval Cursor Free cursor Day temperature scrolling interval drawing Night temperature interval drawing With the button select the requested icon to scroll or draw the interval, using the buttons you can draw the requested course of the time interval.

  • Page 23: Information

    Weather compensation controller ARC 345 ProClick Information The menu is used to display information about the controller, notifications and errors. Information About controller Messages Errors Delete Navigate through the menu with the buttons and use the button to confirm your selection.
  • Page 24 Weather compensation controller ARC 345 ProClick Messages A list of messages is displayed on the screen with the time and date of the individual message. Notification symbol List of notifications Navigate through the notifications with the buttons. Exit the screen with the button Errors A list of errors is displayed on the screen with the time and date of the individual errors.
  • Page 25 Weather compensation controller ARC 345 ProClick Deleting the messages and errors The list of messages and errors is deleted. The list of warnings for errors of all unconnected sen- sors is also deleted. Sensor errors that are essential for the controller operation cannot be deleted.

  • Page 26: Display

    Weather compensation controller ARC 345 ProClick Display The menu is for basic on-screen display settings. Display Language Time and date Illumination Menu exit Navigate through the menu with the buttons and use the button to confirm your selection. Language selection A list of available languages appears on the screen.
  • Page 27 Weather compensation controller ARC 345 ProClick Time and date settings You can set the exact time and date. Time and date symbol Day of the week Time and date 02.03.2020 With the buttons you can change the value and with the button you can move on to the next data.
  • Page 28 Weather compensation controller ARC 345 ProClick Setting the menu exit time You can set the time to automatically exit the menu. Exit time symbol Current value of the exit time Default value Graphic display of the setting Setting range Current value...

  • Page 29: Statistics

    Weather compensation controller ARC 345 ProClick Statistics The menu is intended to display detailed information on the operation of the controller. Statistics Graph Operation counter Change log Navigate through the menu with the buttons and use the button to confirm your selection.
  • Page 30 Weather compensation controller ARC 345 ProClick Operation counter The display shows the number of operation hours of the R1 circulation pump output. Operation counter symbol Number of operation hours Counter reset By pressing the button for 5 seconds, you can reset the counter to 0.

  • Page 31: User P Parameters

    Weather compensation controller ARC 345 ProClick User P parameters The menu is used to display and set user parameters. The parameters are classified into groups - basic settings, - settings for the heating circuit and - settings for the power source.
  • Page 32 Weather compensation controller ARC 345 ProClick Menu format setting: Parameter mark Parameter settings list Use the buttons to select the requested setting and confirm it with the button. Exit the setting with the button. Slider format setting: Parameter mark Current value...
  • Page 33 Weather compensation controller ARC 345 ProClick P1 - BASIC SETTINGS Para- Parameter name Parameter description Setting range Default meter value P1.1 Temperature round You set the accuracy of dis- - 0.1°C 0.5°C played temperatures. - 0.2°C - 0.5°C - 1°C P1.2...
  • Page 34 Weather compensation controller ARC 345 ProClick Para- Parameter name Parameter description Setting range Default meter value P1.12 Level of With this setting, we determine - No protection Level 1 protection the level of protection against - Level 1 against frost...
  • Page 35 Weather compensation controller ARC 345 ProClick P2 - HEATING CIRCUIT SETTINGS Para- Parameter name Parameter description Setting range Default meter value P2.1 Heat curve Heating curve steepness 0,1 ÷ 2,6 0,5 - steepness indicates what temperature is floor required for the heating bodies by...

  • Page 36: Service S Parameters

    Weather compensation controller ARC 345 ProClick Service S parameters The menu is used to display and set user parameters. The parameters are classified into groups - basic settings, - settings for the heating circuit and - settings for the power source.
  • Page 37 Weather compensation controller ARC 345 ProClick Parameter Parameter is locked mark Current value With the buttons navigate through the parameters in the selected group. The param- eter you want to change is selected by pressing the button. The S parameters are locked at the factory, so they must be unlocked by entering the 4-digit un- lock code before changing.
  • Page 38 Weather compensation controller ARC 345 ProClick S1 - BASIC SETTINGS Para- Default Parameter name Parameter description Setting range meter value Hydraulic scheme S1.1 Selection of hydraulic scheme. 360 ÷ 360b S1.2 Code for This setting enables the change of 0000 ÷ 9999...
  • Page 39 Weather compensation controller ARC 345 ProClick Para- Default Parameter name Parameter description Setting range meter value S1.8 Building type Selection of building type (time 0 ÷ 12 h (time constant) constant). For heavy (thick walls) and good isolated buildings select higher value.
  • Page 40 Weather compensation controller ARC 345 ProClick Para- Default Parameter name Parameter description Setting range meter value Influence of room S2.2 Set whether the room sensor T3 - Auto Auto sensors T3 and T4 or T4 influences the controller - Yes operation.
  • Page 41 Weather compensation controller ARC 345 ProClick Para- Default Parameter name Parameter description Setting range meter value Mixing valve S2.9 Setting of mixing valve control 0,4 ÷ 2,5 I - constant frequency - how often mixing valve position is being controlled.
  • Page 42 Weather compensation controller ARC 345 ProClick Para- Default Parameter name Parameter description Setting range meter value Initial valve S2.20 Setting of initial valve movement 0 ÷ 30 s 20 s movement from duration when moving from closed closed position position. With this setting the...

  • Page 43: Function F Parameters

    Weather compensation controller ARC 345 ProClick Function F parameters The menu is used to display and set function parameters. Group F1 contains the parameters for the setting of floor drying. F parameters Floor drying The procedure for setting F parameters is the same as for service parameters.
  • Page 44 Weather compensation controller ARC 345 ProClick Floor drying profile - factory setting: days After the floor has dried, the function switches off automatically.

  • Page 45: Devices

    Weather compensation controller ARC 345 ProClick Devices The menu is used to display and set the devices connected to the controller. Devices are divided according to the type of communication they use. Devices COM devices 868 devices BUS devices BUS devices The list of devices with which the controller is connected to the BUS connection is displayed on the screen.

  • Page 46: Factory Settings

    Weather compensation controller ARC 345 ProClick Factory settings The menu contains tools for resetting the controller to saved or factory settings. Factory settings Save settings Load settings Factory settings Navigate through the menu with the buttons. When you use the button to select the requested command, a display will open for unlocking or confirming the command.
  • Page 47 Weather compensation controller ARC 345 ProClick Heating operation If the calculated temperature of the stand-pipe is not slightly higher than the room temperature, the mixing valve closes and circulation pump turns off. If the room temperature is not measured, the mixing valve closes when the outdoor temperature approaches the requested room tempera- ture.
  • Page 48 Weather compensation controller ARC 345 ProClick HEATING AND COOLING CURVE The curve steepness indicates what temperature is required for the heating or cooling bodies by a determined outdoor temperature. The steepness value depends mainly on the system type (floor, wall, radiator) and insulation of the building. If you have enough data, you can determine the heat- ing curve steepness with a calculation, otherwise it’s from experience, based on the evaluation...
  • Page 49 Weather compensation controller ARC 345 ProClick Heat curve diagram: P2.1 S2.6 Outdoor temperature...
  • Page 50 Weather compensation controller ARC 345 ProClick Cooling curve diagram: Outdoor temperature S2.11 P2.6...

  • Page 51: Operation Modes With Sensor Failure

    Weather compensation controller ARC 345 ProClick Operation modes with sensor failure The outdoor sensor is not connected. The controller regulates the stand-pipe to a constant temperature, which is: Heating: 25°C higher than the the requested day temperature; for radiator heating systems, 10°C higher than the requested day temperature;...

  • Page 52: Clutch And Manual Valve Displacement

    Weather compensation controller ARC 345 ProClick Clutch and manual valve displacement Pressing the clutch I. activates the manual valve displacement. You can now move the mixing valve by turning the button II. To return to automatic operation, press the clutch I. again. When the...

  • Page 53: Controller Power Connection

    Weather compensation controller ARC 345 ProClick Controller power connection Any project with an ARC 345 ProClick controller must be based on calculations and plans that are solely yours and in accordance with applicable regulations. Images and texts in these instructions serve as examples and the issuer does not assume any responsibility for them.
  • Page 54 Weather compensation controller ARC 345 ProClick BUS connection of controllers The first or leading controller physically controls the energy sources, while the other controllers only control the heating circuits. The outdoor temperature sensor and the sensor of the heat source temperature must be connected to the first controller.
  • Page 55 Weather compensation controller ARC 345 ProClick AUX function at input T4 Input T4 can also be used for external actuation of the controller. The external actuation options are set with parameter S1.9. When a short circuit is detected at input T4, the following is activated: - switch to daily temperature if parameter is set to S1.9 = Daily temperature.

  • Page 56: Technical Data

    Weather compensation controller ARC 345 ProClick Technical data General technical data - controller Dimensions ....................(w x h x l) 99 x 82 x 96 mm Controller weight ........................... ~ 800 g Controller casing ....................... PC - thermoplastic Torque ..............................6 Nm Rotation angle ............................90°...

  • Page 57: Removing Old Electrical And Electronic Equipment

    Weather compensation controller ARC 345 ProClick Removing old electrical and electronic equipment Disconnect the power supply. Dismount the device. Dispose of the product according to local directives and guidelines. Electronic parts and batteries should not be disposed of with household waste.

  • Page 58: Hydraulic Schemes

    Weather compensation controller ARC 345 ProClick Hydraulic schemes ATTENTION! Installation schemes show the principle of operation and do not contain all the aux- iliary and safety elements! The applicable regulations must be observed during installation! Mandatory sensor Optional sensor Scheme 360 - heating circuit...
  • Page 59 Weather compensation controller ARC 345 ProClick Scheme 361 - heating circuit 230 VAC 50 Hz...
  • Page 60 All changes reserved. © All rights reserved. All examples of diagrams inside the manual are for reference only.
