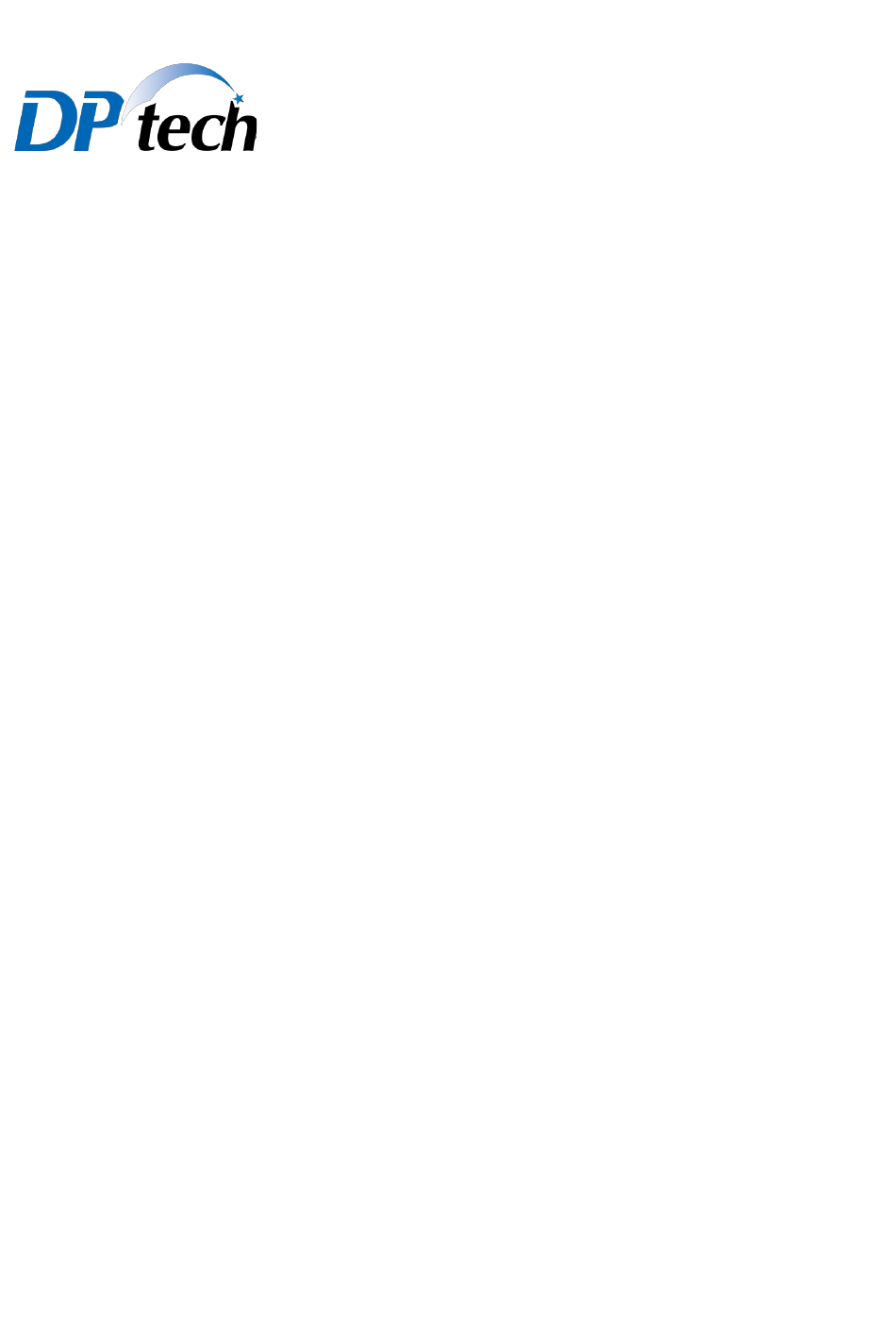

- Page 1 DPtech LSW3620 Series Switches Installation Manual...
- Page 2 Owing to product upgrading or other reasons, information in this manual is subject to change. Hangzhou DPtech Technologies Co., Ltd. has the right to modify the content in this manual, as it is a user guides, Hangzhou DPtech Technologies Co., Ltd. made every effort...
-
Page 3: Table Of Contents
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Contents 1 Product Introduction ..........................1-1 1.1 Product overview ..........................1-1 1.2 Product models and specifications are introduced ................1-1 1.3 Introduction to front and rear panels ....................1-2 1.3.1 LSW3620-24GT4XGS product appearance ................1-2 1.3.2 LSW3620-48GT4XGS product appearance ................ - Page 4 DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx 3.5.1 Connecting configuration port cable ..................3-6 3.5.2 Connecting the Ethernet management port ................3-7 3.5.3 Connecting service port......................3-7 3.6 Connecting power cable ........................3-8 3.6.1 Connecting alternating power cable ..................3-8 3.7 Check after installation ........................
-
Page 5: Product Introduction
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Product Introduction Product overview The DPtech LSW3620 series switches is a new generation of high-performance Ethernet access switch launched by DPtech. This series of products adopts DPtech's leading high-performance hardware architecture and unified ConPlat operating system, with high-density Ethernet interfaces and a variety of access security management features, fully meeting the needs of various application scenarios such as campus aggregation and access. -
Page 6: Introduction To Front And Rear Panels
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Item LSW3620-24GT4XGS LSW3620-48GT4XGS Type and number 1 input port of power input 1 input port ports Maximum power of the power supply Cooling system There is no There is no Working environment 0℃... - Page 7 DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Figure 1-1 DPtech LSW3620-24GT4XGS front view (4)(5)(6) (11) (10) Status Description Indicates that the GE electrical port 0 line is in a connected state (2) 10/100/1000M Indicates that the GE electrical port 0 line has...
- Page 8 DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Status Description Indicates that the GE light port 27 line is in a connected state 10G Ethernet optical Indicates that the GE light port 27 line has Blinking interface LED 27(green) data transceiver...
-
Page 9: Lsw3620-48Gt4Xgs Product Appearance
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Figure 1-3 DPtech LSW3620-24GT4XGS rear view 1.3.2 LSW3620-48GT4XGS product appearance 1.3.2.1 Front view (1) (2) (3) (4)(5) (11) (15)(14) (13) (12) (10) (1) 10/100/1000M Ethernet electrical (2) 10/100/1000M Ethernet electrical interface LED 0... - Page 10 DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Status Description Indicates that the 10GE light port 48 line is in a connected state (3)10G Ethernet optical Indicates that the 10GE light port 48 line Blinking interface LED 48(green) has data transceiver...
-
Page 11: Port Introduction
1.4.1 Console port The front panel of LSW3620 series Ethernet switch has a RS232 asynchronous serial configuration port (CON), which can be used to connect to the terminal computer for system debugging, configuration, maintenance, management and host software program loading. -
Page 12: 10/100/1000Base-T Ethernet Electrical Interface
1.4.2.2 Ethernet electrical interface (RJ45 connector) The 10/100/1000M Ethernet electrical interface of LSW3620 series generally uses twisted-pair cables of category 5 or more to connect Ethernet. The electrical Ethernet interface uses RJ45 connector, and the port supports MDI/MDIX adaptation. In use, the use of category 5 twisted pair and RJ45 crystal head to make the network cable. - Page 13 DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Figure 1-7 RJ45 connector appearance 1.4.2.3 Cable to connect Ethernet electrical interface Ethernet electrical interface generally uses category 5 twisted pair cable to connect Ethernet, Figure 1-8 is a schematic diagram of Ethernet cable.
-
Page 14: Sfp Port
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx 1.4.3 SFP port 1.4.3.1 10G Ethernet optical interface attributes Table 1-3 SFP+ 10GE Ethernet optical interface attributes Attribute Description Connector types SFP+/LC Supported physical layer 10GBASE-R types Interface rate LAN PHY mode: 9.95Gbps-10.5 Gbps... - Page 15 DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Short Extra long Long pitch Long pitch Long pitch distance pitch (1310nm) (1310nm) (1550nm) (850nm) (1550nm) Optical Optical Optical Type Optical Optical interface interface interface interface interface Send module module module module...
- Page 16 DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Figure 1-9 LC type connector appearance Figure 1-10 SC type connector appearance When choosing fiber optic connection network device, please confirm that the type of fiber ⚫ optic connector and optical module are consistent.
-
Page 17: Product Components
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx optical module and the fiber with the LC type fiber connector are shown in Figures 1-11 and 1-10, respectively. Figure 1-11 Schematic diagram of the optical module Product components 1.5.1 Processor and memory Processor The processor is the data forwarding and business processing engine. -
Page 18: Preparation Before Installation
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Preparation before Installation To avoid injury to people and device, read this chapter carefully before installing the device and understand what needs to be noted during installation, use, and maintenance. The actual situation includes, but is not limited to, the following precautions. -
Page 19: 2.2.1 Temperature/Humidity Requirements
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx In order to ensure the normal work of the device and extend the service life, the installation site should also meet the following requirements. 2.2.1 Temperature/Humidity requirements In order to ensure the normal operation and service life of the device, it is necessary to maintain a certain temperature and humidity in the equipment room. -
Page 20: Anti-Static Requirements
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Table 2-2 Requirements for dust content in the computer room Mechanically Active Unit Content Substances 3 x 10 or less Dust particles Grains /m³ (No visible dust on the desktop within 3 days) Note: Dust particles ≥5µm in diameter... -
Page 21: Anti-Interference Requirement
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx 2.2.4 Anti-interference requirement All interference sources, wherever they are from, impact the switch negatively in the conducted emission patterns of capacitance coupling, inductance coupling, electromagnetic wave radiation, and common impedance (including the grounding system) coupling. To resist the interference, ensure that: ... -
Page 22: Laser Safety
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx When routing indoors, you also need to pay attention to the following points: Do not arrange the cable in the walking area to avoid accidental damage or drop of the cable. -
Page 23: Switch Installation
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Switch Installation Confirmation before installation You have read Chapter 2 “Preparation for Installation” carefully. The requirements in Chapter 2 are satisfied Before install you should power off your switch. Copyright © Hangzhou DPtech Technologies Co., Ltd. -
Page 24: Installation Procedure
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Installation procedure Start Mount the switch on a Install switch to a 19-inch workbench rack Connect ground wire Connect power cable Connect the switch to a configuration terminal Verify the installation Power-on your switch... -
Page 25: Install The Switch To A Workbench
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Adopt the following two methods to the install your switch: Install your switch to the working bench Install your switch to the 19-inch switch cabinet 3.3.1 Install the switch to a workbench If a standard 19-inch rack is unavailable, you can place the switch on a clean workbench/tabletop. -
Page 26: Install Switch In A 19-Inch Rack
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Figure 3-2 Install switch on the workbench 3.3.2 Install switch in a 19-inch rack 3.3.2.1 Install hanging ears Figure 3-3 Install hanging ears 3.3.2.2 Install the switch in a rack Figure 3-4 Install the switch in a rack (Omitting switch cabinet) 3.3.2.3... -
Page 27: Connecting The Grounding Wires
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Figure 3-5 Fastening the switch Connecting the grounding wires When installing or using your switch, properly connect the grounding wire for lightning ⚫ protection and anti-interference. The grounding resistance must be smaller than 5 ohm. -
Page 28: Connecting Interface Cable
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Remove the grounding screw on the rear panel of the switch. Attach the OT terminal on the grounding cable to the grounding screw on the chassis. Fasten the grounding screw, which is attached with the OT terminal of the grounding cable, into the grounding screw hole with a screwdriver. -
Page 29: Connecting The Ethernet Management Port
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Plug the DB-9 female connector of the console cable to the serial port of the PC. Plug the RJ-45 connector of the console cable to the console port of the switch. The serial ports on PCs do not support hot swapping. If the switch has been powered on,... -
Page 30: Connecting Power Cable
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Connecting power cable 3.6.1 Connecting alternating power cable Switch off your switch power Connect one end of the power cable to the switch rear panel power interface, the other end to the power socket, as shown in Figure 3-8 . -
Page 31: Starting The Switch And Upgrade The Software
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Starting the Switch and Upgrade the Software Starting up the switch at the initial boot 4.1.1 Setting up a configuration environment 4.1.1.1 Connect the switch to the terminal computer Connect the RJ-45 connector of the console cable to the console port on the switch, and connect the DB-9 female connector of the console cable to the serial port on the PC that is used for configuring the switch, as shown in Figure 4-1 . - Page 32 DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Figure 4-2 Setting up a new connection Enter the name of the new connection in the Name field and click <OK>. The dialog box, as shown in Figure 4-3 displays. Select the serial port to be used from the Connect Using dropdown menu.
- Page 33 DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Table 4-1 Configure serial port attributes Attribute Value Baud rate 9600 bps (the default) Data bits Parity check None Stop bits Flow control None Default properties can be restored by clicking the < Restore Default Settings > button.
- Page 34 DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Figure 4-5 Hyper terminal Select File/Attributes/Settings. In the Attributes dialog box, select the Settings tab, as shown in Figure 4-5 . Select VT100 or Auto detect in the Emulation dropdown menu. Click <OK>.
-
Page 35: Power On The Switch
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Figure 4-6 Settings tab 4.1.2 Power on the switch 4.1.2.1 Check before power on The following checks should be performed before the switch is powered on: The power and ground cables are connected correctly. -
Page 36: Startup Process
Check method: After the switch is started, the startup interface can be directly seen on the terminal computer. The switch can be configured when the command prompt "<DPtech>" appears after startup (i.e., self-test) (there is no password on the command line by default, and users can set their own password according to their needs). - Page 37 DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx ConBoot, basic Version 3.2 ********************************************************* Press Ctrl+E to enter Basic boot menu... Initializing PCI. [normal] PCI[0]: Initializing host PCI[0] bus 0 slot 0/0: Broadcom product 0x5300 (host bridge, rev 0x01) PCI[0] bus 0 slot 0/1: Broadcom product 0x0000 (host bridge, rev 0x01)
-
Page 38: Default Login Method For Web
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx By default, the syetem password is DPTECH. Default login method for Web LSW3600 series switches support Web management function, the default IP address of network management interface 0 is: 192.168.0.1.Administrator can use web interface to manage and maintain the LSW switch. - Page 39 DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx You should not login to the web management interface by using of http or https protocol on the same PC. After you login to the web management interface the first time, modify the default password.
-
Page 40: Faq
DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx Power system problems troubleshooting Fault phenomenon The PWR lamp on the front panel does not light up. Troubleshooting The power LED on the front panel is used to indicate the operation state of the power module. - Page 41 DPtech LSW3620 Series Swithes Installation Manual v1.0 .docx on the terminal computer; If the system fails, the terminal computer may have no display or display garbled code. 5.2.1.1 Terminal no display fault handling Fault phenomenon After the device is powered on, the terminal computer has no display information.
