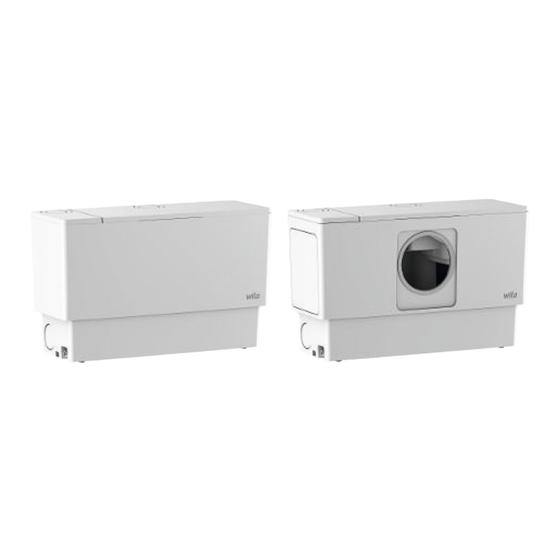

- Page 1 Pioneering for You Wilo-DrainLift MINI5-XS/C Wilo-DrainLift MINI5-XS/WC User manual 6097575 • Ed.1/2024-09...
- Page 2 DrainLift MINI5 https://qr.wilo.com/459...
-
Page 3: Table Of Contents
Activating and deactivating “silent mode”............ 15 More than three months of downtime .............. 15 Removal ............ 15 Maintenance and repair........ 16 Cleaning the lifting unit...... 16 Exchanging the active carbon filter .. 16 Fault.............. 16 User manual • Wilo-DrainLift MINI5-XS/C, Wilo-DrainLift MINI5-XS/WC • Ed.1/2024-09... -
Page 4: Safety
Damage to property: Safety instructions start with a signal word and are displayed without a symbol. Signal words • DANGER! Failure to follow the instructions will result in serious injuries or death! User manual • Wilo-DrainLift MINI5-XS/C, Wilo-DrainLift MINI5-XS/WC • Ed.1/2024-09... -
Page 5: Personnel Qualifications
Fluids hazardous to health Hazardous germs form in sewage. There is a danger of bacterial infec- tions! • All connections must be tight. User manual • Wilo-DrainLift MINI5-XS/C, Wilo-DrainLift MINI5-XS/WC • Ed.1/2024-09... -
Page 6: Personal Protective Equipment
Fluids may flow into the room in the event of an accident. Personal protective equipment The aforementioned branded products constitute non-binding sug- gestions. Similar products from other brands can also be used. WILO SE does not assume any liability for the aforementioned products. •... -
Page 7: Removal
Condensate (pH value from 2.5) • − Sewage without faeces • • Sewage containing faeces − • Sewage pumping according to 12050 • Wilo-DrainLift MINI ... XS: The sewage lifting unit meets the requirements of EN 12050-2:2001. User manual • Wilo-DrainLift MINI5-XS/C, Wilo-DrainLift MINI5-XS/WC • Ed.1/2024-09... -
Page 8: Improper Use
• Wilo-DrainLift MINI ... XS/WC: The sewage lifting unit meets the requirements of EN 12050-3. For units compliant with 12050-3, observe the following points: • All connected drainage fixtures are installed in the same room. • A further toilet is located above the backflow level. -
Page 9: Type Key
Fluid temperature 3 to 50 °C (37 to 122 °F) 3 to 50 °C (37 to 122 °F) Max fluid temperature, short-term 75 °C (167 °F) for 30 min 75 °C (167 °F) for 30 min Ambient temperature 3 to 40 °C (37 to 104 °F) 3 to 40 °C (37 to 104 °F) User manual • Wilo-DrainLift MINI5-XS/C, Wilo-DrainLift MINI5-XS/WC • Ed.1/2024-09... -
Page 10: Operating Modes
CAUTION! Do not use the “silent mode” for the WC version. This will lead to an increased risk of clogging! User manual • Wilo-DrainLift MINI5-XS/C, Wilo-DrainLift MINI5-XS/WC • Ed.1/2024-09... -
Page 11: Alarm Signal With Potential-Free Contact
Install floor fixation (buoyancy safeguards): 2x mounting brackets with screws and wall plugs • Kit for emergency drainage (drainage hose, hose clip, sealing plug) • Kit for horizontal discharge port • Kit for depth suction • Installation and operating instructions User manual • Wilo-DrainLift MINI5-XS/C, Wilo-DrainLift MINI5-XS/WC • Ed.1/2024-09... -
Page 12: Storage
Do not allow PVC adhesives to come into contact with the unit: • Remove and dispose of drips with a separate towel. • Clean hands thoroughly. • Exchange used work gloves. User manual • Wilo-DrainLift MINI5-XS/C, Wilo-DrainLift MINI5-XS/WC • Ed.1/2024-09... -
Page 13: Consulting Guide
Article number: 6097578 (included in the scope of delivery!) • Depth suction assembly instructions Article number: 6097580 • Emergency drainage assembly instructions Article number: 6097581 • Assembly instructions for the external alarm signal Article number: 6097582 User manual • Wilo-DrainLift MINI5-XS/C, Wilo-DrainLift MINI5-XS/WC • Ed.1/2024-09... -
Page 14: Symbols Used In The Assembly Instructions
Run clean water into the tank through every connected inlet. ⇒ As soon as the maximum fill level is reached in the tank, the lifting unit switches on. Check all pipe connections for impermeability. User manual • Wilo-DrainLift MINI5-XS/C, Wilo-DrainLift MINI5-XS/WC • Ed.1/2024-09... -
Page 15: Activating And Deactivating "Silent Mode
Disconnect the lifting unit from the mains supply: Pull the plug and switch off the fuse. Empty the tank, e.g., via the emergency drainage or diaphragm hand pump. Remove the inlets and discharge lines from the tank. Remove the floor fixation. User manual • Wilo-DrainLift MINI5-XS/C, Wilo-DrainLift MINI5-XS/WC • Ed.1/2024-09... -
Page 16: Maintenance And Repair
Pumps switches off after approx. 1 minute. ⇒ Alarm falls silent. ⇒ If the pump does not switch off, go to “Level measurement fault”. Check inlets. Reopen all inlets. ▶ System works properly again. User manual • Wilo-DrainLift MINI5-XS/C, Wilo-DrainLift MINI5-XS/WC • Ed.1/2024-09... - Page 17 Please consult your local municipality, the nearest waste disposal site, or the dealer who sold the product to you for information on proper disposal. See www.wilo‑recycling.com for more information about recycling. User manual • Wilo-DrainLift MINI5-XS/C, Wilo-DrainLift MINI5-XS/WC • Ed.1/2024-09...
- Page 20 Local contact at www.wilo.com/contact WILO SE Wilopark 1 44263 Dortmund Germany T +49 (0)231 4102-0 T +49 (0)231 4102-7363 wilo@wilo.com Pioneering for You www.wilo.com...
