WEEE DISASSEMBLY INSTRUCTIONS
SUPERMICRO ASG-2015S-E1CR24H ENCLOSURE
Abstract
This document provides clear guidance for end-of-life recyclers on how to identify
and disassemble reportable materials in compliance with the Waste Electrical and
Electronic Equipment (WEEE) directive.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SuperServer ASG-2015S-E1CR24H and is the answer not in the manual?

Questions and answers

Summary of Contents for Supermicro SuperServer ASG-2015S-E1CR24H

  • Page 1 WEEE DISASSEMBLY INSTRUCTIONS SUPERMICRO ASG-2015S-E1CR24H ENCLOSURE Abstract This document provides clear guidance for end-of-life recyclers on how to identify and disassemble reportable materials in compliance with the Waste Electrical and Electronic Equipment (WEEE) directive.
  • Page 2: Table Of Contents

    Table of Contents Product Views ............................1 Reportable Materials on ASG-2015S-E1CR24H ..................3 Disassemble Instructions .......................... 4 3.3 Step-by-Step Disassembly Instructions ....................7 1. Removing Cable and Chassis Cover ...................... 7 2. Removing Hard Disk Drive (HDD) / Solid State Drive (SDD) ..............8 3.
  • Page 3: Product Views

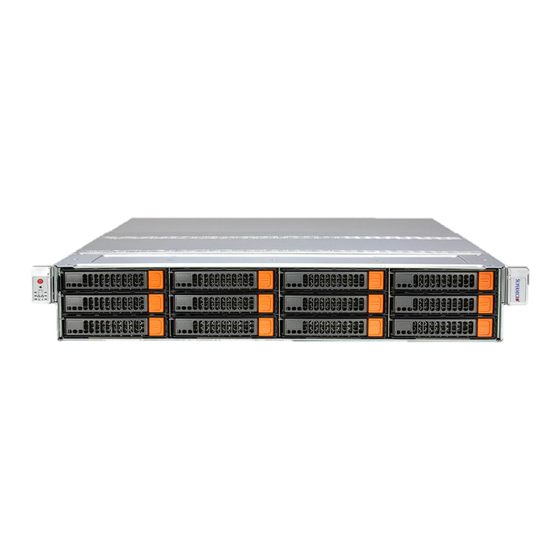

    1. Product Views Front view Rear View Power Supply...
  • Page 5: Reportable Materials On Asg-2015S-E1Cr24H

    2. Reportable Materials on ASG-2015S-E1CR24H According to Article 8(2) and Annex VII of WEEE directive 2012/19/EU, below materials and components should be selectively treated. Description Notes Quantity With a surface greater than 10 sq cm Printed Circuit Boards (PCB) or 2.3,3.5,4.2,5.1,6.1,8.2, (Depending on the system Printed Circuit Assemblies (PCA)
  • Page 6: Disassemble Instructions

    3. Disassemble Instructions The intent of this document is to provide guidance to recyclers on the presence of materials and components at the product / family level, as required by the EU WEEE Directive 2012/10/EU. This document should also help direct recyclers to proper methods for removing parts and general product disassembly instructions.
  • Page 7: Power Supply

    Chassis Storage Backplane*2 Fans* 4set Screws Motherboard*1 set Battery*1 set Cables Power Supply Power Enclosure*2 Screws and Standoff*2 Set Power Supply Module*2...
  • Page 8 Storage Card and CPU Heat Sink*1 set Processor*1 set SSD *2 set M.2 *2 set DIMM *3 set AIOM Card *2 set HDD *24 set...
  • Page 9: Step-By-Step Disassembly Instructions

    3.3 Step-by-Step Disassembly Instructions 1. Removing Cable and Chassis Cover 1. Use the operating system to power down the system. 2. After the system has completely shut-down, disconnect the power cords from the power supply modules. 3. Remove all cables/ unit from the server IO port. 4.Remove the two screws securing each side of the cover, push in the release buttons, then lift the mid- chassis cover.
  • Page 10: Removing Hard Disk Drive (Hdd) / Solid State Drive (Sdd)

    Description Power Cable Mid-Chassis Cover Rear Cover 2. Removing Hard Disk Drive (HDD) / Solid State Drive (SDD) 1. Press the release button to extend the drive carrier handle. 2. Use the drive carrier handle to pull the drive out of the chassis.
  • Page 11 3. Push up from the bottom of the SSD as shown below to remove it from the drive tray. 5. Use a cross screwdriver to remove drive enclosure 6. Use a cross screwdriver to remove screws and lift off the PCB Description HDD/ SSD Hard Drive Enclosure...
  • Page 12: Removing Power Supply

    3. Removing Power Supply 1. Ensure the system is unplugged and powered down. 2. Release the locking clip to unlock the power supply module. 3. Pull out the locking lever and remove the unit. 4. Remove the screw from the enclosure 4.
  • Page 13: Removing Power Distributor

    Use a flathead screwdriver to cut the capacitor adhesive and pin solder. Adhesive Description Power Supply Power Enclosure Fan Cable Power Module PCB Capacitor 4. Removing Power Distributor 1. Disconnect the power cords from the power supply modules. 2. Unplug the power distributor from the motherboard and backplane. 3.
  • Page 14: Power Distributor

    Remove screws and standoff Description Power Distributor Power Distributor PCBs 5. Removing Advanced I/O (AIOM) Network Card 1. Loosen the thumbscrew using your hand. 2. Slide the AIOM out of the opening. Description AIOM Network Card 6. Removing Backplane 1. Unscrew the screws (circled in red) holding the Power Distributor (PDB) bracket from the chassis.
  • Page 15: Removing Fan

    2. Unscrew the PDB backplane from the bracket as shown below. Description Power Distributor Backplane 7. Removing Fan 1. Press the fan release tab to lift the failed fan from the chassis and pull it completely out of the chassis.
  • Page 16: Removing Processor

    Description Cooling Fans 8. Removing Processor 1. Remove the heatsink attached to the top of the CPU package by reversing the installation procedure. 2. Clean the thermal grease left by the heatsink on the CPU package lid to limit the risk of it is contaminating the CPU package land pads or contacts in the socket housing.
  • Page 17 3. Remove the CPU socket screw and lift the rail frame, PnP cover cap 4. Pull upwards CPU to extract it from the rail frame. Note: Please handle the processor with care to avoid damaging it or its pins Description Heat Sink Processor...
  • Page 18: Removing Dimm

    9. Removing DIMM 1. Hand press both release tabs on the ends of the DIMM module to unlock it 2. Once the DIMM module is loose, remove it from the memory slot Description DIMM 10. Removing the M.2 from the Motherboard 1.
  • Page 19: Removing The Air Shroud, Riser, And The Riser Bracket

    11. Removing the Air shroud, Riser, and the Riser Bracket 1. Remove the Cable protector and tall standoffs from the node using a screwdriver as shown below. 2. Lift and remove the air shroud from the node. 11.1 3. Unscrew the two screws holding each riser card to remove riser cards from bracket. Description 11.1 Air Shroud...
  • Page 20: Removing Motherboard

    12. Removing Motherboard 1. Unscrew the screws (circled in red) on the motherboard and lift the motherboard out of the chassis. 2. Push aside the small clamp that covers the edge of the battery. When the battery is released, lift it out of the holder.
