1. Model name identification method
HWS 300 – 5 / □
2. Terminal Explanation
Please pay extra attention to the wiring. Incorrect connection will damage the power supply.

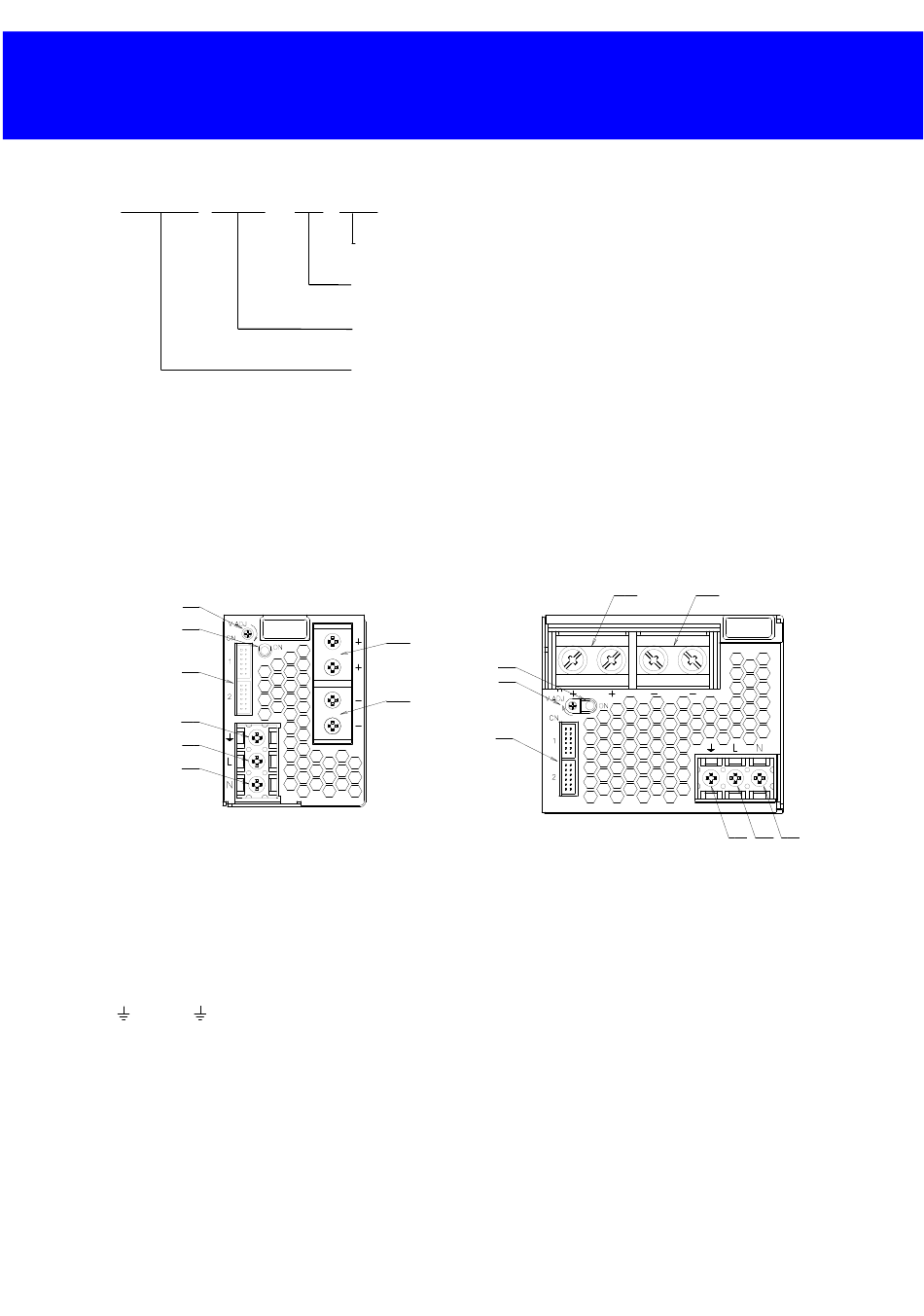

2-1. Front Panel Explanation

HWS300
①
②
③
④
⑤
⑥
① V.ADJ : Output voltage adjustment trimmer.
(The output voltage rises when a trimmer is turned clockwise.)
② ON : Output (Power On) indication LED
(The indicator turns on when the power supply output is in normal operating condition.)
③ CN1, CN2 : Remote sensing, ON/OFF control signal, Current balance signal, Power fail signal,
Output voltage external control signal. (Refer to 2-2.)
: Earth ( ) terminal, M4 screw.
④
⑤ AC input terminal L : Live Line (Fuse in line), M4 screw.
⑥ AC input terminal N : Neutral line, M4 screw.
⑦ + : + Output terminal
(HWS300: M4 screw x 2 / HWS600: M5 screw x 2)
⑧ - : - Output terminal
(HWS300: M4 screw x 2 / HWS600: M5 screw x 2)
Option (*1)
Rated Output Voltage
Output Power type
Series name
HWS600
⑦
②
①
⑧
③
- 4 -
TDK-Lambda
HWS300 ･ 600 Series
INSTRUCTION MANUAL
(*1)
/ "No assigned": Standard type
/PV: Output voltage can be controlled
by external voltage.
(Only 12 – 48V output model)
/HD: High resistance against dust
environment type.
(Refer to the specifications for details.)
⑦ ⑧
④ ⑤ ⑥
