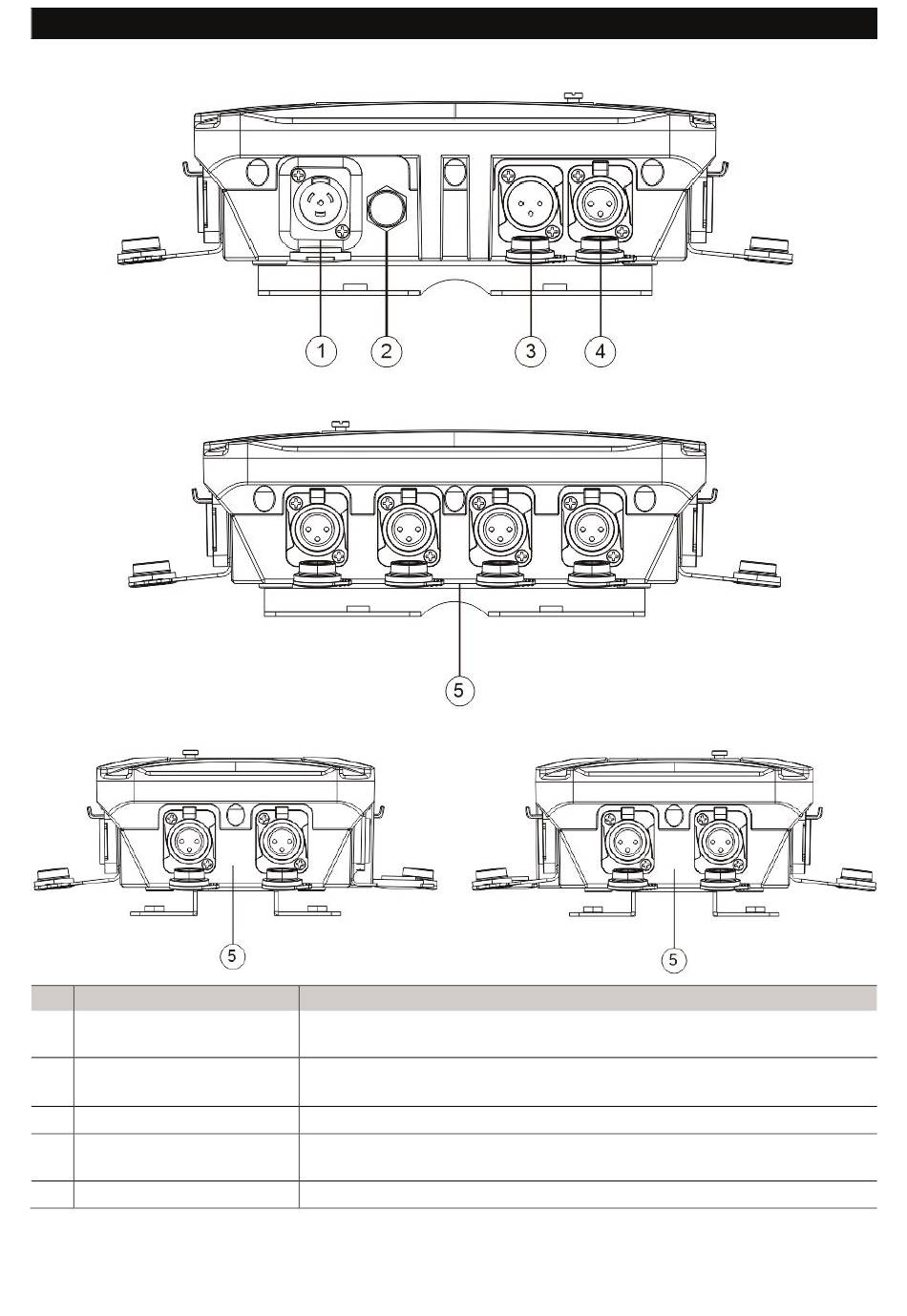

Front panel

Rear panel

Left and right panel

No. Element
1 Power input
2 Pressure compensation
element
3 DMX512 input (1)
4 DMX512 feed-through
output (1)
5 DMX512 outputs (8)
Note: When connected correctly, the power and DMX sockets are protected from spraying water according to
IP65. When not in use, make absolutely sure to close the sockets with the rubber sealing caps.

OPERATING ELEMENTS AND CONNECTIONS

Function
Lockable IP T-Con jack for connection to 100-240 volts via the mains cable
provided.
Prevents temperature-related pressure changes inside the device.
3-pin IP XLR plug to connect the DMX control signal.
Direct DMX output for connecting additional DMX devices or DMX splitters
within the same DMX chain as the DMX input.
3-pin IP XLR jacks to connect DMX chains.
14 • EN
