Kohler MODULO 78020T-4 Installation Instructions

SERVICE PARTS
78020T-4 78020T-4A 78020T-8 78020T-9
78021T-4 78021T-4A 78021T-8 78021T-9
870667
871363 3016134
78021T-4/4A/8/9:3015582**
78021T-4/4A/8/9:3007134
3006991
3006930
3010602
871363
870667
3016134
3006991
78020T-4/4A/8/9:3007136
3006930
3010602
78020T-4/4A/8/9:1226008**
**Color code must be specified when ordering.
1299818-2A-B
MODULO

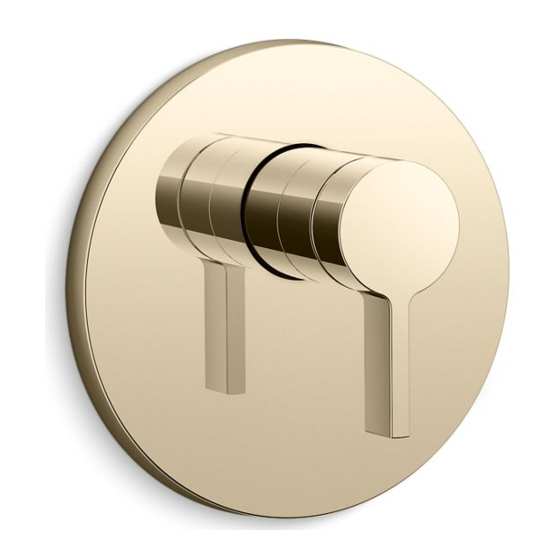

Recessed Shower Only Trim & Valve
Recessed Bath Shower Trim & Valve
78021T-4/4A/8/9:1226005**
78020T/78021T-4:1329483**
1249005
78020T/78021T-4A:1292395**
1242629**
1249005
1241730**
1241727**
1242631
1242632**
3016183
78020T/78021T-8:1355413**
1249005
78020T/78021T-9:1355417**
1249005
833730
4
INSTALLATION INSTRUCTIONS
78020T-4 78020T-4A 78020T-8 78020T-9
78021T-4 78021T-4A 78021T-8 78021T-9
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Inspect the supply tubing for damage and leakage. Replace and maintain as necessary.
3. Observe local plumbing codes. Shut off the main water supply.
4. Check for leaks before covering the pipes, repair as needed.
5. Please ensure only apply water pressure test on the product, and empty the air in pipe and faucet thoroughly
before the test. Please ensure test pressure below 0.8MPa(8bar) and test duration within 30 minutes.
ROUGH-IN DIMENSIONS
Ø180
The finished wall
Ø49
14
83~113
78020T-4
Ø180
The finished wall
Ø49
14
92~122
78020T-8
1299818-2A-B
MODULO
Recessed Shower Only Trim & Valve
Recessed Bath Shower Trim & Valve
Ø180
The finished wall
Ø49
14
79~109
78020T-4A
Ø180
The finished wall
14
116~146
78020T-9
1
