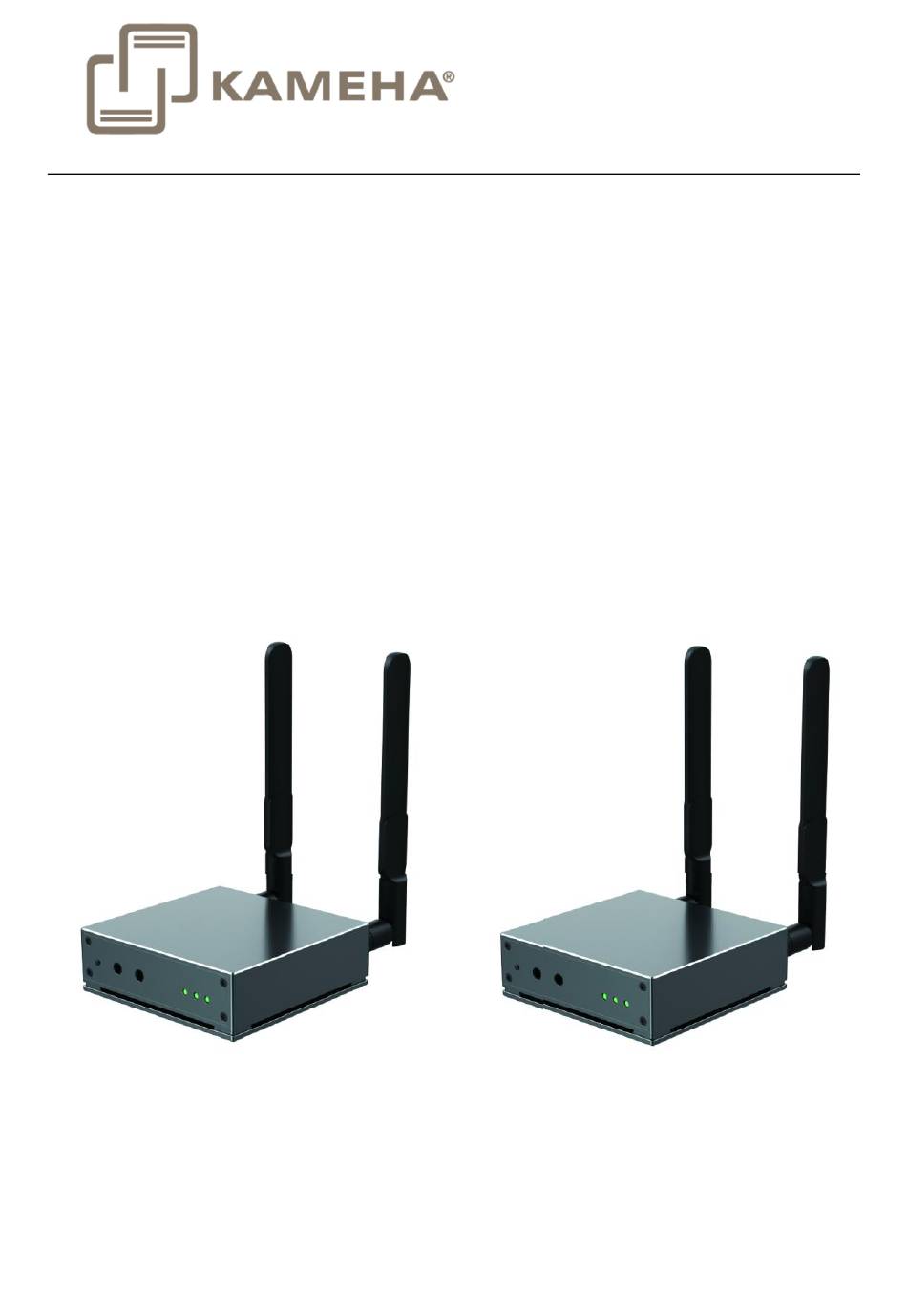

- Page 1 KW001 - HDMI WIRELESS EXTENDER 200METER - 1 -...
-
Page 2: Product Introduction
Category 1. Product introduction 2. Key features 3. Specifications 4. Interfaces 5. Application diagram 6. Installation steps - 2 -... -
Page 3: Specifications
1.Product introduction HDMI wireless extender uses the standard 802.11AC protocol, transmitting high-definition video and audio signals through 5G WiFi network, this could transmit the HD signal from different devices like DVD, CD player, PC through WiFi network, to realize one-to-many devices transmitting. This device also has excellent graphic computing and transmitting performance that could make the signal smoother and more stable. - Page 4 4、 Interfaces descriptions ： Receiver ： Transmitter end interfaces： Interfaces name Function description DC 12V Power port Reset button (press 5 seconds to reset to factory settings) HDMI IN /HDMI OUT HDMI in / out MODE Mode button (short press to switch WiFi signal) AUX IN/ AUX OUT Audio in / out IR IN/IR OUT...
-
Page 5: Application Diagram
Application diagram 5、 Application 1: One-to-one application HDMI IR-TX Cable IR-RX HDMI Projector Cable DS-PAD Application 2: One-to-many application HDMI Cable - 5 -... - Page 6 6、 Installation steps Basic functions： 1. Connect the HDMI signal source to the launcher end (TX), then connect the receiver end (RX) HDMI to the display devices (e.g. TV/ monitor/projector) 2. connect power to both launcher and receiver, when the indicator light is on, the system start to work. Extensions: 3.
