KAMEHA KA055TX User Manual

HDbitT HDMI Extender
User manual
• INTRODUCTION
HDMI HDbitT extender, takes the advantages of the latest transmission
technology – HDbitT, extends your HDMI video/audio with the resolution
of 1080p 60Hz up to 120m(394 feet) via single network cable and one
HDMI loop output.
Important Safety instructions:
1. Do not mix up the HDMI EXTENDER sender and HDMI EXTENDER
receiver, and the IR blaster and IR receiver.
2. Do not plug-in/out the cables ,when it is in using.
3. Use DC 5V power supply only. Make sure the specification matched if
using 3rd party DC adapters.
• Package Contents
HDMI EXTENDER HDMI EXTENDER
sender TX ×1pcs receiver Rx ×1 pcs
DC5V/1A ×2pcs IR blaster extension
cable x1pcs
Note： above accessory ccontent is regular package for a kit. If buy HDMI
extender TX or HDMI extender RX separately, the package contents would
be different.
• Installation Requirements
1. HDMI source device(computer graphics card, DVD,PS3, HD
monitoring equipment etc).
2. HDMI display device like SDTV, HDTV, projector with HDMI port.
3. Network cables：UTP/STP Cat5e/6 network cables, which following
the standard of IEEE-568B.
Transmission length: CAT5 80m/CAT5E 100m/CAT6 120m.

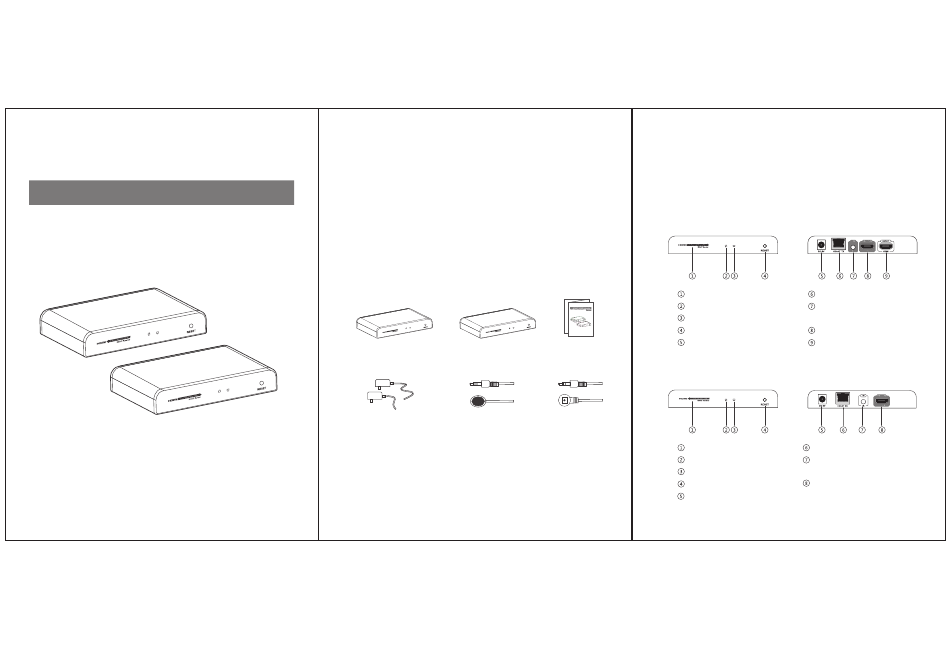

• Panel Description
1. HDMI EXTENDER TX (Sender)
Power Light
Data transmission light
Network link light
Reset
Power input（DC5V）
User Manual ×1p cs
2. HDMI EXTENDER RX(Receiver)
IR receiver extension
cable x1pcs
Power Light
Data transmission light
Network link light
Reset
Power input（DC5V）
HDbitT signal output
IR signal output to connect
with blaster extension cable
HDMI signal output
HDMI signal input
HDbitT signal input
IR signal input to connect with
IR receiver extension cable
HDMI signal output
