Summary of Contents for Siemens SPCE110

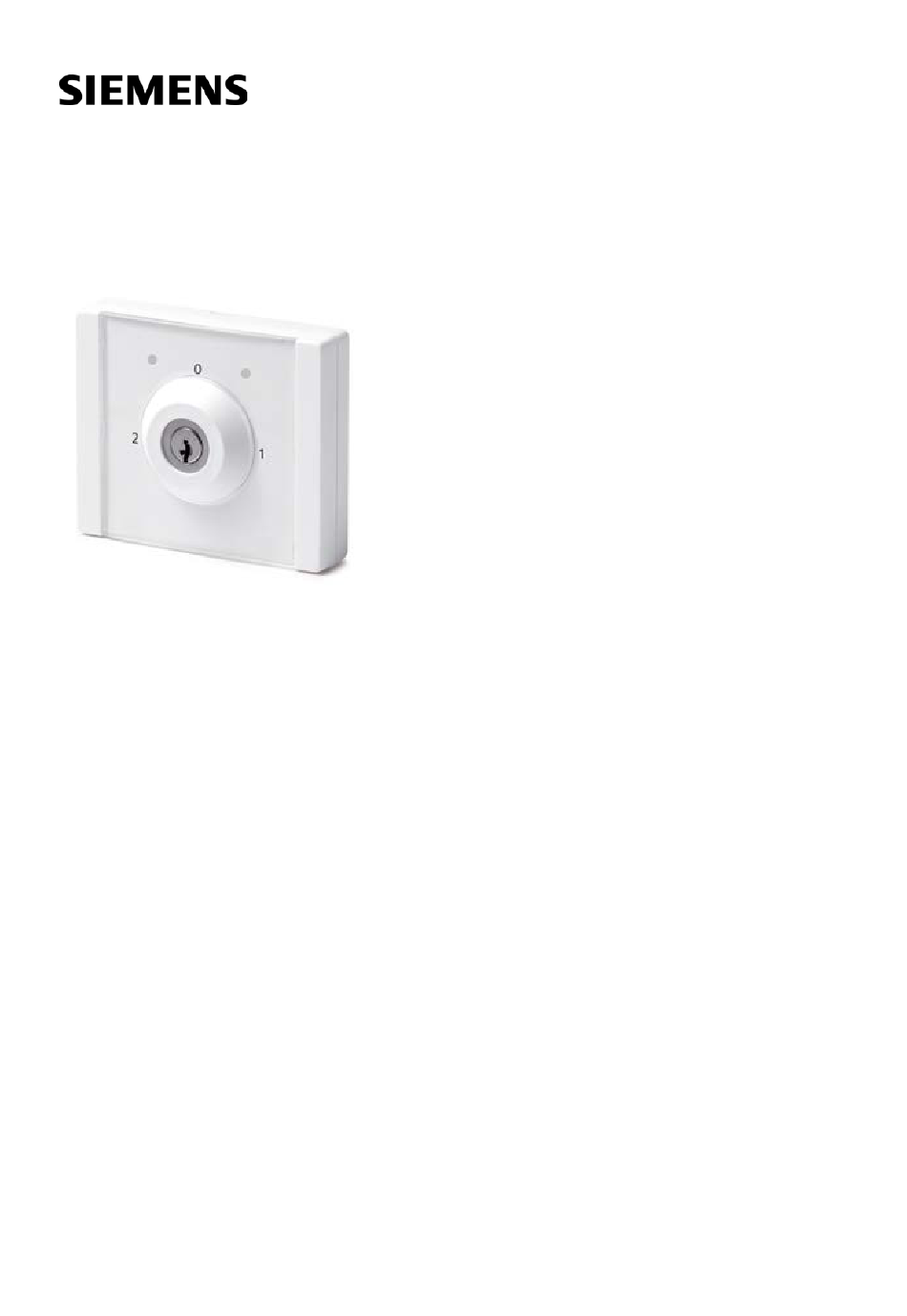

- Page 1 SPCE110 Keyswitch Expander User Guide Siemens AB A6V10271039 03.10.2013 Security Products...
- Page 2 Copyright Technical specifications and availability subject to change without notice. © Copyright Siemens AB We reserve all rights in this document and in the subject thereof. By acceptance of the document the recipient acknowledges these rights and undertakes not to...
-
Page 3: Table Of Contents
Directives and standards ................... 6 EU directives ......................6 2.1.1 Security Standards ................6 Introduction......................7 Function of the key positions and LEDs ............8 Key positions ......................8 LEDs ........................8 Activation of a keypad ..................8 Siemens AB A6V10271039 Security Products 03.10.2013... -
Page 4: Security
Danger of electrical shock while cleaning the device Do not use liquid cleaners or sprays that contain alcohol, spirit or ammonia. Meaning of written warning notices Signal Word Type of Risk DANGER Danger of death or severe bodily harm. Siemens AB A6V10271039 Security Products 03.10.2013... -
Page 5: Meaning Of Hazard Symbols
Possible danger of death or severe bodily harm. CAUTION Danger of minor bodily injury or property damage IMPORTANT Danger of malfunctions Meaning of hazard symbols WARNING Warning of hazard area WARNING Warning of dangerous electrical voltage Siemens AB A6V10271039 Security Products 03.10.2013... -
Page 6: Directives And Standards
Compliance with the European Directive 2006/95/EC has been proven by testing according to the following standard: Safety EN 60950-1 2.1.1 Security Standards The SPCE110.100 is approved according to the following standards: Product Standard SPCE110.100 EN50131-3:2009, Grade 3, Class II, Type B Siemens AB... -
Page 7: Introduction
Introduction 3 Introduction The SPCE110 is a universal key switch expander. It is used in combination with SPCK620/623 or SPCE120 to release them for operation. The function of the LEDs and key positions can be freely defined via the control unit. The expander features also a buzzer for acoustic notification and a freely programmable relay output. -
Page 8: Function Of The Key Positions And Leds
Please ask your installer which of these functions have been enabled during installation. Temporary activation 1. Turn the key to position 1. 2. Turn the key to position 0 and remove the key. The keypad can be used for the configured latch time. Siemens AB A6V10271039 Security Products 03.10.2013... - Page 9 The keypad can be used, as long as the key is in position 1. Deactivation To deactivate an activated keypad turn the key back to position 0. The keypad is locked. The key can be removed. Siemens AB A6V10271039 Security Products 03.10.2013...
- Page 10 Issued by © 2013 Copyright Siemens AB Siemens AB Technical specifications and availability subject to change without notice. Infrastructure & Cities Sector Security Products International Headquarters Englundavägen 7 SE-171 41 Solna Tel. +46 8 629 0300 www.siemens.com/securityproducts Document ID A6V10271039 Edition 03.10.2013...
