NuAire XS6 Installation And Maintenance Manual

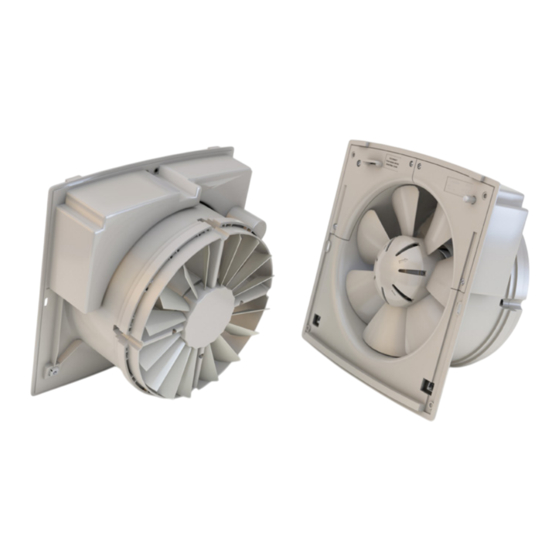

XS Fan Module
Supply & Extract Unit, 50/60Hz
Installation and Maintenance Manual
1.0 IMPORTANT SAFETY INFORMATION
•
Installation or replacement of units or spare parts must be carried out by a qualified or Nuaire approved service engineer/ electrician
and in accordance with IEE or local national wiring regulations.
•
Isolate from power supply before removing any covers. During installation / maintenance ensure all covers are fitted before
switching on the mains supply.
•
All-pole disconnection from the mains as shown in the wiring diagram must be incorporated within the fixed wiring and shall have
a minimum contact separation of 3mm in accordance with latest edition of the wiring regulations.
•
This unit must be earthed.
•
Ducting must be securely fixed with screws to the spigot to prevent access to live parts. Duct runs terminating close to the fan must
be adequately protected by suitable guards.
•
Precautions must be taken to avoid the back-flow of gases into the room from the open flue of gas or other fuel-burning appliances.
•
This appliance should not be used by children or persons with reduced physical, sensory or mental capabilities or lack of experience
and knowledge, unless they have been given supervision or instruction concerning the safe use of the appliance by a person
responsible for their safety. Children shall not play with the appliance. Cleaning and user maintenance shall not be carried out by
children.
•
Maximum ambient temperature should not exceed 25°C for continuous operation or 35°C occasionally.
1.1 HAZARD SYMBOLS
GENERAL WARNING
Signifies a general warning regarding hazard specified by supplementary information.
ELECTRIC SHOCK
This unit must be completely electrically isolated before any panels are removed. Check mains supply and control
connections.
ROTATING PARTS
This unit contains fast moving rotational parts which may start automatically. It is the sole responsibility of the installer
to adequately guard these components.
REFER TO INSTRUCTION MANUAL
Read and understand the installation and maintenance manual before installing, operating or maintaining this product.
1.2 IMPORTANT INFORMATION
This manual contains important information on the safe and appropriate assembly, transport, commissioning, operation, maintenance,
disassembly and simple troubleshooting of the product.
While the product has been manufactured according to the accepted rules of current technology, there is still a danger of personal
injury or damage to equipment if the following general safety instructions and the warnings contained in these instructions are not
complied with.
•
Read these instructions completely and thoroughly before working with the product.
•
Keep these instructions in a location where they are accessible to all users at all times.
•
Always include the operating instructions when you pass the product on to third parties.
24.07.2024 I&M No. 671067
| Western Industrial Estate | Caerphilly | CF83 1NA | nuaire.co.uk
The EMC Directive
2014/30/EU
The Low Voltage
Directive
2014/35/EU
Page 1 of 8
