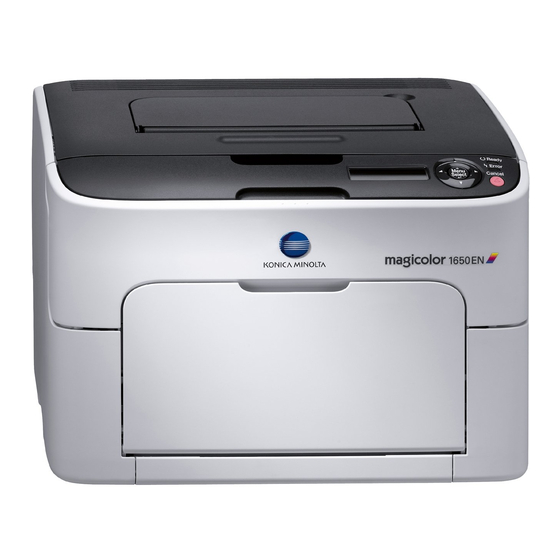

Page 1: Magicolor 1650En
1650EN Reference Guide A034-9572-01A...
Page 2: Copyright Notice
KONICA MINOLTA. The information contained in this guide is intended for use with the KONICA MINOLTA magicolor 1650EN printers only.
Page 3: Software License Agreement
SOFTWARE LICENSE AGREEMENT This package contains the following materials provided by KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. (KMBT): software included as part of the printing system (“Printing Software”), the digitally-encoded machine-readable outline data encoded in the special format and in the encrypted form (“Font Programs”), other software which runs on a computer system for use in conjunction with the Printing Software (“Host Software”), and related explanatory writ-...
Page 4: About Adobe Color Profile
11. Notice to Government End Users: The Software is a “commercial item,” as that term is defined at 48 C.F.R.2.101, consisting of “commercial computer software” and “commercial computer software documentation,” as such terms are used in 48 C.F.R. 12.212. Consis- tent with 48 C.F.R.
Page 5 4. DISCLAIMER OF WARRANTY Adobe licenses the Software to you on an “AS IS” basis. Adobe makes no representation as to the adequacy of the Software for any particular pur- pose or to produce any particular result. Adobe shall not be liable for loss or damage aris- ing out of this Agreement or from the distribution or use of the Software or any other materials.
Page 6 9. GOVERNING LAW This Agreement will be governed by and construed in accordance with the substantive laws in force in the State of California as such laws are applied to agree- ments entered into and to be performed entirely within California between California resi- dents.
Page 7: Dic Standard Color Profile License Agreement
5. All company names and product names used in this document is the trademarks or regis- tered trademarks of their respective holder. This ICC Profile made by GretagMacbeth ProfileMaker and granted TOYO INK certain license to distribute by GretagMacbeth AG. TOYO Offset Coated 2.1 ©...
Page 8 4. License Method and Restrictions a. You may install and use the Profile on a single desktop computer; provided, however, that, notwithstanding anything contrary contained herein, you may not use the Profile on any network system or share, install or use the Profile concurrently on different computers, or electronically transfer the Profile from one computer to another or over a network.
Page 9: Openssl Statement
7. General a. This License Agreement shall be governed and construed in accordance with the laws of Japan, without giving effect to principles of conflict of laws. If any provision of this License Agreement shall be held by a court of competent jurisdiction to be contrary to law, that pro- vision will be enforced to the maximum extent permissible, and the remaining provisions of this License Agreement will remain in full force and effect.
Page 10: Original Ssleay License
6. Redistributions of any form whatsoever must retain the following acknowledgment: “This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)” THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT “AS IS” AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PUR- POSE ARE DISCLAIMED.
Page 11: Netsnmp License
4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement: “This product includes software written by Tim Hudson (tjh@cryptsoft.com)” THIS SOFTWARE IS PROVIDED BY ERIC YOUNG “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
Page 12 CMU AND THE REGENTS OF THE UNIVERSITY OF CALIFORNIA DISCLAIM ALL WAR- RANTIES WITH REGARD TO THIS SOFTWARE, INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL CMU OR THE REGENTS OF THE UNIVERSITY OF CALIFORNIA BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSE- QUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM THE LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR...
Page 13 THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDER “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAM- AGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;...
Page 14 Redistributions in binary form must reproduce the above copyright notice, this list of condi- tions and the following disclaimer in the documentation and/or other materials provided with the distribution. Neither the name of Sparta, Inc nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
Page 15: Wpa Supplicant
WPA Supplicant Copyright (c) 2003-2005, Jouni Malinen <jkmaline@cc.hut.fi> and contributors All Rights Reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Page 16: Table Of Contents
Contents 1 Operation on Mac OS X ................. 1-1 System Requirements for the Printer Driver ..........1-2 Installing the Printer Driver ................1-3 Installing the Printer Driver................1-3 Print Center Settings (Mac OS X 10.2.8) ............1-8 When Using a USB Connection ..............1-8 When Using a Network Connection ............
Page 17 When Using a Network Connection ............1-37 Bonjour Setting ................... 1-37 IP Printing Setting ................1-40 Selecting Print Options ................1-44 For Mac OS X 10.2/10.3/10.4 ..............1-44 For Mac OS X 10.5 ................... 1-46 Specifying Page Setup Settings ..............1-48 Page Attributes Options ................
Page 18 2 Operation on Linux ..................2-1 System Requirements for the Printer Driver ..........2-2 Installing PPD File From the Command Line ..........2-3 Adding the Printer ..................2-4 Specifying Printer Driver Settings ............... 2-7 Displaying the Settings Page ..............2-7 Printer Driver Settings .................
Page 19 PS PROTOCOL ..................5-9 6 Network Printing .................... 6-1 Network Connection ..................6-2 Theory ......................6-2 Making the Connection ................6-3 Ethernet Interface ................. 6-3 Using DHCP..................6-3 Setting the Address Manually ............... 6-4 Network Printing .................... 6-9 Bonjour....................6-9 BOOTP ....................
Page 20 Requirements....................7-2 When connecting with Windows Server 2008..........7-3 Setting Up the Printer Web Page ..............7-4 Determining the Printer Name..............7-4 Setting Up Your Browser Software ............. 7-4 Internet Explorer (version 6.0 for Windows).......... 7-5 Netscape Navigator (version 7.1) ............7-5 Understanding the PageScope Web Connection Window ......
Page 21 Configuration Page ................7-57 Statistics Page ..................7-58 Administration ................... 7-59 Startup Options & Resets ..............7-59 Localization Languages ..............7-62 Security ....................7-64 Flash Operations................. 7-66 Job Page ....................7-67 Job Listing (shown above) ..............7-67 Direct Printing ..................7-68 Download Manager................
Page 22: Operation On Mac Os X
Operation on Mac OS X...
Page 23: System Requirements For The Printer Driver
System Requirements for the Printer Driver Before installing the printer driver, make sure that your system meets the fol- lowing system requirements. Computer Apple Macintosh computer installed with the following processor: - PowerPC G3 or later processor (PowerPC G4 or later is recommended) - Intel processor Connecting the computer USB connection, Network connection...
Page 24: Installing The Printer Driver
Installing the Printer Driver You must have administrator privileges in order to install the printer driver. Before proceeding with the installation, be sure to exit all running applications. Installing the Printer Driver The procedure for installing the printer driver on Mac OS X 10.4 is described below.
Page 25 Click Continue. Click Continue. Installing the Printer Driver...
Page 26 Click Agree in the confirmation dialog box if you agree to the terms of the license. In the Select a Destination page, select the disk in which you wish to install the software, and then click Continue. Installing the Printer Driver...
Page 27 Click Install in the Easy Install page. Enter the administrator user name and password in the Authenticate dia- log box, and then click OK. Installation starts. Installing the Printer Driver...
Page 28 After the installation has been completed, click Close. This completes the installation of the printer driver. Installing the Printer Driver...
Page 29: Print Center Settings (Mac Os X 10.2.8)
Print Center Settings (Mac OS X 10.2.8) When Using a USB Connection Use a USB cable to connect the printer to your computer. Check that the printer is turned on, and then restart the computer. Open Print Center, which can be accessed by clicking Startup Disk, then Applications, then Utilities.
Page 30 If magicolor 1650 does not appear, check that the printer is turned on and the USB cable is connected, and then restart the computer. Select KONICA MINOLTA from the Printer Model pop-up menu. Select KONICA MINOLTA mc1650 PPD in the Name list.
Page 31: When Using A Network Connection
Click Add. The new printer appears in the Printer List screen. If any options are installed, select them. For details, refer to “Selecting Print Options” on page 1-44. When Using a Network Connection The network connection settings can be specified in one of three ways: IP printing setting, IPP setting and Specifying Port 9100.
Page 32 Enter the IP address for the printer in the Printer's Address text box. Clear the Use default queue on server check box. Enter "lp" in the Queue Name text box. Select KONICA MINOLTA from the Printer Model pop-up menu. Print Center Settings (Mac OS X 10.2.8) 1-11...
Page 33: Ipp Setting
Select KONICA MINOLTA mc1650 PPD in the Name list. Click Add. The new printer appears in the Printer List screen. If any options are installed, select them. For details, refer to “Selecting Print Options” on page 1-44. IPP Setting Connect the printer to an Ethernet network.
Page 34 In the Printer List, click Add while pressing the Option key in the key- board. Select Advanced from the pop-up menu. Select Internet Printing Protocol (http) from the Device pop-up menu. Print Center Settings (Mac OS X 10.2.8) 1-13...
Page 35 Enter the name for the printer in the Device Name text box. In the Device URI text box, enter "http://<IP address>/ipp". Select KONICA MINOLTA from the Printer Model pop-up menu. Select KONICA MINOLTA mc1650 PPD in the Name list. 1-14...
Page 36: Specifying Port 9100
Click Add. The new printer appears in the Printer List screen. If any options are installed, select them. For details, refer to “Selecting Print Options” on page 1-44. Specifying Port 9100 Connect the printer to an Ethernet network. Open Print Center, which can be accessed by clicking Startup Disk, then Applications, then Utilities.
Page 37 Select Advanced from the pop-up menu. Select AppSocket/HP JetDirect from the Device pop-up menu. Enter the name for the printer in the Device Name text box. 1-16 Print Center Settings (Mac OS X 10.2.8)
Page 38 In the Device URI text box, enter "socket://<IP address>/ipp". Select KONICA MINOLTA from the Printer Model pop-up menu. Select KONICA MINOLTA mc1650 PPD in the Name list. Print Center Settings (Mac OS X 10.2.8) 1-17...
Page 39 Click Add. The new printer appears in the Printer List screen. If any options are installed, select them. For details, refer to “Selecting Print Options” on page 1-44. 1-18 Print Center Settings (Mac OS X 10.2.8)
Page 40: Printer Setup Utility Settings (Mac Os X 10.3)
Printer Setup Utility Settings (Mac OS X 10.3) Use a USB cable to connect the printer to your computer. Check that the printer is turned on, and then restart the computer. Open Printer Setup Utility, which can be accessed by clicking Startup Disk, then Applications, then Utilities.
Page 41 Select magicolor 1650 in the Product list. If magicolor 1650 does not appear, check that the printer is turned on and the USB cable is connected, and then restart the computer. Check that KONICA MINOLTA mc1650 PPD is selected in the Printer Model list. Click Add.
Page 42: When Using A Network Connection
When Using a Network Connection The network connection settings can be specified IP printing Setting (IPP, LPD or Socket). IP Printing Setting Connect the machine to an Ethernet network. Open Printer Setup Utility, which can be accessed by clicking Startup Disk, then Applications, then Utilities.
Page 43 - For an LPD setup, type “lp” in the Queue Name text box. - For an IPP setup, type “ipp” in the Queue Name text box. Select KONICA MINOLTA from the Printer Model pop-up menu. 1-22 Printer Setup Utility Settings (Mac OS X 10.3)
Page 44 Select KONICA MINOLTA mc1650 PPD in the Name list. Click Add. The new printer appears in the Printer List screen. If any options are installed, select them. For details, refer to “Selecting Print Options” on page 1-44. Printer Setup Utility Settings (Mac OS X 10.3)
Page 45: Printer Setup Utility Settings (Mac Os X 10.4)
Printer Setup Utility Settings (Mac OS X 10.4) When Using a USB Connection Use a USB cable to connect the machine to your computer. Open Printer Setup Utility, which can be accessed by clicking Startup Disk, then Applications, then Utilities. In the Printer List, click Add.
Page 46 If magicolor 1650 does not appear, check that the machine is turned on and the USB cable is connected, and then restart the computer. Check that KONICA MINOLTA mc1650 PPD is selected in the Print Using list. Click Add. The new printer appears in the Printer List screen.
Page 47: When Using A Network Connection
When Using a Network Connection The network connection settings can be specified in one of two ways: Bonjour Setting and IP printing Setting (IPP, LPD or Socket). Bonjour Setting Connect the machine to an Ethernet network. Open Printer Setup Utility, which can be accessed by clicking Startup Disk, then Applications, then Utilities.
Page 48 Select KONICA MINOLTA magicolor 1650 (xx:xx:xx) in the Printer Browser. “xx:xx:xx” refers to the last six digits of the MAC address (in hexa- decimal). Check that KONICA MINOLTA mc1650 PPD is selected in the Print Using list. Click Add. Printer Setup Utility Settings (Mac OS X 10.4)
Page 49 Select the appropriate settings in the Optional Input Bin and an Optional Duplexer check box according to your printer setup. Click Continue. The new printer appears in the Printer List screen. 1-28 Printer Setup Utility Settings (Mac OS X 10.4)
Page 50: Ip Printing Setting
IP Printing Setting Connect the machine to an Ethernet network. Open Printer Setup Utility, which can be accessed by clicking Startup Disk, then Applications, then Utilities. Click Add in the Printer List. Click IP Printer. Printer Setup Utility Settings (Mac OS X 10.4) 1-29...
Page 51 Select desired print protocol from the Protocol pop-up menu. - For an IPP setup, select Internet Printing Protocol - IPP. - For an LPD setup, select Line Printer Daemon - LPD. - For a port 9100 setup, select HP Jet Direct - Socket. 1-30 Printer Setup Utility Settings (Mac OS X 10.4)
Page 52 - For an LPD setup, type “lp” in the Queue text box. - For an IPP setup, type “ipp” in the Queue text box. Select KONICA MINOLTA mc1650 PPD in the Print Using list. Click Add. Printer Setup Utility Settings (Mac OS X 10.4)
Page 53 Select the appropriate settings in the Optional Input Bin and an Optional Duplexer check box according to your printer setup. Click Continue. The new printer appears in the Printer List screen. 1-32 Printer Setup Utility Settings (Mac OS X 10.4)
Page 54: Printer Settings (Mac Os X 10.5)
Printer Settings (Mac OS X 10.5) When Using a USB Connection Use a USB cable to connect the printer to your computer. Select System Preference from the Apple menu. Click Print & Fax. In the Print & Fax, click + button. Printer Settings (Mac OS X 10.5) 1-33...
Page 55 The detected printer appears in the Printer Browser. Select KONICA MINOLTA magicolor 1650 in the Printer Name list. 1-34 Printer Settings (Mac OS X 10.5)
Page 56 If KONICA MINOLTA magicolor 1650 does not appear, check that the printer is turned on and the USB cable is connected, and then restart the computer. Check that KONICA MINOLTA mc1650 PPD is selected in the Print Using list. Click Add.
Page 57 Click Continue. The new printer appears in the Print & Fax screen. 1-36 Printer Settings (Mac OS X 10.5)
Page 58: When Using A Network Connection
When Using a Network Connection The network connection settings can be specified in one of two ways: Bonjour Setting and IP printing setting (IPP, LPD or Socket). Bonjour Setting Connect the machine to an Ethernet network. Select System Preference from the Apple menu. Click Print &...
Page 59 The detected printer appears in the Printer Browser. Select KONICA MINOLTA magicolor 1650 (xx:xx:xx) in the Printer Name list. “xx:xx:xx” refers to the last six digits of the MAC address (in hexadeci- mal). 1-38 Printer Settings (Mac OS X 10.5)
Page 60 Check that KONICA MINOLTA mc1650 PPD is selected in the Print Using list. Click Add. Select the appropriate settings in the Optional Input Bin and an Optional Duplexer check box according to your printer setup. Click Continue. The new printer appears in the Print & Fax screen.
Page 61: Ip Printing Setting
IP Printing Setting Connect the machine to an Ethernet network. Select System Preference from the Apple menu. Click Print & Fax. In the Print & Fax, click + button. 1-40 Printer Settings (Mac OS X 10.5)
Page 62 Click IP. Select desired print protocol from the Protocol pop-up menu. - For an IPP setup, select Internet Printing Protocol - IPP. - For an LPD setup, select Line Printer Daemon - LPD. - For a port 9100 setup, select HP Jetdirect - Socket. Printer Settings (Mac OS X 10.5) 1-41...
Page 63 Enter the IP address for the machine in the Address text box. - For an LPD setup, type “lp” in the Queue text box. - For an IPP setup, type “ipp” in the Queue text box. Check that KONICA MINOLTA mc1650 PPD is selected in the Print Using list. Click Add.
Page 64 Select the appropriate settings in the Optional Input Bin and an Optional Duplexer check box according to your printer setup. Click Continue. The new printer appears in the Print & Fax screen. Printer Settings (Mac OS X 10.5) 1-43...
Page 65: Selecting Print Options
Selecting Print Options For Mac OS X 10.2/10.3/10.4 Open Printer Setup Utility (Print Center), which can be accessed by clicking Startup disk, then Applications, then Utilities. Select this printer in the Printer List, and then select Show Info from the Printers menu.
Page 66 Select the appropriate settings in the Optional Input Bin and an Optional Duplexer check box according to your printer setup. Click Apply Changes. Close the Printer Info dialog box. Selecting Print Options 1-45...
Page 67: For Mac Os X 10.5
For Mac OS X 10.5 Select System Preference from the Apple menu. Click Print & Fax. Select this printer in the Printers List, and then click Options & Sup- plies. Select Driver tab. 1-46 Selecting Print Options...
Page 68 Select the appropriate settings in the Optional Input Bin and an Optional Duplexer check box according to your printer setup. Click OK. Close the Print & Fax screen. Selecting Print Options 1-47...
Page 69: Specifying Page Setup Settings
Specifying Page Setup Settings The following dialog box appears when Page Setup... is selected from the File menu in the application being used. Select Page Setup... from the File menu. The Page Setup dialog box appears. Select this printer in the Format for pop-up menu. You can select the following sections from the Settings pop-up menu.
Page 70: Page Attributes Options
Page Attributes Options The Page Attributes section is used to specify the settings for the paper size, scaling, and print orientation. Paper Size Select the desired paper size from the Paper Size pop-up menu. Orientation Select either a vertical or horizontal page orientation for printouts. Scale If you want to enlarge or reduce the size of the printout, enter the scale ratio here (25-400%).
Page 71: Specifying Custom Paper Size
Specifying Custom Paper Size You can also specify a paper size that is not listed in the Paper Size pop-up menu. Select Manage Custom Sizes from the pop-up menu, in the Page Setup dialog box. The Custom Page Sizes dialog box appears. Click this button to create a new custom page size.
Page 72: Specifying Print Settings (Mac Os X 10.4)
Specifying Print Settings (Mac OS X 10.4) The following dialog box appears when Print... is selected from the File menu in the application being used. Select Print... from the File menu. The Print dialog box appears. Select this printer in the Printer pop-up menu. The Print dialog box is used to specify the following print options.
Page 73: Common Buttons
Section Description Color Options This section contains options for color print- ing. Printer Features This section contains options for specifying paper type and resolution settings. Supply Levels This section provides information for check- ing the amount of service life remaining on each consumable.
Page 74: Copies & Pages
Copies & Pages The Copies & Pages section is used to specify the number of copies to print and the range of pages to print. Copies This specifies the number of copies to be printed. If the Collated check- box is selected, all pages in the documents are printed as sets of print- outs.
Page 75: Layout
Layout The Layout section is used to specify the page layout when printing and the setting for double-sided printing. Pages per Sheet Specifies the number of pages to be printed on one sheet of paper. For example, if 2 is selected, two pages are printed on one sheet of paper. Layout Direction If you are printing more than one page per sheet, this specifies the direc- tion and order the pages should be arranged on each sheet of paper.
Page 76: Scheduler
Scheduler The Scheduler section is used to specify the timing and priority for printing jobs. Print Document Now: Select this option to begin printing immediately. Specify the time to begin printing. On Hold: Select this option to hold the print job. Priority Select the priority for printing jobs that are being held.
Page 77: Paper Handling
Paper Handling The Paper Handling section is used to specify the pages that are to be printed and the order in which the pages are printed. Page Order Automatic: Select this option to print in the original page order of the document.
Page 78: Colorsync
ColorSync Color Conversion Allows you to select host-based color matching or printer-based color matching. Quartz Filter Allows you to select Quartz Filter. Cover Page Print Cover Page Allows you to set cover page before or after document. Cover Page Type Allows you to select cover page type.
Page 79: Error Handling
Error Handling PostScript Errors Allows you to select whether or not a report is outputted when a Post- Script error occurs. Tray Switching This feature is not available with this printer. 1-58 Specifying Print Settings (Mac OS X 10.4)
Page 80: Paper Feed
Paper Feed The Paper Feed section is used to specify the paper feed setting. All pages from All pages in the document are printed using the paper in the specified paper tray. First page from The first page of the document is printed on paper from a paper tray differ- ent from the tray used to print the rest of the document.
Page 81: Color Options
Color Options Quick Color Allows you to select a color preset. Color as Grayscale Allows you to set Grayscale color. Economy Print Allows you to set Economy Print Mode. Advanced Color Options Click this button to display the Advanced Color Options pane. This button enables when Custom is selected under Quick Color.
Page 82: Advanced Color Options/Image
Advanced Color Options/Image RGB Source Allows you to select RGB color profiles for images. RGB Intent Allows you to select color intent for RGB images. RGB Gray Treatment Allows you to select RGB gray treatment for images. Halftone Allows you to select halftone for images. Hide Advanced Options Click this button to hide the Advanced Color Options pane and display the Color Options pane.
Page 83: Advanced Color Options/Text
Advanced Color Options/Text RGB Source Allows you to select RGB color profiles for text. RGB Intent Allows you to select color intent for RGB text. RGB Gray Treatment Allows you to select RGB gray treatment for text. Halftone Allows you to select halftone for text. Hide Advanced Options Click this button to hide the Advanced Color Options pane and display the Color Options pane.
Page 84: Advanced Color Options/Graphics
Advanced Color Options/Graphics RGB Source Allows you to select RGB color profiles for graphics. RGB Intent Allows you to select color intent for RGB graphics. RGB Gray Treatment Allows you to select RGB gray treatment for graphics. Halftone Allows you to select halftone for graphics. Hide Advanced Options Click this button to hide the Advanced Color Options pane and display the Color Options pane.
Page 85: Advanced Color Options/Simulation
Advanced Color Options/Simulation Simulation Profile A llows you to select color profiles for simulation. Match Paper Color Allows you to set Match Paper Color. CMYK Gray Treatment Allows you to select Simulation gray treatment. Hide Advanced Options Click this button to hide the Advanced Color Options pane and display the Color Options pane.
Page 86: Printer Features
Printer Features Paper Type Select the desired paper type from the Paper Type pop-up menu. Resolution Select the resolution of the image. Supply Levels The Supply Levels section provides information for checking the amount of service life remaining on each consumable. The Supply Levels section appears when a printer is created on Mac OS X v10.4 with a Bonjour, IPP, LPD, Socket connection.
Page 87: Summary
Summary The Summary is used to check the currently selected print settings. 1-66 Specifying Print Settings (Mac OS X 10.4)
Page 88: Specifying Print Settings (Mac Os X 10.5)
Specifying Print Settings (Mac OS X 10.5) The following dialog box appears when Print... is selected from the File menu in the application being used. Select Print... from the File menu. The Print dialog box appears. Select this printer in the Printer pop-up menu. The Print dialog box is used to specify the following print options.
Page 89: Common Buttons
Section Description Color Options This section contains options for color print- ing. Printer Features This section contains options for specifying paper type and resolution settings. Supply Levels This section provides information for check- ing the amount of service life remaining on each consumable.
Page 90: Layout
Layout The Layout section is used to specify the page layout when printing and the setting for double-sided printing. Pages per Sheet Specifies the number of pages to be printed on one sheet of paper. For example, if 2 is selected, two pages are printed on one sheet of paper. Layout Direction If you are printing more than one page per sheet, this specifies the direc- tion and order the pages should be arranged on each sheet of paper.
Page 91: Color Matching
Two-Sided Select the desired setting for double-sided printing. Off: Double-sided printing is not performed. Long-edge binding: Double-sided printing is performed with the bind- ing along the long edge of the paper. Short-edge binding: Double-sided printing is performed with the bind- ing along the short edge of the paper.
Page 92: Paper Handling
Paper Handling The Paper Handling section is used to specify the pages that are to be printed and the order in which the pages are printed. Pages To Print All pages: Select this option to print all pages. Odd Only: Select this option to print only the pages with odd page num- bers.
Page 93: Paper Feed
Paper Feed The Paper Feed section is used to specify the paper feed setting. All pages from All pages in the document are printed using the paper in the specified paper tray. First page from The first page of the document is printed on paper from a paper tray differ- ent from the tray used to print the rest of the document.
Page 94: Cover Page
Cover Page Print Cover Page Allows you to set cover page before or after document. Cover Page Type Allows you to select cover page type. Billing Info Allows you to set billing information printed on cover page. Specifying Print Settings (Mac OS X 10.5) 1-73...
Page 95: Scheduler
Scheduler The Scheduler section is used to specify the timing and priority for printing jobs. Print Document Now: Select this option to begin printing immediately. Specify the time to begin printing. On Hold: Select this option to hold the print job. Priority Select the priority for printing jobs that are being held.
Page 96: Color Options
Color Options Quick Color Allows you to select a color preset. Color as Grayscale Allows you to set Grayscale color. Economy Print Allows you to set Economy Print mode. Advanced Color Options Click this button to display the Advanced Color Options pane. This button enables when Custom is selected under Quick Color.
Page 97: Advanced Color Options/Image
Advanced Color Options/Image RGB Source Allows you to select RGB color profiles for images. RGB Intent Allows you to select color intent for RGB images. RGB Gray Treatment Allows you to select RGB gray treatment for images. Halftone Allows you to select halftone for images. Hide Advanced Options Click this button to hide the Advanced Color Options pane and display the Color Options pane.
Page 98: Advanced Color Options/Text
Advanced Color Options/Text RGB Source Allows you to select RGB color profiles for text. RGB Intent Allows you to select color intent for RGB text. RGB Gray Treatment Allows you to select RGB gray treatment for text. Halftone Allows you to select halftone for text. Hide Advanced Options Click this button to hide the Advanced Color Options pane and display the Color Options pane.
Page 99: Advanced Color Options/Graphics
Advanced Color Options/Graphics RGB Source Allows you to select RGB color profiles for graphics. RGB Intent Allows you to select color intent for RGB graphics. RGB Gray Treatment Allows you to select RGB gray treatment for graphics. Halftone Allows you to select halftone for graphics. Hide Advanced Options Click this button to hide the Advanced Color Options pane and display the Color Options pane.
Page 100: Advanced Color Options/Simulation
Advanced Color Options/Simulation Simulation Profiles Allows you to select color profiles for simulation. Match Paper Color Allows you to set Match Paper Color. CMYK Gray Treatment Allows you to select Simulation gray treatment. Hide Advanced Options Click this button to hide the Advanced Color Options pane and display the Color Options pane.
Page 101: Printer Features
Printer Features Paper Type Select the desired paper type from the Paper Type pop-up menu. Resolution Select the resolution of the image. Supply Levels The Supply Levels section provides information for checking the amount of service life remaining on each consumable. The Supply Levels section appears when a printer is created on Mac OS X v10.5 with a Bonjour, IPP, LPD, Socket connection.
Page 102: Summary
The Supply Levels section may not appear depending on the applica- tion you use. Summary The Summary is used to check the currently selected print settings. Specifying Print Settings (Mac OS X 10.5) 1-81...
Page 103: Troubleshooting
Troubleshooting Symptom Solution The setting in the saved Depending on the functions selected for the presets are not applied. printer, some preset settings are not saved. Media type error appears. If a media type, such as “Thick paper”, is specified for Tray 1 or Tray 2, a media type error appears and the printer stops.
Page 104 Symptom Solution When printing 2 pages on a Depending on the operating system, the single sheet of paper, the pages are not centered on the paper when pages are not centered on printing two pages on a single sheet of paper the paper.
Page 105 1-84 Troubleshooting...
Page 106: Operation On Linux
Operation on Linux...
Page 107: System Requirements For The Printer Driver
System Requirements for the Printer Driver Before installing the printer driver, make sure that your system meets the fol- lowing system requirements. Operating systems Red Hat Linux 9.0, SuSE Linux 8.2 Connecting the computer USB connection, Network connection and printer (10Base-T/100Base-TX) More than OS recommendation (128 MB or more is recommended)
Page 108: Installing Ppd File From The Command Line
Installing PPD File From the Command Line Before proceeding with the installation, be sure to exit all running applications. Root privileges are required in order to install ppd file. Copy the ppd file from the Printer Driver CD/DVD to the “/usr/share/cups/ model”...
Page 109: Adding The Printer
Adding the Printer After copying the PPD file, be sure to restart CUPS. Start up the Web browser. Enter the URL “http://localhost:631”, and then click Manage Printers. The CUPS Administration Web page appears. Click Add Printer. A pop-up window appears. Enter the user name and password for using root privi- leges, and then click OK.
Page 110 IP or Printer Hostname>[:port] Example: Using Printer IP - socket:/ /192.168.1.2:9100 Using printer Hostname - socket://Hostname:9100 Hostname may be substituted by IP Address, and Port is optional. Click Continue. Select KONICA MINOLTA, and then click Continue. Adding the Printer...
Page 111 Select KONICA MINOLTA mc1650 PPD (en), and then click Continue. The following message appears. Adding the Printer...
Page 112: Specifying Printer Driver Settings
Specifying Printer Driver Settings Displaying the Settings Page Start up the Web browser. Enter the URL “http://local- host:631”, and then click Manage Printers. Printer on localhost.local- domain window appears. Click Configure Printer. The printer driver settings page appears. Specifying Printer Driver Settings...
Page 113: Printer Driver Settings
Printer Driver Settings Basic Parameters Settings Paper Type Specifies the paper type as Printer Default, Plain Paper, Labels, Letterhead, Envelope, Postcard, Thick1 (91 - 163g/m ), Thick2 (164 - 209g/m Resolution Specifies the image resolution as High Qual- ity or Standard. Color Options Parameters Settings...
Page 114: Graphics Options
Graphics Options Parameters Settings Graphics Halftone Specifies the halftone for graphic as Detail or Smooth. The default setting is Detail. Graphics RGB Gray Treat- Specifies the RGB Gray Treatment as Com- ment posite Black, Black and Gray, or Black Only. The default setting is Black and Gray.
Page 115: Options Installed
Options Installed Parameters Settings Optional Duplexer Select Installed if the optional duplex unit for the printer have been installed. The default setting is Not Installed. Optional Input Bin Select Installed if the optional trays for the printer have been installed. The default setting is Not Installed.
Page 116: Banners
Parameters Settings Text RGB Intent Specifies RGB intent for text as Vivid, Pho- tographic, Relative Color, or Absolute Color. The default setting is Vivid. Text RGB Source Specifies RGB source for text as None, sRGB, Adobe RGB (1998), Apple RGB, ColorMatch RGB, or Blue Adjust RGB.
Page 117: Printing A Document
Printing a Document The contents and available options that appear in the print dialog box may vary depending on the application being used. Example Using LPR Command With applications other than OpenOffice, the following print dialog box appears. Click Properties in the Print dialog box.
Page 118: Example Using Openoffice
Example Using OpenOffice The procedure for printing on Red Hat 9 with OpenOffice 1.0.2 is described below. The following procedure or some steps may be dif- ferent depending on the version of the operating system being used. First, use km1650np.ppd to add the printer to the system. For details on adding a printer to the system, refer to “Adding the Printer”...
Page 119 Click Import. Click Browse. In the Path, enter “/usr/ share/cups/model”, and then click Select. In the Selection of drivers list, select KONICA MINOLTA mc1650 OpenOf- fice PPD, and then click OK. 2-14 Printing a Document...
Page 120 In the Please select a suit- able driver list, select KON- ICA MINOLTA mc1650 OpenOffice PPD, and then click Next. Select the command to be displayed in the list, and then click Next. Change the printer name. Click Finish. The Printer Administration dialog box appears again. Click Close.
Page 121 Click Print in the File menu. Select the name of the printer specified in the Ope- nOffice printer settings. Click OK. The printer Print dialog box appears. 2-16 Printing a Document...
Page 122: Checking Print Jobs
Checking Print Jobs You can check the status of print jobs from a Web browser. Start up the Web browser. Enter the URL “http://local- host:631”. The CUPS Administration Web page appears. Click Manage Jobs. A list of the currently active print jobs appear.
Page 123: Troubleshooting
Troubleshooting Symptom Action The printer stops because The job may have been sent with a prohibited of a paper size error or a combination of settings (for example, for the paper type error. paper size and media type). Printing is not possible with postcards or overhead projector transparencies if Plain Paper is selected.
Page 124: Operation On Netware
Operation on NetWare...
Page 125: Printing With Netware
Printing With NetWare The printer controller supports the following environments. Network Printing in a NetWare Environment NetWare Version Protocol Used Emulation Service Mode NetWare 4.x Bindery/NDS Print Server/ Remote Printer NetWare 5.x/6 Print Server TCP/IP NDPS(lpr) For Remote Printer Mode With NetWare 4.x Bindery Emulation Before using bindery emulation, check that bindery emulation is com- patible with the NetWare server.
Page 126 In Administrator mode of PageScope Web Connection, select NetWare from the Network tab, and then specify the following settings. – Enable NetWare: Checked – Ethernet Frame Type: Select Auto. (Select the frame type according to the network envi- ronment.) – Operating Mode: Select Remote Printer.
Page 127: For Print Server Mode With Netware 4.X Bindery Emulation
For Print Server Mode With NetWare 4.x Bindery Emulation Before using bindery emulation, check that bindery emulation is com- patible with the NetWare server. From a client computer, log on with Supervisor permissions to access the NetWare server where the Print server is registered. Start up Pconsole.
Page 128: For Netware 4.X Remote Printer Mode (Nds)
– Ethernet Frame Type: Select Auto. (Select the frame type according to the network envi- ronment.) – Operating Mode: Select Print Server. – Print Server Name: Specify the print server name created in step 4. – Print Server Password: Specify only when setting from the NetWare server. –...
Page 129 In Administrator mode of PageScope Web Connection, select NetWare from the Network tab, and then specify the following settings. – Enable NetWare: Checked – Ethernet Frame Type: Select Auto. (Select the frame type according to the network envi- ronment.) – Operating Mode: Select Remote Printer.
Page 130: For Netware 4.X/5.X/6 Print Server Mode (Nds)
For NetWare 4.x/5.x/6 Print Server Mode (NDS) To use the Print Server mode, the IPX protocol must be loaded on the NetWare server. Log on to NetWare as an administrator from a client computer. Start up NWadmin. Select either the organization or organizational unit container that offers the print service, and then click Print Services Quick Setup (non-NDPS) on the Tools menu.
Page 131: For Netware 5.X/6 Novell Distributed Print Service (Ndps)
– Ethernet Frame Type: Select Auto. (Select the frame type according to the network envi- ronment.) – Operating Mode: Select Print Server. – Print Server Name: Specify the print server name created in step – Print Server Password: Specify only when setting from the Net- Ware server.
Page 132: Setting Up A Client (Windows) Settings When Using The Netware Server
In the Gateway Types, select Novell Printer Gateway, and then register In the Configure Novell PDS for Printer Agent window, select (None) for the printer type and Novell Port Handler for the port handler type, and then register the settings. In Connection type, select Remote (LPR on IP), and then register it.
Page 133 3-10 Printing With NetWare...
Page 134: Printer Management Utilities
Printer Management Utilities...
Page 135: Installing Printer Utilities On Windows
Installing Printer Utilities on Windows You must have administrator privileges in order to install the Printer Management Utilities. If the User Account Control window appears when installing on Win- dows Vista/Server 2008, click the Allow button or the Continue but- ton.
Page 136: Understanding The Ethernet Configuration Menu
Understanding the Ethernet Configuration Menu...
Page 137: Ethernet Menu
Ethernet Menu Location within the Configuration Menu is set MAIN MENU/SYSTEM DEFAULT/SECURITY/CONFIG , the administrator password must be entered to display ENABLE the Ethernet menu. IDLE MAIN MENU PRINT MENU PAPER MENU QUALITY MENU INTERFACE MENU ETHERNET TCP/IP ENABLE IPv4 DHCP/BOOTP IPV4 ADDRESS DEFAULT ROUTER...
Page 138 GLOBAL PREFIX DISABLE IPSEC IPX/SPX FRAME TYPE ETHERNET SPEED DISABLE 802.1X PS PROTOCOL ENABLE JOB TIMEOUT SYSTEM DEFAULT SERVICE MENU LANGUAGE Ethernet Menu...
Page 139: Accessing The Ethernet Menu
Accessing the Ethernet Menu Use the following series of keystrokes at the printer to access the Ethernet menu options on your printer. This menu provides access to all of the config- urable network items. Press key Until Display Reads IDLE MENU MAIN MENU MAIN MENU...
Page 140: Using The Ethernet Menu Options
Using the Ethernet Menu Options If the printer is connected to a network, the following settings should be spec- ified. For details about each setting, contact your network administrator. When manually setting the IP address, Subnet Mask, and Gateway turn off DHCP first. TCP/IP Enable Purpose...
Page 141 IPv4-DEFAULT ROUTER Purpose Specifies the address of the router/gateway if a router/gate- way is used on your network and you allow users outside your network environment to print on your printer. Range 0–255 for each xxx triplet Use the keys to increase or decrease each number;...
Page 142: Ip Services
IPv6-IDENTIFIER Purpose Displays the link-local address of IPv6. IPv6- ENABLE AUTO Purpose Select whether or not to enable Auto Setting. If YES is selected, Auto Setting is enabled. If NO is selected, Auto Setting is disabled. Range Default IPv6-GLOBAL PREFIX Purpose Displays the global address of IPv6.
Page 143: Ipx/Spx
DISABLE IPSEC Purpose Select whether or not to disable IPsec. If YES is selected, IPsec is disabled. Range Default IPX/SPX FRAME TYPE Purpose Set the protocol to use for NetWare IPX/SPX. Range AUTO 802.2 802.3 ETHER II SNAP Default AUTO ETHERNET SPEED Purpose Specifies the transmission speed for the network and the...
Page 144: Disable 802.1X
DISABLE 802.1X Purpose Select whether or not to disable IEEE802.1x. If YES is selected, IEEE802.1x function is disabled. Range Default PS PROTOCOL Purpose Configures the port to process PostScript jobs as binary or quoted (tagged) binary. Range BINARY QUOTED BINARY Default BINARY Ethernet Menu...
Page 145 5-10 Ethernet Menu...
Page 146: Network Printing
Network Printing...
Page 147: Network Connection
Network Connection Theory To connect your printer in a TCP/IP network environment, you must make sure that the internal network addresses in the printer have been set. You may have to enter a subnet mask and/or a gateway (router) address, depending on your net- work configuration requirements.
Page 148: Making The Connection
Making the Connection Ethernet Interface An RJ45 connector can be used as the Ethernet interface for this printer. When connecting your printer to an Ethernet network, the tasks you perform depend on how you plan to set the printer’s IP (Internet Protocol) address. Printers are shipped with the IP address, subnet mask, and gateway set to be automatically acquired (DHCP/BOOTP).
Page 149: Setting The Address Manually
Setting the Address Manually You may also manually change the printer’s IP address, subnet mask, and gateway by using the following instructions. (See chapter 5, “Understanding the Ethernet Configuration Menu” for more information.) When the IP address is changed, add a new port or reinstall the printer driver.
Page 150 Press Key Until Display Reads TCP/IP ENABLE TCP/IP IPV4 IPV4 DHCP/BOOTP IPV4 IPV4 ADDRESS IPV4 ADDRESS 192.168.001.002 Use the key to move to each of the four number triplets. Use the key to incease or decrease each number. xxx.xxx.xxx.xxx IS SELECTED Network Connection...
Page 151 If you don’t want to set the subnet mask or gateway, go to step 5. If you don’t want to set the default router, but you do want to set the sub- net mask, go to step 4. If you want to set the default router, follow these steps. Press Key Until Display Reads IPV4...
Page 152 Press Key Until Display Reads xxx.xxx.xxx.xxx IS SELECTED Save your configuration changes and make the printer ready for printing again. Press Key Until Display Reads Press the key 6 times. REBOOT REBOOTING… After rebooting the printer, print a configuration page to verify that the cor- rect IP address, subnet mask, and gateway have been set.
Page 153 PRINT MENU CONFIGURATION CONFIGURATION When the printer’s message window displays , install the printer IDLE driver and utilities. Network Connection...
Page 154: Network Printing
Network Printing Network printing terms are described below. Bonjour BOOTP Dynamic DNS DHCP HTTP IEEE802.1X IPsec IPv6 IPX/SPX LPD/LPR SMTP SNMP Port9100 WSD print This section contains on the network printing terms and the IPP printing meth- odes. Bonjour Macintosh network technology for automatically detecting devices connected to the network and for specifying settings.
Page 155: Ddns (Dynamic Dns)
DDNS (Dynamic DNS) DDNS (Dynamic Domain Name System) is technology for automatically assigning dynamically assigned IP addresses to fixed domains. The recent availability of always-on Internet connections has resulted in an increased number of users turning their home computers into publicly acces- sible Web servers.
Page 156: Ieee802.1X
IEEE802.1x This protocol for determining the user authentication method within the LAN is compatible with wireless and wired LANs. Using the RADIUS server for user authentication, communication with authenticated users is permitted while all communication from unauthenticated clients is blocked, excluding authentication requests.
Page 157: Slp
Traditionally, in order to locate services on the network, users had to supply the host name or network address of the machine providing the desired ser- vice. This has created many administrative problems. However, SLP (Service Location Protocol) simplifies the discovery and use of network resources such as printers by automating a number of network ser- vices.
Page 158: Port 9100
Port 9100 When printing through a network, TCP/IP port number 9100 can be used to send raw data. WSD print Printing is possible using the WSD (Web Service on Devices) function installed in Windows Vista. A connection supports WSD, detects the printer on the network automatically and connects.
Page 159: Printing Via Ipp (Internet Printing Protocol)
Printing via IPP (Internet Printing Protocol) You must have administrator privileges in order to install the printer driver. If the User Account Control window appears when installing on Win- dows Vista/Server 2008, click the Allow button or the Continue but- ton.
Page 160 The connected printers are detected. Select this printer. [Search Setting]: To search for printers on other networks, click this but- ton. [Update List]: To update the printer information, click this button. Select Internet Printing as the printing method from the pull-down list, and then click Next.
Page 161: Adding An Ipp Port Using Add Printer Wizard - Windows Server 2003/Xp/2000
In the Confirm Installation Settings dialog box, click Install. [Installation Settings]: To change the settings, click this button. Click Finish. This completes the installation of the printer driver. Adding an IPP Port using Add Printer Wizard - Windows Server 2003/XP/2000 For Windows Server 2003/XP: Click Start, select Printers and Faxes, and then click Add a Printer.
Page 162 In the second dialog box, select the Network Printer radio button, and then choose Next. Windows Server 2003/XP Windows 2000 In the URL field in the next dialog box, enter the printer’s network path- name in one of the following formats, and then choose Next: http://ipaddress/ipp http://ipaddress:80/ipp http://ipaddress:631/ipp...
Page 163 Windows Server 2003/XP—Go to step 4. Windows 2000—If you entered a valid path in the previous step, the fol- lowing message displays: “The server on which the KONICA MINOLTA magicolor 1650 printer resides does not have the correct printer driver installed.
Page 164 Click OK. Click OK. Network Printing 6-19...
Page 165 Select whether the printer is to be used as the default printer, and then click Next. Click Finish. 6-20 Network Printing...
Page 166: Adding An Ipp Port Using Add Printer Wizard - Windows Vista/Server 2008
Adding an IPP Port using Add Printer Wizard – Windows Vista/Server 2008 Click Start, click Control Panel, and then click Printers. Click Add a printer. In the dialog box click Add a network, wireless or Bluetooth printer. In the dialog box, click The printer that I want isn’t listed. In the URL field in the next dialog box enter the printer’s network path- name in one of the following formats and then choose Next: http://ipaddress/ipp...
Page 167 http://ipaddress:631/ipp If your system cannot connect to the machine, the following message appears: “Windows cannot connect to the printer. Make sure that you have typed the name correctly, and that the printer is connected to network.” Click Have Disk. 6-22 Network Printing...
Page 168 Click Browse. Locate the directory on the CD/DVD where the printer driver files are located (for example: Drivers\Windows\color\Drivers\Win_x86\PS\ english), and then click Open. Click OK. Click OK. Network Printing 6-23...
Page 169 Click Next. Click Finish. 6-24 Network Printing...
Page 170: Printing Via Web Service Print Function
Printing via Web Service Print Function In Windows Vista/Server 2008, printers on the network that support Web Ser- vice print can be detected and installed. You must have administrator privileges in order to install the printer driver. Before proceeding with the installation, be sure to exit all running applications.
Page 171 Click Start, and then click Network. The Network window appears, showing the computers and devices on the network. Select the device name of this printer, and then click Install on the toolbar. Click Locate and install driver software (recommended). 6-26 Network Printing...
Page 172 If Windows Vista is being used, go to step 8. If Windows Server 2008 is being used, click Don't search online. Click Browse my computer for driver software (advanced). Network Printing 6-27...
Page 173 Click Browse. Locate the directory on the CD/DVD where the printer driver files are located (for example: Drivers\Windows\color\Driv- ers\Win_x86\PS\english), and then click OK. Click Next. Click Close. 6-28 Network Printing...
Page 174: Adding A Printer Using Add Printer Wizard
Adding a printer using Add Printer Wizard To use Web Service print, check that Network discovery is enabled in Network and Sharing Center on the computer. Insert the Printer Driver CD/DVD in the CD-ROM/DVD drive of your com- puter. The installer starts up. Click Run AutoRun.exe in the AutoPlay dialog box that appears when the CD/DVD is inserted.
Page 175 Click Create a new port, and then select Standard TCP/IP port. Click Next. Select Web Services Device and type the IP address for the printer, and then click Next. The Found New Hardware Wizard dialog box appears. 6-30 Network Printing...
Page 176 Click Locate and install driver software (recommended). If Windows Vista is being used, go to step 8. If Windows Server 2008 is being used, click Don't search online. Network Printing 6-31...
Page 177 Click Browse my computer for driver software (advanced). Click Browse. Locate the directory on the CD/DVD where the printer driver files (for example: Drivers\Windows\color\Drivers\Win_x86\PS\english), and then click OK. Click Next. Click Close. 6-32 Network Printing...
Page 178 Click Next. Select whether the printer driver is to be shared, and then click Next. Network Printing 6-33...
Page 179 Click Finish. This completes the installation of the printer driver. 6-34 Network Printing...
Page 180: Installing The Driver When The Operating Systems Of The Server And Client Use A Different Number Of Bits (With Windows Server 2008)
Installing the Driver When the Operating Systems of the Server and Client Use a Different Number of Bits (With Windows Server 2008) When Windows Server 2008 is running on the print server or when the oper- ating systems running on the print server and client computer use a different number of bits, the additional driver may not be installed correctly on the print server.
Page 181 From the print server (32 bits), map the client computer (64 bits) drive (for example, “C”), specified as a shared drive in step 1, as a network drive (for example, “z”). This setting is available for only PS driver. Install on the print server (32 bits) the driver for a 32-bit operating system. 6-36 Network Printing...
Page 182 Right-click the printer that was installed, and then click the appropriate menu command to display printer properties. Select the Sharing tab, and then select the Share this printer check box. Click Additional Drivers. The Additional Drivers dialog box appears. Under Processor, select the x64 check box, and then click OK. Network Printing 6-37...
Page 183 Specify the folder containing the driver for a 64-bit operating system. A dialog box appears, requesting the location of the setup information file. Click Browse, and then select the setup information file (ntprint.inf) on the client computer mapped as a network drive. This setting is available for only PS driver.
Page 184: Troubleshooting
Troubleshooting Symptom Action Some client functions are Install the printer driver directly on the client not available with the Point computer. and Print feature when the server is running Windows Server2008/Vista/XP/ Server 2003/2000 and the client computer is running Windows Server2008/ Vista/XP/Server2003/2000.
Page 185 6-40 Troubleshooting...
Page 186: Using Pagescope Web Connection
Using PageScope Web Connection...
Page 187: About Pagescope Web Connection
About PageScope Web Connection This chapter provides information on PageScope Web Connection, an HTTP (HyperText Transfer Proto- col)-based web page that resides in your printer and that you can access using your Web browser. This page gives you instant access to printer status and the most frequently used printer configuration options.
Page 188: When Connecting With Windows Server 2008
TCP/IP communication software (used by PageScope Web Connection) installed on your PC A network, to which both your PC and the printer are connected You cannot access PageScope Web Connection using a local (USB) connection. When connecting with Windows Server 2008 When PageScope Web Connection is started on a computer running Win- dows Server 2008, only the System tab may appear, and the Job, Print and Network tabs may not.
Page 189: Setting Up The Printer Web Page
Through the assigned name of the printer—This name comes from the IP host table (the filename is hosts) on the computer system and is usually assigned by the system administrator (for example, magicolor 1650EN). It may be more convenient for you to use the printer name than the IP address.
Page 190: Internet Explorer (Version 6.0 For Windows)
Internet Explorer (version 6.0 for Windows) Start Internet Explorer. From the Tools menu choose Internet Options. Select the Connections tab on the dialog box. Choose the LAN Settings button to display the Local Area Network (LAN) Set- tings dialog box. Select Advanced in Proxy server to open the Proxy Set- tings dialog box.
Page 191 Enter the printer name or IP address in the URL Location box to access the printer home page. http://192.168.1.2/ Setting Up the Printer Web Page...
Page 192: Understanding The Pagescope Web Connection Window
The illustration below identifies the navigation and configuration areas of the windows that you see in PageScope Web Connection windows. Links to Current status Links to main Product name KONICA MINOLTA topics web site Version information Logs out from current Mode...
Page 193: Current Status
Current Status The current status of the printer is displayed at the top of all PageScope Web Connection windows.The icon displays the type of status being displayed. The current status is always shown in the language set on the printer’s control panel.
Page 194: Logging On To Pagescope Web Connection
Logging on to PageScope Web Connection Login Page Security can be specified by using PageScope Web Connection. In order to perform security, you must log on in Administrator Mode. Public Mode You automatically enter Public Mode whenever you enter PageScope Web Connection.
Page 195: Administrator Mode
Click the Login button. If you type an incorrect password, the following message displays: “Invalid Password Please check your input and try again!” Retype the password. Administrator Mode In order to change any configuration settings through PageScope Web Con- nection, you must first enter Administrator Mode: Type the password in the Password text box.
Page 196: Configuring The Printer (User Mode)
Configuring the Printer (User Mode) In order to make any configuration changes through PageScope Web Con- nection, you must first enter User Mode. See “User Mode” on page 7-9 for instructions on logging into User Mode. System Page Summary (shown above) The System - Summary window provides the following information: Item Description...
Page 197 Item Description Duplexer Identifies whether the duplex option is “Installed” or “Not Installed.” Real Time Clock Identifies whether the Real Time Clock is “Installed” or “Not Installed.” Tray 2 Identifies whether the optional Tray 2 is “Installed” or “Not Installed.” Print Quality Displays the current Print Quality setting.
Page 198: Operator Control
Operator Control Paper Handling The System - Operator Control - Paper Handling window allows you to view and change the current paper handling option settings. The settings are arranged in 3 columns: Current, Custom, and Factory. Item Description Tray 1 Mode Configures Tray 1 to be defined by the set- tings on the keypad in CASSETTE mode or to be automatically overridden by the driver in...
Page 199 Item Description Tray 1 Media Size Shows the media size currently set in the media tray. Choices: Letter, Legal, Executive, A4, A5, B5, B5 (ISO), G Letter, Statement, Folio, UK Quarto, Foolscap, G Legal, C6, DL, J-Postcard, Kai 16, Kai 32, 16K, SP Folio, Oficio, Custom Default: Letter (U.S.
Page 200 Item Description Duplex Mode Duplex printing allows you to print on both sides of the media. Off: Prints simplex pages. Shortedge: Prints duplex pages so the pages can be bound along the short edge. Longedge: Prints duplex pages so the pages can be bound along the long edge.
Page 201 Item Description Tray Chaining Tray Chaining allows the printer to switch from one paper source to another when the initial paper source is empty. You can turn Tray Chaining on by selecting Yes. Selecting No turns Tray Chaining off. Choices: Yes, No Default: Yes Configuration Menu Equivalent: MAIN MENU - PAPER MENU -...
Page 202 Item Description Height Sets the height measurement for custom paper sizes. Range: With plain paper 7.69 - 14.02" (195 - 356 mm) With thick stock 7.24 - 11.70" (184 - 297 mm) Configuration Menu Equivalent: MAIN MENU - PAPER MENU - INPUT TRAY - CUSTOM SIZE - LENGTH(XX) On the model for North America, the...
Page 203: Tray Mapping
Tray Mapping The System - Operator Control - Tray Mapping window allows you to view and change the current tray mapping options. Tray mapping lets you assign logical mapping numbers to physical media trays. Tray Mapping options are available only if an optional lower feeder unit is installed.
Page 204 Item Description Logical Tray 0 - 9 Indicates the tray that is used for printing when a print job is received from another manufacturer’s printer driver. The default setting for Logical Tray 2 is Physical Tray 2. The default setting for all other trays is Phys- ical Tray1.
Page 205: Color & Quality
Color & Quality The System - Operator Control - Color & Quality window allows you to view and change the current color matching and quality options. The settings are arranged in 3 columns: Current, Custom, Factory. Item Description Print Quality Specifies the printing resolution.
Page 206 Item Description Toner Out Action Determines if the printer continues accepting jobs sent to it when a toner out condition occurs. If "Continue" is selected, printing can continued. However the printing results are not guaranteed. Choices: Stop, Continue Default: Stop Configuration Menu Equivalent: MAIN MENU - QUALITY MENU - TONER OUT ACTION...
Page 207: Print System Pages
Print System Pages The System - Operator Control - Print System Pages window allows you to select and print any of the printer’s built-in system pages. Item Description Print System Pages The system pages available in your printer are dis- played in the list.
Page 208: Supplies Status
Supplies Status The System - Operator Control - Supplies Status window provides the fol- lowing information. Item Description Consumable items Identifies the type of consumable that is being moni- tored. Status bars Graphically represent the remaining life of the identi- fied consumable item.
Page 209: Online Help
Printer Help URL Displays the help web site address for assistance. Range: Up to 127 characters Default: http://printer.konicaminolta.com Corporate URL Displays the KONICA MINOLTA corporate web site address. Range: Up to 127 characters Default: http://printer.konicaminolta.com Supplies and Accesso- Displays the web site address where you can pur- ries chase machine supplies and accessories.
Page 210 Item Description Reset button Resets all configuration settings to previous values. Configuring the Printer (User Mode) 7-25...
Page 211: Configuration Page
Configuration Page The System - Operator Control - Configuration Page window provides the following information. Item Description Printer Information Displays the basic printer properties, as well as page counts to date. Installed Options Displays all printer options and identifies which options are installed in the printer.
Page 212: Statistics Page
Statistics Page The System - Operator Control - Statistics Page window provides the fol- lowing information. Item Description Supplies Status Displays the statistics of consumable items in the printer. Page Information Displays printer statistics grouped by Sheets Printed by Media Size, Sheets Printed by Media Type. Nomalization Displays printer statistics grouped by Total Normal- Information...
Page 213: Job Page
Job Page This window allows you to view the status and history of print jobs, print stored jobs, use direct printing. Job Listing (shown above) The Job - Job Listing window provides the following information about recent print jobs: Item Description Job ID Each job that the printer receives is assigned a...
Page 214: Direct Printing
Direct Printing The Job - Direct Printing page allows you to print a file directly from the printer without starting up the application. The following file formats can be printed using direct printing: PS, PCL, text, TIFF and JPEG. Item Description File Name Contains the name of the file to be printed.
Page 215: Download Manager
Download Manager The Job - Download Manager window will provides the following informa- tion. Item Description Emulation Specifies the emulation to be used for this printer. Range: PostScript, PCL5 Default: PostScript File Type Specifies the function to be downloaded to the printer.
Page 216: Print Page
Print Page The Print page allows more detailed printer settings to be specified. Local Interface USB (shown above) The Print - Local Interface - USB window provides the following parameters for configuration. Item Description Enable USB If not selected, USB port is disabled and any jobs sent to the printer through USB port are not printed.
Page 217 Item Description Submit button Saves and applies any changes made. Reset button Resets all configuration settings to previous values. 7-32 Configuring the Printer (User Mode)
Page 218: Default Setting
Default Setting General The Print - Default Setting - General window provides the following parame- ters for configuration. The settings are arranged in 3 columns: Current, Cus- tom, Factory. Item Description Default Emulation Assigns the selected emulation as the default emu- lation.
Page 219 Item Description Reset button Resets all configuration settings to previous values. Save Custom button Saves the Current values of the parameters as the Custom settings. Using the Restore Custom but- ton, you can change the parameter settings back to the Custom settings after changes are made. Restore Custom button Changes all settings to the Custom values.
Page 220 PostScript The Print - Default Setting - PostScript window provides the following parameters for configuration. The settings are arranged in 3 columns: Cur- rent, Custom, Factory. Item Description PS Error Page Print an error page if the print job cannot be printed or creates an error.
Page 221 Item Description Restore Custom button Changes all settings to the Custom values. Restore Factory button Changes all settings to the Factory values. 7-36 Configuring the Printer (User Mode)
Page 222 The Print - Default Setting - PCL window provides the following parameters for configuration. The settings are arranged in 3 columns: Current, Custom, Factory. Item Description Line Termination Specifies the line termination value. Choices: CR=CR LF=CRLF, CR=CR LF=LF, CR=CRLF LF=LF, CR=CRLF LF=CRLF Default: CR=CR LF=CRLF Configuration Menu Equivalent: MAIN MENU - SYSTEM DEFAULT -...
Page 223 Item Description PCL Fonts Pitch Size Controls the font pitch in characters per inch (cpi). Range: Up to 5 characters (0.44 - 99.99) Default:10.00 Configuration Menu Equivalent: MAIN MENU - SYSTEM DEFAULT - EMULATIONS - PCL - FONT - PITCH SIZE Font Num- Identifies the PCL font number.
Page 224: List Fonts
List Fonts PS Fonts The Print - List Fonts - PS Fonts window displays a list of PostScript fonts installed on the printer. Configuration Menu Equivalent: MAIN MENU - PRINT MENU - FONT LIST - POST- SCRIPT Configuring the Printer (User Mode) 7-39...
Page 225 PCL Fonts The Print - List Fonts - PCL Fonts window displays a list of PCL Fonts installed on the printer and also the Index values of each font. Configuration Menu Equivalent: MAIN MENU - PRINT MENU - FONT LIST - PCL 7-40 Configuring the Printer (User Mode)
Page 226: List Directories
List Directories FLASH Memory The Print - List Directories - FLASH Memory window displays the list of files currently installed in the printer’s flash memory. Configuration Menu Equivalent: MAIN MENU - PRINT MENU - DIRECTORY LIST Configuring the Printer (User Mode) 7-41...
Page 227: Configuring The Printer (Administrator Mode)
Configuring the Printer (Administrator Mode) In order to make any configuration changes through PageScope Web Con- nection, you must first enter Administrator Mode. See “Administrator Mode” on page 7-10 for instructions on logging into Administrator Mode. System Page Summary (shown above) The System - Summary window provides the following information: Item Description...
Page 228 Item Description Duplexer Identifies whether the duplex option is “Installed” or “Not Installed.” Real Time Clock Identifies whether the Real Time Clock is “Installed” or “Not Installed.” Tray 2 Identifies whether the optional Tray 2 is “Installed” or “Not Installed.” Print Quality Displays the current Print Quality setting.
Page 229: Operator Control
Operator Control Paper Handling The System - Operator Control - Paper Handling window allows you to view and change the current paper handling option settings. The settings are arranged in 3 columns: Current, Custom, and Factory. Item Description Tray 1 Mode Configures Tray 1 to be defined by the settings on the keypad in CASSETTE mode or to be automatically overridden by the driver in AUTO...
Page 230 Item Description Tray 1 Media Size Specifies the media size currently set in the media tray. Configuration Menu Equivalent: MAIN MENU - PAPER MENU - INPUT TRAY - TRAY 1 - MEDIA SIZE Media Type Specifies the media type currently set in the media tray.
Page 231 Item Description Page Orientation Specifies the page orientation that the printer should use. Portrait: Vertical orientation (longest side of media vertical) Landscape: Horizontal orientation (longest side of media horizontal) Choices: Portrait, Landscape Default: Portrait Configuration Menu Equivalent: MAIN MENU - PAPER MENU - ORIENTATION Page Recovery When this feature is enabled (On), following the...
Page 232 Item Description Auto Continue Selects whether or not printing continues if the size or type of paper in the selected paper tray is different from the size or type of paper for the print job. Choices: Off, On Default: Off Configuration Menu Equivalent: MAIN MENU - PAPER MENU - INPUT TRAY - AUTO...
Page 233 Item Description Submit button Saves and applies any changes made. Reset button Resets all configuration settings to previous values. Save Custom button Saves the Current values of the parameters as the Custom settings. Using the Restore Cus- tom button, you can change the parameter set- tings back to the Custom settings after changes are made.
Page 234: Tray Mapping
Tray Mapping The System - Operator Control - Tray Mapping window allows you to view and change the current tray mapping options. Tray mapping lets you assign logical mapping numbers to physical media trays. Tray Mapping options are available only if an optional lower feeder unit has been installed.
Page 235 Item Description Logical Tray 0 - 9 Indicates the tray that is used for printing when a print job is received from another manufacturer’s printer driver. The default setting for Logical Tray 2 is Physical Tray 2. The default setting for all other trays is Phys- ical Tray1.
Page 236: Color & Quality
Color & Quality The System - Operator Control - Color & Quality window allows you to view and change the current color matching and quality options. The settings are arranged in 3 columns: Current, Custom, Factory. Item Description Print Quality Specifies the printing resolution.
Page 237 Item Description Toner Out Action Determines if the printer continues accepting jobs sent to it when a toner out condition occurs. If "Continue" is selected, printing can continued. However the printing results are not guaranteed. Choices: Stop, Continue Default: Stop Configuration Menu Equivalent: MAIN MENU - QUALITY MENU - TONER OUT ACTION...
Page 238: Print System Pages
Print System Pages The System - Operator Control - Print System Pages window allows you to select and print any of the printer’s built-in system pages. Item Description Print System Pages The system pages available in your printer are dis- played in the list.
Page 239: Supplies Status
Supplies Status The System - Operator Control - Supplies Status window provides the fol- lowing information. Item Description Consumable items Identifies the type of consumable that is being moni- tored. Status bars Graphically represent the remaining life of the identi- fied consumable item.
Page 240: Online Help
Sets the help web site address for printer assis- tance. Range: Up to 127 characters Default: http://printer.konicaminolta.com Corporate URL Sets the KONICA MINOLTA website address. Range: Up to 127 characters Default: http://printer.konicaminolta.com Supplies and Accesso- Contact information for ordering supplies and acces- ries sories.
Page 241 Item Description Submit button Saves and applies any changes made. Reset button Resets all configuration settings to previous values. 7-56 Configuring the Printer (Administrator Mode)
Page 242: Configuration Page
Configuration Page The System - Operator Control - Configuration Page window provides the following information. Item Description Printer Information Displays the basic printer properties, as well as page counts to date. Installed Options Displays all printer options and identifies which options are installed in the printer.
Page 243: Statistics Page
Statistics Page The System - Operator Control - Statistics Page window provides the fol- lowing information. Item Description Supplies Status Displays the statistics of consumable items in the printer. Page Information Displays printer statistics grouped by Sheets Printed by Media Size, Sheets Printed by Media Type. Nomalization Displays printer statistics grouped by Total Normal- Information...
Page 244: Administration
Administration Startup Options & Resets Configuring the Printer (Administrator Mode) 7-59...
Page 245 The System - Administration - Startup Options & Resets window provides the following parameters for configuration. Item Description Energy Saver If no print jobs are sent to the printer for the time specified by this parameter, the printer’s Energy Saver feature is activated. Choices: 15 Minutes, 30 Minutes, 1 Hour, 2 Hours Default: 30 Minutes Configuration Menu Equivalent:...
Page 246 Item Description Resets If None is selected, no action is performed. If Restore Factory is selected, restores the factory default settings of the printer. If Save Custom is selected, saves any changes to the printer parameters as the Custom settings. If Restore Custom is selected, restores the Custom settings of the printer.
Page 247: Localization Languages
Localization Languages The System - Administration - Localization Languages window provides the following parameters for configuration. Item Description Keypad Language Specifies the language of the keypad located on the printer. The language selections appear in the message window in the corresponding language, for example, German appears as Deutsch.
Page 248 Item Description PSWC Language Specifies the language displayed in the PageScope Web Connection windows. The language selections appear in the message window in the corresponding language, for example, German appears as Deutsch. Choices: English, Czech, French, German, Italian, Portuguese, Spanish, Traditional Chinese, Simplified Chinese, Russian, Dutch, Japanese, Polish Default: English...
Page 249: Security
Security The System - Administration - Security window provides the following parameters for configuration. Item Description Enable Security When selected, enables the printer’s security fea- ture, which requires users to enter the password to access or change printer information and configura- tion.
Page 250 Item Description User Verify Verifies the user password entered in the Set Pass- Password Password word field. If the user password entered in this field does not match, the password is not set when the Submit button is selected. Range: Up to 16 characters Default: [Blank] Admin Specifies the administrator password.
Page 251: Flash Operations
Flash Operations The System - Administration - Flash Operations window provides the fol- lowing parameters for configuration of printer’s with a flash memory. Item Description None No flash operation is performed. Erase Flash Clears the Flash memory of the printer. Configuration Menu Equivalent: MAIN MENU - SYSTEM DEFAULT - FORMAT - ERASE FLASH...
Page 252: Job Page
Job Page This window allows you to view the status and history of print jobs, use direct printing and retrieve captured jobs from the hard disk. Job Listing (shown above) The Job - Job Listing window provides the following information about recent print jobs.
Page 253: Direct Printing
Direct Printing The Job - Direct Printing page allows you to print a file directly from the printer without starting up the application. The following file formats can be printed using direct printing: PS, PCL, text, TIFF and JPEG. Item Description File Name Contains the name of the file to be printed.
Page 254: Download Manager
Download Manager The Job - Download Manager window will provides the following informa- tion. Item Description Emulation Specifies the emulation to be used for this printer. Range: PostScript, PCL5 Default: PostScript File Type Specifies the function to be downloaded to the printer.
Page 255: Print Page
Print Page The Print page allows more detailed printer settings to be specified. Local Interface USB (shown above) The Print - Local Interface - USB window provides the following parameters for configuration. Item Description Enable USB If not selected, USB port is disabled and any jobs sent to the printer through USB port are not printed.
Page 256: Default Setting
Default Setting General The Print - Default Setting - General window provides the following parame- ters for configuration. The settings are arranged in 3 columns: Current, Cus- tom, Factory. Item Description Default Emulation Assigns the selected emulation as the default emu- lation.
Page 257 Item Description Reset button If you made changes to any of the parameter set- tings but don’t wish to apply the changes, selecting this button restores the last submitted parameter settings. Save Custom button Saves the Current values of the parameters as the Custom settings.
Page 258 PostScript The Print - Default Setting - PostScript window provides the following parameters for configuration. The settings are arranged in 3 columns: Cur- rent, Custom, Factory. Item Description PS Error Page Print an error page if the print job cannot be printed or creates an error.
Page 259 Item Description Save Custom button Saves the Current values of the parameters as the Custom settings. Using the Restore Custom but- ton, you can change the parameter settings back to the Custom settings after changes are made. Restore Custom button Changes all settings to the Custom values. Restore Factory button Changes all settings to the Factory values.
Page 260 The Print - Default Setting - PCL window provides the following parameters for configuration. The settings are arranged in 3 columns: Current, Custom, Factory. Item Description Line Termination Sets the line termination value. Choices: CR=CR LF=CRLF, CR=CR LF=LF, CR=CRLF LF=LF, CR=CRLF LF=CRLF Default: CR=CR LF=CRLF Configuration Menu Equivalent: MAIN MENU - SYSTEM DEFAULT -...
Page 261 Item Description PCL Fonts Pitch Size Controls the font pitch in characters per inch (cpi). Range: Up to 4 characters (0.44 - 99.99) Default:10.00 Configuration Menu Equivalent: MAIN MENU - SYSTEM DEFAULT - EMULATIONS - PCL - FONT - PITCH SIZE Font Num- Identifies the PCL font number.
Page 262: List Fonts
List Fonts PS Fonts The Print - List Fonts - PS Fonts window displays a list of PostScript fonts installed on the printer. Configuration Menu Equivalent: MAIN MENU - PRINT MENU - FONT LIST - POST- SCRIPT Configuring the Printer (Administrator Mode) 7-77...
Page 263 PCL Fonts The Print - List Fonts - PCL Fonts window displays a list of PCL Fonts installed on the printer and also the Index values of each font. Configuration Menu Equivalent: MAIN MENU - PRINT MENU - FONT LIST - PCL 7-78 Configuring the Printer (Administrator Mode)
Page 264: List Directories
List Directories FLASH Memory The Print - List Directories - FLASH Memory window displays the list of files currently installed in the printer’s flash memory. Configuration Menu Equivalent: MAIN MENU - PRINT MENU - DIRECTORY LIST Configuring the Printer (Administrator Mode) 7-79...
Page 265: Network Page
Network Page The Network page allows you to configure network settings. For more infor- mation on these protocols, see chapter 6, “Network Printing”. 7-80 Configuring the Printer (Administrator Mode)
Page 266: Tcp/Ip (Shown Previous Page)
TCP/IP (shown previous page) The Network - TCP/IP window provides the following parameters for configu- ration: Item Description Ethernet Ethernet Specifies the operating mode and speed for Speed Ethernet. Choices: Auto, 10 FULL DUPLEX, 10 HALF DUPLEX, 100 FULL DUPLEX, 100 HALF DUPLEX Default: Auto Configuration Menu Equivalent:...
Page 267 Item Description IPv4 IPv4 Sets the IPv4 address. Settings Address Default: 192.168.1.2 Configuration Menu Equivalent: MENU INTERFACE MENU - MAIN MENU - INTERFACE MENU - ETHERNET - TCP/IP - IPV4 - IPV4 ADDRESS Subnet Sets the subnet mask address. Mask Default: 0.0.0.0 Configuration Menu Equivalent: MAIN MENU - INTERFACE MENU...
Page 268 Item Description Host Name Specifies the host name. Settings Range: Up to 63 characters Default: KMBTxxxxxx xxxxxx refers to last six digits of the MAC address in hexadecimals. Domain Selecting this check box enables Domain Name Name Automatic Acquisition. Automatic Default: [Checked] Acquisition Domain...
Page 269 Item Description IPv6 IPv6 Link Displays IPv6 Link Local Address. Settings Local Configuration Menu Equivalent: Address MAIN MENU - INTERFACE MENU - ETHERNET - TCP/IP - IPV6 - IDENTIFIER Enable Selecting this check box enables IPv6 auto set- Automatic ting. Global Default: [Checked] Address...
Page 270 Item Description Printing FTP Port Identifies the number of the FTP port. Protocols Number Choices: 1 - 65535 Default: 21 Enable Selecting this check box enables Port 9100. RAW Port Default: [Checked] RAW Port Identifies the number of the printer’s RAW port. Number Choices: 1 - 65535 Default: 9100...
Page 271: Ip Address Filtering
IP Address Filtering The Network - IP Address Filtering page allows you to specify the IP address and limitations for accessing the printer. The settings described below are not applied to the DNS server and DHCP server. 7-86 Configuring the Printer (Administrator Mode)
Page 272 If the range of permitted IP addresses in Access Permission Address overlaps the range of refused IP address in Access Refuse Address, the refuse setting of Access Refuse Address is given priority. Accept Filter Enable If Enable is selected, the enable accept filter to Accept the printer can be specified.
Page 273 Reject Filter Range Specify the range of IP addresses permitted 1 to 5 access to the printer. Type the IP address at the beginning of the range into the box on the left, and the IP address at the end of the range into the box on the right.
Page 274: Ipsec
IPsec The Network - IPsec window provides the following parameters for configu- ration: Item Description Enable IPsec Selecting this check box enables IPsec function. Default: [Not checked] Configuration Menu Equivalent: MAIN MENU - INTERFACE MENU - ETHERNET - IP SERVICES - DISABLE IPSEC Configuring the Printer (Administrator Mode) 7-89...
Page 275 Item Description Specifies the IKE Lifetime (in seconds). Lifetime Range: 80-604800 Default: 28800 Selects IKE Diffie-Hellman Group. Diffie-Hell- Choices: Group1, Group2 man Group Default: Group1 Displays the registered settings. Settings Security Specifies the IPsec SA Lifetime (in seconds). Association Lifetime Range: 120-604800 Default: 3600 Security...
Page 276: Ipsec (Ike Edit)
IPsec (IKE Edit) The Network - IPsec - IKE Edit window provides the following parameters for configuration: Item Description IKE Option Displays the number to be registered. Encryption Algorithm Select the encryption algorithm to be used when creating a control tunnel. Choices: DES-CBC, 3DES-CBC Default: DES-CBC Hash Algorithm...
Page 277: Ipsec (Security Association Edit)
IPsec (Security Association Edit) The Network - IPsec - Security Association Edit window provides the fol- lowing parameters for configuration: Item Description SA Option Displays the number to be registered. Security Protocol Select the security protocol. Choices: AH, ESP, ESP & AH Default: AH Encryption Algorithm for When ESP or ESP &...
Page 278 Item Description Submit button Saves and applies any changes made. Cancel button Click to cancel the entered data and return to the Network - IPsec page. Configuring the Printer (Administrator Mode) 7-93...
Page 279: Ipsec (Ip Address Edit)
IPsec (IP Address Edit) The Network - IPsec - IP Address Edit window provides the following parameters for configuration: Item Description Address Number Displays the number to be registered. IP Address Specify the IP address of the peer. Range: Up to 45 characters Default: [Blank] An IPv4 or IPv6 address can be specified.
Page 280: Wsd Print
Item Description Cancel button Click to cancel the entered data and return to the Network - IPsec page. WSD Print The Network - WSD Print window provides the following parameters for con- figuration: Item Description WSD Print Mode Specifies whether to enable or disable the WSD print function.
Page 281 Item Description Printer Name Displays the printer name. Range: Up to 127 characters Default: magicolor 1650 xxxxxx “xxxxxx” refers to the last six digits of the MAC address (in hexadecimal). Printer Location Displays the printer location. Range: Up to 127 characters Default: [Blank] Printer Information Displays the printer information.
Page 282: Netware
NetWare The Network - NetWare window provides the following parameters for con- figuration: Item Description Enable NetWare If not selected, NetWare will be disabled on the printer and all options on the web page will also be disabled. Default: [Checked] Configuring the Printer (Administrator Mode) 7-97...
Page 283 Item Description General Ethernet Sets the Ethernet Frame Type. Parame- Frame Choices: Auto, Ethernet 802.2, Ethernet 802.3, ters Type Ethernet II, Ethernet SNAP Default: Auto Configuration Menu Equivalent: MAIN MENU - INTERFACE MENU - ETHERNET - IPX/SPX - FRAME TYPE Operating Sets the operating mode.
Page 284 Item Description Print Printer Allows you to assign a printer number for identifica- Server Number tion purposes. Parame- Range: 0 - 255 ters Default: 255 Submit button Saves and applies any changes made. Reset button If you made changes to any of the parameter set- tings but don’t wish to apply the changes, selecting this button restores the last submitted parameter settings.
Page 285: Ipp
The Network - IPP window provides the following parameters for configura- tion: Item Description Enable IPP If not selected, IPP port will be disabled on the printer and all options on this web page will also be disabled. Default: [Checked] Printer Name Identifies the printer name.
Page 286 Item Description Printer Location Identifies the location of the printer. Range: Up to 127 characters Default: [Blank] Accept IPP Jobs When Enable is selected, allows the printer to pro- cess incoming IPP jobs. Default: [Checked] Printer Make & Model Identifies the printer manufacturer and printer model.
Page 287 Item Description Operations Authentica- Specifies the authentication method for IPP con- Supported tion nections. Scheme Choices: None, Requesting User Name, basic, digest Default: Requesting User Name User Name Specify the user name used with Basic or Digest authentication. Range: Up to 20 characters Default: user Password Specify the password used with Basic or Digest...
Page 288: Snmp
SNMP The Network - SNMP window provides the following parameters for configu- ration: Item Description Enable SNMPv1/v2C If Enable is selected, SNMP v1/v2c is enabled. Choices: Enable, Disable Default: Enable Enable SNMPv3 If Enable is selected, SNMP v3 is enabled. Choices: Enable, Disable Default: Enable Enable IPX SNMPv1...
Page 289 Item Description SNMPv1/ Specifies the community name to be used for read- Commu- ing. nity Name Range: Up to 15 characters Default: public GET & Specifies the community name to be used for read- SET Com- ing and writing. munity Range: Up to 15 characters Name Default: private...
Page 290 Item Description Read/ User Name Specifies the reading/writing user name. Write Range: Up to 32 characters Account Default: restrict The same name specified as the Discovery user name cannot be used. Authentica- Specifies the reading/writing user authentication tion password to be used for authentication. Password Range: 8 to 32 characters Default: <Mac address>(excluding colons)
Page 291 Item Description SNMP Trap IP Specify the IP address of the SNMP trap receiver. TRAPS Address 2 An IPv4 or IPv6 address or a FQDN can be speci- fied. Range: Up to 255 characters Default: 0.0.0.0 Trap UDP Specify the port number of the SNMP trap. Port Range: 1 - 65535 Number 2...
Page 292: Email
Email The Network - Email window provides the following parameters for configu- ration: To display the correct time in the time field for e-mail received by the computer, the optional hard disk kit must be installed and the time must be set on the machine. Item Description From Address...
Page 293 Item Description Identifies the destination address of email gener- ated by the printer. Range: Up to 128 characters Default: [Blank] Subject Identifies the subject text that appears on email generated by the printer. Range: Up to 128 characters Default: [Blank] When to send Email Identifies how long the printer waits after an error Notification on Error...
Page 294 Item Description Reset button If you made changes to any of the parameter set- tings but don’t wish to apply the changes, selecting this button restores the last submitted parameter settings. Configuring the Printer (Administrator Mode) 7-109...
Page 295: Time Synchronize
Time Synchronize The Network - Time Synchronize window provides the following parameters for configuration: Item Description Set Date & Day, Sets the current day, month, and year. Time Month, Configuration Menu Equivalent: Year MAIN MENU - SYSTEM DEFAULT - DATE & TIME Hour, Min, Sets the current hour, minute, and second.
Page 296 Item Description SNTP Server Address Specifies the SNTP server address. IPv4 address, IPv6 address or FQDN (Fully Quali- fied Domain Name) can be specified. Range: Up to 255 characters Default: 0.0.0.0 SNTP Port Specifies the SNTP server port number. Range: 1 - 65535 Default: 123 Synchronize Specifies the access frequency for the SNTP server.
Page 297 SSL/TLS Setting The Network - SSL/TLS - SSL/TLS Setting page allows you to select the fol- lowing SSL/ TLS settings that appear. 7-112 Configuring the Printer (Administrator Mode)
Page 298 As a default, SSL/TLS is not installed. Select Create a self-signed Certificate and click Submit to create a certificate and specify the SSL settings. Item Description SSL/TLS Create a Displays the Self-signed Certificate Setting page. Setting self-signed Certificate Request a Displays the Request Certificate Setting Page.
Page 299 Self-Signed Certificate Setting The Network - SSL/TLS - Self-Signed Certificate Setting page allows you to create a certificate and specify SSL settings. Item Description Common Name Identifies the Common Name for the printer, to be used in creation of an SSL Certificate. It is com- prised of “Printer Host Name.DNS Server”.
Page 300 Item Description Locality Specify the name of the municipality. Range: Up to 127 characters Default: [Blank] State/Province Specify the name of the state or province. Range: Up to 127 characters Default: [Blank] Country Code Specify the name of the country as a country code regulated by ISO03166.
Page 301: Request A Certificate
Request a Certificate The Network - SSL/TLS - Request a Certificate page provides the following parameters for configuration: Item Description Common Name Identifies the Common Name for the printer, to be used in creation of an SSL Certificate. It is com- prised of “Printer Host Name.DNS Server”.
Page 302 Item Description Country Code Specify the name of the country as a country code regulated by ISO03166. Range: Up to 2 characters Default: [Blank] Email Specify the e-mail address. Range: Up to 127 characters Default: [Blank] Back button Click to return to the Network - SSL/TLS - SSL/ TLS Setting page.
Page 303: Certificate Signing Request Data
Certificate Signing Request Data The Network - SSL/TLS - Certificate Signing Request Data page displays the data that will be submitted to the certificate authority to request that a cer- tificate be issued. Item Description Certificate Request Displays the data that should be submitted to the certificate signing authority.
Page 304: Install A Certificate
Install a Certificate The Network - SSL/TLS - Install a Certificate page allows you to install the certificate issued by the certificate authority. Item Description Install a Certifi- Signed CSR (Certificate Signing Request) should be cate pasted to this text area. Encryption Specifies the encryption level.
Page 305: Encryption Strength
Encryption Strength The Network - SSL/TLS - Encryption Strength page allows you to specify the encryption level. Item Description Encryption Strength Specifies the encryption level. Choices: AES_256bits, 3DES_168bits, RC4_128bits, DES_56bits or RC4_40bits 3DES_168bits, RC4_128bits, DES_56bits or RC4_40bits RC4_128bits, DES_56bits or RC4_40bits Default: AES_256bits, 3DES_168bits Submit button Click to specify the encryption level.
Page 306: Remove Certificate
Remove Certificate The Network - SSL/TLS - Remove Certificate page allows you to delete the installed certificate. Item Description Submit button Click to display a confirmation message. Click Sub- mit in the confirmation message to delete the certif- icate. Reset button Click to return to the Network - SSL/TLS - SSL/ TLS Setting page.
Page 307: Ssl/Tls Mode
SSL/TLS Mode The Network - SSL/TLS - SSL/TLS Mode page allows SSL to be enabled or disabled. Item Description SSL/TLS Mode If Enable is displayed, SSL is enabled. If Disable is selected, SSL is disabled. Choice: Enable, Disable Submit button Saves and applies any changes mode.
Page 308: Ieee 802.1X Port Authentication
IEEE 802.1X Port Authentication The Network - IEEE802.1X window allows you to configure the following items: Item Description IEEE 802.1X Select whether to enable or disable the IEEE802.1x function. Default: [Not checked] Configuration Menu Equivalent: INTERFACE MENU - ETHERNET - DISABLE 802.1X EAP Method Select the type of authentication used with...
Page 309 Item Description User ID Specifies the account name, when EAP Method is set to EAP-MD5, EAP-TTLS, PEAP or Server Specified. Range: Up to 128 characters Default: [Blank] Password The password must be specified when EAP Method is set to any setting other than EAP-TTLS. Range: Up to 128 characters Default: [Blank] TTLS Anonymous...
Page 310 Item Description Server Certificate Specify the items where the server certificate is ver- Check ified. Specifies the server certificate check, when EAP Method is set to EAP-TLS, EAP-TTLS or PEAP. Choices: Validity, CA Confidence, ServerID Default: [None] Client Certificate Shows whether or not a client certificate has been specified.
Page 311 CA Certificate Install a Certificate The Network - IEEE 802.1X - Install a Certificate page allows you to install the certificate issued by the certificate authority. Item Description CA Certificate Signed CSR (Certificate Signing Request) should be pasted to this text area. Back button Click to return to the Network - IEEE 802.1X page.
Page 312 Remove a Certificate The Network - IEEE 802.1X - Remove a Certificate page allows you to delete the installed certificate. Item Description Submit button Click to delete the certificate. Cancel button Click to return to the Network - IEEE 802.1X page. Configuring the Printer (Administrator Mode) 7-127...
Page 313 Index Auto IP ...........5-6 DDNS ........... 6-10 Default Router ......5-6 DHCP ......5-5, 6-3, 6-10 Direct Printing, PageScope Bonjour .........1-26, 6-9 Web Connection ..7-29, 7-68 BOOTP ........5-5, 6-9 DNS ..........6-10 Download Manager Utility ... 4-2 Download Manager, PageScope Web Connection ..
Page 314 DHCP/BOOTP ......5-5 Ethernet Speed ......5-8 Job Listing, PageScope Web Gateway ........5-6 Connection ....7-28, 7-67 IP address ........5-5 Job, PageScope Web IPX/SPX ........5-8 Connection ....7-28, 7-67 PS Protocol .........5-9 Direct Printing ....7-29, 7-68 Subnet mask .......5-6 Job Listing ....... 7-28, 7-67 Using options ......5-5 Linux Flash Operations, PageScope...
Page 315 Certificate Signing Request Data ........7-118 NetWare ........5-8, 7-97 Color Matching & NetWare (IPX/SPX), PageScope Quality ......7-20, 7-51 Web Connection ....7-97 Configuration Page ..7-26, 7-57 Network connection .....6-2 Current status ......7-8 Address setting ......6-4 Direct Printing ....7-29, 7-68 Ethernet interface .......6-3 Display language ......
Page 316 Paper Handling, PageScope Web Request a certificate, PageScope Connection ....7-13, 7-44 Web Connection ....7-116 Password, PageScope Web Connection ......7-64 PCL, PageScope Web Security, PageScope Web Connection ....7-37, 7-75 Connection ......7-64 Port 9100 ........6-13 Self-Signed Certificate Setting, PostScript, PageScope Web PageScope Web Connection ....7-35, 7-73 Connection ......
Page 317 Statistics Page ....7-27, 7-58 Summary ......7-11, 7-42 Supplies Status ....7-23, 7-54 Tray Mapping ....7-18, 7-49 TCP/IP, PageScope Web Connection ......7-81 Tray Mapping, PageScope Web Connection ....7-18, 7-49 Troubleshooting Linux .........2-18 Mac OS X .........1-82 USB, PageScope Web Connection ....7-31, 7-70 Web page, printer ......7-4 Browser ........7-4 Printer name .......7-4...

Konica Minolta Magicolor 1650EN Reference Manual
