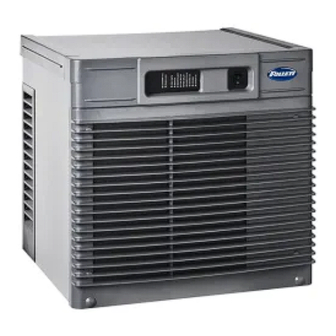

MCD425ABT/WBT, MFD425ABT/WBT, MCE425A/W BT, MFE425A/W BT,
MME425A/WBT, MCC425A/WBT, MFC425A/WBT, MMC425A/WBT
(See model number configurator on page 2 for details.)
Order parts online
www.follettice.com
Maestro Plus
™
for Ice Storage Bin Top-mount Applications
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Ice Machine Installation Instructions
self-contained
01062595R02
Advertisement
Table of Contents
Related Manuals for Follett MCD425ABT/WBT
Summary of Contents for Follett MCD425ABT/WBT
- Page 1 Maestro Plus Ice Machine Installation Instructions ™ for Ice Storage Bin Top-mount Applications MCD425ABT/WBT, MFD425ABT/WBT, MCE425A/W BT, MFE425A/W BT, MME425A/WBT, MCC425A/WBT, MFC425A/WBT, MMC425A/WBT (See model number configurator on page 2 for details.) Order parts online www.follettice.com self-contained 801 Church Lane • Easton, PA 18040, USA Toll free (877) 612-5086 •...
- Page 2 Chewblet Ice Machine Model Number Configurations ® Machine Voltage Series Condenser Application Configuration MC Maestro Plus C 208-230/60/1 425 up to Air-cooled, self-contained V Vision™ S RIDE ® Self-contained 454 lbs Chewblet (RIDE remote ice W Water-cooled, H Harmony™ D 115/60/1 Self-contained (206kg) (425 Series)
-
Page 3: Table Of Contents
Contents Unpack ....................................4 Unpack Ice Machine ..............................4 Site Preparation ................................5 Installation site requirements .............................5 Louvered Docking Assembly Installation ........................6 External Connections ..............................7 Air-cooled ice machines only .............................7 Water-cooled ice machines only ..........................7 Icemaker Installation ..............................8 Slide in icemaker ...............................8 Route transport tube and thermostat ........................8 Internal Connections ..............................8 Front Cover ................................... 10 Install cover ................................10 Start Up ................................... 10 BIN ... -
Page 4: Unpack
Unpack Carefully unpack and inspect the contents of your Follett ice machine. Unpack Ice Machine ➊ ➋ ➌ ➍ 7/16" 7/16" ➎ ➏ BIN • TOP-MOUNT Maestro Plus... -
Page 5: Site Preparation
Site Preparation Provide drainage, potable water supply and electrical power to within 6 feet (2m) of ice machine in accordance with local and national codes. Outdoor installation is not recommended and will void warranty. Installation site requirements 115 V NEMA 5-15 ➊... -
Page 6: Louvered Docking Assembly Installation
Louvered Docking Assembly Installation WARNING! § Docking station must be secured in accordance with these instructions to ensure ice machine stability. § Ventilation openings in the louvered docking station should be clear of obstruction. Failure to do so could result in damage to equipment. § Plug must be accessible after final installation. § Insert grommet into bin top. § Mount louvered docking assembly using four screws provided. sealant § Seal perimeter of docking station to mounting surface. BIN • TOP-MOUNT Maestro Plus... -
Page 7: External Connections
§ Remove access panel if necessary ➊ § Install drain line (3/4" MPT). ➊. § Install drain line The rigid drain line from the ice machine must have The rigid drain line from the ice machine must at least 1/4" per foot (6,4 mm/0,3 m) pitch. have at least 1/4" per foot (6,4 mm/0,3 m) pitch. ➋ § Install ice machine potable water supply ➋ § Install ice machine potable water supply (3/8" FPT) . 3/8" FPT) Note: Follett recommends a Follett water filter Note: Follett recommends a Follett water filter system be installed in the ice machine inlet system be installed in the ice machine inlet water line (standard capacity #00130299, high water line (standard capacity #00130299, capacity #00978957, carbonless high capacity high capacity #00978957, carbonless high #01050442). ➊ capacity #01050442). ➌ ➍ § Connect cooling water supply and return 01034560 MCD425AxT ➊... -
Page 8: Icemaker Installation
Icemaker Installation Slide in icemaker Route transport tube and thermostat ice transport tube 1/2" bin thermostat 2" § Slide ice machine into louvered docking assembly § Lubricate transport tube with water then route ➊ transport tube and thermostat through grommet Louvered docking assembly (4.1) MCD425AxT 01034560 ➊ and into bin Note: Lubricating transport tube will allow entry into the grommet without the grommet being forced out of the hole/into bin. ➋ § Tighten clamp to secure transport tube ➌ § Route thermostat and secure in bracket Internal Connections Air-cooled ice machines –... - Page 9 Water-cooled ice machines – follow steps 5.3.3 through 5.3.5. 5.3.3 5.3.4 Cooling Lines Potable Water and Drain Line ➊ ➋ ➊ § Connect cooling water supply and return § Insert potable water line into valve lines (supplied and connected to inside of docking § Connect drain line to barbed fitting on docking station) to ice machine (3/8" FPT). ➋ station 5.3.5 Power Cable Water Cooled Ice Tranport Tube (7.6) 01034560 MCD425AxT ➊...
-
Page 10: Front Cover
Front Cover Install front cover to ice machine. Install cover Start Up Before turning on power 1. Turn on water to ice machine. 2. Check that hose clamp securely holds ice transport tube on nozzle. After turning on power 1. Turn on power to ice machine and confirm that gearmotor, fan motor and compressor start immediately. 2. Check that ice begins to enter bin area ➊ within approximately 10 minutes. 3. Put ice against bin level thermostat in bin and check that compressor and gear motor shut down after thermostat opens. Fan motor should run for an additional 10 minutes. 4. Check that ice machine comes back on in ➋... - Page 11 BIN • TOP-MOUNT Maestro Plus...
- Page 12 Maestro Plus and Harmony are trademarks of Follett LLC. Follett, Chewblet and RIDE are registered trademarks of Follett LLC, registered in the US. 801 Church Lane • Easton, PA 18040, USA Toll free (877) 612-5086 • +1 (610) 252-7301 01062595R02 www.follettice.com...
