Welcome to Follett
Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and outstanding
after-the-sale support. To ensure that this equipment delivers that same degree of service, review this guide carefully
before you begin your installation.
Should you have need technical help, please call our Technical Service group at (877) 612-5086 or (610) 252-7301.
Please have your model number, serial number and complete and detailed explanation of the problem when
contacting Technical Service.
Getting Started
After uncrating and removing all packing material. Inspect the equipment for concealed shipping damage. All freight
is to be inspected upon delivery. If visible signs of damage exist, please refuse delivery or sign your delivery receipt
"damaged." Follett Customer Service must be notified within 48 hours. Wherever possible, please include detailed
photos of the damage with the original packaging so that we may start the freight claim process.
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com

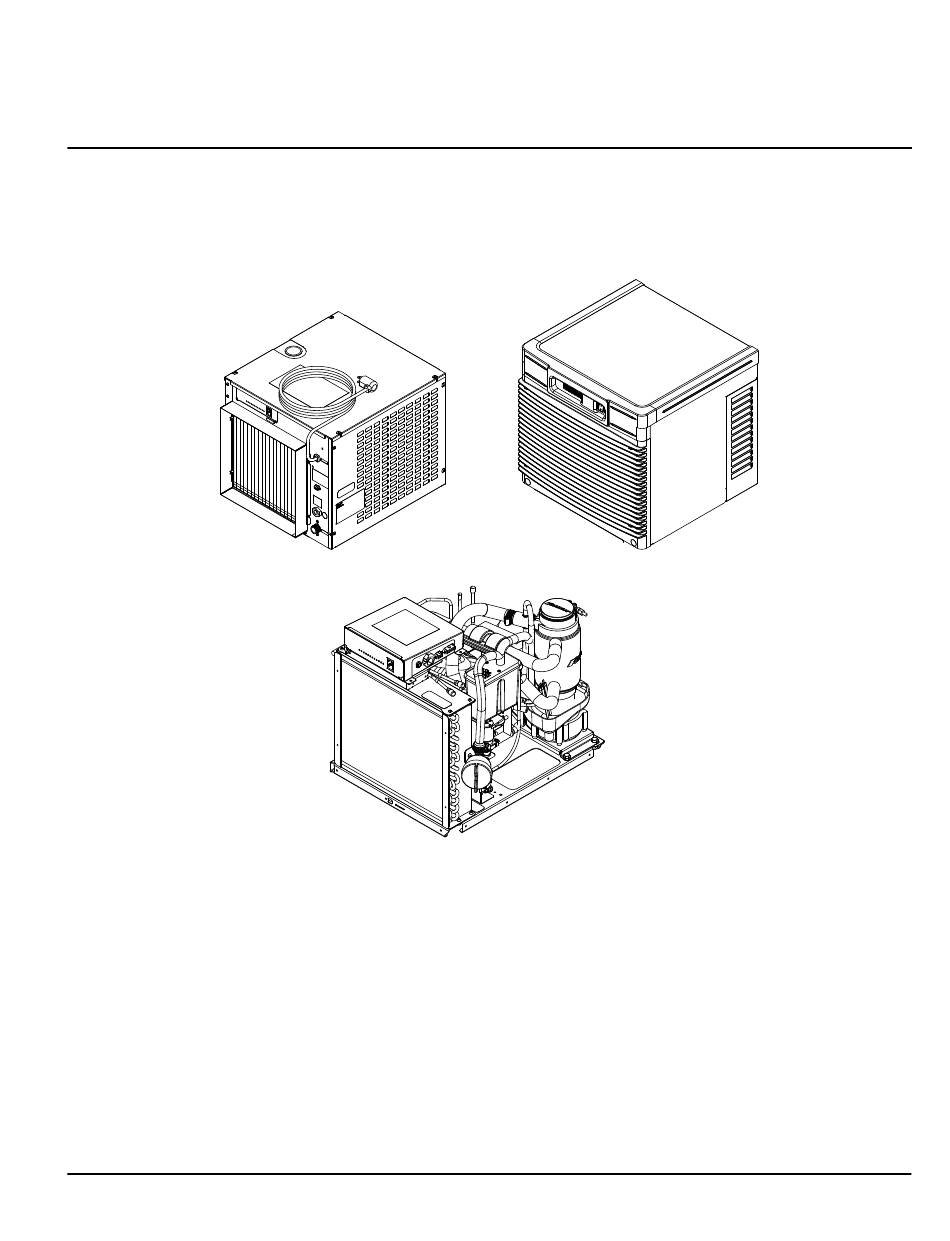

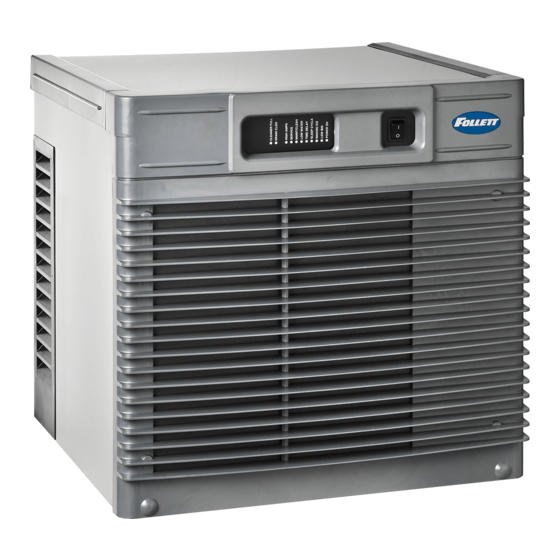

MCD425A/W, R425A/W, MFD425A/W, P425A/W
Installation, Operation and Service Manual
Please visit https://www.follettice.com/technicaldocuments
MCD425A/W_S
R425A/W
After serial number L77091
for the Operation and Service manual for your unit.
MCD425A/W_T
MFD425A/W_T
P425A/W
www.follettice.com/servicevideolibrary
Ice Machines
Installation and Service Videos:
01234590R05
