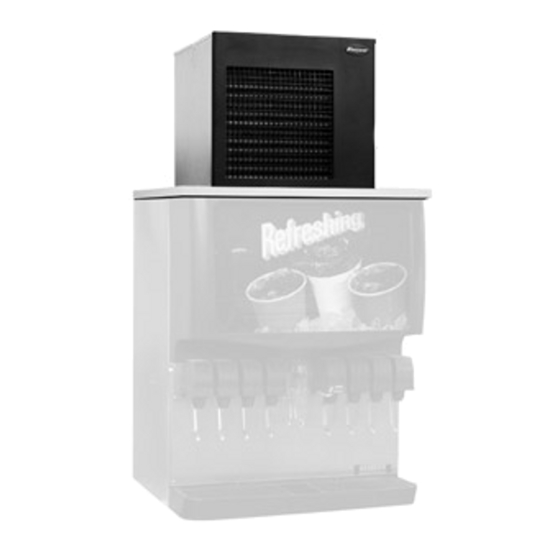

Follett Maestro Chewblet 400 Series Installation, Operation And Service Manual
Ice machine and top kit
Hide thumbs
Also See for Maestro Chewblet 400 Series:
- Installation & service manual (20 pages) ,
- Installation & service manual (20 pages) ,
- Installation, operation and service manual (20 pages)
Advertisement
Quick Links
Follett
for Lancer countertop ice and beverage dispensers
Order parts online
www.follettice.com
®

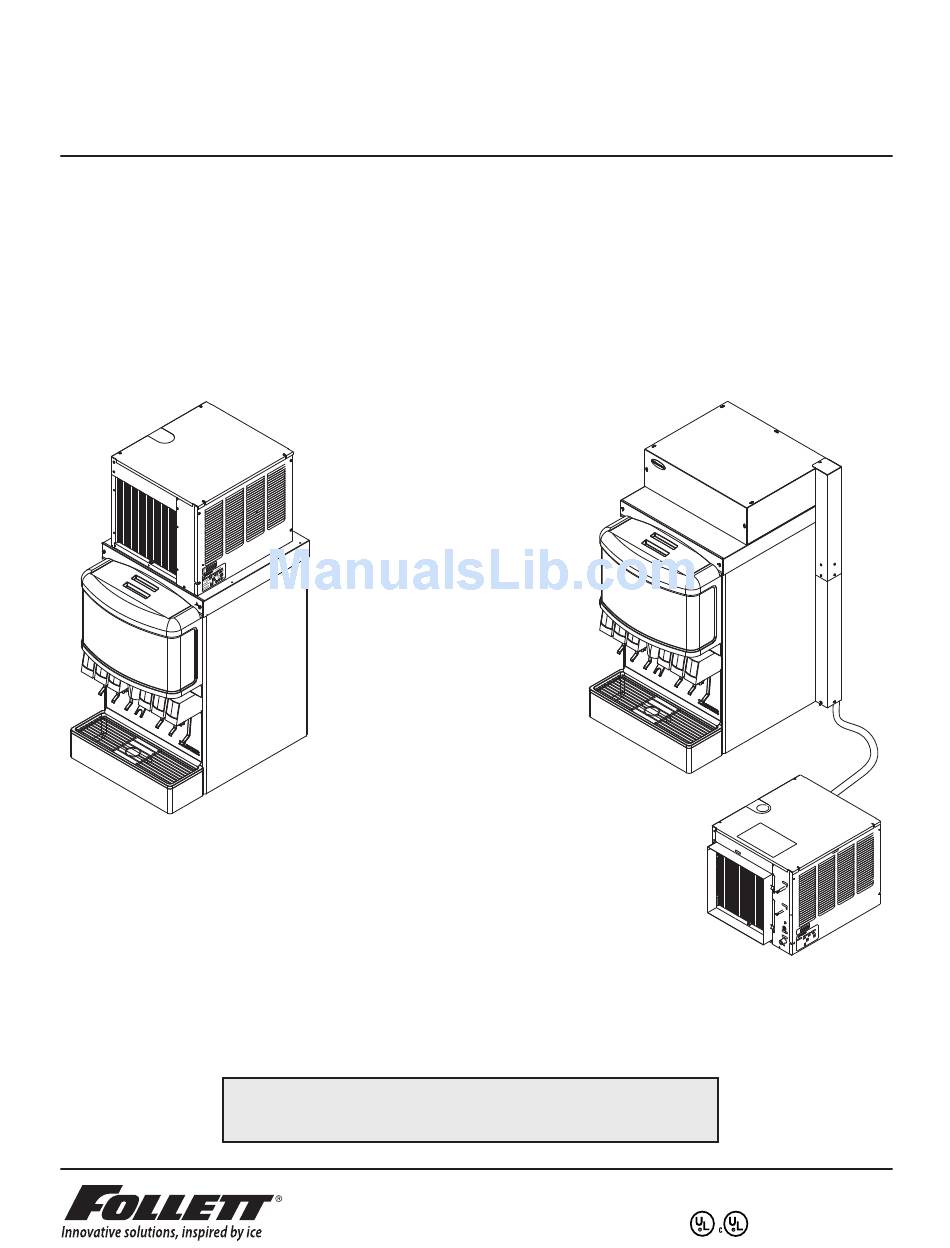

Maestro
Installation, Operation and Service Manual
Following installation, please forward this manual
to the appropriate operations person.
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • (610) 252-7301
www.follettice.com
Chewblet
™
Ice Machine and Top Kit
®
400 Series
00117267R04
Advertisement
Related Manuals for Follett Maestro Chewblet 400 Series
Summary of Contents for Follett Maestro Chewblet 400 Series
- Page 1 Follett ® Maestro Chewblet ® 400 Series ™ Ice Machine and Top Kit for Lancer countertop ice and beverage dispensers Order parts online Installation, Operation and Service Manual www.follettice.com Following installation, please forward this manual to the appropriate operations person.
-
Page 2: Table Of Contents
Table of contents Welcome to Follett Corporation Important cautions Specifi cations Installation Cleaning/descaling and sanitizing Replacement Parts Models MTL22SC, MSL22SC Models MTL30SC, MSL30SC Maestro 400 Series Top Kit for Lancer... -
Page 3: Welcome To Follett Corporation
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage is found, notify the shipper immediately and contact Follett Corporation so that we can help in the fi ling of a claim, if necessary. -
Page 4: Specifi Cations
Separate drains for ice machine and condenser. To prevent back fl ow, do NOT connect drains. • Follett recommends a Follett water fi lter system be installed in the ice machine inlet water line (standard capacity #00130299, high capacity #00978957, carbonless high capacity #01050442). - Page 5 Dimensions and clearances Required clearances – MCD400 series Entire front of ice machine clear of obstruction/connections to allow removal. 12" (305 mm) above ice machine for service 6" (153 mm) minimum between louvered (exhaust) side of ice machine and any adjacent equipment. MCD400AHS –...
-
Page 6: Installation
Installation Install Lancer ice dispenser according to manufacturer’s specifi cations. Note: We recommend that the dispenser back be mounted at least 1" (26mm) from wall to allow water, drain and electric lines from top mount ice machines to be concealed behind dispenser. 2. - Page 7 Agitation adjustments - Lancer FS Series Initialization Screen (Boot Up Only) Lancer FS-16 Ver. 0.200 ➊ Main Menu Sub-Catagory FS-16 Setup Brands Per Side Major/Minor V:1 L:2 R:1 FS-16 Setup Bonus Key Setup Config Bonus Key V:1 T:F M:S B:W FS-16 Setup Soda/Plain Water Cancel...
- Page 8 Go directly to step 18. Fig. 4 Top mounted ice machine installation 9. Position Follett MCD400AHT ice machine on perimeter gasket of stainless steel top. Ice machine should be oriented with A/C condenser facing front (Fig. 4). Maestro 400 Series Top Kit for Lancer...
- Page 9 3/8" OD Note: Follett recommends the installation water inlet of a Follett water fi lter system (part# Drain 00130229) on supply water inlet. 3/4" MPT Maestro 400 Series Top Kit for Lancer...
- Page 10 Fig. 7 13. Remove ice machine top panel and louvered side panel. ice transport tube 14. Insert ice transport tube to a 1/2" (13mm) depth through mounting bracket (Fig. 7 and 8.1) and secure transport tube away from condenser fan under fl oat reservoir bracket 1/2"...
- Page 11 RIDE model ice machine installation Fig. 9 – Single ice tube dispensers rear entry chase 18. Ice transport tube chase may be located behind or to either side of the dispenser (Fig. 9 and 10). Using the chase mounting bracket as a template 1.25"...
- Page 12 20. Follow the “RIDE model ice machine installation procedure” found in the Symphony MCD400 Ice machine Manual 208600 to install your Follett ice machine. 21. Route the bin signal cord from the 4" x 4" (102mm x 102mm) junction box through the top knockout (Fig. 12.2) and countertop hole.
- Page 13 Fig. 13 23. Connect the ice transport tube(s) to the dispenser: a) Drill 3/16" (5mm) holes through both sides of the tube 1/2" (13mm) from the tube end. b) Collapse tube and insert through gasketed hole (Fig. 7). c) Match tube holes to bracket tabs. 24.
-
Page 14: Cleaning/Descaling And Sanitizing
Cleaning of the condenser can usually be performed by facility personnel. Cleaning/descaling and sanitizing of the ice machine system should be performed by your facility’s trained maintenance staff or a Follett authorized service agent. Regardless of who performs the cleaning, it is the operator’s responsibility to see that this cleaning is performed according to the schedule below. - Page 15 Clean/descale ice machine If ice machine was running recently, ensure that the evaporator is completely free of ice before proceeding. Disconnect power to ice machine. Remove any ice machine panels required to gain access to water reservoir and electrical control box. Turn compressor switch on electrical box of ice machine to OFF position.
-
Page 16: Replacement Parts
Service Order parts online www.follettice.com Replacement parts Models MTL22SC and MSL22SC Reference # Description Part # Base, top mount 00113514 Base, RIDE model 00113308 Cabinet 00113324 Cover 00113357 Chase, upper 00113381 Chase, lower 00113399 Collar 00113407 Defl ector, single 501616 Box, thermostat 00113449 Gasket, top, Harmony... - Page 17 Models MTL30SC and MSL30SC Order parts online www.follettice.com Reference # Description Part # Base, top mount 00113522 Base, RIDE model 00113316 Cabinet 00113332 Cover 00113365 Chase, upper 00113381 Chase, lower 00113399 Collar 00113407 Defl ector, single 501616 Box, thermostat 00113449 Gasket, top, Harmony 00113464 Gasket, ice entry...
- Page 18 Part # Standard capacity fi lter system Not shown Follett QC4-FL4S water fi lter system (includes FL4S primary cartridge and head, coarse 00130229 pre-fi lter and head, pressure gauge, fl ushing valve; assembled and installed on mounting bracket), one per ice machine...
- Page 19 This page intentionally left blank. Maestro 400 Series Top Kit for Lancer...
- Page 20 Harmony, Maestro, and SafeCLEAN are trademarks of Follett Corporation. Chewblet, RIDE and Follett are registered trademarks of Follett Corporation, registered in the US. 801 Church Lane • Easton, PA 18040, USA Toll free (877) 612-5086 • (610) 252-7301 00117267R04 www.follettice.com...
