Installation, Operating & Maintenance Instructions
Kair Guardian Power Pro

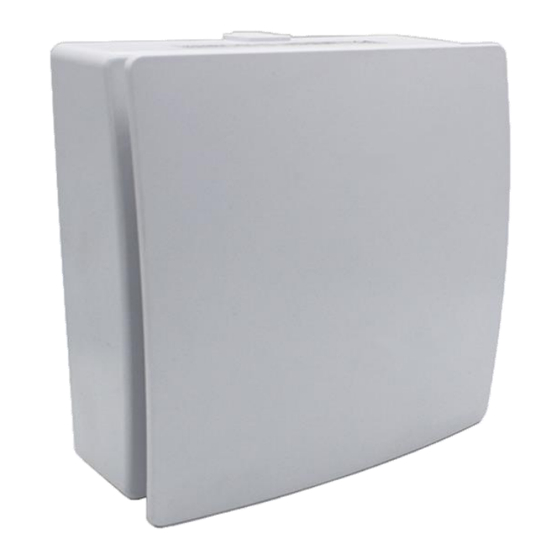

100mm Powerful Centrifugal Quiet Fan
Product Models: PP100P, PP100HTP, PP100HTPLV
Kair Guardian Power Pro Range |
•
Continuous ventilation
•
Energy efficient EC motor
•
3 Speed settings / up to 15m duct run
•
Powerful low-profile unit
•
Low noise levels
•
Low running costs
•
For any domestic wet room
•
Wall / Ceiling / Window (with optional kit)
Data sheets & Product Information
Scan this QR code with your phone to
view more information about this fan.
Page 1
www.kair.co.uk
| hello@kair.co.uk
Advertisement
Table of Contents
Related Manuals for Kair Guardian Power Pro PP100P
Summary of Contents for Kair Guardian Power Pro PP100P
- Page 1 For any domestic wet room • Wall / Ceiling / Window (with optional kit) Data sheets & Product Information Scan this QR code with your phone to view more information about this fan. Page 1 Kair Guardian Power Pro Range | www.kair.co.uk | hello@kair.co.uk...
- Page 2 • If the product needs to be removed, turn off the mains supply and then disconnect the fan. • The fan MUST BE installed as detailed in this leaflet Page 2 Kair Guardian Power Pro Range | www.kair.co.uk | hello@kair.co.uk...
- Page 3 • The product must not exhaust into ducts designed to evacuate fumes from combustion in stoves or other combustion-powered devices DISMANTLING & RECYCLING THIS PRODUCT HAS BEEN DESIGNED AND CONSTRUCTED USING HIGH QUALITY MATERIALS AND COMPONENTS THAT CAN BE RECYCLED OR RE-USED. Page 3 Kair Guardian Power Pro Range | www.kair.co.uk | hello@kair.co.uk...
-
Page 4: Technical Characteristics
In addition, this is a low voltage “SELV 12V” Low voltage extractor fan is designed specifically for safe installation directly in or over Splash Zone 1. (See page 10 & 12) Page 4 Kair Guardian Power Pro Range | www.kair.co.uk | hello@kair.co.uk... -
Page 5: Installation
NOT suitable for use with a Gravity Grille or ducting damper/flap. It should be installed using either a unrestricted Cowl or Fixed Louvre Grille. Louvred - Yes Gravity - No Cowled - Yes Page 5 Kair Guardian Power Pro Range | www.kair.co.uk | hello@kair.co.uk... - Page 6 Installation Minimum •2 •1 •4 •6 •5 Page 6 Kair Guardian Power Pro Range | www.kair.co.uk | hello@kair.co.uk...
- Page 7 Installation •7 •8 •9 •1 Page 7 Kair Guardian Power Pro Range | www.kair.co.uk | hello@kair.co.uk...
- Page 8 Installation •1 •1 •1 Page 8 Kair Guardian Power Pro Range | www.kair.co.uk | hello@kair.co.uk...
-
Page 9: Wiring Diagrams
• The cable used to connect the transformer to the fan must have a section area of at least 1.5mm and a maximum length of 10m. Guardian Power Pro – SELV Guardian Power Pro SELV - 3 Speed with cord - 3 Speed via Remote switch* • Page 9 Kair Guardian Power Pro Range | www.kair.co.uk | hello@kair.co.uk... - Page 10 These fans are designed to run continuously at one of two trickle speeds fixed at installation using the jumper switch. The configurations for the various models are: PP100P PP100HTP Page 10 Kair Guardian Power Pro Range | www.kair.co.uk | hello@kair.co.uk...
- Page 11 Jumper Switch – SELV 12V Versions These fans are designed to run continuously at one of two trickle speeds fixed at installation using the jumper switch. The configurations for the various models are: PP100HTPLV Page 11 Kair Guardian Power Pro Range | www.kair.co.uk | hello@kair.co.uk...
-
Page 12: Trimmer Adjustment
If this should occur, contact a qualified technician before reassembling the fan. NOTE: The motor does not require lubrication as it is maintenance free "sealed for life" type. Kair Ventilation Ltd, 9a High Street, Sidcup, Kent, DA14 6EN www.kair.co.uk | hello@kair.co.uk | 020 8463 9695 Ver 1.01.
