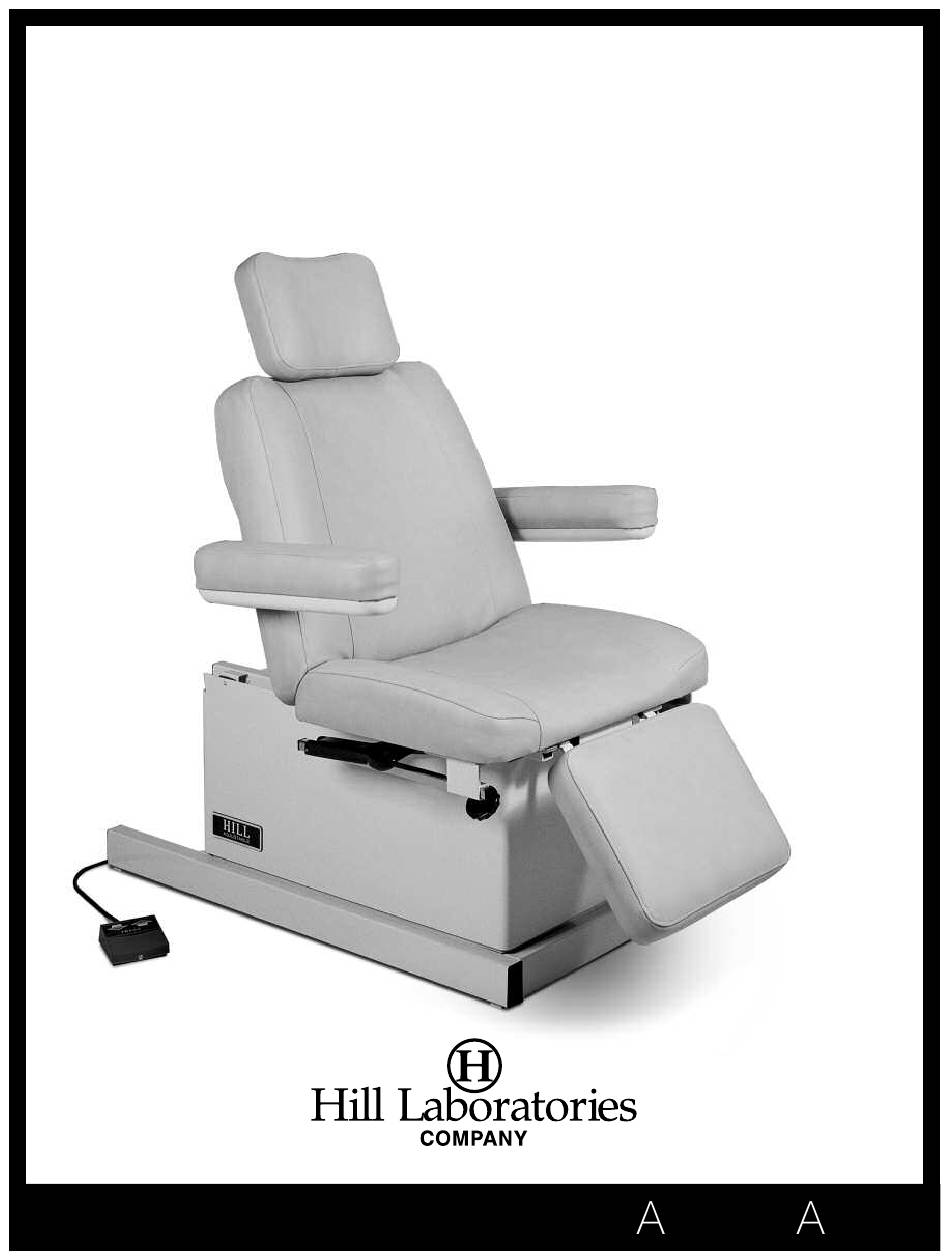

- Page 1 Hill 90MD Exam Chair R E F E R E N C E...
- Page 2 At Your Service The Hill Laboratories Guarantee Your Hill Laboratories 90MD has been thoroughly tested and inspected before shipment. All parts are guaranteed against defect in materials for one full year from date of purchase. Tables damaged by mishandling or accident will be repaired at a reasonable charge.
- Page 3 Congratulations! nd welcome to the Hill Laboratories family. Hill Laboratories Company has been making quality a family business since 1945. Your Hill 90MD is built in a tradition of innovation and value that Hill Laboratories products have become known for.
-
Page 4: Ready For Use

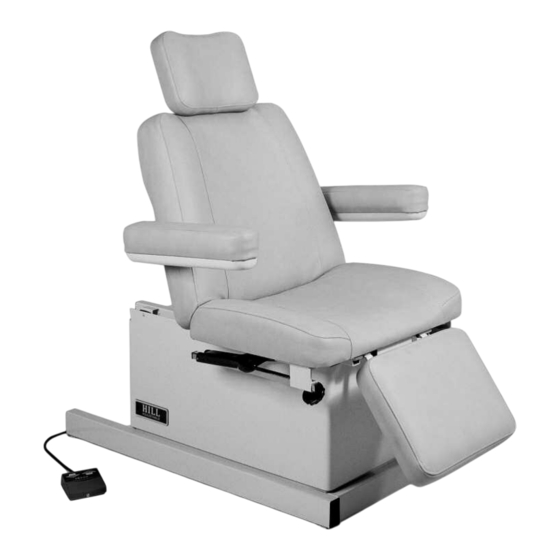

Ready for use. Your Hill 90MD comes ready to plug into any 115 volt outlet djustable Fold-Back Headpiece rmrests djustable- ngle Seat front tilts up for Electric Back positioning patient controlled by foot pedal Stirrups Fold back when Protective not in use acrylic base cover Encloses all interior parts... - Page 5 Your Hill Table comes upholstered in a highly durable vinyl material. Its appearance is guarded by Prefixx ™ brand protective finish. Your upholstery may be cleaned with the Hill Laboratories Vinyl Cleaner or any non- abrasive household detergent without change to surface luster. Stubborn stains can be cleaned with most...
- Page 6 Table Features djustable Headpiece The adjusting headpiece can be moved in both the forward-backward direction and up-down. To adjust the forward position of the headpiece, loosen the black knob directly behind the head cushion (“A” in photo) and adjust the cushion position.
-
Page 7: Foot Pedals
Table Features Slide-Out Removable Tray stainless steel slide-out tray is positioned by simply pulling the tray frame forward to the desired position. The tray itself is fully removable for easy cleaning. Fold-Down Foot Section Switch The angle of the Fold-Down Foot Section is controlled by a manual switch located under the right side as you face the end of the chair. -
Page 8: Side Rails
Table Features Examination rmboard The optional Examination Armboard inserts from either side of the chair and tightens with a knob. It can be positioned and locked at various angles vertically and horizontally as shown in the photos left and right. The Armbord is rated at 10 pounds/tested with 80 pounds. - Page 9 Table Features Rocker Foot Pedal The optional Rocker Foot Pedal operates the height of the table from either side of the table base. Press the right side of the pedal for “UP” and the left side for “DOWN”. The pedal will return to the nuetral position when released. Casters If your Hill model is equipped with the optional caster system, they will be located on each end of the base.
- Page 10 Diagrams...
- Page 11 Diagrams...
-
Page 12: Wiring Diagrams
Wiring Diagrams Two Motor Diagram... - Page 13 Wiring Diagrams Three or Four Motor Diagram...
- Page 14 Tables Manufactured by Hill Laboratories Air-Flex Anatomotor Air90C w/4 Drops Massage w/Traction Mat Table Hi-Lo HA90 HA90 Lift Back Rath Mechanical Repex Table McKenzie Technique McKenzie Technique PT Mobilization PT Tilting HA90E 90MD 90D Dermatology 90W Wound Care Chair Chair...
- Page 15 P.O. Box 2028, 3 Bacton Hill Road, Frazer, PA 19355 • phone 1-877-445-5020 • 610-644-2867 • fax 610-647-6297 • www.hilllabs.com...
