- Page 1 Hill HA90PH Phlebotomy Chair R E F E R E N C E M A N U A L...
- Page 2 And welcome to the Hill Laboratories family. Hill Laboratories Company has been making quality a family business since 1945. Your Hill HA90PH is built in a tradition of innovation and value that Hill Laboratories products have become known for. Our good name rests on the confidence that your Hill Chair will provide you with solid, reliable service for many years to come.
- Page 3 At Your Service The Hill Laboratories Guarantee Your Hill Laboratories 90PH has been thoroughly tested and inspected before shipment. All parts are guaranteed against defect in materials for one full year from date of purchase. During this period, any such defect will be remedied by Hill Laboratories or by a factory-authorized repair service without charge.
-
Page 4: Ready For Use

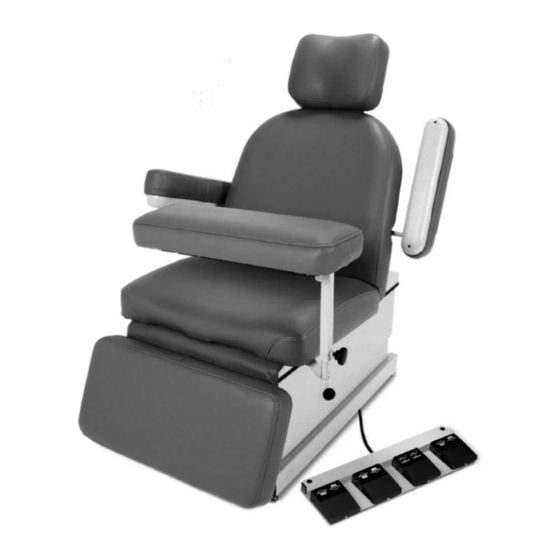

Ready for use Your Hill HA90PH comes ready to plug into any 115 outlet Adjustable Headpiece Electric Back Paper Holder controlled by foot pedal Behind the headpiece Protective Adjustable acrylic base cover Armboard Encloses all interior parts Folds back, out of the way,... - Page 5 Your Hill Table comes upholstered in a highly durable vinyl material. Its appearance is guarded by Prefixx ™ brand protective finish. Your upholstery may be cleaned with the Hill Laboratories Vinyl Cleaner or any non- abrasive household detergent without change to surface luster. Stubborn stains can be cleaned with most...
- Page 6 Table Features Adjustable Headpiece The adjusting headpiece can be moved in both the forward-backward direction and up-down. To adjust the forward position of the headpiece, loosen the black knob directly behind the head cushion (“A”, photo 1) and adjust the cushion position.
-
Page 7: Foot Pedals
Release to lock the cushion in place. Foot Pedals Your HA90PH has up to four foot pedals mounted together on one control. The far left pedal, marked Back, controls the angle of the back cushion. The middle-left pedal,... - Page 8 Diagrams 90PH - Dimensions...
- Page 9 Diagrams 90PH with Trendelenburg - Dimensions...
-
Page 10: Wiring Diagrams
Wiring Diagrams 4 Motor Diagram. Part 1... - Page 11 Wiring Diagrams 4 Motor Diagram. Part 2...
- Page 12 Wiring Diagrams 4 Motor Diagram with Auto-Return, Part 1...
- Page 13 Wiring Diagrams 4 Motor Diagram with Auto-Return, Part 2...
- Page 14 Tables Manufactured by Hill Laboratories Air-Flex Anatomotor AFT Automatic Air90C w/4 Drops Massage w/Traction Flexion Mat Table Hi-Lo HA90 HA90 Lift Back Rath Mechanical Repex Table McKenzie Technique McKenzie Technique PT Mobilization PT Tilting HA90E 90MD 90D Dermatology 90W Wound Care Chair...
- Page 15 P .O. Box 2028, 3 Bacton Hill Road, Frazer, PA 19355 • phone 1-877-445-5020 • 610-644-2867 • fax 610-647-6297 • www.hilllabs.com...
