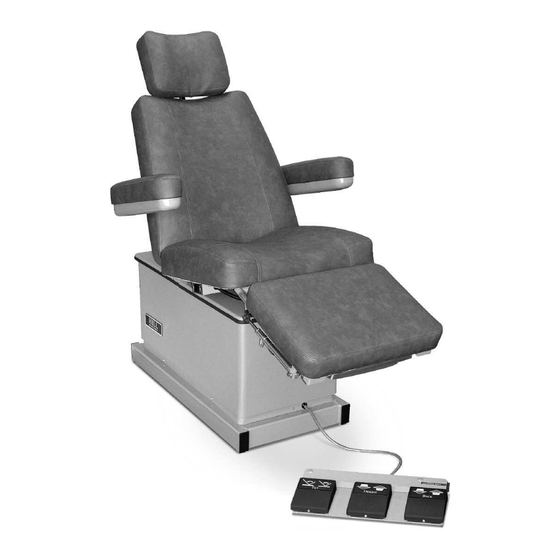

Summary of Contents for Hill Laboratories 90P

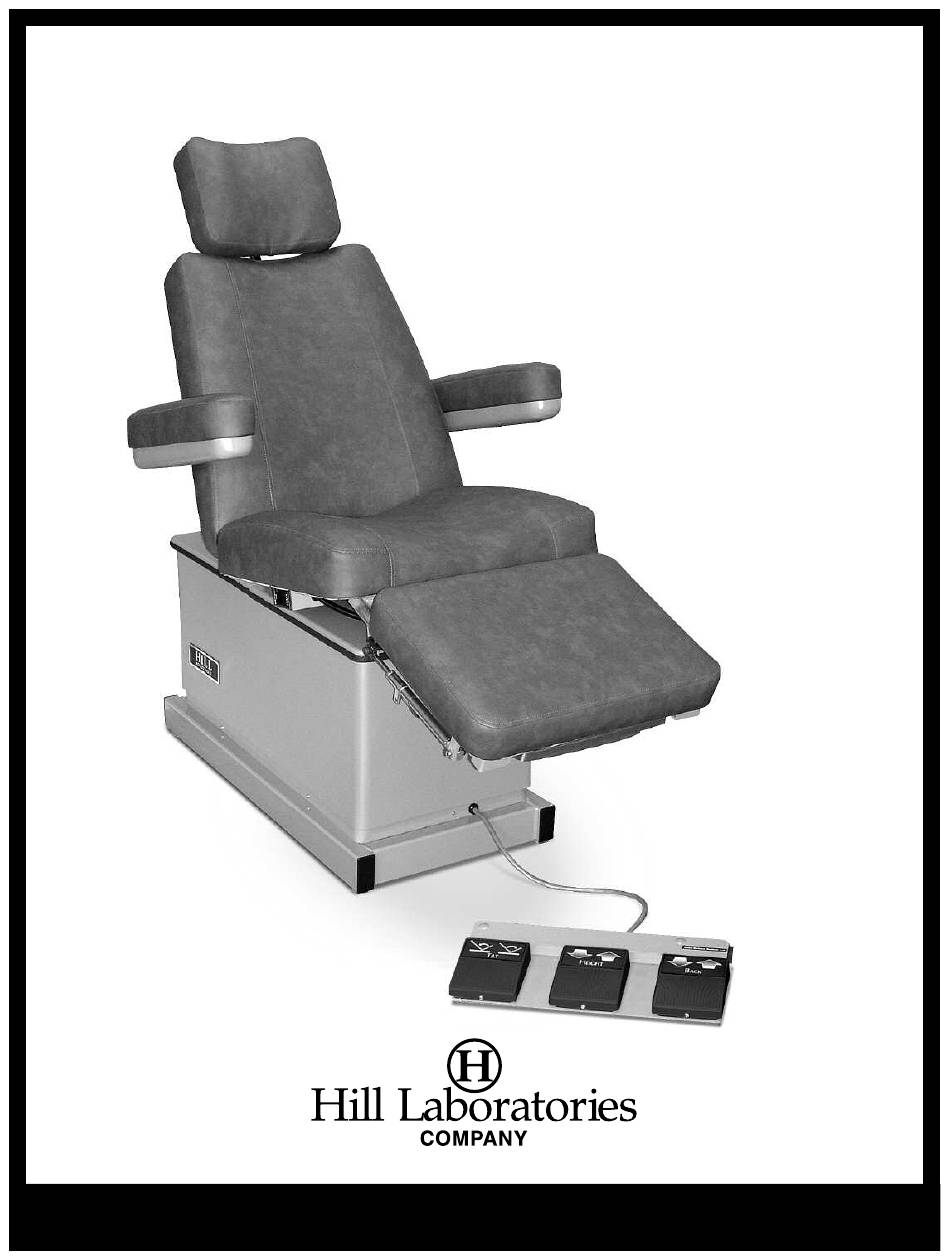

- Page 1 Hill 90P Podiatry Chair R E F E R E N C E M A N U A L...
- Page 2 Congratulations! And welcome to the Hill Laboratories family Hill Laboratories Company has been making quality a family business since 1945. Your Hill Podiatry Chair is built in a tradition of innovation and value that Hill Laboratories products have become known for.
- Page 3 At Your Service The Hill Laboratories Guarantee Your Hill Laboratories Podiatry Chair has been thoroughly tested and inspected before shipment. All parts are guaranteed against defect in materials for one full year from date of purchase. During this period, any such defect will be remedied by Hill Laboratories or by a factory-authorized repair service without charge.
-
Page 4: Ready For Use
Ready for use. Your Hill Podiatry comes ready to plug into any 115 volt outlet. Adjustable Curtain Headpiece Adjusts in height Adjusts in height 8” Adjusts in length 12” Flexible Arm Lamp Contour Standard with 110 outlet in base. Removable when Upholstery not in use For style and added... - Page 5 Your Hill Table comes upholstered in a highly durable vinyl material. Its appearance is guarded by Prefixx ™ brand protective finish. Your upholstery may be cleaned with the Hill Laboratories Vinyl Cleaner or any non- abrasive household detergent without change to surface luster. Stubborn stains can be cleaned with most...
- Page 6 Table Features Adjustable Headpiece The adjusting headpiece can be moved in both the forward-backward direction and up-down. To adjust the forward position of the headpiece, loosen the black knob directly behind the head cushion (“A”, photo 1) and adjust the cushion position.
-
Page 7: Foot Pedals
Table Features Stainless Steel Pan A stainless steel slide-out tray is positioned by simply pulling the tray frame forward to the desired position. The tray itself is fully removable for easy cleaning. Fold-Down Foot Section The angle of the Fold-Down Foot Section is controlled by a manual switch located under the left side as you face the end of the chair (see photo). -
Page 8: Leveling Feet
Table Features Table Features Curtain (optional) The curtain installs into a receiver on the side of the seat cushion. The curtain height is adjustable and locks in place by turning the locking knob on the receiver. Leveling Feet The HA90P is equipped with leveling feet under each corner of the chair’s base. - Page 9 Diagrams...
-
Page 10: Wiring Diagrams
Wiring Diagrams No Auto-Return Configuration, Part 1... - Page 11 Wiring Diagrams No Auto-Return Configuration, Part 2...
- Page 12 Wiring Diagrams Auto-Return Configuration, Part 1...
- Page 13 Wiring Diagrams Auto-Return Configuration, Part 2...
- Page 14 Tables Manufactured by Hill Laboratories Air-Flex Anatomotor Air90C w/4 Drops Massage w/Traction Hi-Lo HA90 Mat Table HA90 Lift Back Rath Mechanical Repex Table McKenzie Technique McKenzie Technique PT Mobilization PT Tilting HA90E 90MD 90D Dermatology 90W Wound Care Chair Chair...
