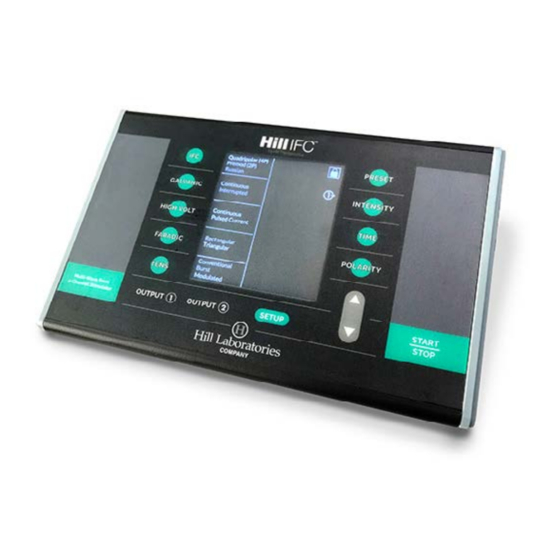

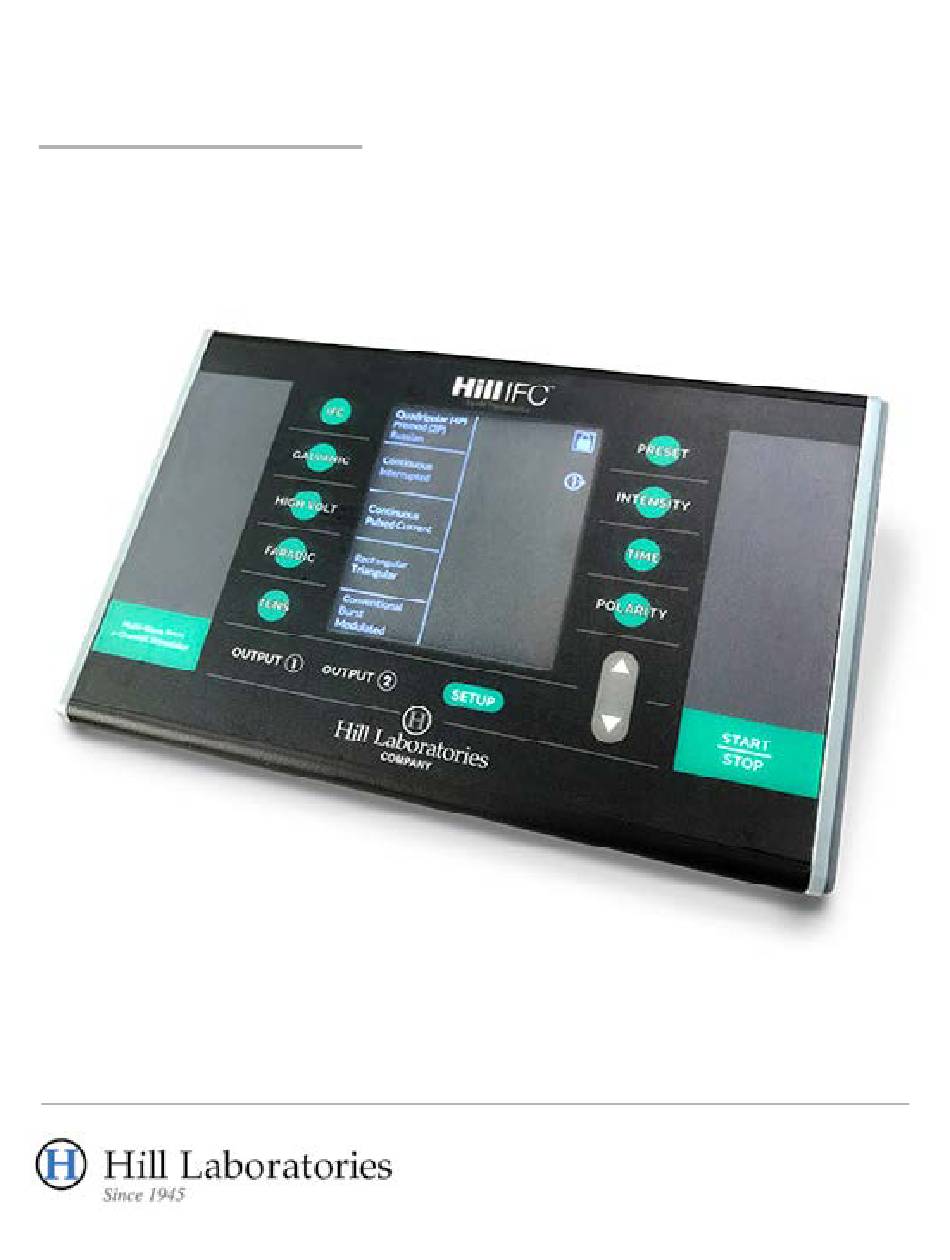

- Page 1 Hill IFC NEXT GENERATION 4-Channel Multi-Wavelength Interferential Unit...
- Page 2 Instr uction Manua l HILL IFC Instruction Manual The front panel of HILL IFC have the following functions which are explained as follows. 1. Output Socket: Used to give the output for the treatment with the help of lead wire. 2. Patient Switch: - There is a patient emergency stop switch which is connected to the device via cable to turn off the device immediately by patient. When the Patient pressed the Emergency Stop Button, the device will pause all stimulations (all started treatments) without any delay. The resume of treatments can be done only through main user interface –it means that paused treatments cannot be resumed by Patient Switch, again you have to start the treatment by tap on the start/stop option.
- Page 3 Accessories Preparing for Treatment Technical Specifications IFC Presets: • P01 Acute pain • P02 Chronic pain • P03 Edema 1 (1-30 Hz) • P04 Edema 2 (1-10Hz) • P05 Nerve Block • P06 Custom page B...
- Page 4 Precautionary Instructions The precautionary instructions found in this section and throughout this manual are indicated by specific symbols. Understand these symbols and their definitions before operating this equipment. The definitions of these symbols are as follows: CAUTION - Text with a “CAUTION” indicator will explain possible Safety infractions that could have the potential to cause minor to moderate injury or damage to equipment. WARNING - Text with a “WARNING” indicator will explain possible Safety infractions that will potentially cause serious injury and equipment damage. DANGER - Text with a “DANGER” indicator will explain possible safety infractions that are imminently hazardous situations that would result in death or serious injury. NO SITTING – Text with a” NO SITTING” indicator will explain possible safety instructions that will potentially cause serious injury and equipment damage. NO STEPPING ON SURFACE - Text with a “NO STEPPING ON SURFACE” indicator will explain possible safety infractions that will cause equipment damage. NOTE: Throughout this manual “NOTE” may be found. These NOTES are helpful information to aid in the particular area or function being described. NOMENCLATURE: The following are the symbols used in manual and sticker: Hardware symbols: page C...
-
Page 5: Table Of Contents
HILL IFC Instruction Manual CONTENTS Panel Functions Explained ........................A Accessories/Preparing for Treatment ....................B Precautionary Instructions ........................C 1. INSTRUCTION FOR THE USER ......................2 1.1 CAUTION ..........................2 1.2 Warnings ..........................2 1.3 Precautions ..........................2 1.4 Adverse Reactions........................3 1.5 Conditions ..........................3 1.6 Contraindicated conditions..................... 3 1.7 Contraindicated Areas ......................3 2. Introduction ............................ 4 2.1... - Page 6 HILL IFC Instruction Manual 6.6 DEVICE INTENSITY ......................... 12 6.7 MODE AND TREATMENT SELECTION..................12 6.8 How to go back to the treatment: ..................14 7. Turning off the device ........................14 8. TROUBLESHOOTING........................14 9. MAINTENANCE..........................14 9.1 Cleaning the device....................... 14 9.2 Cleaning the accessories .......................15 9.3 Care for Electrodes:....................... 15 10. Routine Maintenance ....................... 15 10.1 Overview ..........................15 11. SUGGESTED ELECTRODE PLACEMENT CHART ................16 12.
-
Page 7: Instruction For The User
Purpose of This Manual This manual contains important information regarding the safe and effective operation of your HILL IFC. Your HILL IFC is an electrical device that can provide years of useful service with the proper care and maintenance, as described in this manual. 1.1 CAUTION • This device must be used only under the continued supervision of a physician or licensed practitioner in the state he/she practices. -
Page 8: Adverse Reactions
HILL IFC Instruction Manual Caution should be used in presence of following: • When there is a tendency of hemorrhage following acute trauma or fracture following • recent surgical procedures when muscle contraction may disrupt the healing process Over the menstruating or pregnant uterus • Over area of the skin which lack normal sensation. Some patients may experience skin • irritation or hypersensitivity due to the electrical stimulation or electrical conductive medium. The irritation can usually be reduced by using an alternate conductive medium or alternate electrode placement. Stimulation settings should be based on the guidance of the prescribing practitioner. • Electrode placement should be based on the guidance of the prescribing physician. HILL IFC should be kept out of the reach of children. The HILL IFC should be used only • with the electrode cables and electrodes recommended for use by the manufacturer. The HILL IFC should not be used while driving, operating machinery or during any activity in • which Involuntary muscle contraction may put the user at undue risk of injury. Ensure the intensity is adjusted slowly and smoothly and not increased beyond the • patient's tolerance. While treatment Do not lift electrodes off the skin without the intensity being turned down • to zero first. Also be aware of the skin's resistance as this may suddenly drop causing the intensity to • increase. 1.4 Adverse Reactions Skin irritation and bums beneath the electrodes have been reported with use of this device. 1.5 Conditions That affect Use The user needs electric outlet near the treatment area. The unit should not be used in wet environment. •... -
Page 9: Introduction
HILL IFC Instruction Manual 2. Introduction HILL IFC is an electrotherapy device that provides multi-waveform which is tailored for precise pain- relief and rehabilitation needs of the patients with most comfortable electrical stimulation. The device offers series of standard protocols: IFC (Interferential Traditional), • IFC Pre modulated, • Russian, • Galvanic (DC and Interrupted), • High-voltage pulsed current (HVPC) (Pulse ,Continuous). • Faradic (Rectangular, Triangular) • TENS (Conventional, Burst, and Modulation) and • Whose parameters can be adjusted before the treatment and during the treatment. HILL IFC device which has touchscreen for user- interface with two outputs (4 channels) of electrical stimulation (ESTIM). The clinician can provide two different treatments simultaneously through the two outputs. The device also has 8 predefined Protocols (PRESETS): Edema, • Deconditioning, • Chronic Pain, • Acute Pain, • Wound Healing, • Endurance, • Nerve block and •... -
Page 10: Accessories
HILL IFC Instruction Manual 3. ACCESSORIES The device comes with the necessary components as shown below: 4. SPECIFICATIONS 4.1 General Specification Length 12” / 300mm Width 6.75” / 170mm Height 3” / 75mm Net Weight 4 pounds / Approx. 1.90 Kg. Power Input 220/110AC, 50/60Hz Electrical Class CLASS IIa Operating Temperatures Between +10°C to +40°C Storage Temperatures Between -30°C to +60°C 4.2 Technical Specification HILL IFC Predefined IFC Treatments IFC (Interferential) Traditional (4 Pole) P1 –Specifications. • a. Beat Frequency:80 -150 Hz (fmin=80Hz, fmax=150Hz); • Sweep Low Beat Frequency: 80 Hz (fmin=80Hz); • Sweep High Beat Frequency: 150 Hz (fmax=80Hz); b. All other parameters as well as the waveforms are the same as they are defined for general IFC. IFC (Interferential) Traditional (4 Pole) P2 –Specification • a. Beat Frequency:1 -50 Hz (fmin=1Hz, fmax=50Hz); • Sweep Low Beat Frequency: 1 Hz (fmin=1Hz); • Sweep High Beat Frequency:50 Hz (fmax=50Hz);... - Page 11 HILL IFC Instruction Manual IFC (Interferential) Traditional (4 Pole) P3 –Specification • a. Beat Frequency:0 -10 Hz (fmin=0Hz, fmax=10Hz); • Sweep Low Beat Frequency: 0 Hz (fmin=0Hz); • Sweep High Beat Frequency: 10 Hz (fmax=10Hz); b. All other parameters as well as the waveforms are the same as they are defined for general IFC. IFC (Interferential) Traditional (4 Pole) P4 –Specification • a. Beat Frequency:1 -150 Hz (fmin=1Hz, fmax=150Hz); • Sweep Low Beat Frequency: 1 Hz (fmin=1Hz); • Sweep High Beat Frequency: 150 Hz (fmax=150Hz); b. All other parameters as well as the waveforms are the same as they are defined for general IFC. IFC (Interferential) Traditional (4 Pole) P5 –Specification • a. Beat Frequency:1 -250 Hz (fmin=1Hz, fmax=250Hz); • Sweep Low Beat Frequency: 1 Hz (fmin=1Hz); • Sweep High Beat Frequency: 250 Hz (fmax=250Hz); b. All other parameters as well as the waveforms are the same as they are defined for general IFC. IFC (Interferential) Traditional (4 Pole) P6 CUSTOM – • Specification a. Beat Frequency:0 -250 Hz (fmin=0 -250 Hz, fmax=0 -250 Hz); • Sweep Low Beat Frequency: 0 -250 Hz (fmin=0 -250 Hz); • Sweep High Beat Frequency: 0 -250 Hz(fmax=0 -250 Hz); • System should contain protection that Low Beat Freq (fmin) must be lower than High Beat Freq (fmax); Once 06 is selected, tap SETUP and change Low Frequency with arrows; tap SETUP again and change High Frequency with arrows. Tap START. b. All other parameters as well as the waveforms are the same as they are defined for general IFC. IFC Premodulated Specification •...
-
Page 12: Tens
HILL IFC Instruction Manual f) Cycle ON Time:1 –30 Sec; g) Cycle Off Time:0 –30 Sec (0 for continuous); h) Ramp up/down time: 2/2 Sec (cannot be changed); i) Intensity: 0 –70Vpp @ 500 Resistive load; 4.3 TENS TENS Conventional • TENS Conventional protocol is performed through one ESTIM channel (two electrodes). This protocol can be started on single channel (channel #1 or channel #2) or on both channels simultaneously. Specification a) Waveform: Symmetrical Biphasic Square wave; b) Topology: ESTIM CV (Constant Voltage); c) C onfiguration:2P (it is working in 4P, please consider comment); d) Available on Channels: 1&2, 3&4; e) Frequency:1–150 Hz;... -
Page 13: Galvanic
HILL IFC Instruction Manual 4.4 Galvanic Galvanic–Continuous DC • ! Waveform: Constant value; ! Topology: ESTIM CV (Constant Voltage); ! Configuration:2P (it is working in 4P, please consider comment); ! Available on Channels: 1&2, 3&4; ! Polarity Reversal: On or Off; With Polarity Change On, polarity will change every 5 minutes; ! Cycle ON Time: 1 –30 Sec; ! Cycle OFF Time:0 –30 Sec (0 for continuous mode); ! Ramp up/down time: 2/2 Sec (cannot be changed); ! Intensity: 0 –16Vpp @ 500Ω Resistive ohm load; Galvanic –Interrupted DC • ! Waveform: Constant value; ! Topology: ESTIM CV (Constant Voltage); ! Configuration: 2P (it is working in 4P, please consider comment); ! Available on Channels: 1&2, 3&4; ! Pulse ON Period: 2msec (fixed); ! Frequency: 1Hz (fixed); ! Polarity Reversal: On or Off;... -
Page 14: High Voltage Pulsed Current (Hvpc)
HILL IFC Instruction Manual Frequency: 5 – 60 Hz (selectable); • Step: 1Hz; Polarity Reversal: On or Off; • Cycle ON Time: • 1 – 30 Sec; Cycle OFF Time: • 0 – 30 Sec (0 for continuous mode); Ramp up/down time: • 1 – 9 Sec (selectable); Output Voltage: • 0 – 14Vpp @ 500 Resistive ohm load; Intensity: • 0-100% 4.7 High Voltage Pulsed Current (HVPC) ! Waveform: Two monophasic pulses on the distance of ~70usec; ! Topology: HVPC; ! Configuration: 2P (it is working in 4P, please consider comment); ! Available on Channels: 1&2, 3&4; ! Polarity: Positive or Negative ! Frequency: 10 -120 pps; ! Sweep: Continuous, 80/120 pps, 1/120 pps, 1/10 pps;... -
Page 15: Device Treatment Modes And Presets
4.8 DEVICE TREATMENT MODE 1. The device supported below treatment modes: IFC have three sub wave form: • a. (Interferential Traditional), b. IFC Premodulated c. Russian Galvanic have two sub wave form: • a. DC b. Interrupted Faradic have two sub wave form: • a. Rectangular b. Triangular TENS have three sub wave form: • a. Conventional, b. Burst, c. Modulation and High-voltage pulsed current (HVPC) have two sub wave form: • a. Continuous b. Pulse Note: The above parameters can be adjusted before or in between the treatment. 2. This device also supports 8 predefined protocols (PRESETS) as mentioned below: Note: The above parameters are predefined and can be selected through Preset mode. -
Page 16: Device Operation Mode
HILL IFC Instruction Manual 5. DEVICE OPERATION MODE 5.1 PREPARING ELECTRODES: • Use only the electrode cables and electrodes provided with the device by manufacturer. • Make sure that the entire surface of the electrode is in firm contact with the skin. • Prepare the skin prior to electrode application. Cleaning of skin shall eliminate any impairment to current conduction on the patient's skin such as an oily or dry surface, or excessive hair coverage. Shaving may be necessary depending upon the density of hair... -
Page 17: Preparing The Skin
HILL IFC Instruction Manual 5.4 PREPARING THE SKIN Before applying electrodes, ensure that the areas selected for electrode placement are cleaned properly and the skin is clear and free of surface debris. 6. How to Operate Device 6.1 PLUG IN THE DEVICE Connect the line cord to the back side of the device. Plug the line cord into the grounded wall outlet that has 110 or 220VAC/50,60Hz. Your supply must match the voltage requirements. Do not connect the HILL IFC to a power supply rated differently than described above. 6.2 Device ON You can ON the device with the help of rocker switch which is located on the back side of the device. 6.3 Audio Indication There is audio indication provided through buzzer, which beeps on below respective condition. - Page 18 • Select Quadpolar by tapping IFC. Use arrows to select from P01 - P06. When flashing, tap to select. IFC Presets: • P01 Acute pain • P02 Chronic pain • P03 Edema 1 (1-30 Hz) • P04 Edema 2 (1-10Hz) • P05 Nerve Block • P06 Custom • Touch Start/Stop • Time and intensity will be blinking - Time is set at 10 minutes. To change, tap “Time” and use the arrows: then tap “Time” again to lock in. - Intensity will blink. Tap “Intensity” and use the arrows to increase intensity to patient’s comfort. Tap “Intensity” again to lock in. - Time and intensity can be changed while the unit is running. To stop the treatment • Hold the Start/Stop button for 2 to 3 seconds To use both outputs • Once Output 1 has been set, press and hold Output 2 • Repeat treatment selection as you did with Output 1. You may choose a completely different treatment mode and time.
-
Page 19: How To Go Back To The Treatment
HILL IFC Instruction Manual In any of the treatment (IFC, Galvanic, High Volt, Faradic and TENS,), user can change • the intensity and time by tap on the Up/down arrow icon on the panel and then press the start icon. 6.8 How to go back to the treatment: To go back to the any treatment mode long tap on the start/stop button. 7. Turning off the device Press the rocker switch to Switch OFF the device. • NOTE: A surge protector is also strongly recommended to protect the device when in use. 8. TROUBLESHOOTING 9. MAINTENANCE 9.1 Cleaning the device The device has to be always turned off by means of the main switch when cleaning. The mains •... -
Page 20: Cleaning The Accessories
HILL IFC Instruction Manual Always turn the device off before disinfecting the lead wires. Disinfectants must not reach • the air vents. Clean the lead wires after each use with disinfectants approved for use in medical • environments. Do not use agents containing chlorine or those with a high alcohol content (more than 20%). Use a soft cloth slightly moistened with disinfectant. After disinfection, the accessories must • be rinsed with a soft cloth slightly moistened with clean water so as to prevent an undesired allergic reaction! The device’s accessories are designed for non-invasive use; therefore, they do not need to be •... -
Page 21: Suggested Electrode Placement Chart
HILL IFC Instruction Manual Do not repair the device. All servicing must be carried out by an authorized Hill • Laboratories service center. Only original parts can be used for repair; otherwise Hill bears no responsibility for further operation of the device. Before contacting your authorized Hill service center, please get ready the device model • number, serial number and a detailed description of the issue you have encountered. 11.SUGGESTED ELECTRODE PLACEMENT CHART Caution: The device should only be operated under supervision of a registered medical practitioner. Electrode placements shown in this library are only for reference purposes. Actual electrode placement may be vary according to pain or patient’s condition... -
Page 22: Legal Remedies
HILL IFC Instruction Manual negligence, and strict liability, breach of warranty and breach of contract. Some states do not allow the exclusion or limitation of implied warranties or consequential damages, so the above limitations may not apply to you. Manufacturer is not responsible or liable for indirect special or consequential damages arising out of or in connection with the use/performance of the product or other damage with respect to loss of property or loss revenues or profit. 12.3 LEGAL REMEDIES This warranty gives you specific legal rights, and you may also have other rights that vary • from state to state. 12.4 WARRANTY PERFORMANCE During the above one-year warranty period, a product with a defect will be repaired or •... - Page 23 Visit HillLabs.com/shop to see our other great theapy products! 1-877-445-5020 • 3 N. Bacton Hill Road, Frazer, PA 19355...
