Summary of Contents for Hill Laboratories HA90 ALB

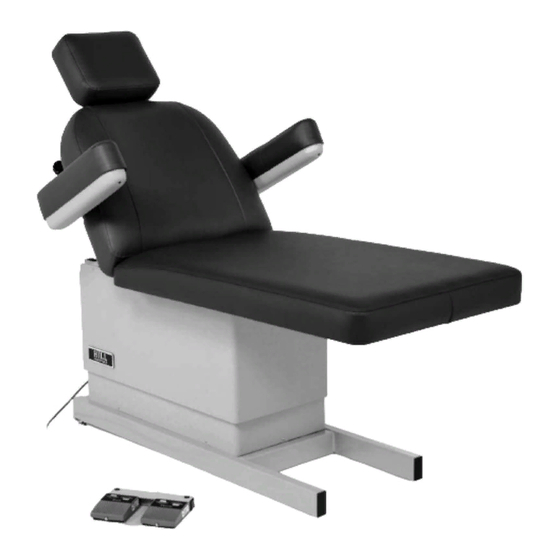

- Page 1 Hill H 90 LB Aesthetics Chair R E F E R E N C E...
- Page 2 Congratulations! nd welcome to the Hill Laboratories family. HillLaboratories Company has been making quality a family business since 1945. Your Hill 90ALB is built in a tradition of innovation and value that Hill Laboratories products have become known for. Our good name rests on the confidence that your Hill Chair will provide you with solid, reliable service for many years to come.
-
Page 3: Ready For Use
Ready for use. Your Hill 90 LB comes ready to plug into any 115 outlet djustable Fold-Back Headpiece rmrests Stain Resistant Vinyl Upholstery Manual Lift Back controlled by locking switch Protective acrylic base cover Encloses all interior parts Electric Foot Pedal for height adjustment Specifications Table Rating - 250 lbs. - Page 4 Your Hill Table comes upholstered in a highly durable vinyl material. Its appearance is guarded by Prefixx ™ brand protective finish. Your upholstery may be cleaned with the Hill Laboratories Vinyl Cleaner or any non- abrasive household detergent without change to surface luster. Stubborn stains can be cleaned with most...
-
Page 5: Foot Pedals
Table Features djustable Headpiece The adjusting headpiece can be moved in both the forward-backward direction and up-down. To adjust the forward position of the headpiece, loosen the black knob directly behind the head cushion (“A” in photo) and adjust the cushion position. -
Page 6: Paper Roll Holder
Table Features Examination rmboard The Examination Armboard inserts from either side of the chair and tightens with a knob. It can be posi- tioned and locked at various angles vertically and horizontally as shown in the photos left and right. The Armbord is rated at 10 pounds/tested with 80 pounds. - Page 7 Diagrams...
-
Page 8: Wiring Diagrams
Wiring Diagrams Single Motor Diagram... - Page 9 Wiring Diagrams Two Motor Diagram...
- Page 10 Tables Manufactured by Hill Laboratories Air-Flex Anatomotor HA90C Air-Drop HA90C Massage w/Traction w/4 Drops Mat Table Hi-Lo HA90 HA90 Lift Back Rath Mechanical Repex Table PT Mobilization PT Tilting McKenzie Technique McKenzie Technique HA90E 90MD 90D Dermatology 90W Wound Care...
- Page 11 At Your Service The Hill Laboratories Guarantee Your Hill Laboratories 90ALB has been thoroughly tested and inspected before shipment. All parts are guaranteed against defect in materials for one full year from date of purchase. During this period, any such defect will be remedied by Hill Laboratories or by a factory-authorized repair service without charge.
- Page 12 P.O. Box 2028, 3 Bacton Hill Road, Frazer, PA 19355 • phone 1-877-445-5020 • 610-644-2867 • fax 610-647-6297 • www.hilllabs.com...
