Section II - Description

General Characteristics
QPNC air dryers are chilling machines with
direct expansion and dry evaporators.
The air to be dried is sent to a heat
exchanger in which any water vapor
present is condensed.
The condensate gathers in the separator
and is discharged through a moisture trap.

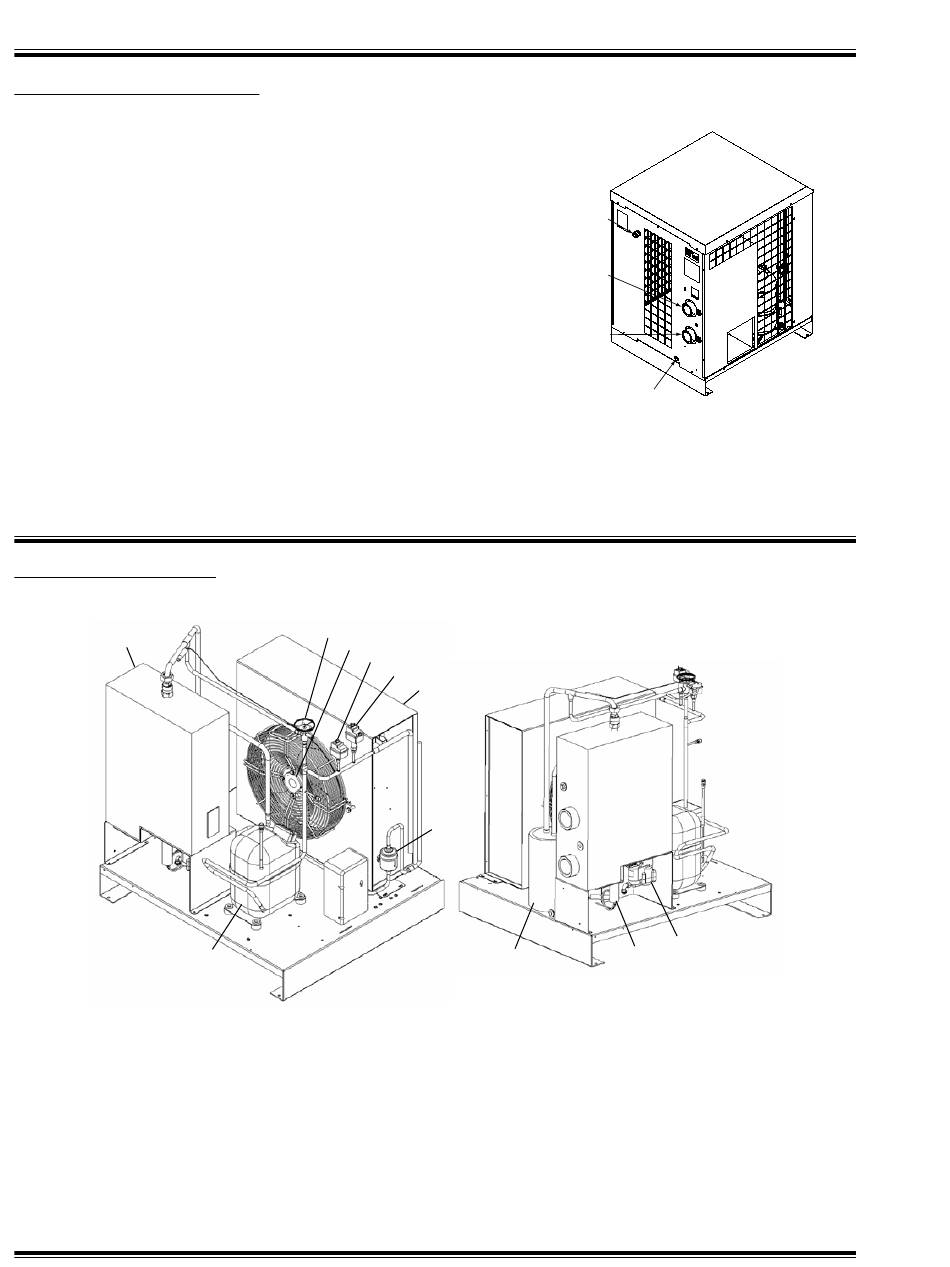

Dryer Components

(4)
() ReFRIGeRANT ComPReSSoR
() CoNDeNSeR
() FAN moToR
(4) evAPoRAToR
(5) CoNDeNSATe DRAIN
(6) HoT GAS by PASS vAlve
4
(6)
(3)
(9)
(1)
Quincy Compressor-QPNC Refrigerated Air Dryers
ELECTRICAL
CONNECTION
2.0 FNPT
AIR INLET
2.0 FNPT
AIR OUTLET
CONDENSATE
DRAIN OUTLET
(10)
(2)
(7)
(11)
(7) lIQuID lINe FIlTeR
(8) CAPIllARy
(9) FAN moToR PReSSuRe SwITCH
(0) HIGH PReSSuRe SwITCH
() ACCumulAToR
(5)
(8)
