QUICK SET-UP
GUIDE
RAPID RESTRAINT KIT
TEMPORARY RESTRAINT SYSTEM
SKU 3012-4016-001
I373 Rev A
3015-5853-001
Jul 2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the MILLER 3012-4016-001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Honeywell MILLER 3012-4016-001

  • Page 1 QUICK SET-UP GUIDE RAPID RESTRAINT KIT TEMPORARY RESTRAINT SYSTEM SKU 3012-4016-001 I373 Rev A 3015-5853-001 Jul 2024...
  • Page 2: Product Components

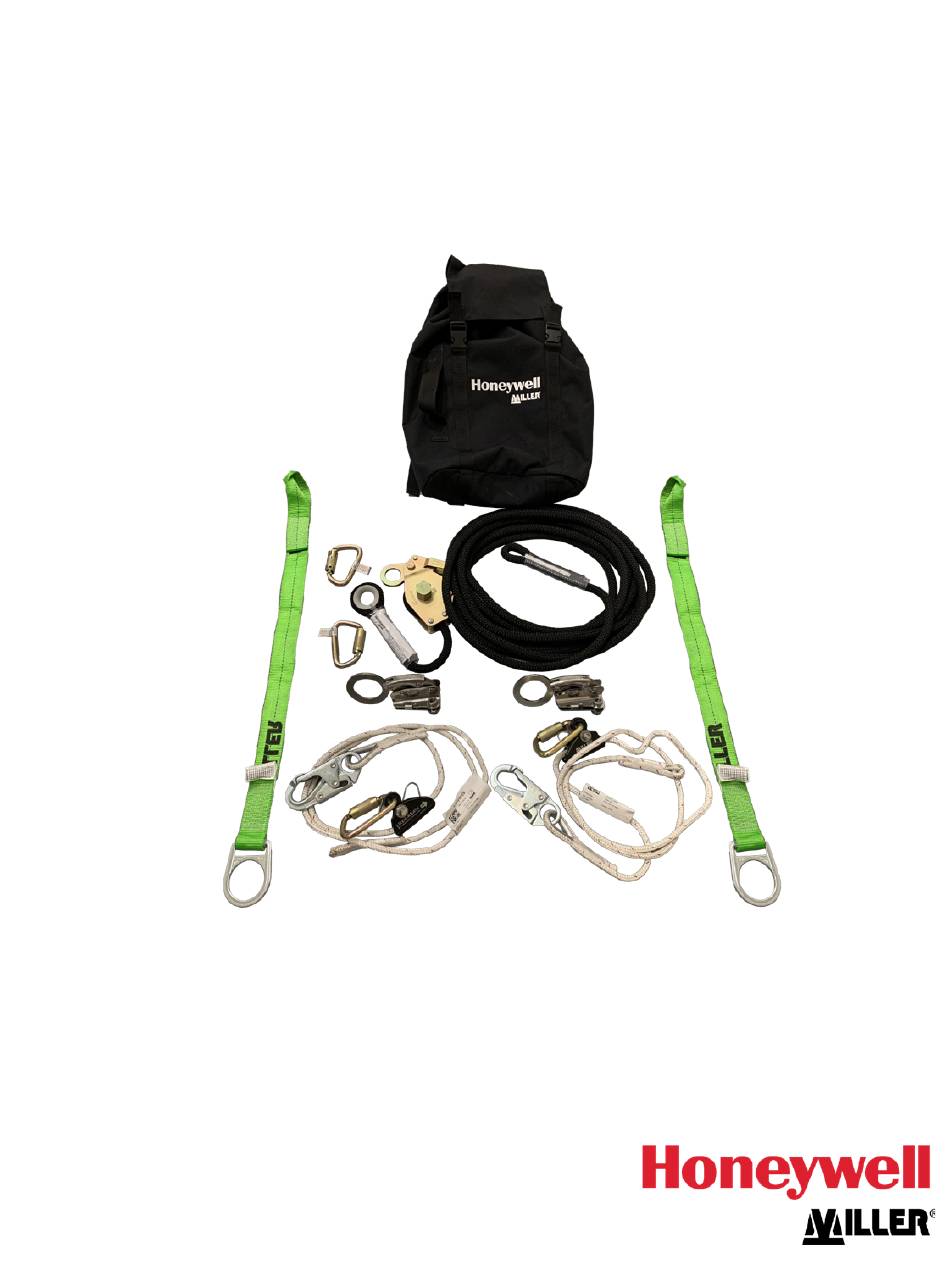

    Q u ic k S e t- U p G u i de - E ng lish PRODUCT COMPONENTS A. Restraint Line 30FT with F. Backpack Tensioner and Thimble Eye End G. Restraint Line Tensioner B. Rope Grabs H. Adjustable-Rope Lanyard C.
  • Page 3 Q u i ck Se t - Up G uide - E n g lish Note: Reference and follow the full user instruction manual and manufacture's requirements before use of the kit. STEP 1 Review kit components to ensure all equipment is present. Complete a competent user inspection, per manufacture’s...
  • Page 4 Q u ic k S e t- U p G u i de - E ng lish STEP 4 Adjust the restraint line (A) to ensure there is adequate length of rope on the thimble eye side to extend over the Elevated Work Surface (EWS) and allow for connection to the previously installed cross arm straps (C).
  • Page 5 Q u i ck Se t - Up G uide - E n g lish STEP 7 Connect the eye of the restraint line tensioner (G) to the D-ring of the cross-arm strap (C) using the second carabiner (E). STEP 8 Create tension on the restraint line (A) by pulling the free end of the restraint line (A).
  • Page 6 Q u ic k S e t- U p G u i de - E ng lish STEP 10 Close the release lever to prevent unintentional loosening of the line tension. STEP 11 Once the restraint line (A) is tensioned, tie an overhand knot on a bight around the tensioned section of restraint line (A) using the free end of the restraint line (A).
  • Page 7 Q u i ck Se t - Up G uide - E n g lish STEP 11.3 STEP 11.4 Insert the restraint line (A) rope loop Ensure the base of the knot is seated through the center hole and pull the against the restraint line tensioner (G) restraint line (A) rope loop to tighten and a minimum of 6-inches of excess...
  • Page 8 Q u ic k S e t- U p G u i de - E ng lish STEP 14 Connect the rope grabs (B) onto the restraint line (A) ensuring; the rope grab (B) located at your right side has the arrow pointing toward the right side exposed edge of the EWS the rope grab (B) located at your left side has the arrow pointing toward the...
  • Page 9 Q u i ck Se t - Up G uide - E n g lish STEP 17 Stand up in the center of the EWS and adjust each adjustable-rope lanyard (D) to ensure a restraint position will be maintained at all times. Readjust the adjustable-rope lanyard (D) as needed during the work task to maintain a restraint condition, preventing a fall at...
  • Page 10 For more information Honeywell Safety Products www.honeywellsafety.com 855 S. Mint Street Charlotte, NC 28202, USA Toll Free: 800.873.5242 hsptechsupport@honeywell.com Manual and other information about this product are available at: www.sps.honeywell. com/us/en/products/safety/fall-protection...
