Huawei PDU8000 Quick Manual

PDU8000 Transformer Power Distribution Box-T
Quick Guide
PDU8000 变压器配电箱-T
快速指南
Issue: 01
文档版本：01
PDF Code: 02405728
配电柜编码：02405728
Date: 2019-11-24
发布日期：2019-11-24
Copyright © Huawei Technologies Co., Ltd. 2019. All rights reserved
版权所有 © 华为技术有限公司2019。保留一切权利。
1 Precautions / 安全注意事项
Safety Precautions / 遵守所有安全注意事项
1.1
To ensure safety of humans and the equipment, pay attention to the safety symbols on the equipment and all the safety
instructions in this document. The "NOTE", "CAUTION", and "WARNING" marks in this document do not represent all
the safety instructions. They are only supplements to the safety instructions. When operating Huawei equipment, in
addition to following the general precautions in this document, follow the specific safety instructions given by Huawei.
Huawei will not be liable for any consequences that are caused by the violation of safety regulations and design,
production, and usage standards.
为保障人身和设备安全，在安装、操作、维护设备时，请遵循设备上标识及手册中说明的所有安全注意事项。手册中的
"安全警告"、"注意"、"说明"事项，并不代表所应遵守的所有安全事项，只作为所有安全注意事项的补充。在进行
本公司产品、设备的各项操作时，必须严格遵守由华为公司提供的相关设备注意事项和特殊安全指示。手册中列出的"安
全警告"仅代表了华为公司知道的部分，华为公司不承担任何因违反通用安全操作要求或违反设计、生产和使用设备安全
标准而造成损失的责任。
Local Safety Regulations / 遵守当地法规和规范
1.2
When operating the equipment, you must follow the local laws and regulations.
操作设备时，应遵守当地法规和规范。
Personnel Requirements / 人员要求
1.3
Only trained and qualified personnel are allowed to install, operate, and maintain Huawei equipment.
负责安装维护华为设备的人员，必须先经严格培训，掌握正确的操作方法及安全注意事项后，方可安装、操作和维护设备。
Before installation, get familiar with the following documents: Parts documents.
安装开始前，确保已经学习并掌握了除本文档以外的以下文档信息：随货的其它部件资料。
Human Safety / 人身安全
1.4
To ensure human safety, connect the ground cable first when connecting cables.
为确保人身安全, 连接电缆时先连接接地电缆。
Only trained and qualified personnel are allowed to install, operate, and maintain Huawei equipment, and they must
understand basic safety precautions to avoid hazards.
系统接线的操作人员必须具备基本的安全操作知识，需经过培训，掌握正确的操作方法，并具有相应作业资格。
To prevent electric shocks, get tools insulated and wear electrostatic discharge (ESD) gloves when connecting cables.
进行接线操作时，操作人员需对工具进行绝缘处理，佩戴绝缘手套，避免触电。
After the installation and commissioning, do not open the rear door or side panel. Otherwise, electric shocks may occur.
安装调测完成后，请勿擅自打开后门和侧板，否则会有触电的危险。
2 Model Description / 设备型号说明

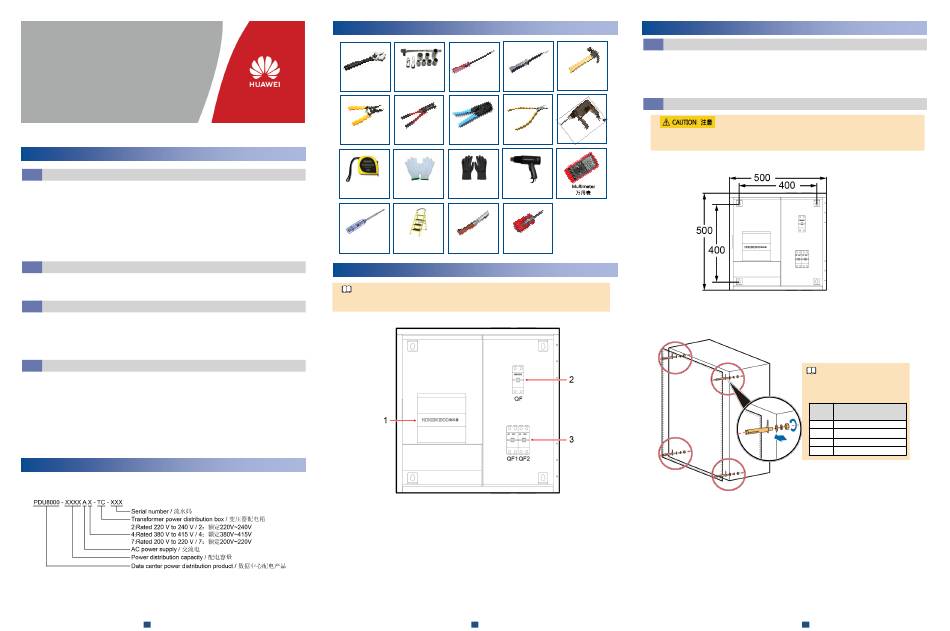

The following figure shows the model naming conventions for a transformer PDB.
变压器配电箱的设备型号说明如下所示：
5
3 Tools / 安装工具
Socket wrench Phillips screwdriver
Adjustable wrench
活动扳手 套筒扳手 十字螺丝刀
.
Wire stripper Hydraulic pliers Crimping tool
剥线钳
液压钳 压线钳
Measuring tape
Protective gloves Insulated gloves
卷尺 防护手套 绝缘手套
Electroprobe Step ladder (2 m) Electrician's knife
电笔
人字梯(2m) 电工刀
4 Power Distribution Box Layout / 配电箱布局图
NOTE / 说明
Box dimensions (H x W x D): 500 mm x 500 mm x 300 mm
箱体尺寸（高×宽×深）：500mm×500mm×300mm
Front view of power distribution box
配电箱前视图
1 Transformer 2 Input circuit breaker
变压器 输入空开
6
5
Installing a Power Distribution Box / 安装配电箱
Checking Before Installation / 安装前检查
5.1
Open the packing case, and check that all components listed in the packing list are intact. Ensure that all components
are available before cleaning up the package materials. If components or fittings are damaged during transportation or
do not comply with the order contract, make records onsite and contact the local Huawei regional office or
representative office immediately.
Flat-head screwdriver Claw hammer
打开包装箱，根据装箱清单检查设备的配件是否齐全、是否在运输过程中损坏。清除包装材料之前，要确保所有配件都
一字螺丝刀 羊角锤
已找到。如设备和配件在运输中损坏或与订货合同不符，应及时现场记录，并与华为公司当地分公司或办事处代表联系。
Installing the Power Distribution Box / 安装配电箱
5.2
Do not replace original components of the product during installation without authorization. If the replacement is
Diagonal pliers Hammer drill
required, contact Huawei engineers.
冲击钻
斜口钳
安装过程中，产品出厂原配部件不能擅自更换，如需更换，请联系华为工程师。
1. Plan the PDB installation position based on the following figure.
参考下图规划配电箱安装位置。
Unit: mm
Heat gun
单位：mm
热风枪
Short-handle Phillips
screwdriver (85 mm)
短柄十字螺丝刀(85mm)
2. Drill holes using a hammer drill and install expansion bolts.
用冲击钻钻孔并安装膨胀螺栓。
3. Align the four holes on the power distribution box with the secured bolts. Then move the power distribution box
downwards until the holes fit into the bolts.
将配电箱上面的4个安装孔对应扣入紧固好的螺栓，向下移动，使得配电箱安装孔扣入螺栓。
4. Open the door of the power distribution box, and remove the partition board.
将配电箱的门打开，拆除内部隔离板。
5. Tighten the four bolts to secure the power distribution box to the wall.
拧紧4个螺栓，将配电箱固定在墙上。
3 Output circuit breaker
输出空开
/
NOTE / 说明
The following table lists the tightening
torque of different bolts.
各螺栓紧固扭矩说明如下表所示。
Bolts / Recommended Torque
螺栓 / 推荐扭矩 (N· m)
M8 13
M10 27
M12 47
M16 120
1
