E1000
DC OUTPUT
E1000
DC
DC INPUT
10A
AC
5A
20A
8A
20A
11~60V-600W Max
AC OUTPUT-1800W Max
12V 20A Max
100W*2
18W*2
USER MANUAL
Please read the user manual thoroughly before using
support@pecron.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the E1000 LFP and is the answer not in the manual?

Questions and answers

James Gilliland
July 24, 2025

Can you wire solar panels in series as long as you stay below 60V input? I have e1000 generator.

Summary of Contents for Pecron E1000 LFP

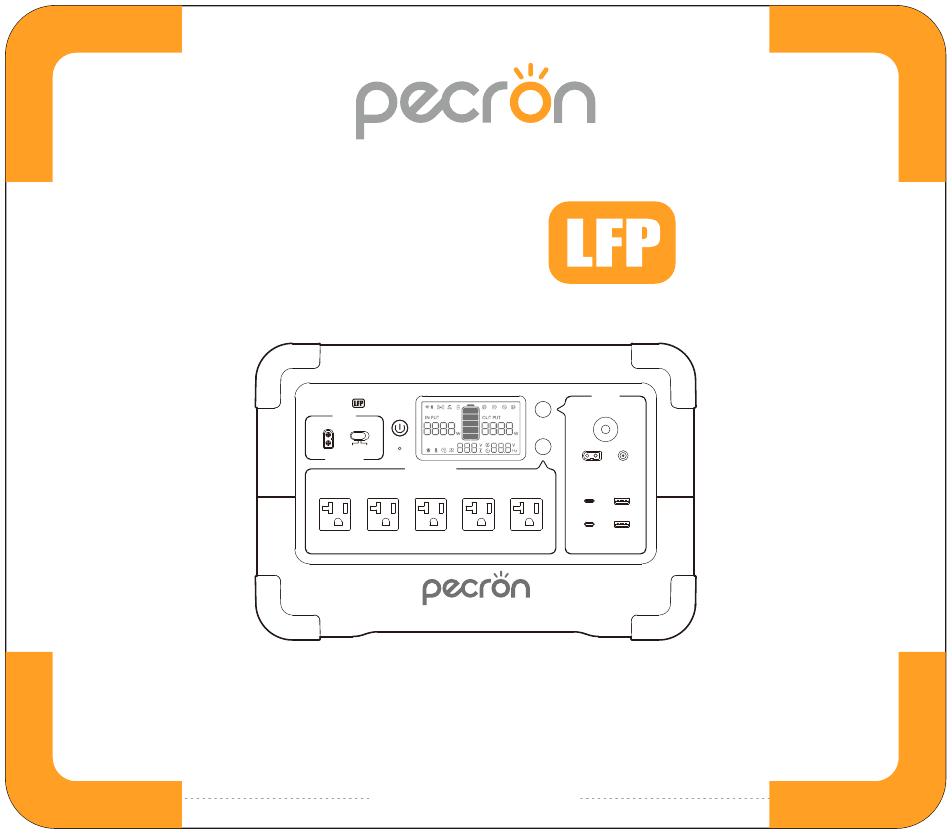

  • Page 1 E1000 DC OUTPUT E1000 DC INPUT 11~60V-600W Max AC OUTPUT-1800W Max 12V 20A Max 100W*2 18W*2 USER MANUAL Please read the user manual thoroughly before using support@pecron.com...
  • Page 2: Function Introduction

    External Grounding Port ③ ⑧ ⑬ DC 11V~60V Charging Port DC12V Auxiliary Output AC 100V~120V Charging Port ④ ⑨ ⑭ Adjustment Button of DC Charging Port DC12V(5525) Output Battery Expansion Port ⑤ ⑩ AC 100V~120V Output DC12V XT60 Output support@pecron.com...
  • Page 3: Specifications

    USB-A *2 (5V,9V,12V, Max 18W)*2 (5V,9V,12V,20V, Max 100W)*2 USB-C *2 280W Max XT60 Output *1 DC 12V-20A Cigar Port *1 DC 12V-10A DC 5525 Output *1 DC 12V-5A AC OUTPUT Pure sine wave 100V~120V BS-U20 *5 Rated 1800W Max support@pecron.com...
  • Page 4 15A Max DC INPUT 11V~60V XT60 *1 600W Max 20A Max EXTRA BATTERY PORT MJ32 *1 48V, 20A MAX HOW TO USE THE E1000 LFP DC OUTPUT E1000 DC INPUT 11~60V-600W Max AC OUTPUT-1800W Max 12V 20A Max 100W*2 18W*2 Short press to turn on, long press to turn off, short press to turn off the screen while working;...
  • Page 5 Connection Of Expansion Battery Pack Timer Swith On ⑥ ⑮ Battery Level Battery heating has been turned on ⑦ ⑯ UPS Function Battery Volume(voltage) ⑧ ⑰ DC Output/Input AC/DC Output Wattage ⑨ ⑱ AC Output/Input Remaining Hours Of Charge/Discharge support@pecron.com...
  • Page 6: Packing List

    This UPS function only support protection for loads under 1800W(120V), we recommend that you only connect one device at a time to avoid overload and thus result in protection failure. PECRON is not responsible for any devices damage or loss of data resulting from failing to follow the instructions. E1000...
  • Page 7 Cascading will be faster if there is only 10% difference between the main power 100% station and the expansion battery pack. EXTRA BATTERY PORT 1 EXTRA BATTERY PORT 2 HOW TO CHARGE THE E1000 LFP BY AC ? EXTRA BATTERY PORT ONLY CONNECT ED TO BATTERY AC INPUT 100~120V 15A MAX AC INPUT 100~120V 15A MAX support@pecron.com...
  • Page 8 HOW TO CHARGE THE E1000 LFP BY VEHICLE ? DC OUTPUT E1000 DC INPUT 11~60V-600W Max AC OUTPUT-1800W Max 12V 20A Max 100W*2 18W*2 Attention: Do not adjust to 20A for use when using car charging because the car cigarette lighter plug cannot hold 20A current!
  • Page 9 11~60V-600W Max MC4 Solar Charging Cable *1 ※ It is recommended to choose PECRON solar panels for optimal user experience! The VOC of a single solar panel should be less than 60V, and the VMP should be greater than 11V. support@pecron.com...
  • Page 10 (NOTE:This parallel charging cable sold separately) ※ It is recommended to choose PECRON solar panels for optimal user experience! The VOC of a single solar panel should be less than 60V, and the VMP should be greater than 11V. DO NOT WIRE TWO SOLAR PANELS IN SERIES!...
  • Page 11 Operation time = Battery Capacity (Wh) x DoD x n ÷ (Load Power + E1000 LFP Self-con-sumption) Note: DoD refers to the depth of discharge. E1000 LFP works at 95% DoD for longer battery life.n is the conversion efficiency of the inverter, typically over 93% for E1000 LFP. The self-consumption of E1000 LFP is approximately 12W.
  • Page 12 The user shall be responsible for his own actions and all consequences arising from failure to use the device in accordance with the “User Manual”, or as authorized in PECRON's current product literature.
  • Page 13 2、If the battery cannot be completely discharged due to the failure of the product itself, please do not dispose of the battery directly in the battery recycling box, and contact a professional battery recycling company for further disposal. 3、The battery will not be able to start after being over-discharged, please dispose of it according to the principle of disposal. support@pecron.com...
  • Page 14 EXCLUSIONS PECRON’s warranty does not apply to: Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in PECRON’s current product literature. CUSTOMER SUPPORT:support@pecron.com WEBSITE:www.pecron.com support@pecron.com...
  • Page 15 POWER IT POSSIBLE www.pecron.com support@pecron.com...
